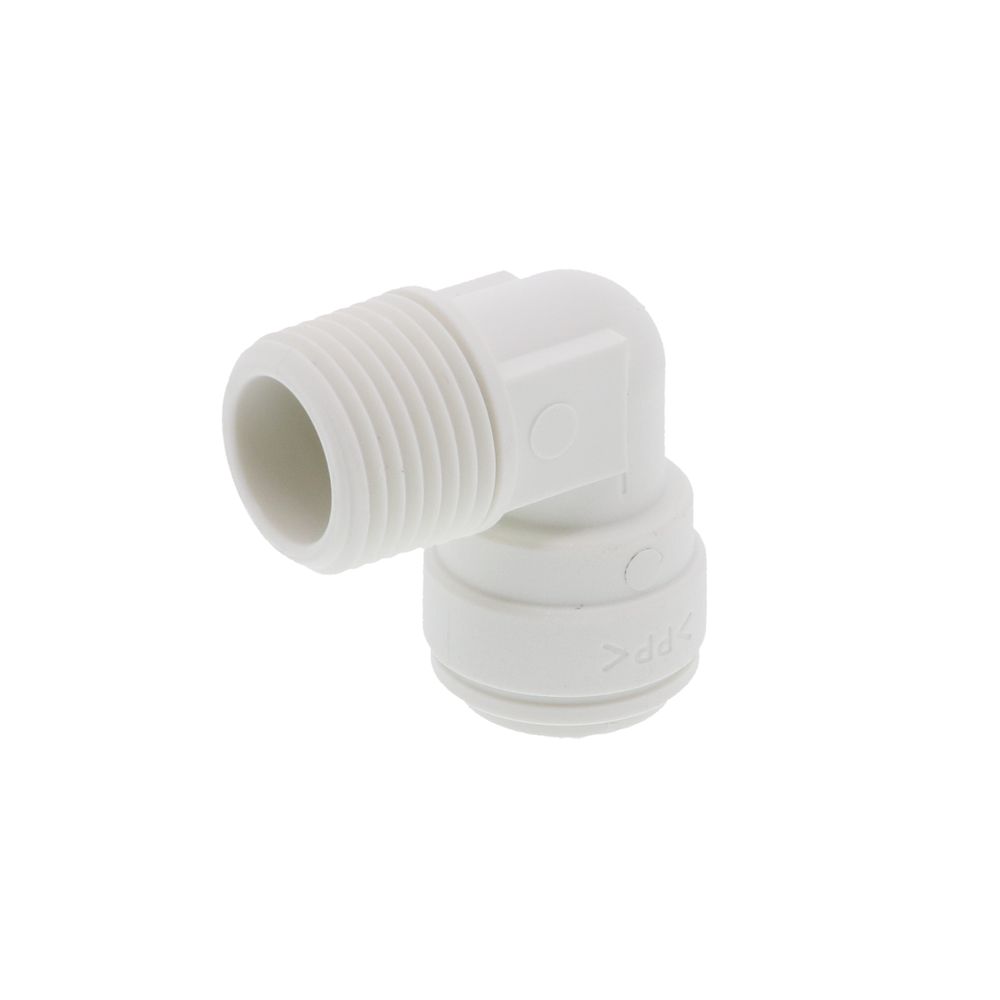

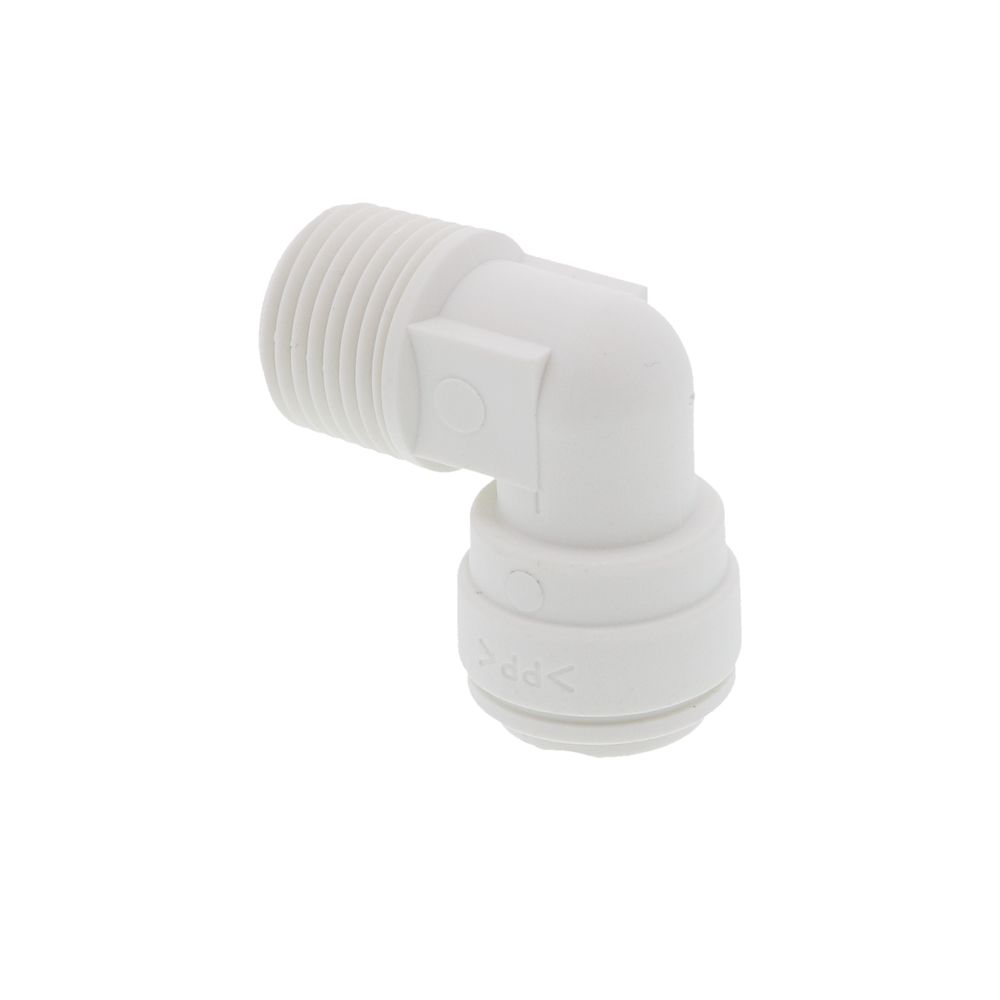

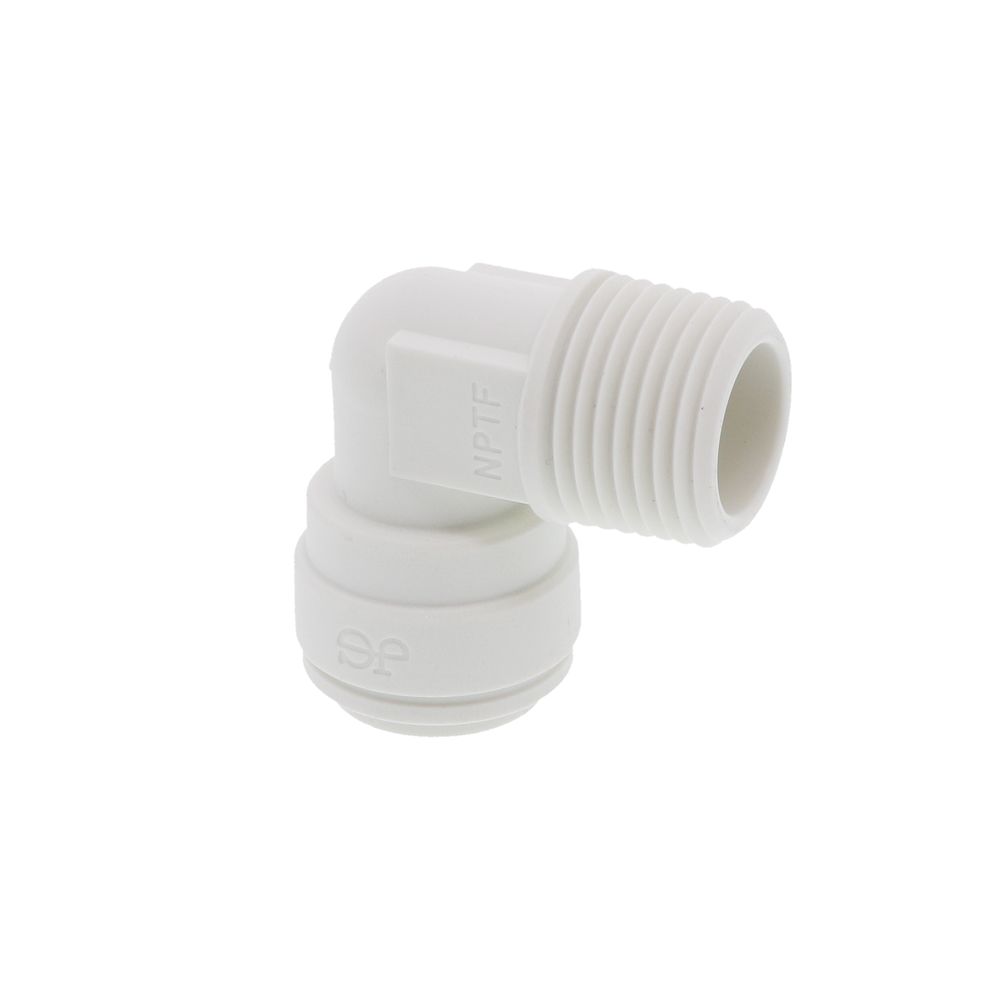

John Guest Fixed Elbow NPTF Polypro - 3/8 x 3/8 NPTF

Part Number: PP481223W-X
Alt. Part Number: PME6-N3-W
Your price:
The John Guest fixed elbow makes connecting OD tubing sizes to female NPT threads quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

  • Push-fit Technology creates reliable, leak-free connections
  • Used to connect OD tubing sizes to female NPT threads
  • Compatible with plastic or copper OD sized tubing
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Polypropylene body with EDPM O-ring
  • Made with lead free materials

Working pressure and temperature:
  • Max. 150 psi at 70° F
  • Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.
