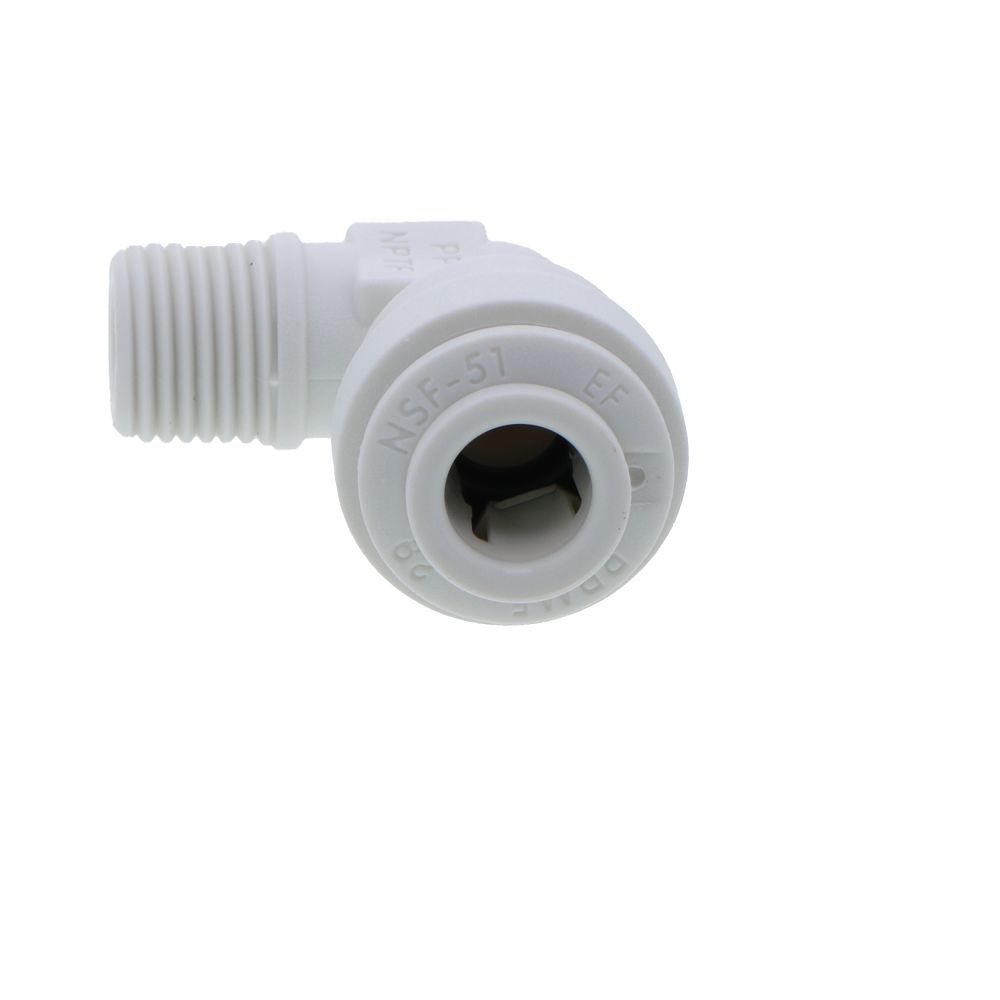

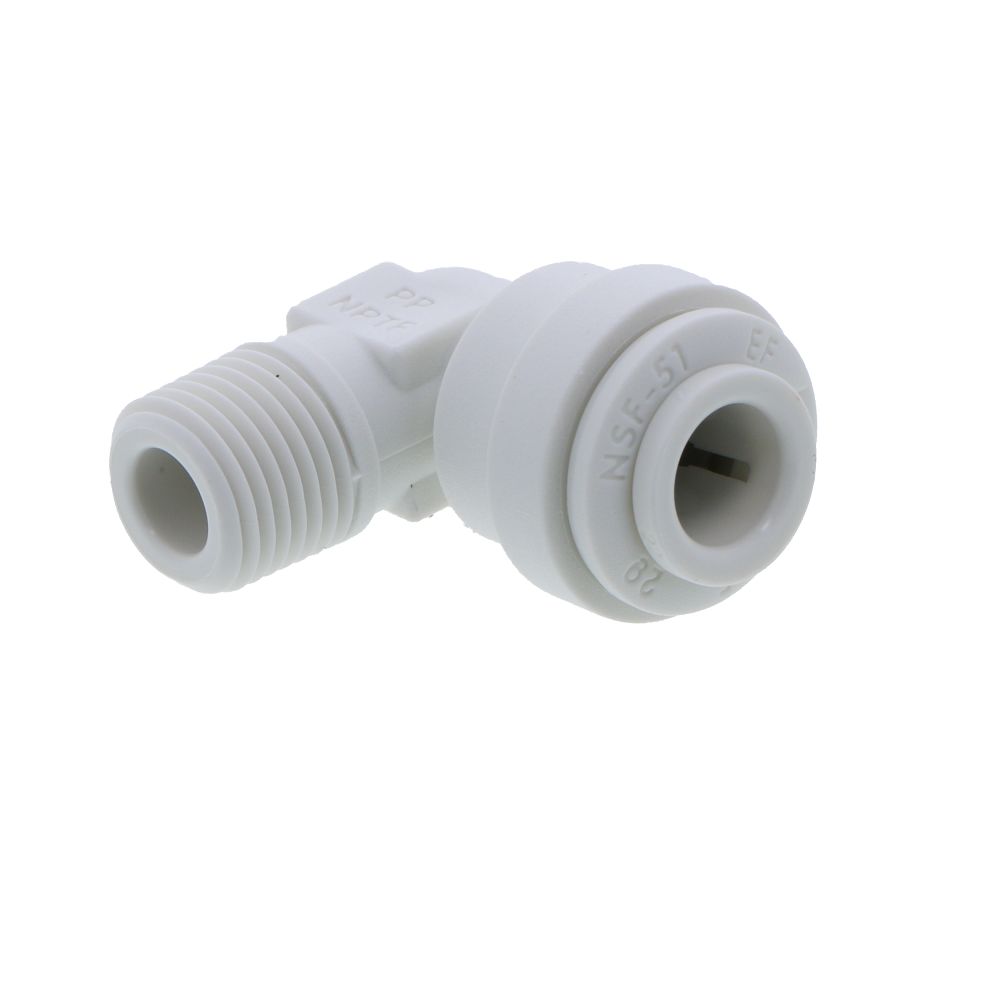

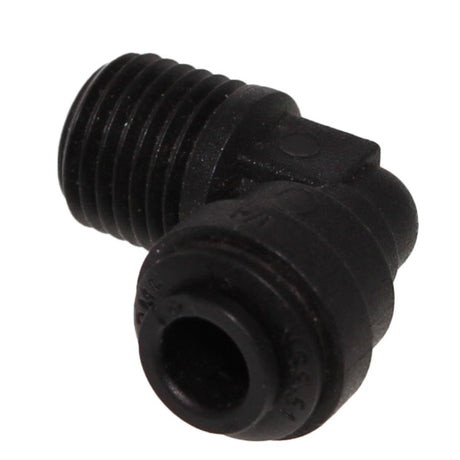

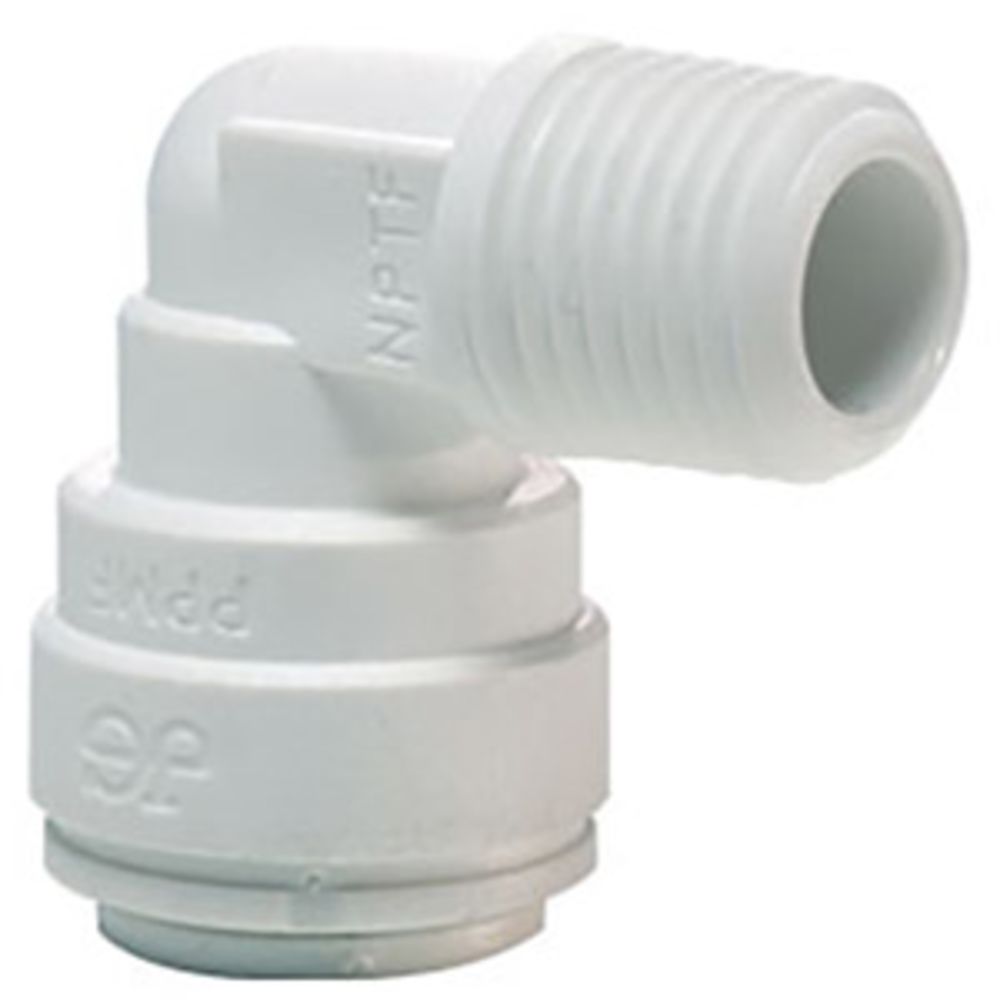

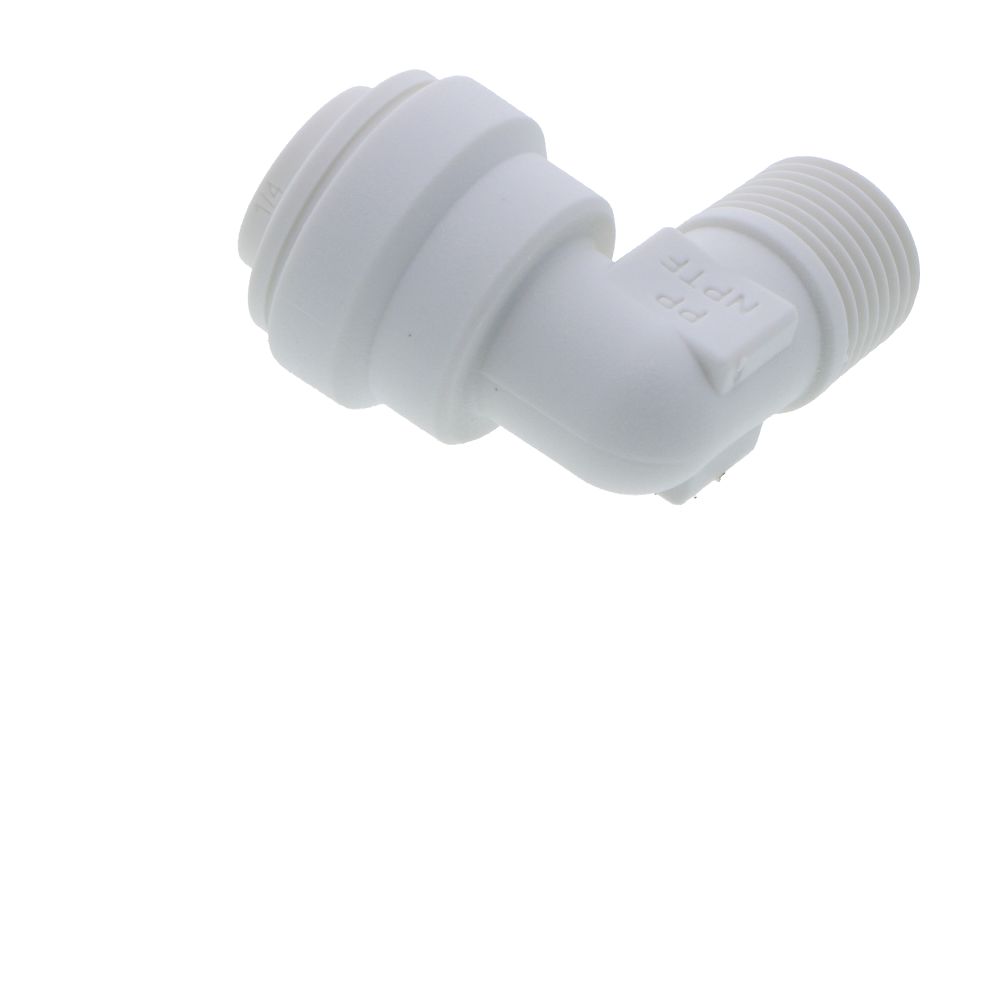

The John Guest fixed elbow makes connecting OD tubing sizes to female NPT threads quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:

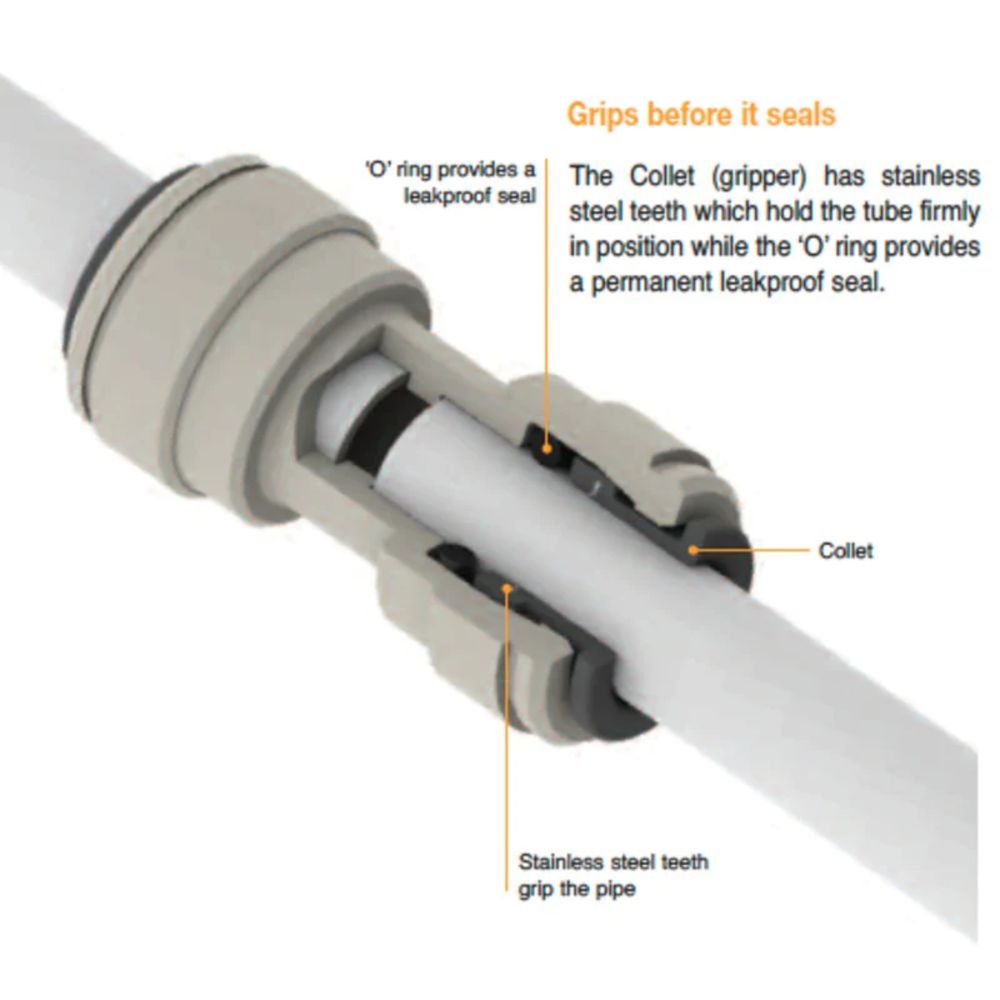

• Push-fit Technology creates reliable, leak-free connections
• Used to connect OD tubing sizes to female NPT threads
• Compatible with plastic or copper OD sized tubing
• Connect, disconnect, and reconnect in seconds without tools
• Food Quality and suitable for potable liquids and pure water applications
• Polypropylene body with EDPM O-ring
• Made with lead free materials

Working pressure and temperature:

• Max. 150 psi at 70° F
• Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.
