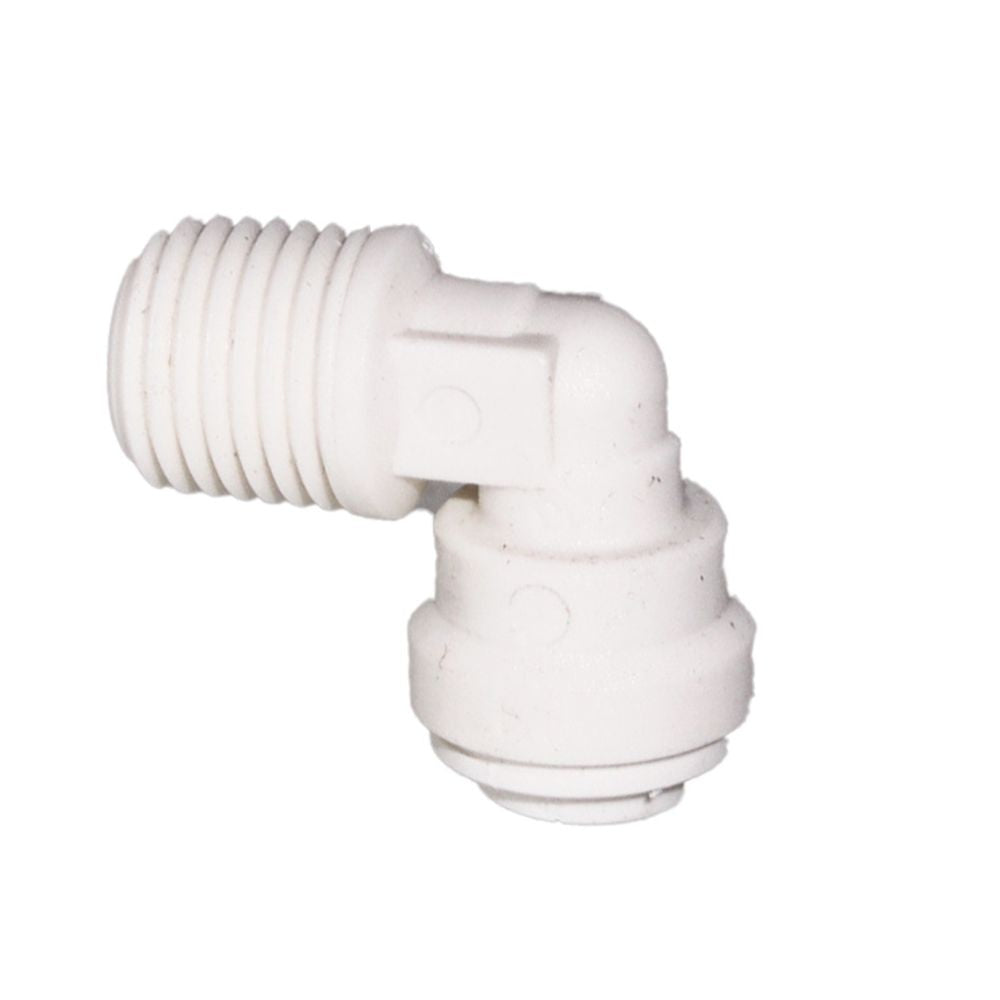

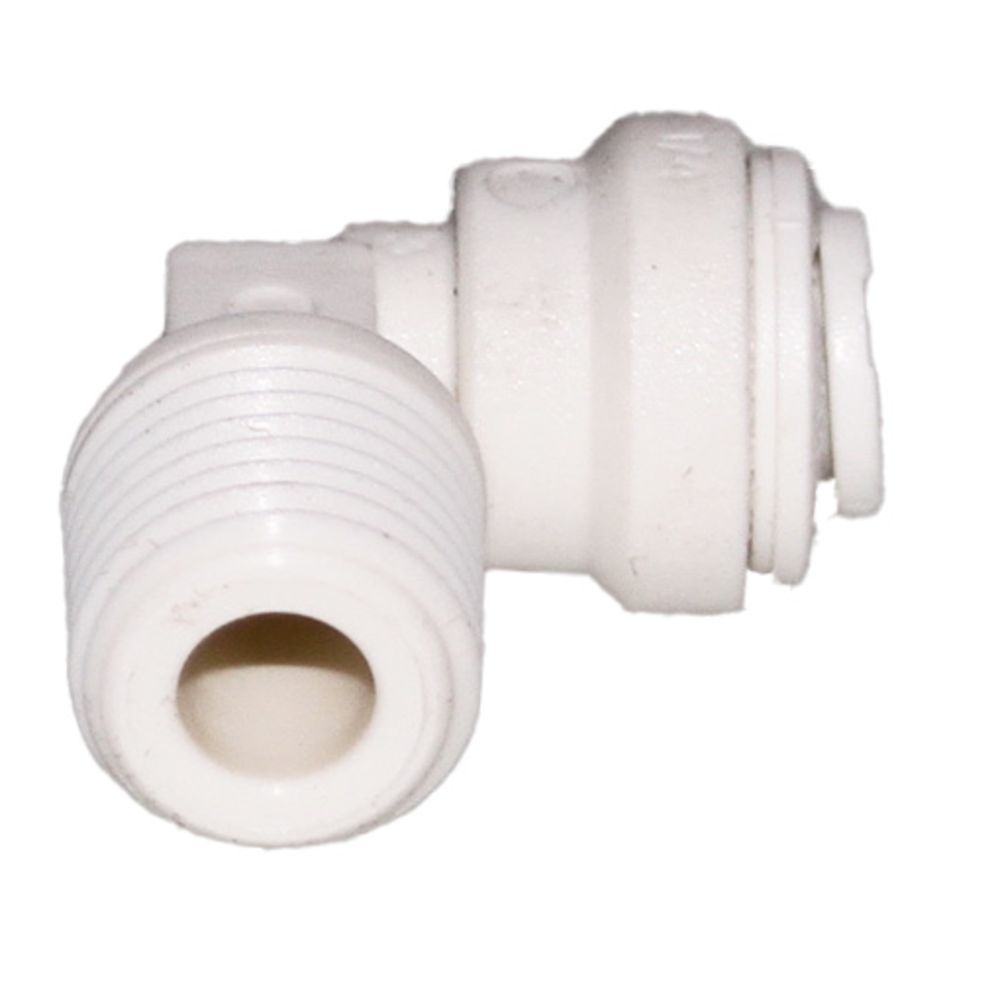

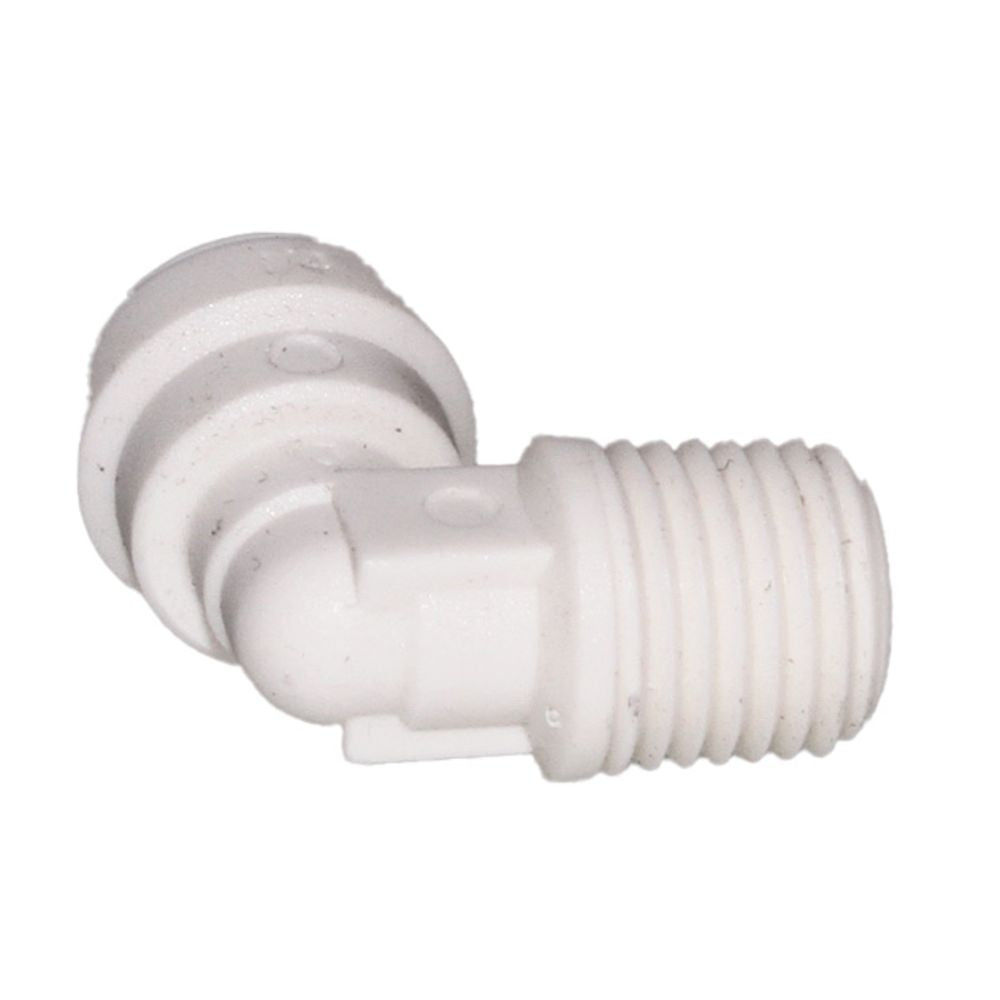

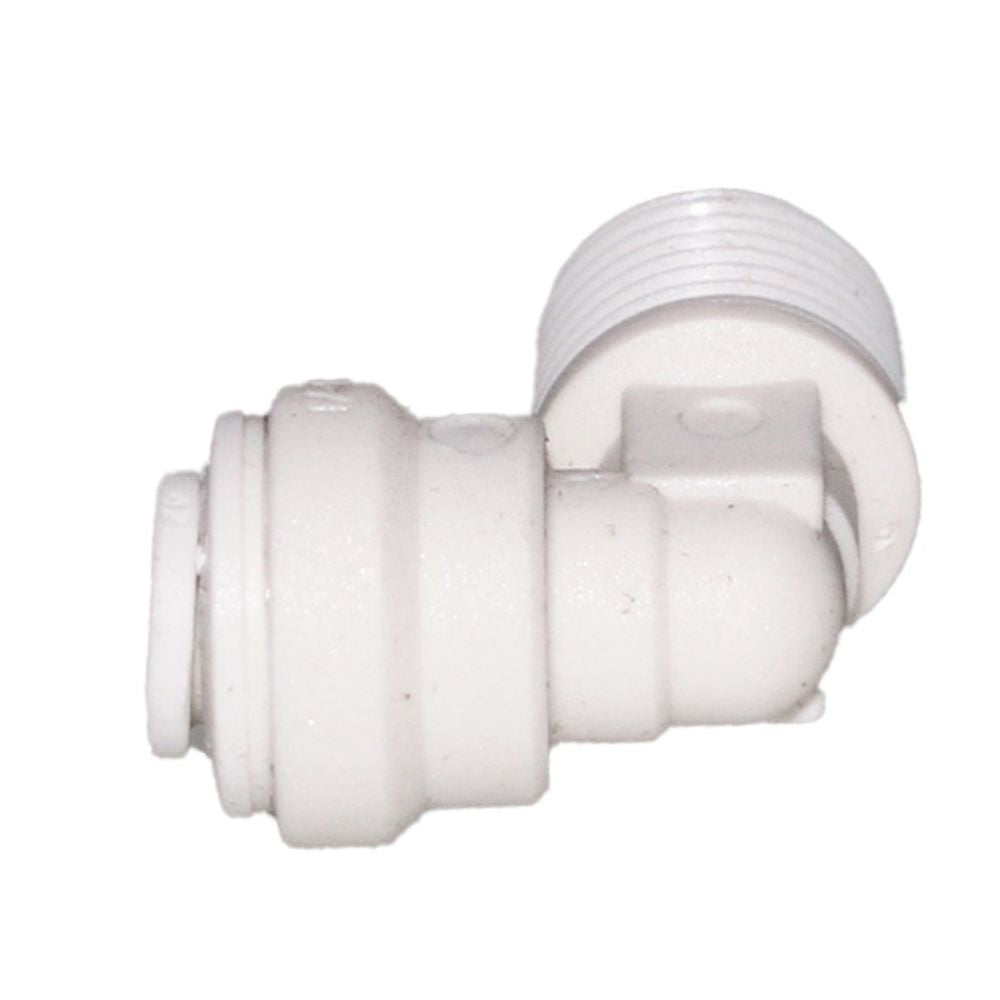

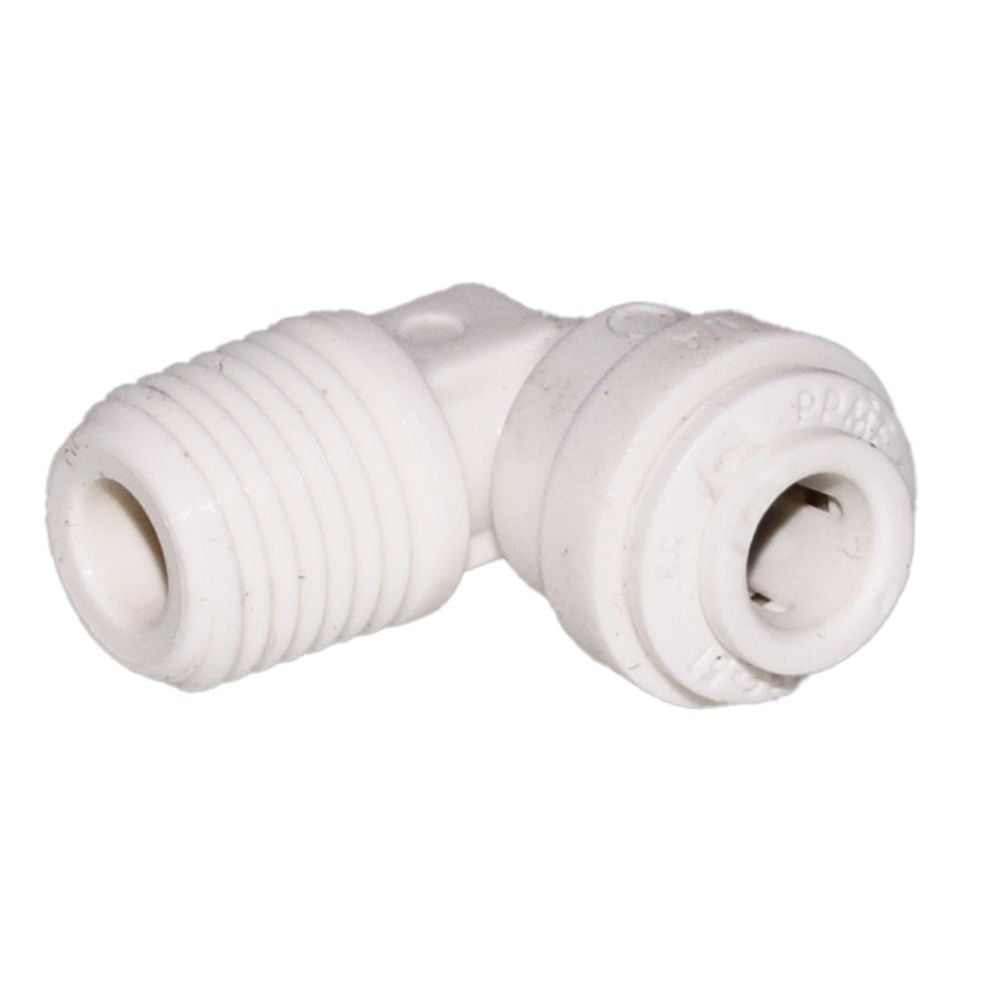

John Guest Fixed Elbow NPTF Polypro - 1/4 x 1/4 NPTF

Part Number: PP480822W-X Alt. Part Number: PME4-N2-W

1 6

John Guest

John Guest Fixed Elbow NPTF Polypro - 1/4 x 1/4 NPTF

Part Number: PP480822W-X Alt. Part Number: PME4-N2-W

MSRP: $3.20

$1.92

Quantity

Unit Price

Price

Savings

$1.92

—

$1.62

$16.28

15%

400

$1.58

$632.99

17%

2500

$1.63

$4,080.00

15%

Product variants

You May Also Need

Optional Accessory
Black 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.95
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 1/4 OD Tubing

Regular price From $0.15
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest fixed elbow makes connecting OD tubing sizes to female NPT threads quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the filtered pure water market.

Features:

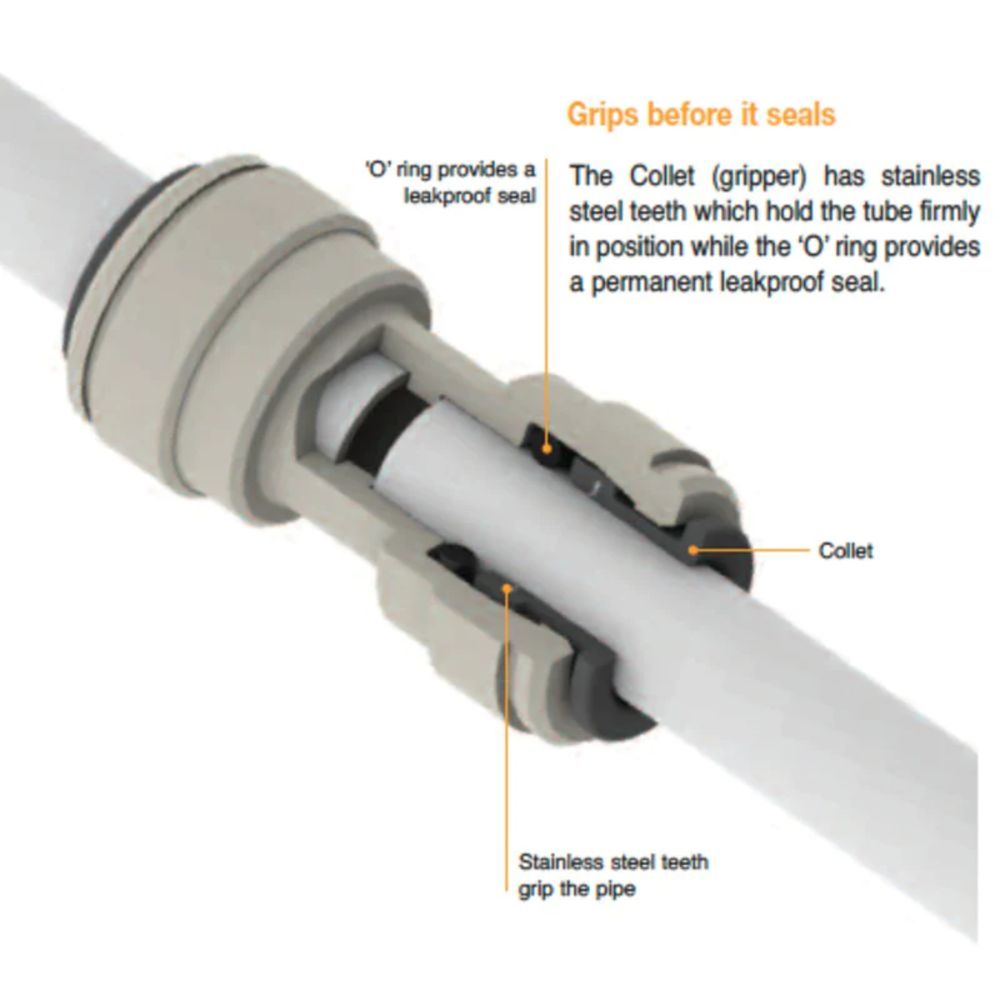

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing sizes to female NPT threads
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	PP
Shape	Elbow
Size	1/4"
Color / Finish	White
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	1 in.
Shipping Width	1 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.01

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	PP
Shape	Elbow
Size	1/4"
Color / Finish	White
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.088

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	PP
Shape	Elbow
Size	1/4"
Color / Finish	White
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	3.52

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	PP
Shape	Elbow
Size	1/4"
Color / Finish	White
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Male Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	21.65 in.
Shipping Width	10.63 in.
Shipping Height	11.42 in.
Product Weight & Dimensions
Product Height	11.42"
Product Length	21.65"
Product Width	10.63"
Product Weight (lbs)	25

Downloads

John Guest Fixed Elbow NPTF Polypro - 1/4 x 1/4 NPTF Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

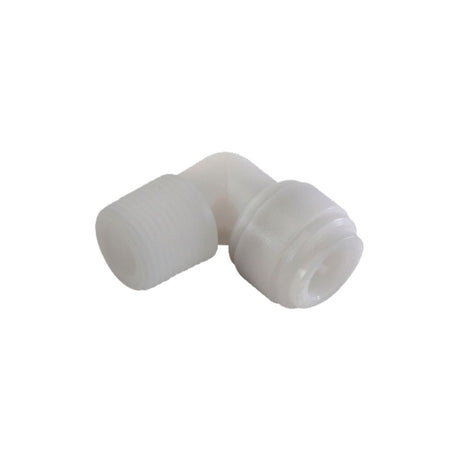

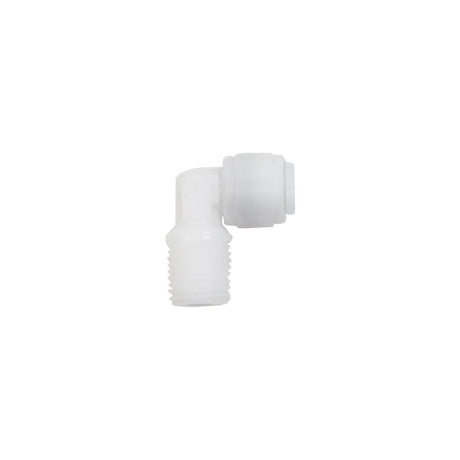

Facet	John Guest John Guest Fixed Elbow NPTF Polypro - 1/4 x 1/4 NPTF Regular price From $1.92 Part #: PP480822W-X Save up to 17% with bulk pricing Current Product	NeoFit NeoFit - Polypropylene Natural White Male Elbow- 1/4"tube OD x 1/4"NPTF Regular price From $1.56 Part #: PME4-N2-W Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Male Elbow- 1/4"tube OD x 1/4"NPTF Regular price From $1.62 Part #: AME4-N2-W Save up to 9% with bulk pricing View details	NeoFit NeoFit - Acetal Black Male Elbow 1/4"tube x 1/4"NPTF Regular price From $1.64 Part #: AME4-N2-E Save up to 9% with bulk pricing View details
