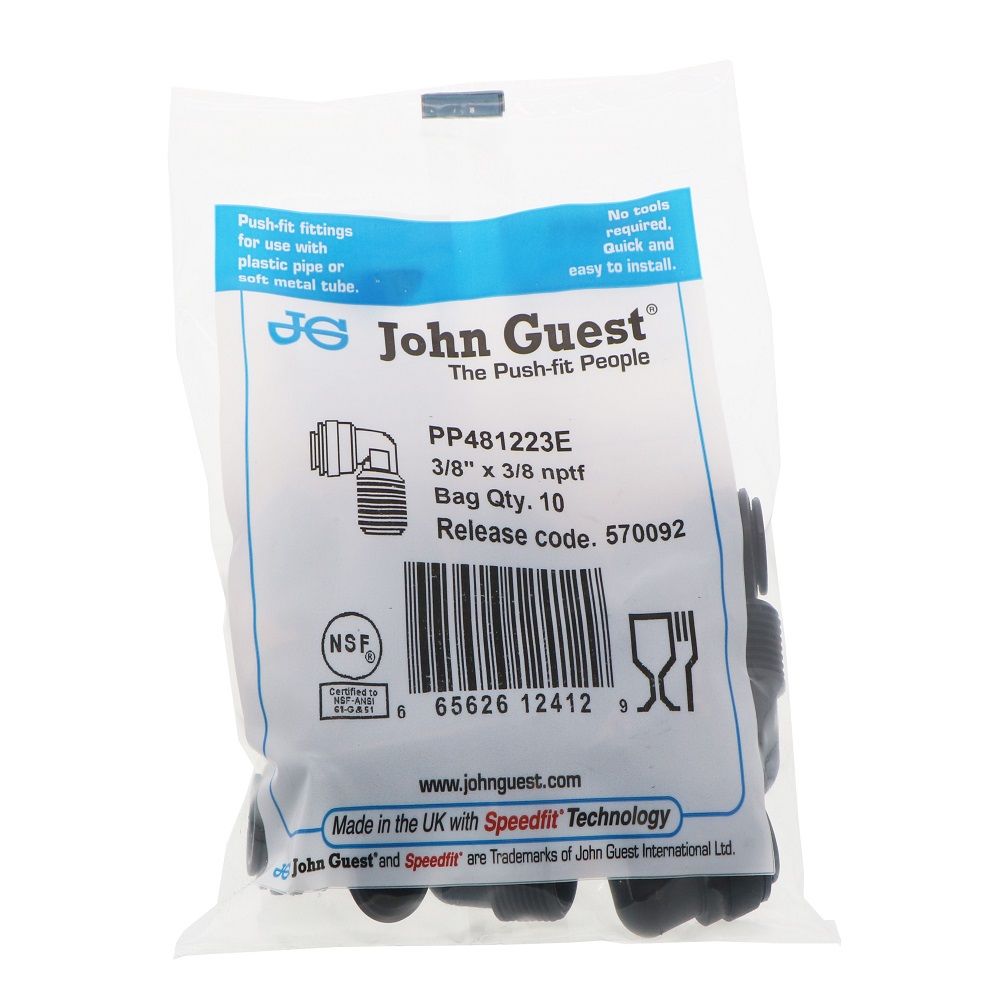

John Guest Fixed Elbow NPTF Black Polypropylene - 3/8 x 3/8 NPTF
John Guest
John Guest Fixed Elbow NPTF Black Polypropylene - 3/8 x 3/8 NPTF
John Guest Fixed Elbow NPTF Black Polypropylene - 3/8 x 3/8 NPTF
Part Number: PP481223E
Alt. Part Number: PI251212SL
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
More expected soon
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

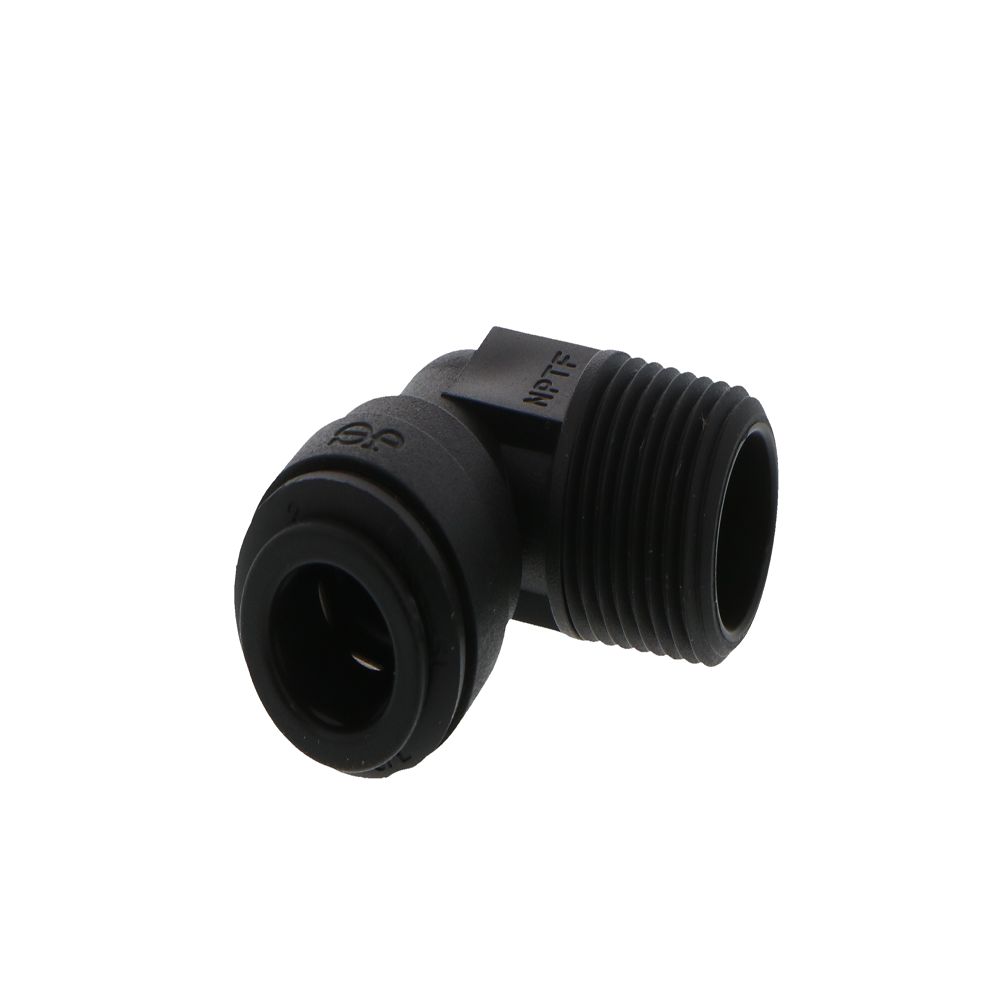

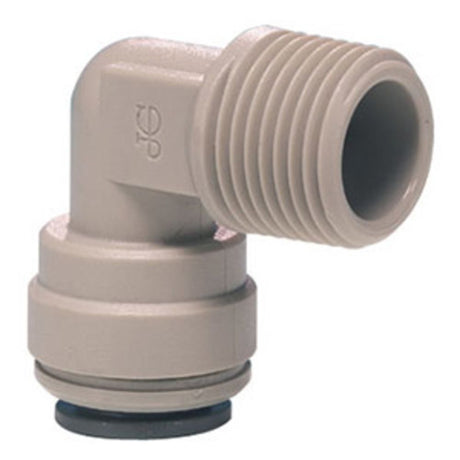

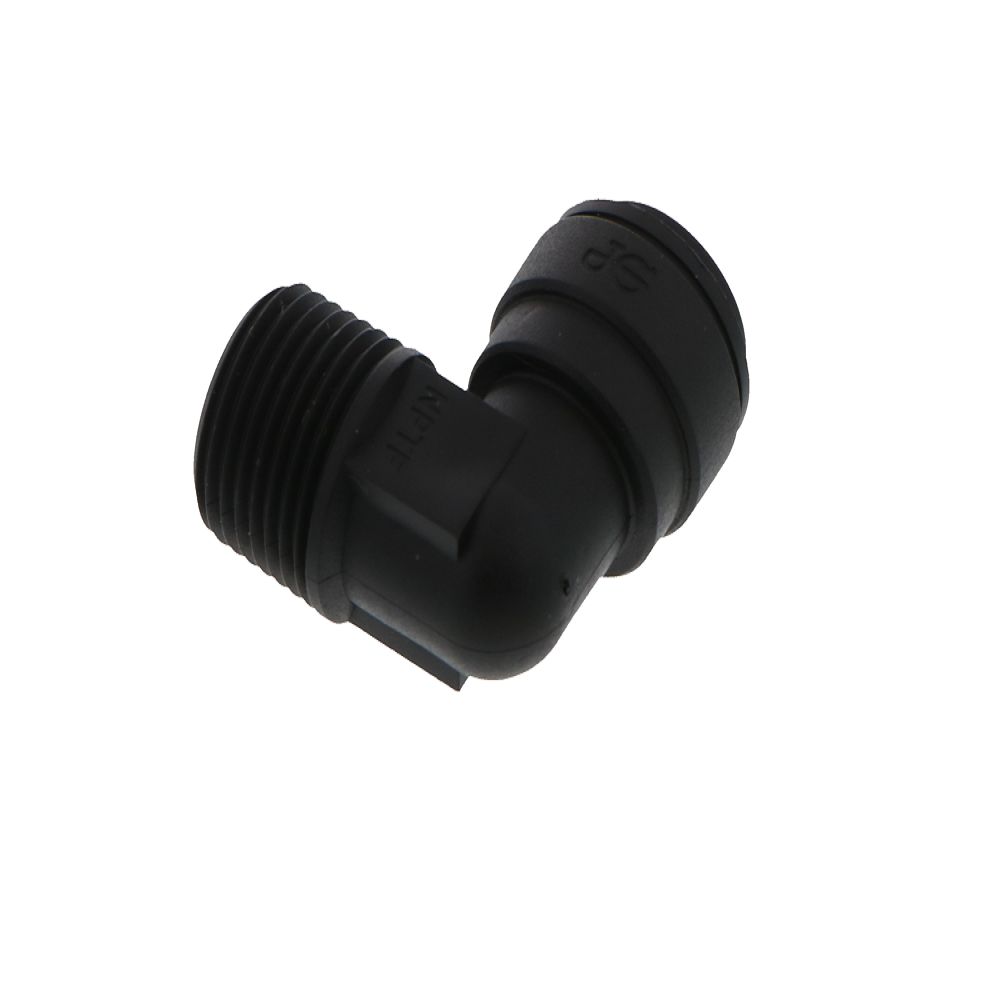

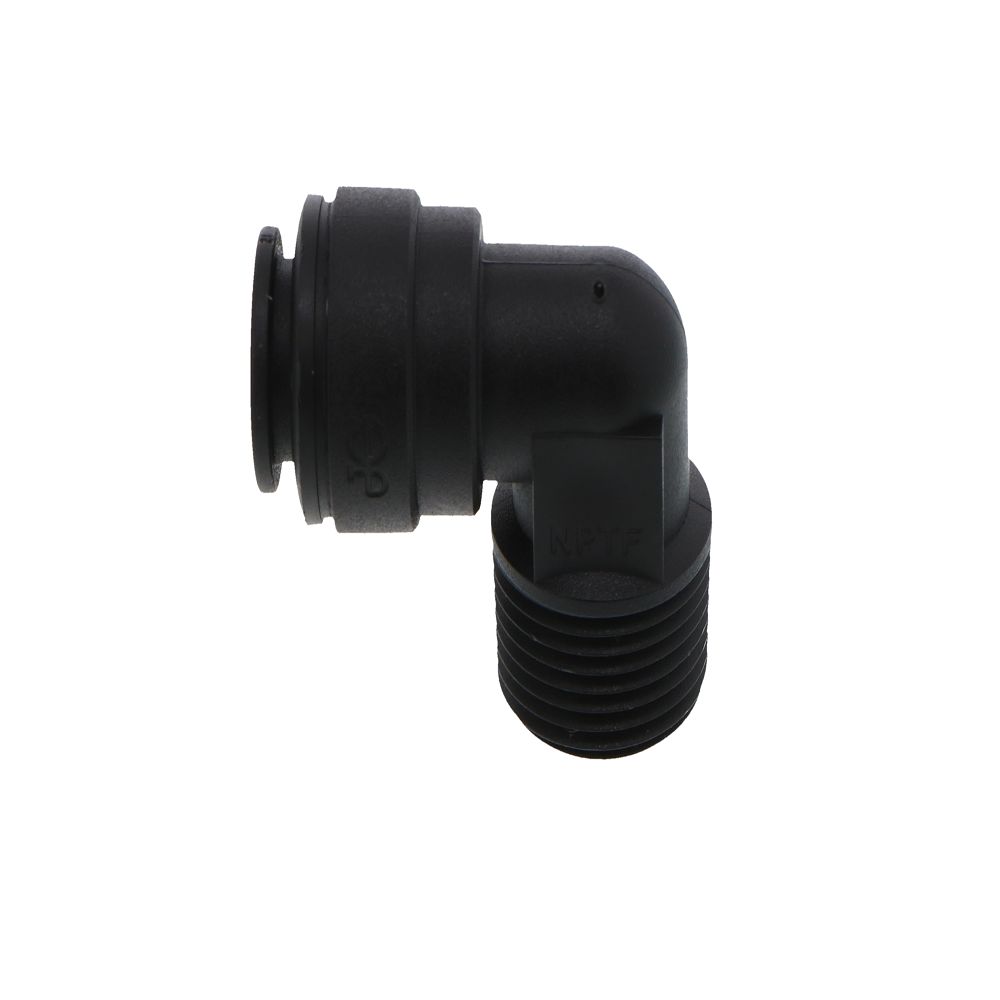

The John Guest fixed elbow makes connecting OD tubing sizes to female NPT threads quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the water purification and beverage dispense markets. They are also suitable for use in agricultural spraying, farm/dairy equipment, chemical dispense, car washing and a variety of other applications.
Features:
Working pressure and temperature:
Note: Not suitable for compressed air and vacuum applications
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to connect OD tubing sizes to female NPT threads
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Polypropylene body with EDPM O-ring
- UV Stabilized
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70° F
- Max. 60 psi at 140° F
Note: Not suitable for compressed air and vacuum applications
Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.
