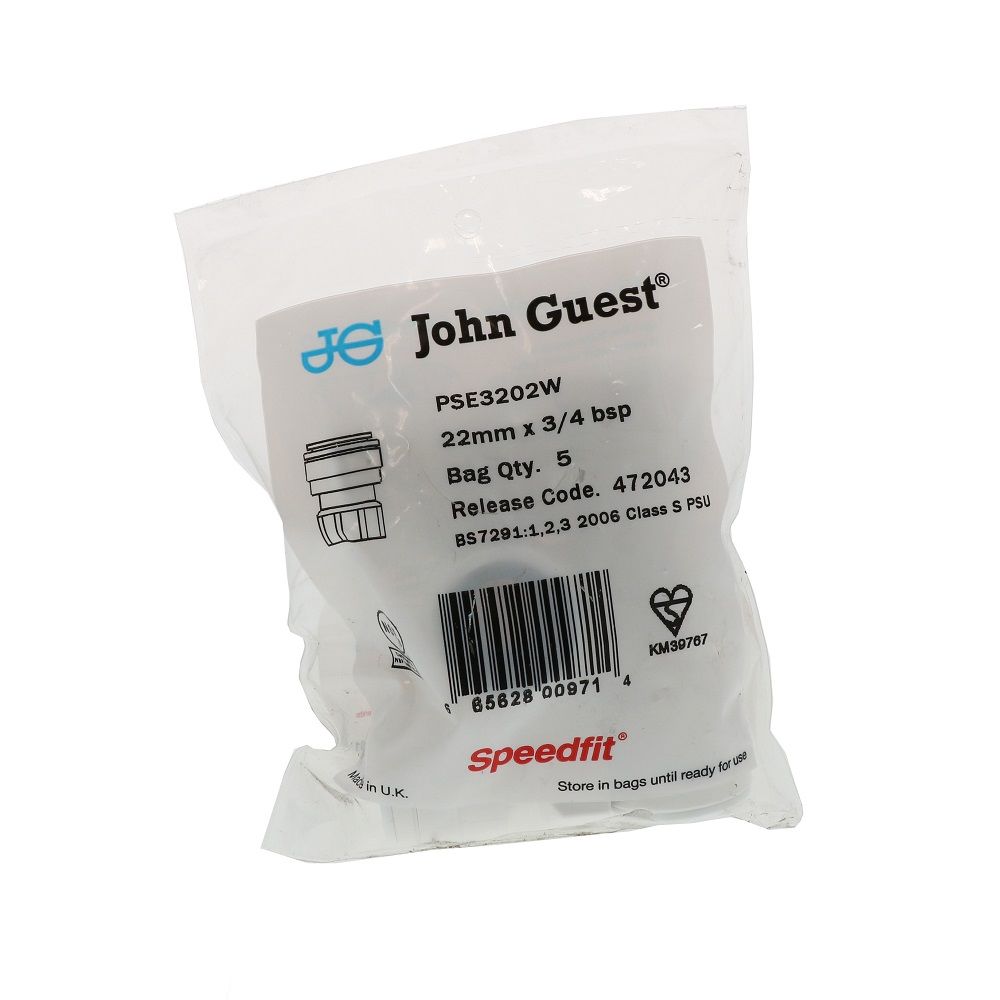

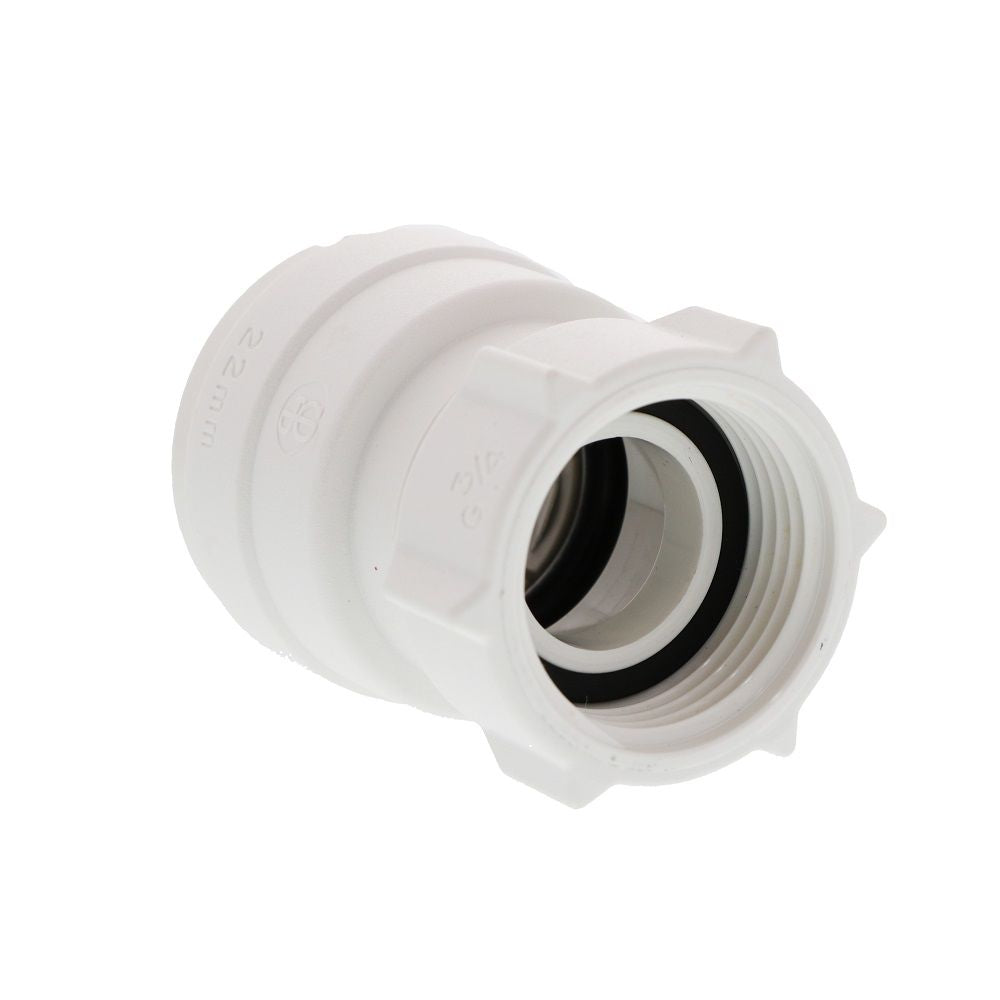

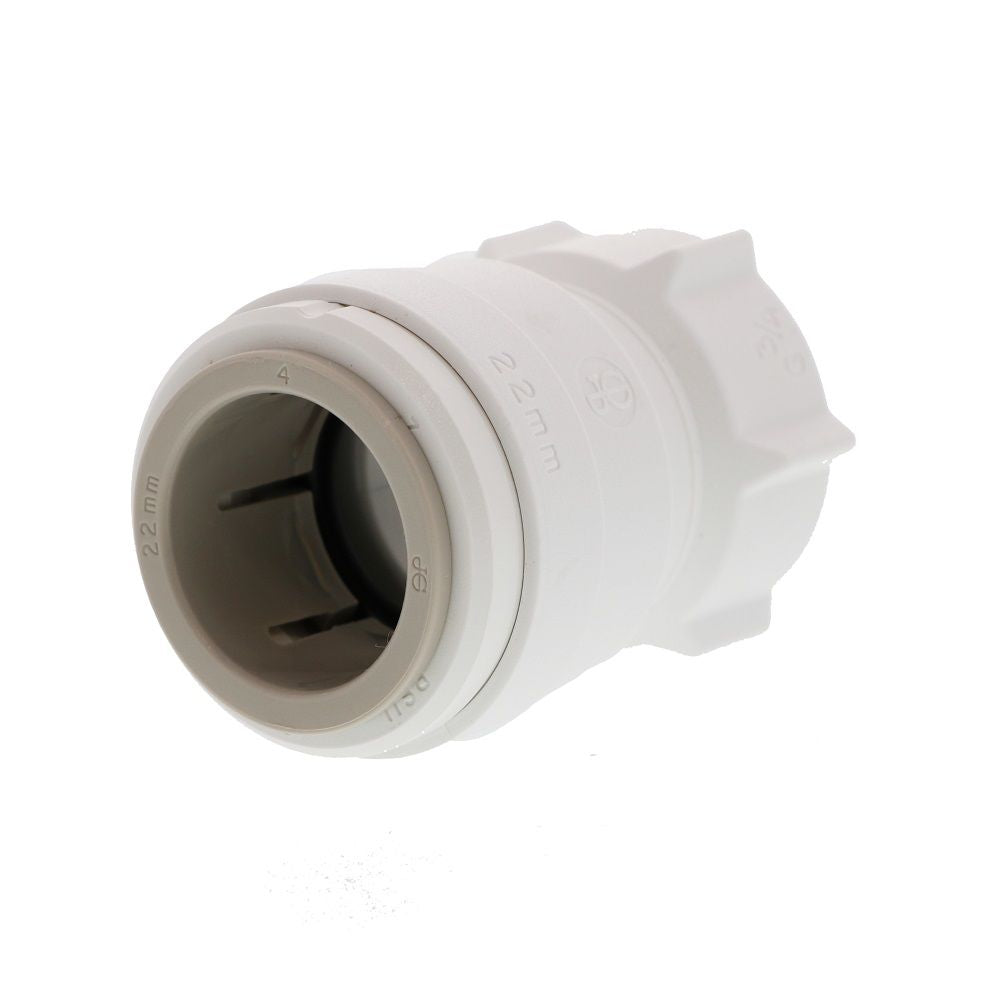

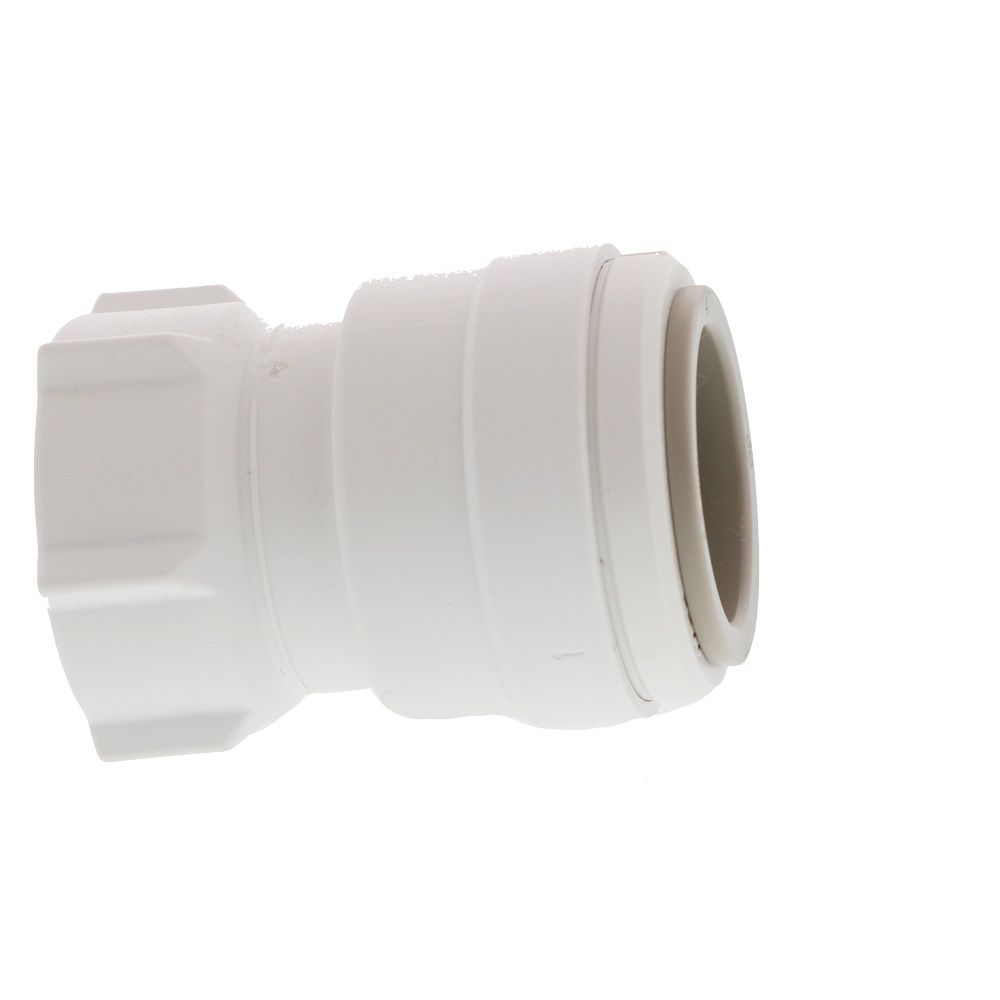

John Guest Female Connector BSP - 22mm x 3/4 BSP
Part Number: PSE3202W
Alt. Part Number: AM3202W, PKM3202W, CM3202W
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Instant push-fit and hand-tighten connection
- Install and demount in seconds without tools
- Grip & Seal collet with stainless steel teeth and main O-Ring seal
- Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe
- Suitable for hot and cold water and central heating systems
Working Pressure & Temperature:
- Max 160 psi at 73° F
- Max 100 psi at 180° F
- Max 80 psi at 200° F
Product Details | |
---|---|
Application | CPVC Copper Tubing Material PEX |
Body Material | Polypropylene |
Inlet Connection | 3/4" BSP |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Outlet Connection | 3/4" BSP |
Push-In Size | 22mm OD |
Seal Material | EPDM |
Series | PEM |
Shape | Straight |
Size | 3/4" |
Color / Finish | White |
Connection Type | BSP |
Origin | UK |
Size Type | Common Tube Size (CTS) |
Sub-Type | Female Adapter |
Type | Adapter |
Warranty & Certifications | |
Certifications | NSF 61, NSF 372, IAPMO/ANSI Z1157, Lead Free Materials, UPC (Uniform Plumbing Code) |
Product Details | |
---|---|
Application | CPVC Copper Tubing Material PEX |
Body Material | Polypropylene |
Inlet Connection | 3/4" BSP |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Outlet Connection | 3/4" BSP |
Push-In Size | 22mm OD |
Seal Material | EPDM |
Series | PEM |
Shape | Straight |
Size | 3/4" |
Color / Finish | White |
Connection Type | BSP |
Origin | UK |
Size Type | Common Tube Size (CTS) |
Sub-Type | Female Adapter |
Type | Adapter |
Warranty & Certifications | |
Certifications | NSF 61, NSF 372, IAPMO/ANSI Z1157, Lead Free Materials, UPC (Uniform Plumbing Code) |
Product Details | |
---|---|
Application | CPVC Copper Tubing Material PEX |
Body Material | Polypropylene |
Inlet Connection | 3/4" BSP |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Outlet Connection | 3/4" BSP |
Push-In Size | 22mm OD |
Seal Material | EPDM |
Series | PEM |
Shape | Straight |
Size | 3/4" |
Color / Finish | White |
Connection Type | BSP |
Origin | UK |
Size Type | Common Tube Size (CTS) |
Sub-Type | Female Adapter |
Type | Adapter |
Warranty & Certifications | |
Certifications | NSF 61, NSF 372, IAPMO/ANSI Z1157, Lead Free Materials, UPC (Uniform Plumbing Code) |
Features:
- Instant push-fit and hand-tighten connection
- Install and demount in seconds without tools
- Grip & Seal collet with stainless steel teeth and main O-Ring seal
- Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe
- Suitable for hot and cold water and central heating systems
Working Pressure & Temperature:
- Max 160 psi at 73° F
- Max 100 psi at 180° F
- Max 80 psi at 200° F
