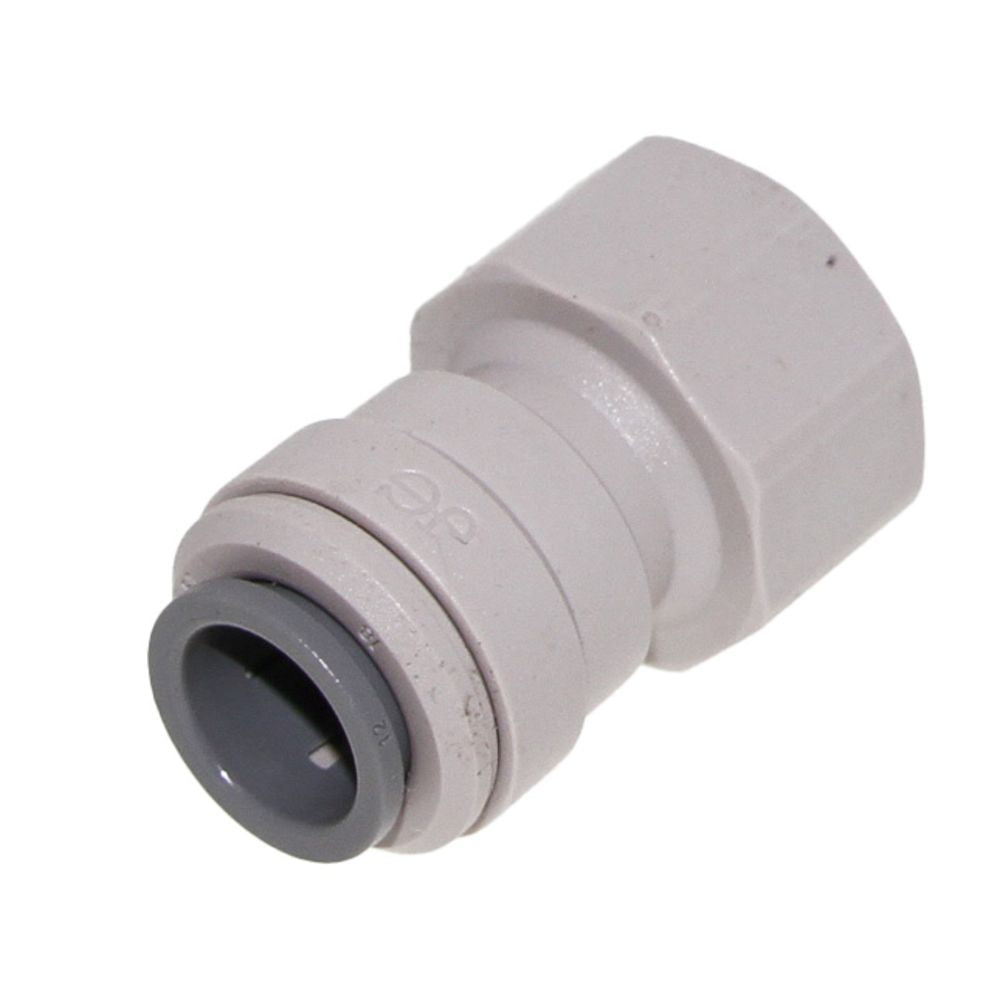

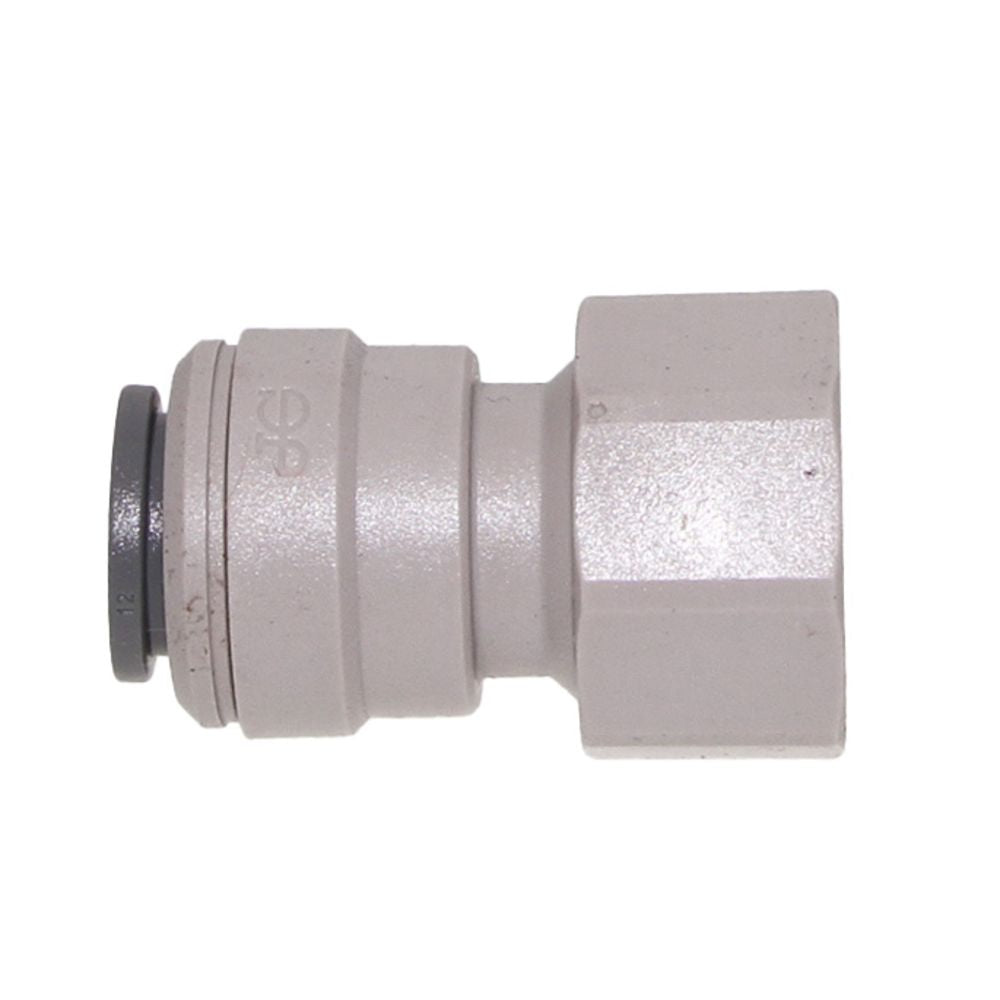

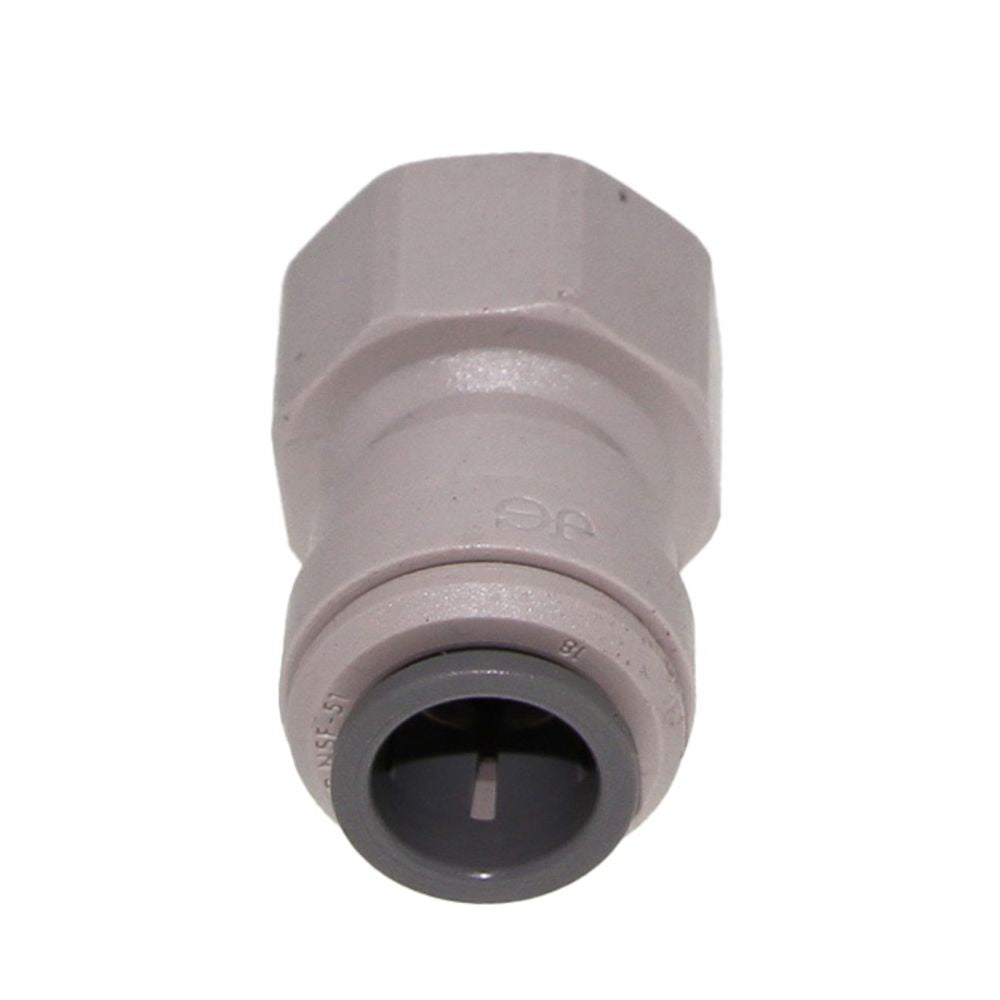

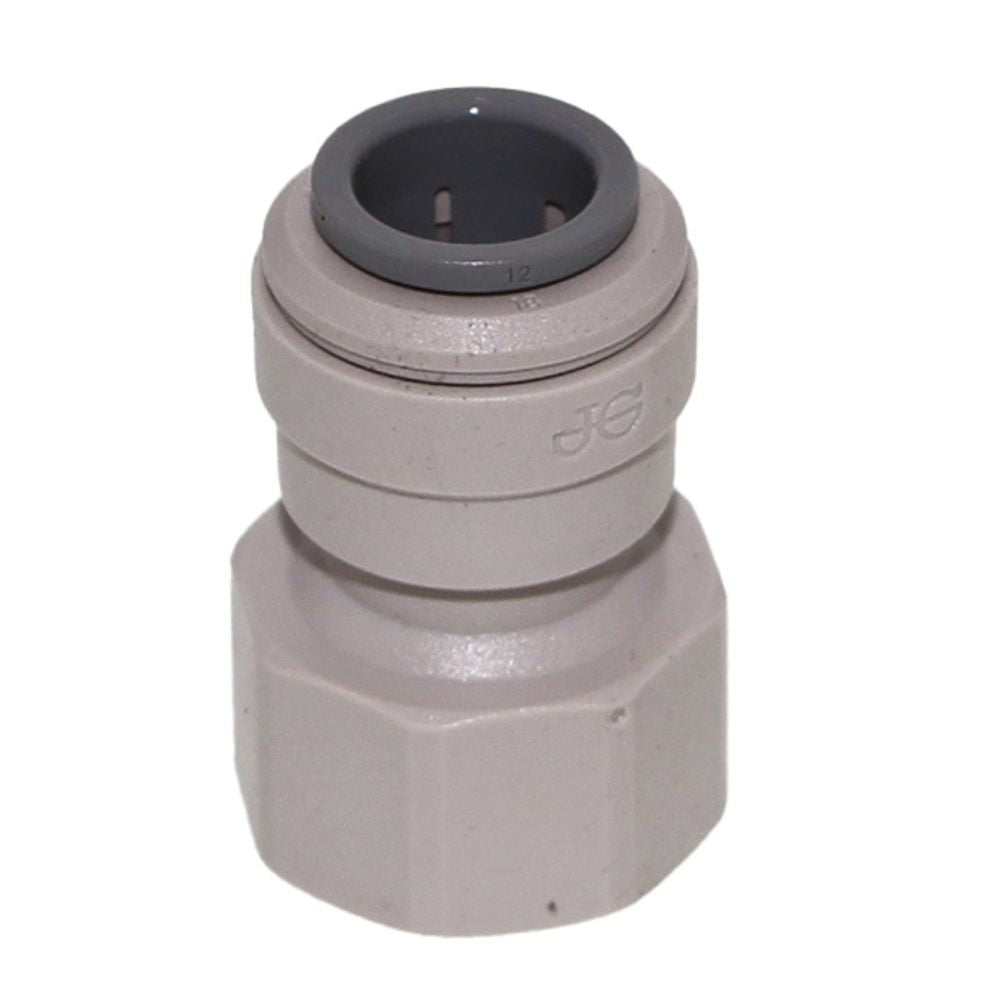

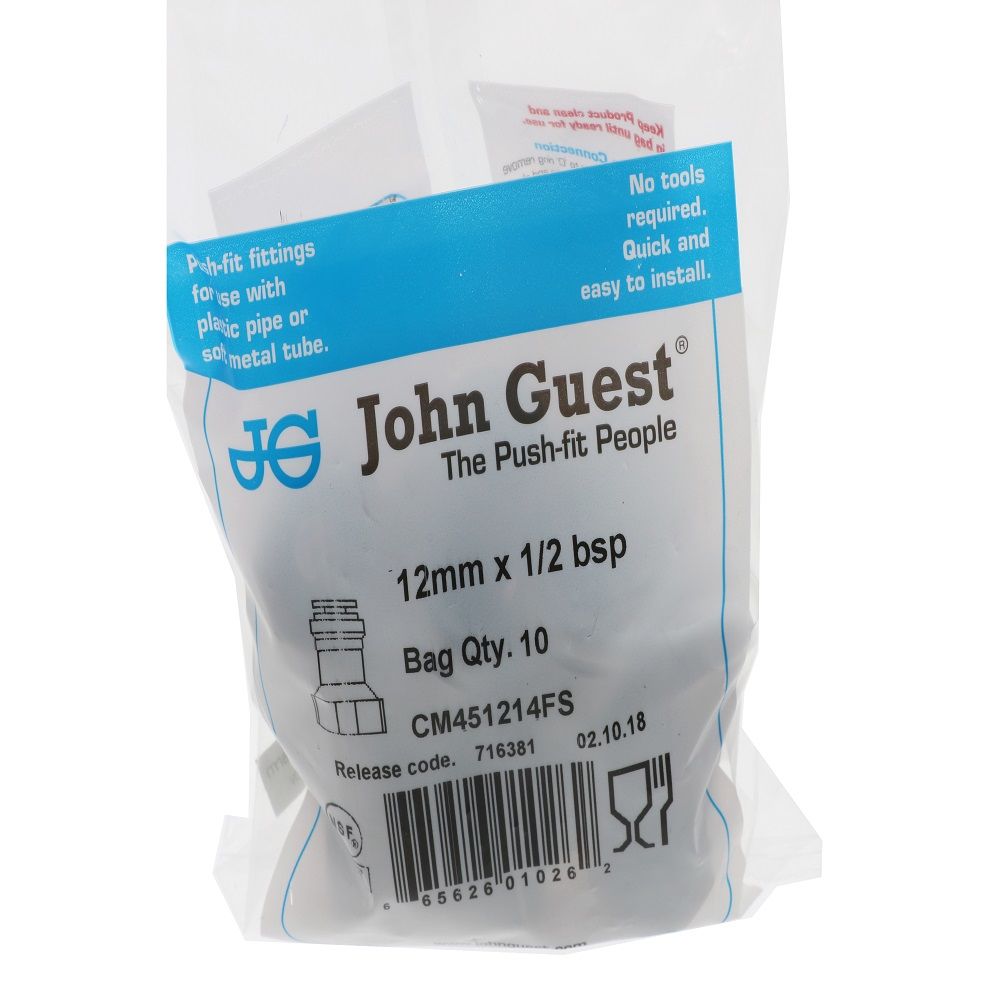

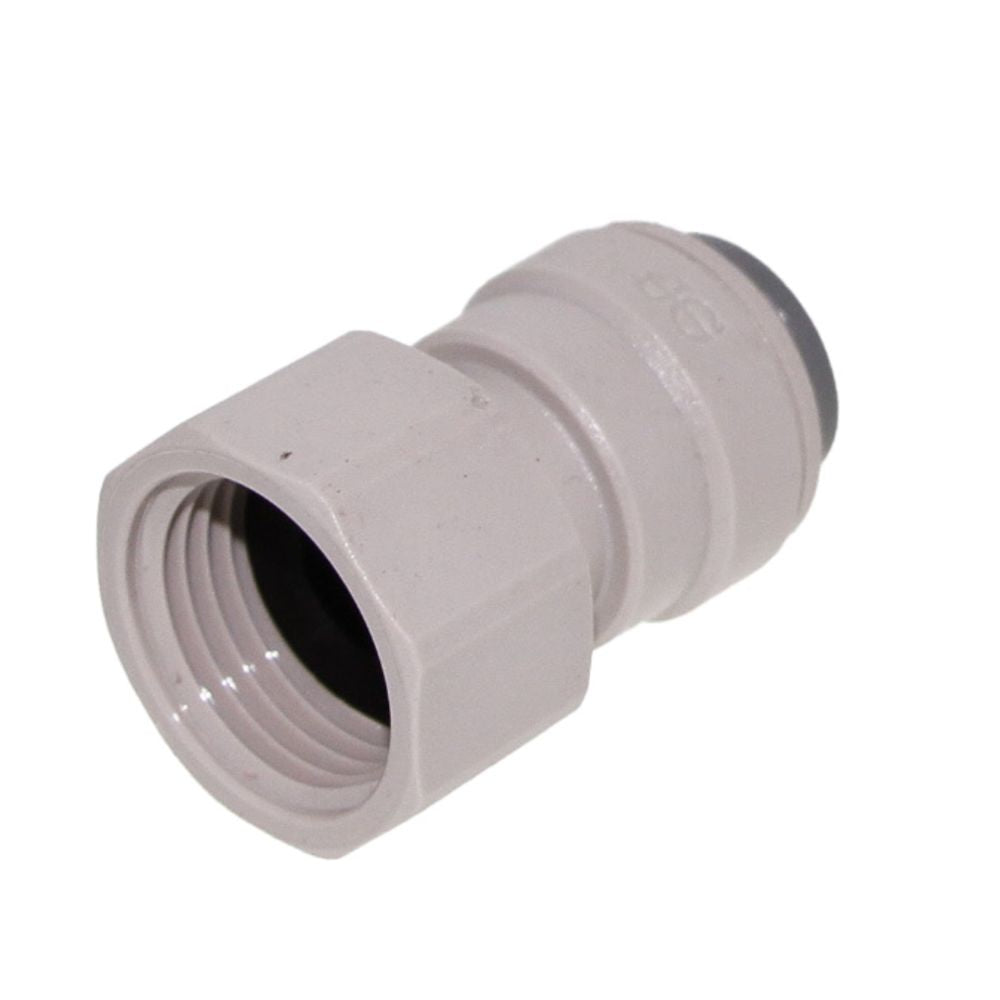

John Guest Female Adaptor BSP - 12mm x 1/2" BSP

5.0

(1 reviews)

Part Number: CM451214FS Alt. Part Number: AFAF12M-G4 -E

1 6

John Guest

John Guest Female Adaptor BSP - 12mm x 1/2" BSP

5.0

(1 reviews)

Part Number: CM451214FS Alt. Part Number: AFAF12M-G4 -E

MSRP: $8.58

$5.15

Quantity

Unit Price

Price

Savings

$5.15

—

150

$4.49

$674.39

12%

Product variants

You May Also Need

Optional Accessory
Blue 12mm OD LLDPE Polyethylene Tubing

Regular price From $2.96
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

John Guest push-fit acetal female adaptor (BSP thread) fitting connects metric sized pipework to a BSP fitting. Fast and simple to install, John Guest push-fit fittings create an instant push-fit connection and leak tight seal without the need for tools. The unique collet locking design firmly and securely holds the pipe in place without deforming the pipe or restricting flow. Fittings are corrosion resistant and fully demountable, improving system performance and reducing system downtime during maintenance.

Manufactured in acetal copolymer, the fitting is suitable for water, potable liquids and intermittent hot water applications (up to 65°C max).

Features:

Rigid and hardwearing acetal copolymer material with an EDPM O-Ring
Suitable for potable liquids and intermittent hot water applications up to 65°C max (not suitable for air, pneumatic or vacuum applications)
Instant push-fit connection and leak tight seal
Connect, disconnect and reconnect in seconds without tools
No scale build up improves performance and equipment lifespan
Superior flow characteristics
Compatible with LLDPE or soft metal pipe/tubing

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	1/2" BSP
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/2" BSP
Push-In Size	12mm OD
Series	CM
Shape	Straight
Size	1/2"
Color / Finish	Gray
Connection Type	BSP
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	1.625 in.
Shipping Width	1 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	1 in.
Product Length	1.625 in.
Product Width	1 in.
Product Weight (lbs)	0.0265

Product Details
Inlet Connection	1/2" BSP
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/2" BSP
Push-In Size	12mm OD
Series	CM
Shape	Straight
Size	1/2"
Color / Finish	Gray
Connection Type	BSP
Origin	UK
Sub-Type	Female Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	3.98

Downloads

John Guest Female Adaptor BSP - 12mm x 1/2

Reviews (1)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

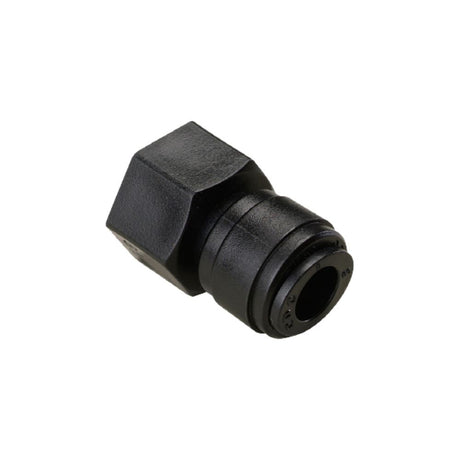

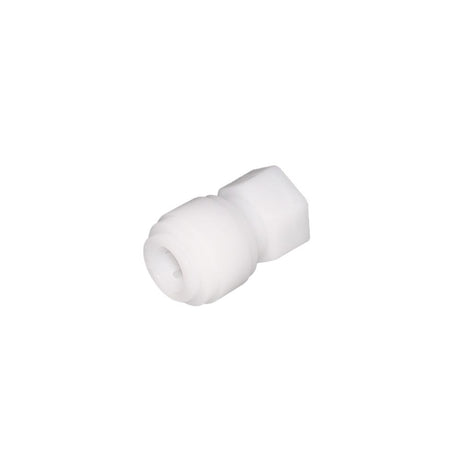

Facet	John Guest John Guest Female Adaptor BSP - 12mm x 1/2" BSP 5.0 Regular price From $5.15 Part #: CM451214FS Save up to 12% with bulk pricing Current Product	NeoFit NeoFit - Acetal Black Female Adapter- Flat Type- 12mm tube OD x 1/2"BSP(P) flat inside Regular price From $4.36 Part #: AFAF12M-G4-E Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Black Female Adapter 12mm tube x 1/2" BSP(P) - Cone Type Regular price From $4.36 Part #: AFAC12M-G4-E Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Female Adapter 12mm tube x 1/2" BSP(P) - Cone Type Regular price From $4.36 Part #: AFAC12M-G4-W Save up to 8% with bulk pricing View details
