John Guest

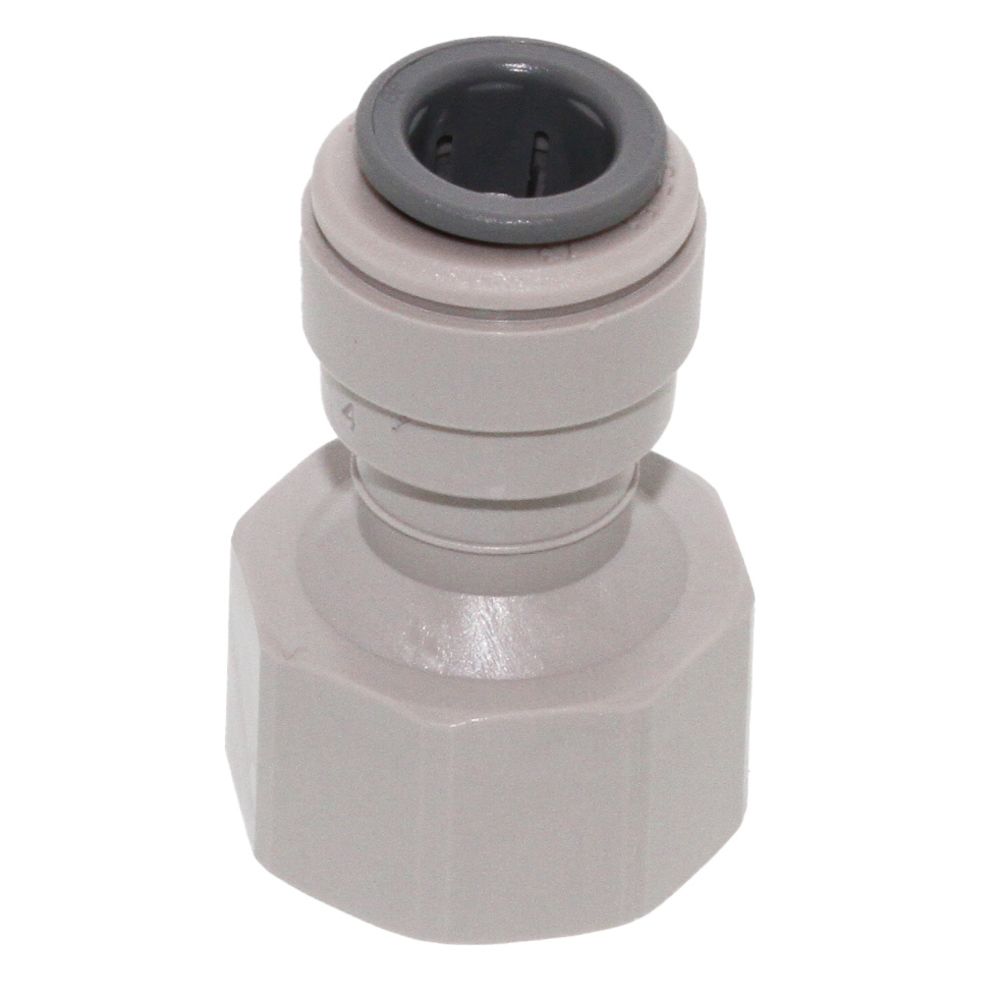

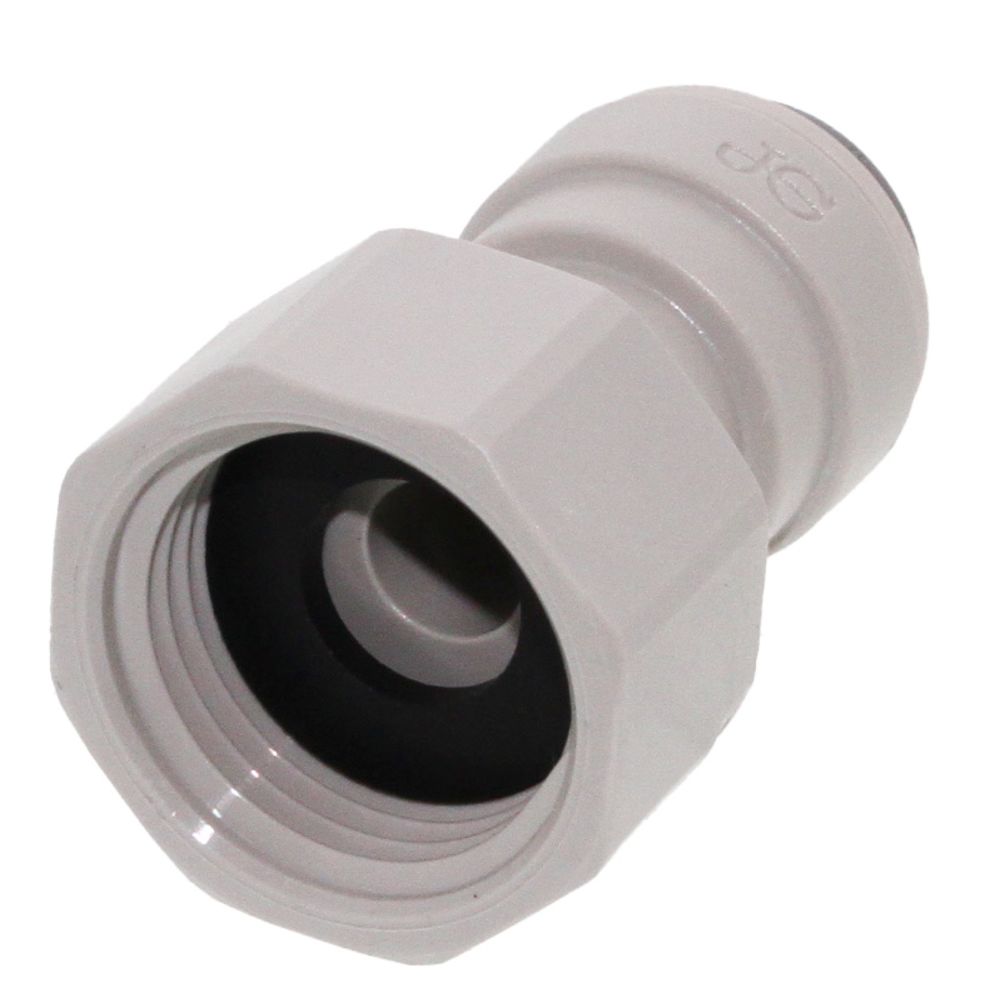

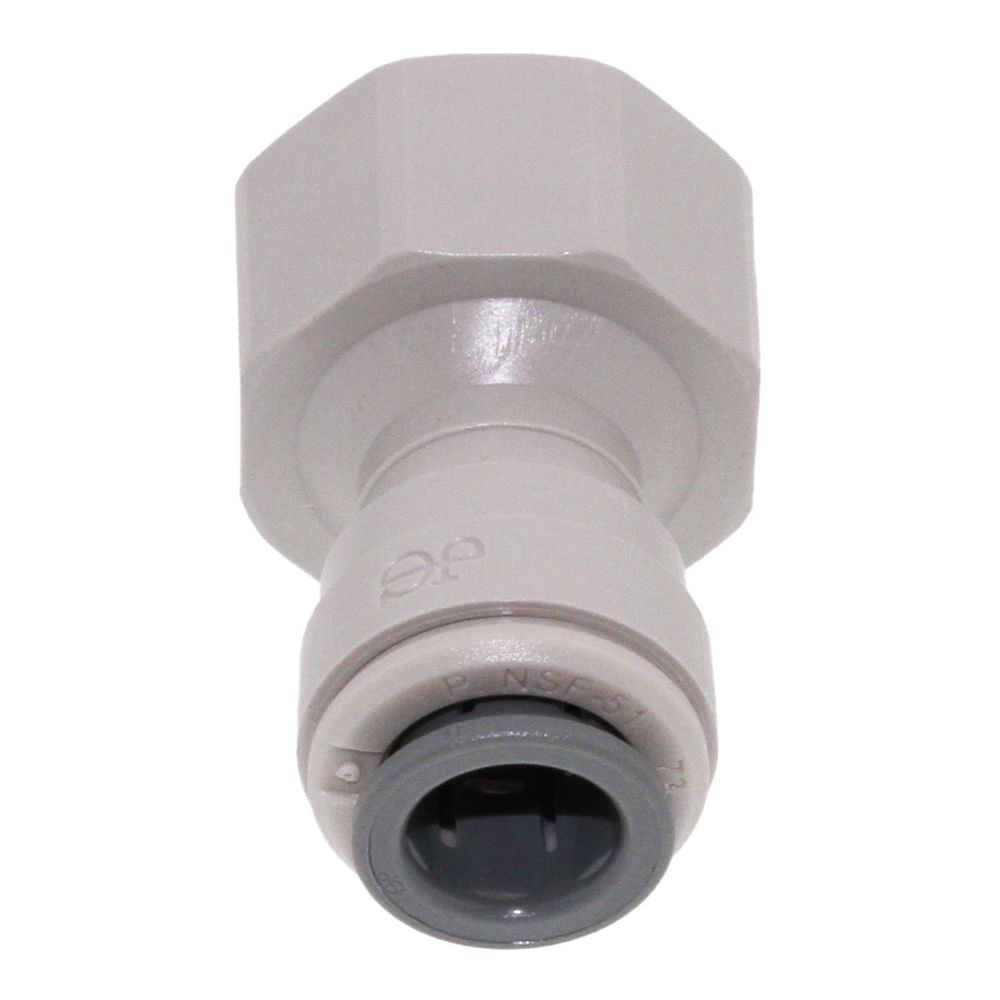

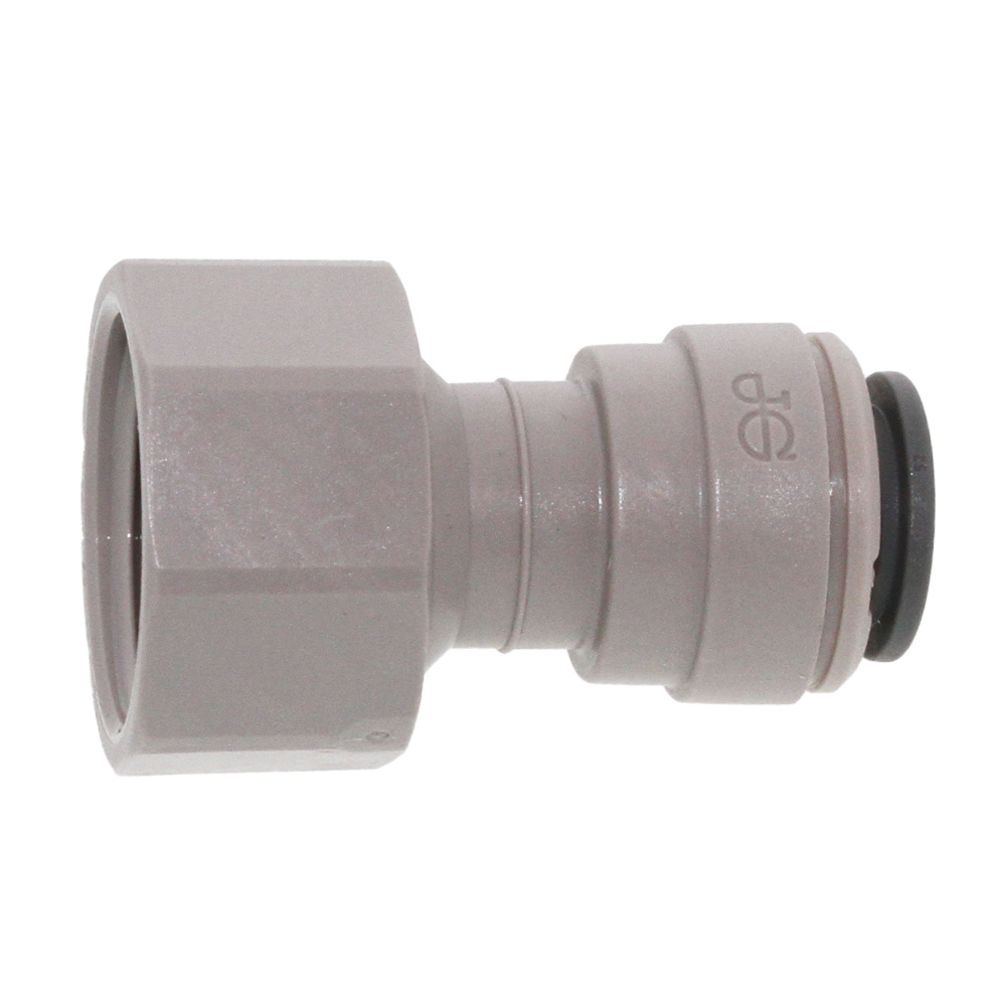

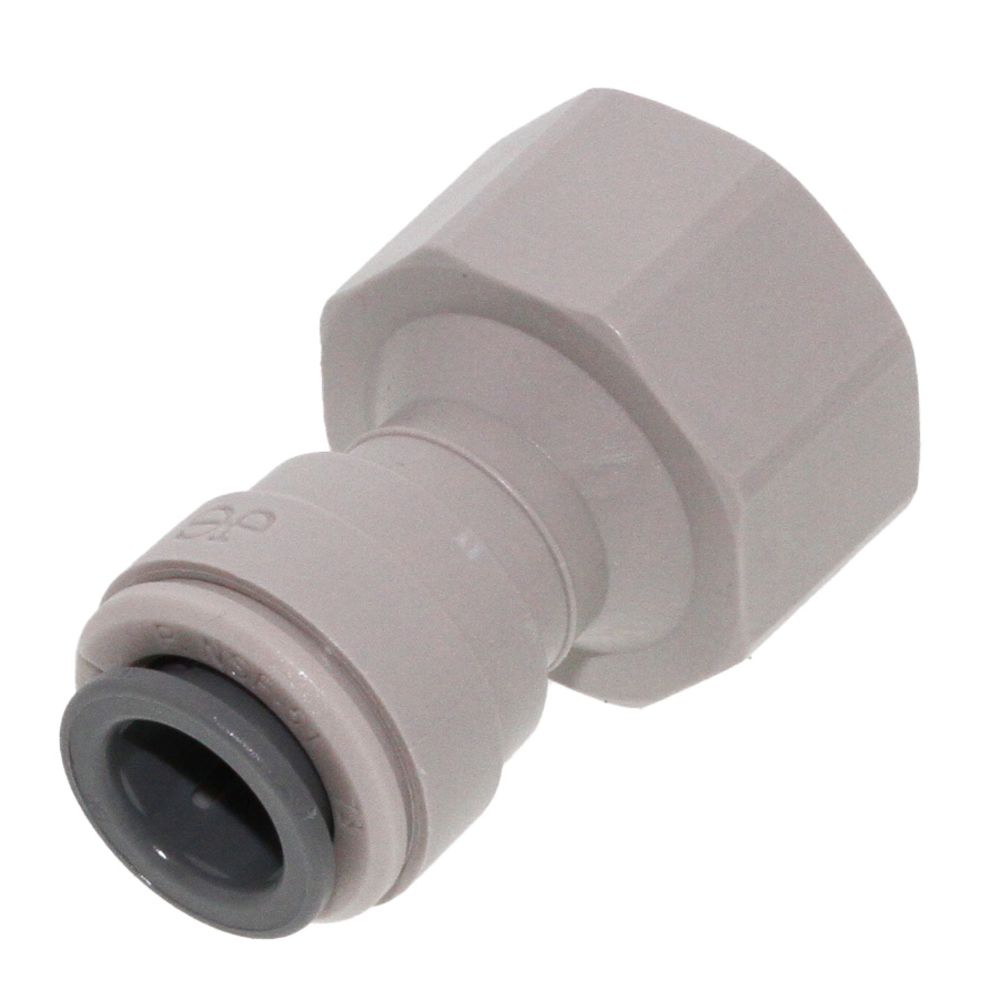

John Guest Female Adapter-Cone End BSPP - 3/8 x 5/8 BSPP

Part Number: PI451215CS

In Stock

out of stock

In Stock

$4.57

The John Guest Female Adapter-Cone End, which is made of acetal copolymer, is suitable for water, air, and inert gases, as well as vacuum and pneumatic applications. It also contains nitrile O-rings.

Features:
  • Color: Gray
  • FDA approved materials
  • NSF Certified 51 & 61




Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Inlet/Outlet Connection

5/8" BSP

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-4

Mounting Options

Thread

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

PI

Size

5/8"

Color / Finish

Gray

Connection Type

BSP

Origin

UK

Sub-Type

Female Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved; NSF 372



The John Guest Female Adapter-Cone End, which is made of acetal copolymer, is suitable for water, air, and inert gases, as well as vacuum and pneumatic applications. It also contains nitrile O-rings.

Features:
  • Color: Gray
  • FDA approved materials
  • NSF Certified 51 & 61



California residents
see Prop 65 warnings WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
.

Details

Application

Water, Air, Food, Beverage

Body Material

Acetal Copolymer

Inlet/Outlet Connection

5/8" BSP

Max Pressure (Psi)

230

Max Temp (°F)

150

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-4

Mounting Options

Thread

Push-In Size

3/8" OD

Seal Material

Buna-N

Series

PI

Size

5/8"

Color / Finish

Gray

Connection Type

BSP

Origin

UK

Sub-Type

Female Adapter

Type

Adapter

Warranty & Certifications

Certifications

NSF 61; NSF 51; FDA Approved; NSF 372
