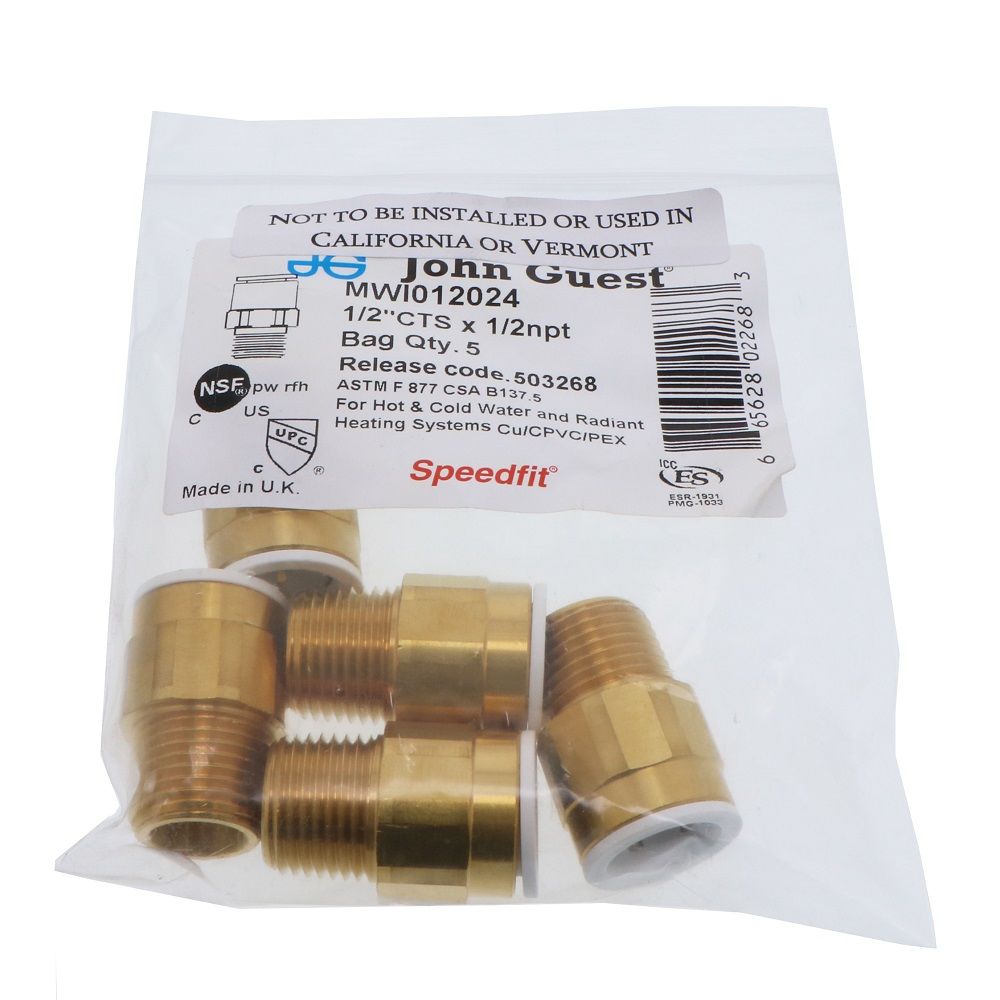

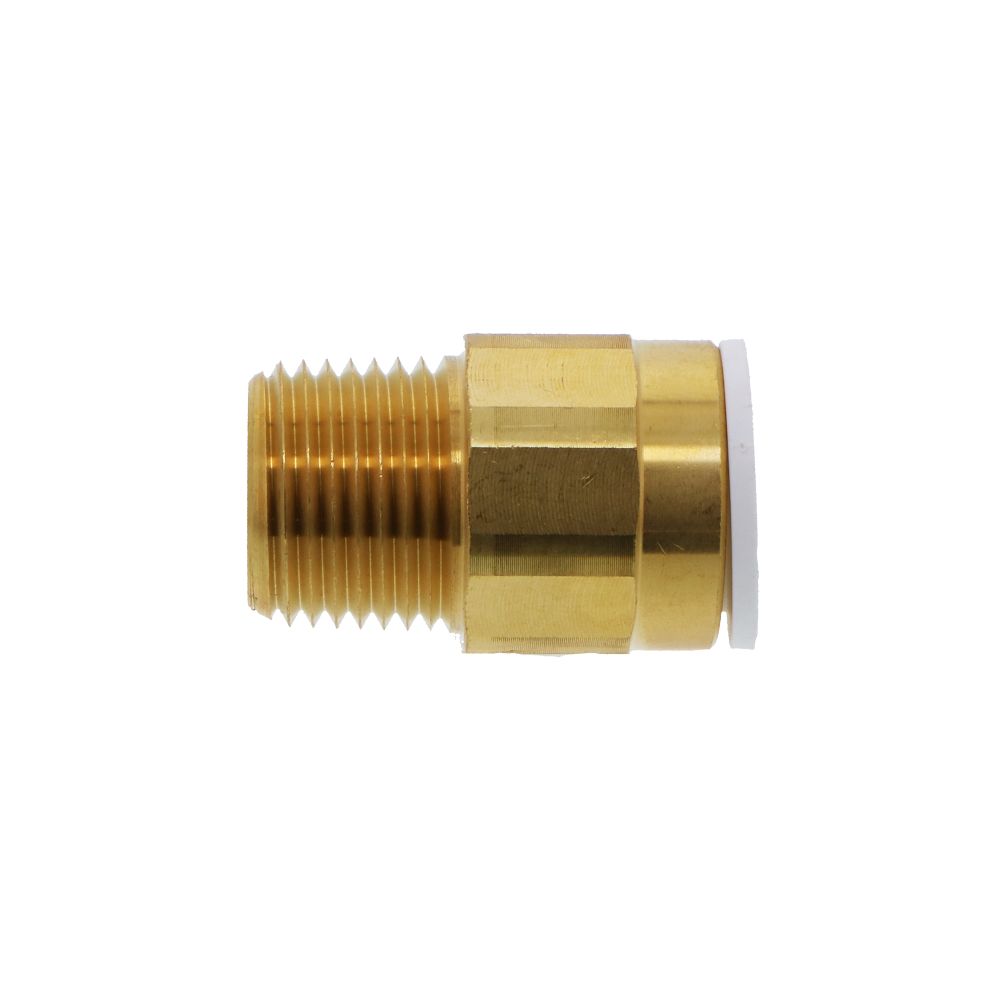

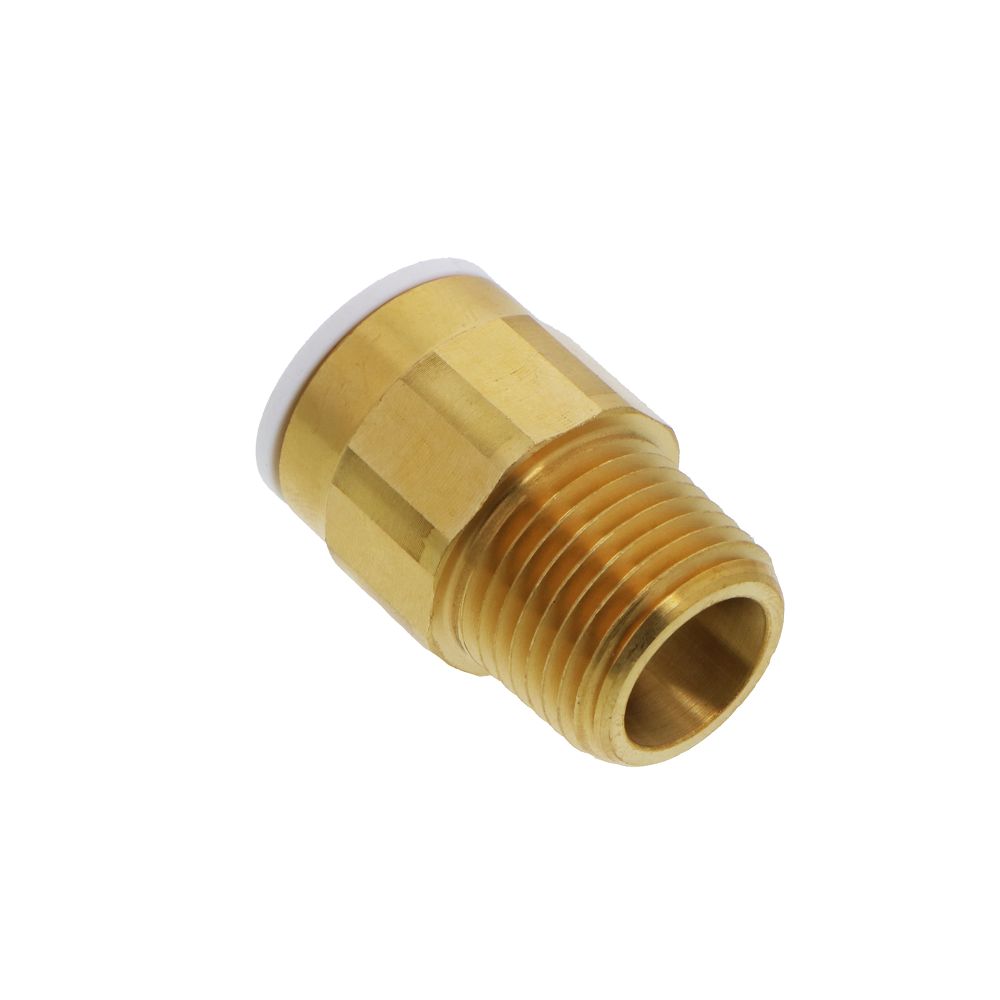

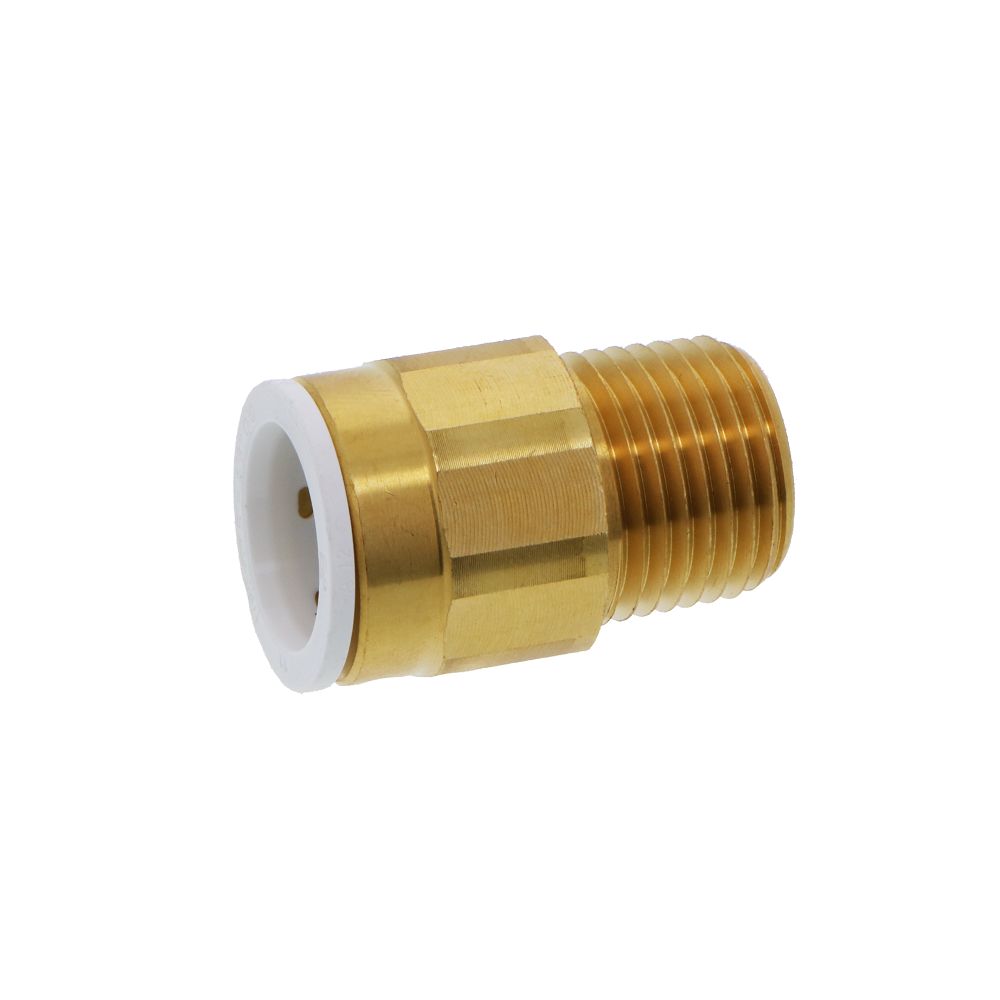

John Guest Brass Male Connector NPT - 1/2 CTS x 1/2 NPT
Part Number: MWI012024
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The John Guest brass male coupler makes connecting Copper, PEX, or CPVC to female NPT threads easy. Push-fit connection securely grips pipe. Fast and easy to use - no soldering, glue or clamps. Approved for behind-the-wall applications and can be used for permanent installations. Ideal for work in tight spaces. Can be disconnected without damage to tubing.
Features:
- For use with Copper, PEX, and CPVC
- No soldering, glue or clamps
- Can be installed on wet lines.
- Approved for behind-the-wall applications with no access panel
- Can be disconnected as needed
Working pressure and temperature:
- Max. 160 psi at 73° F
- Max. 100 psi at 180° F
- Max. 80 psi at 200° F
WARNING!
| Product Details | |
|---|---|
Application | Central Heating |
Body Material | Brass |
Inlet Connection | 1/2" MPT |
Max Pressure (Psi) | 174 |
Max Temp (°F) | 221 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/2" MPT |
Push-In Size | 5/8" OD |
Seal Material | EPDM |
Series | Brass |
Shape | Straight |
Size | 1/2" |
Color / Finish | Brass |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Male Adapter |
Type | Adapter |
| Product Details | |
|---|---|
Application | Central Heating |
Body Material | Brass |
Inlet Connection | 1/2" MPT |
Max Pressure (Psi) | 174 |
Max Temp (°F) | 221 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/2" MPT |
Push-In Size | 5/8" OD |
Seal Material | EPDM |
Series | Brass |
Shape | Straight |
Size | 1/2" |
Color / Finish | Brass |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Male Adapter |
Type | Adapter |
| Product Details | |
|---|---|
Application | Central Heating |
Body Material | Brass |
Inlet Connection | 1/2" MPT |
Max Pressure (Psi) | 174 |
Max Temp (°F) | 221 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/2" MPT |
Push-In Size | 5/8" OD |
Seal Material | EPDM |
Series | Brass |
Shape | Straight |
Size | 1/2" |
Color / Finish | Brass |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Male Adapter |
Type | Adapter |
The John Guest brass male coupler makes connecting Copper, PEX, or CPVC to female NPT threads easy. Push-fit connection securely grips pipe. Fast and easy to use - no soldering, glue or clamps. Approved for behind-the-wall applications and can be used for permanent installations. Ideal for work in tight spaces. Can be disconnected without damage to tubing.
Features:
- For use with Copper, PEX, and CPVC
- No soldering, glue or clamps
- Can be installed on wet lines.
- Approved for behind-the-wall applications with no access panel
- Can be disconnected as needed
Working pressure and temperature:
- Max. 160 psi at 73° F
- Max. 100 psi at 180° F
- Max. 80 psi at 200° F
WARNING!
