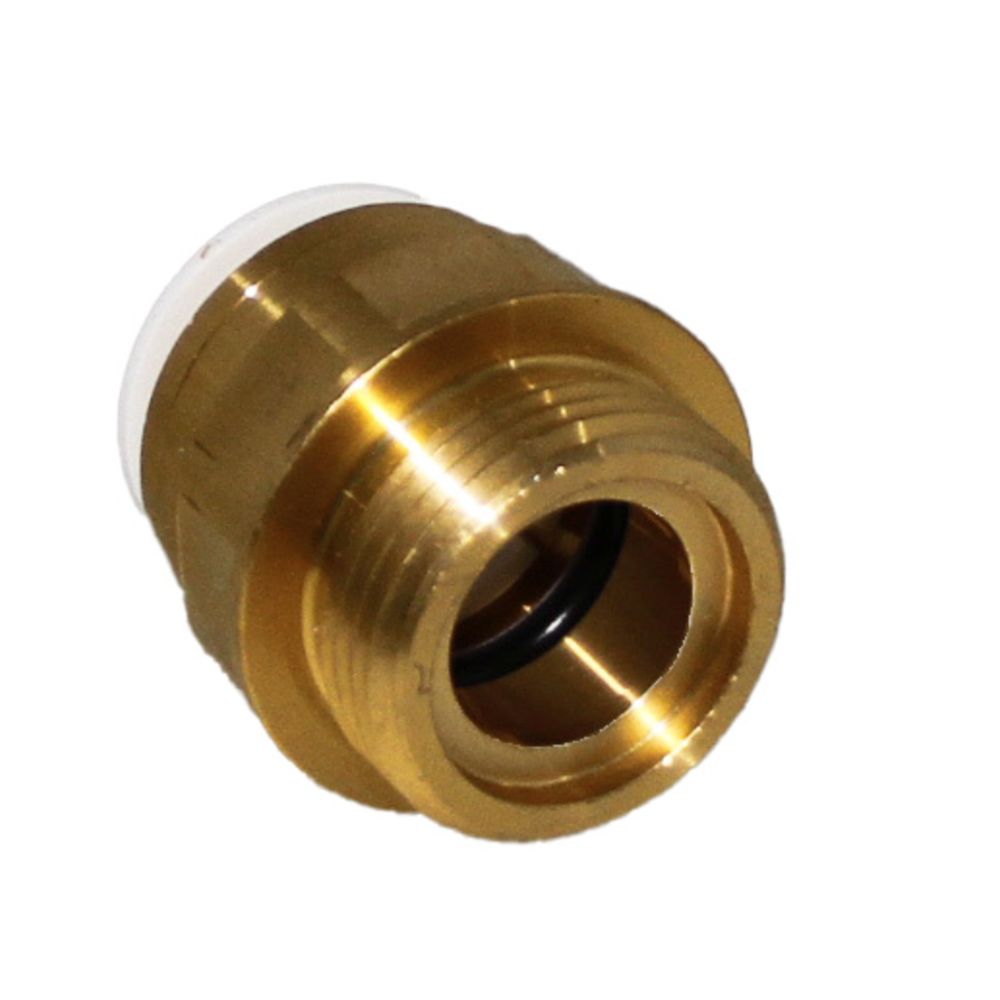

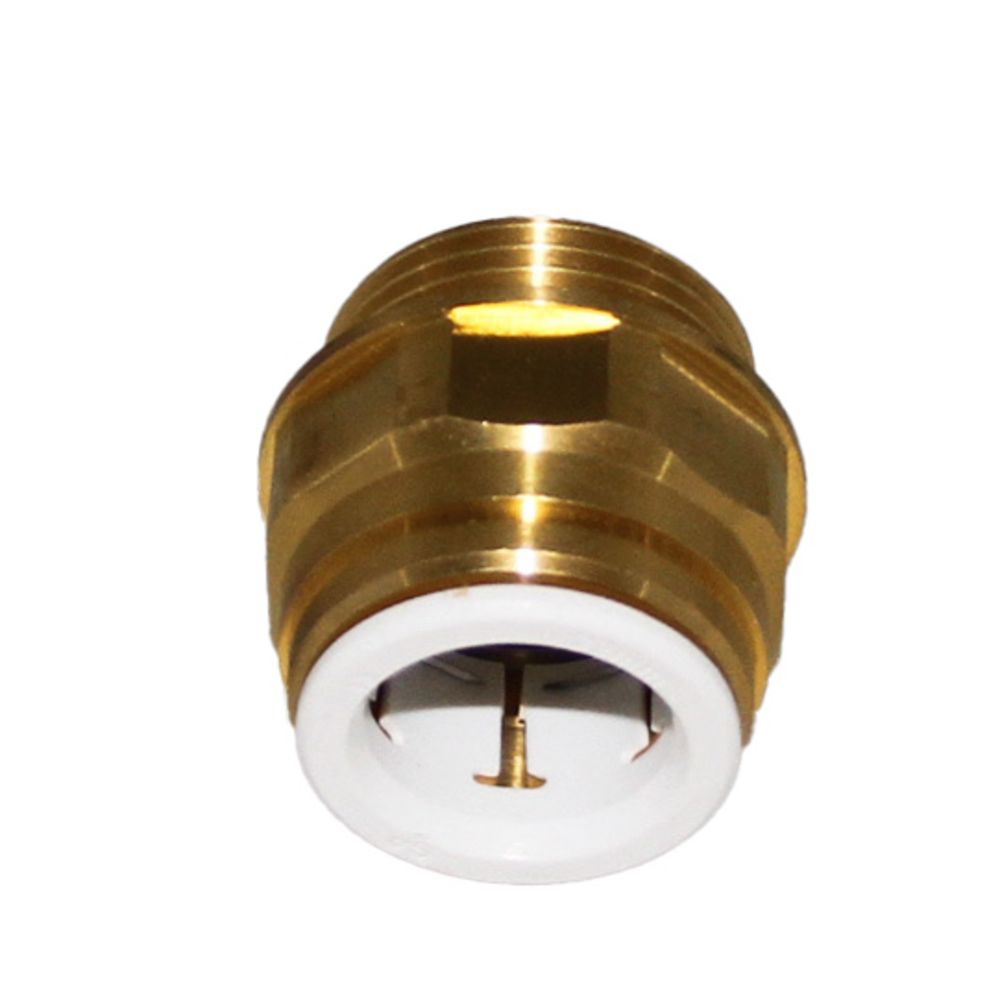

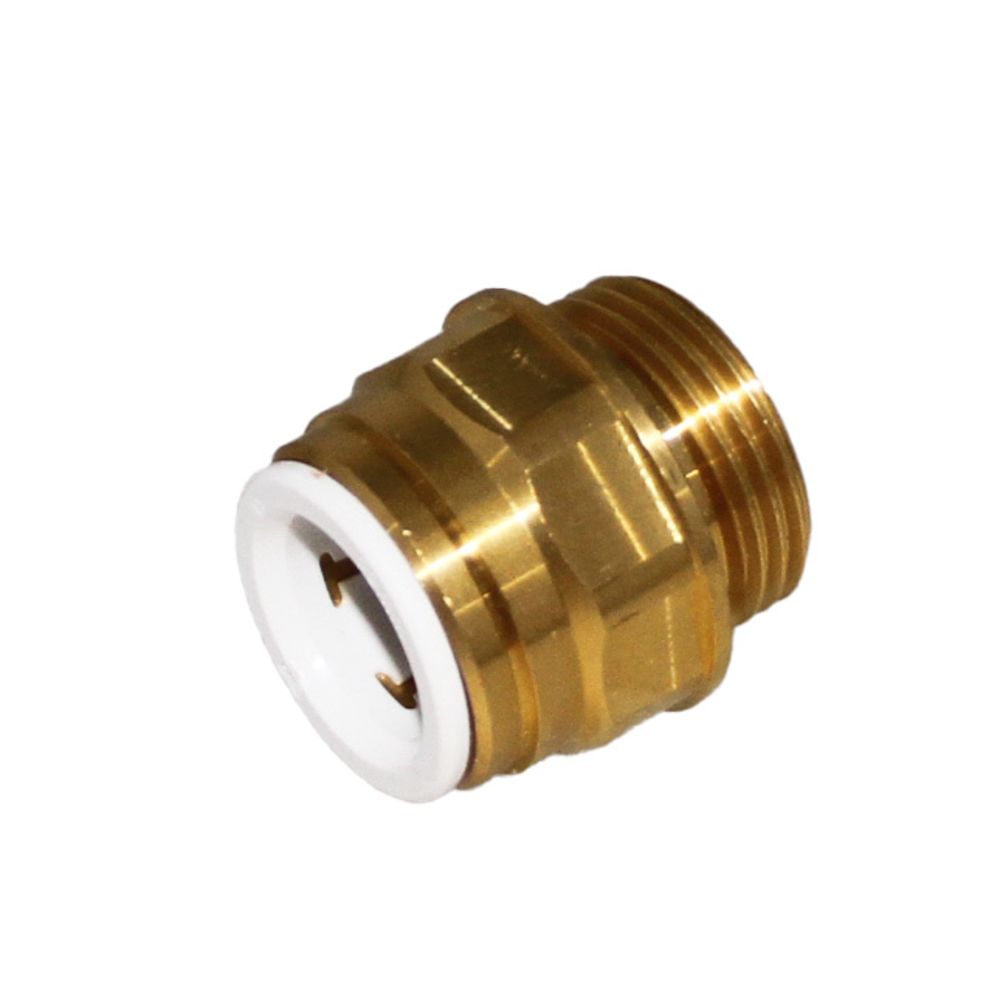

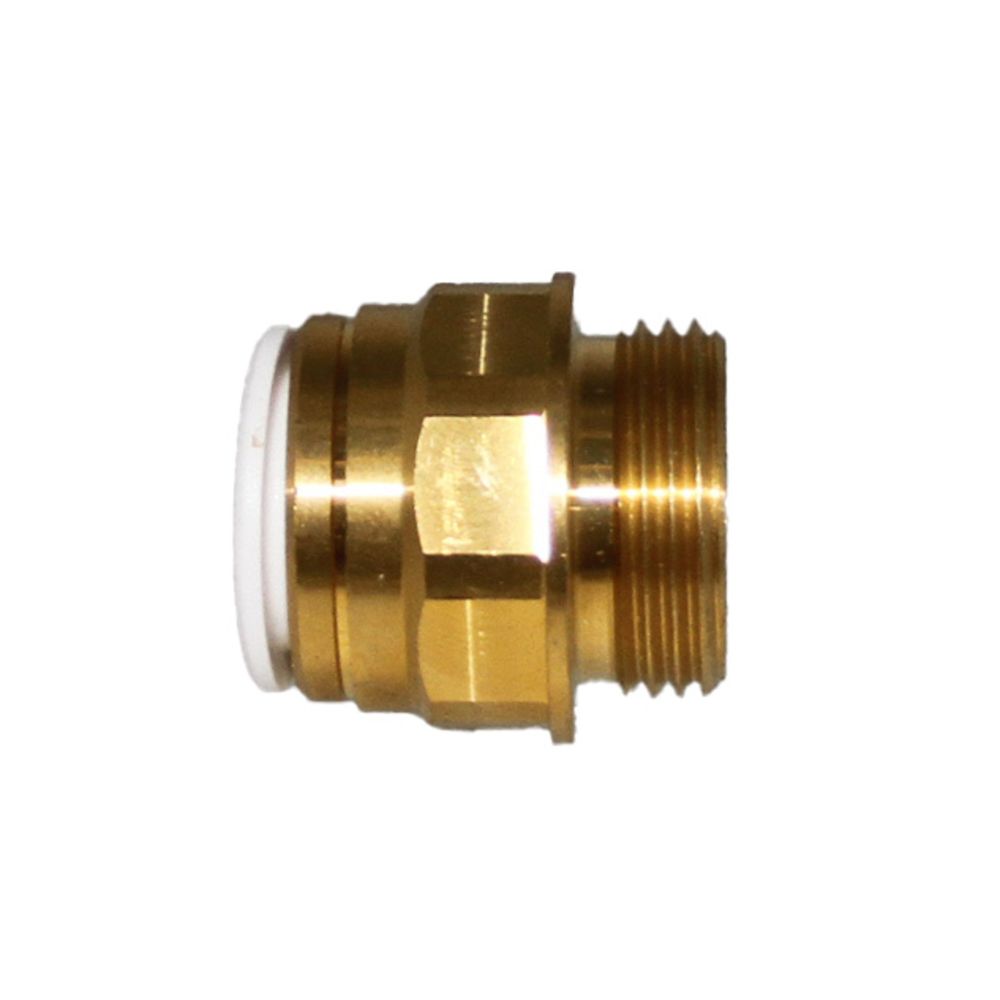

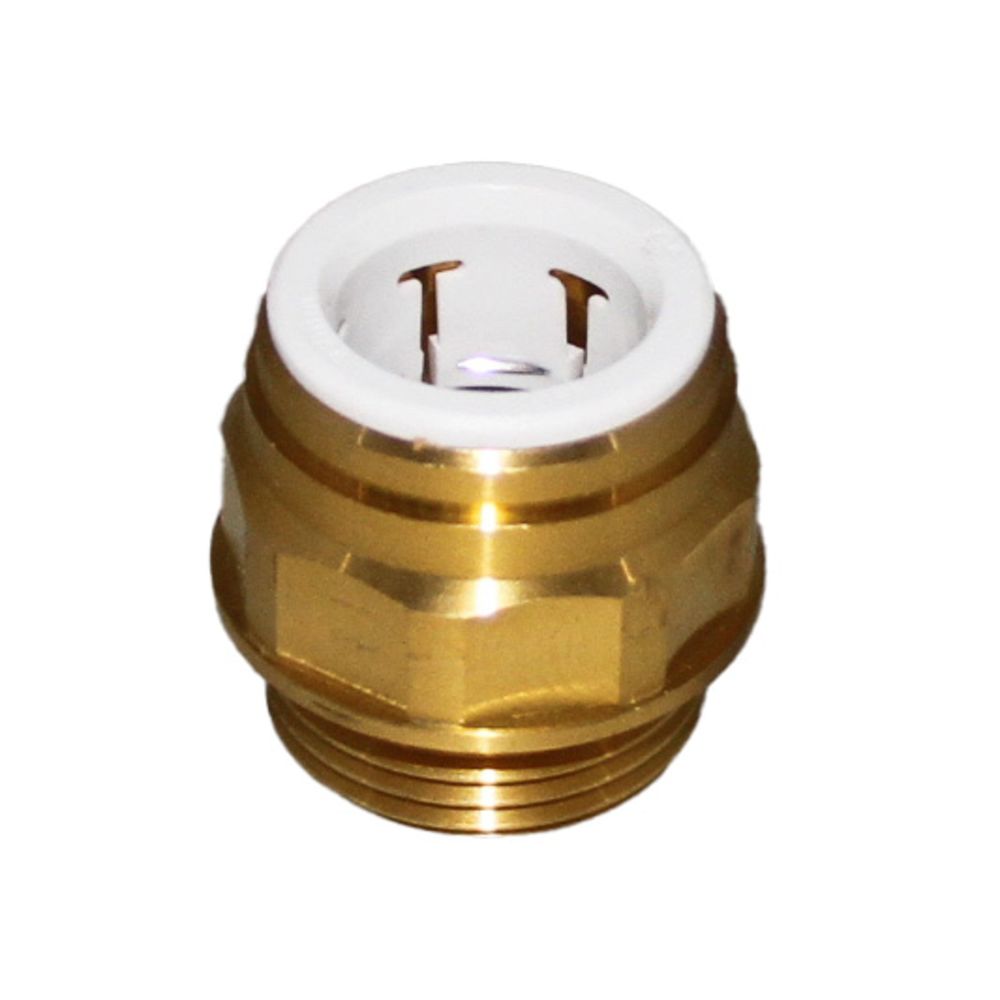

John Guest Brass Male Connector BSPT - 15mm x 1/2 BSPT
Part Number: MW011504N
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The John Guest brass male coupler for connecting metric pipe using a male thread. To connect the push-fit end, simply push onto a plastic or copper pipe. To disconnect, push the collet towards the body of the push-fit fitting and pull the pipe to release. The John Guest Speedfit brass male coupler is quicker and easier to install in confined spaces than traditional methods as it eliminates the need for hot works.
Features:
- Instant push-fit connection and durable male thread
- Safe flame-free installation, with no hot works, glue or flux
- Compatible with PEX and polybutylene plastic pipe (inserts required) and copper pipe
- Suitable for hot and cold water and central heating systems
Product Details | |
---|---|
Application | Central Heating |
Body Material | Brass |
Inlet Connection | 1/2" BSP |
Max Pressure (Psi) | 174 |
Max Temp (°F) | 221 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/2" BSP |
Push-In Size | 15mm OD |
Seal Material | EPDM |
Series | Brass |
Shape | Straight |
Size | 1/2" |
Color / Finish | Brass |
Connection Type | BSP |
Origin | UK |
Sub-Type | Male Adapter |
Type | Adapter |
