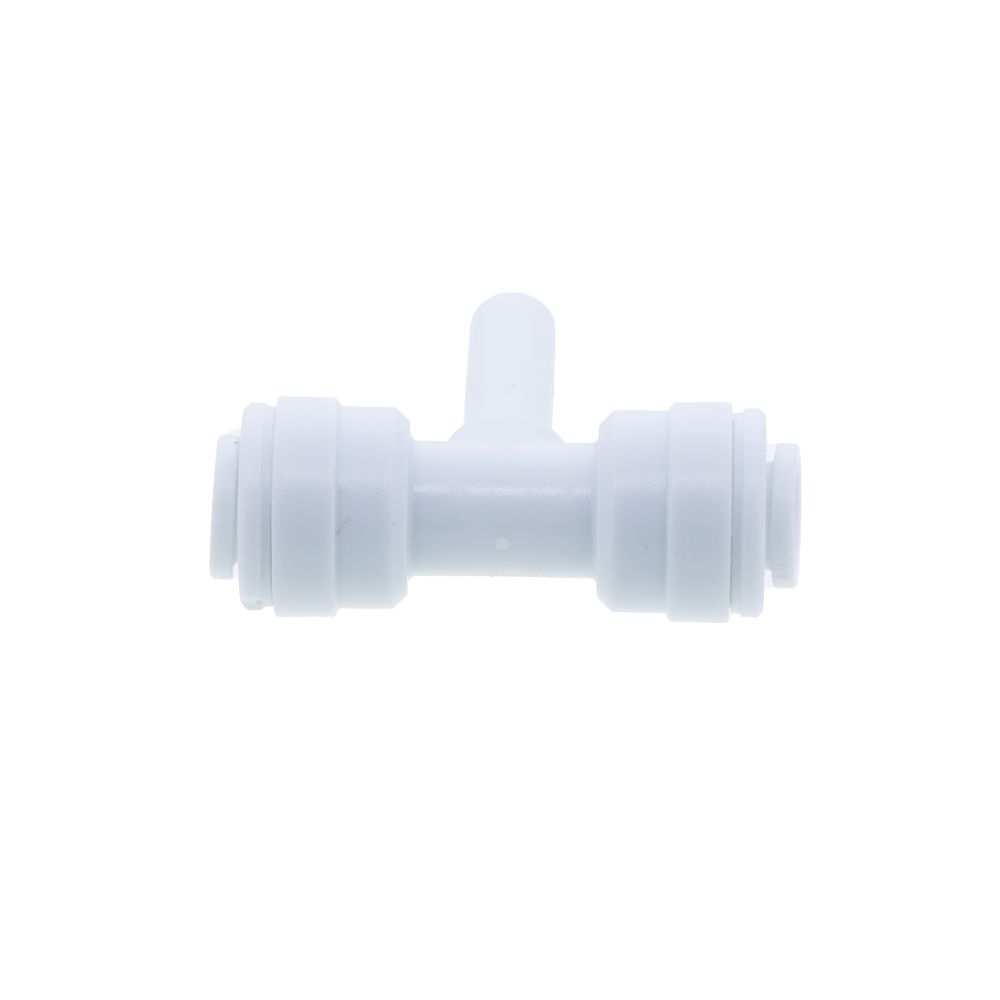

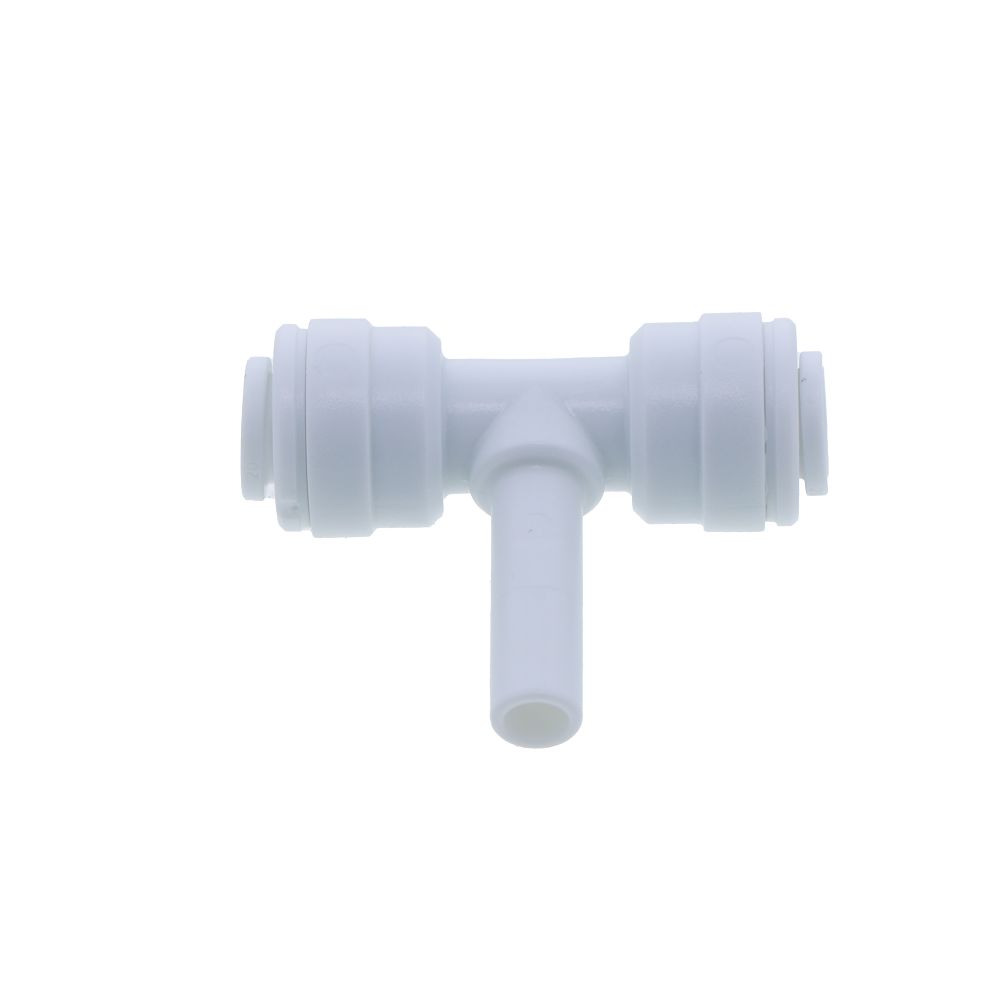

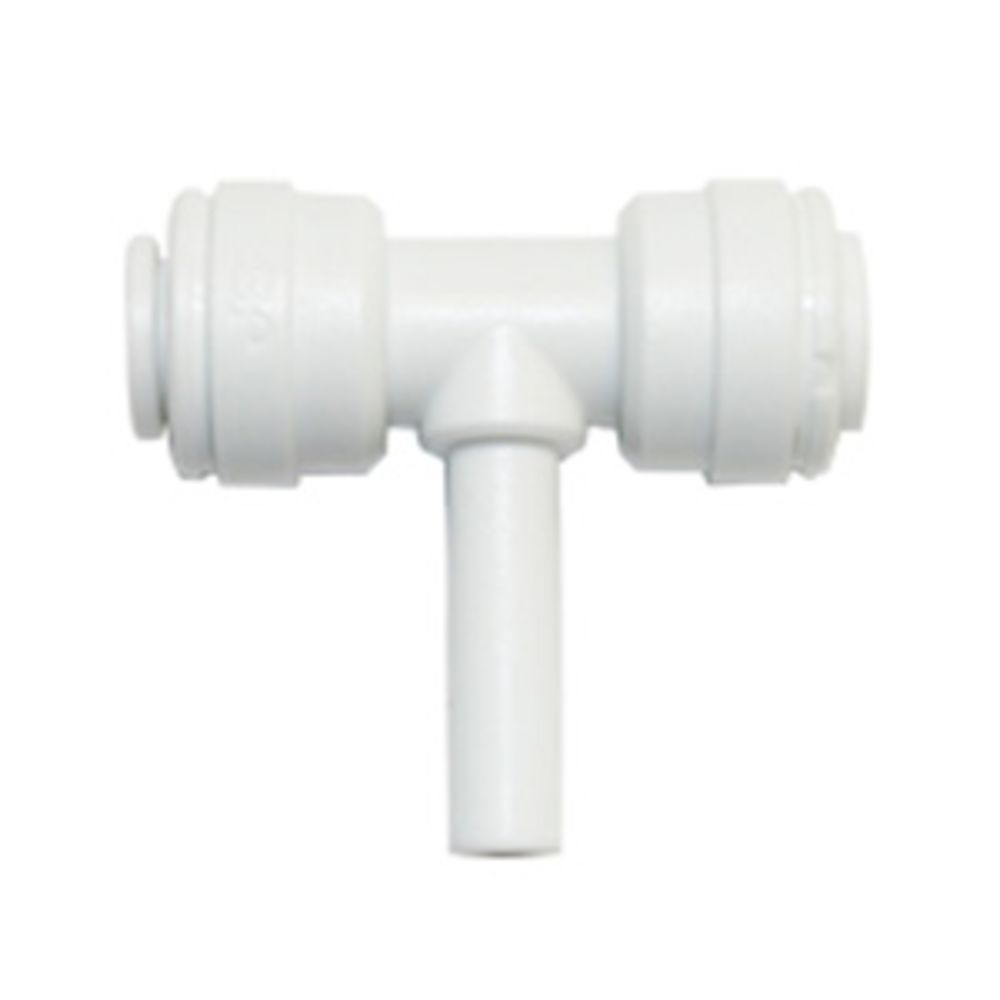

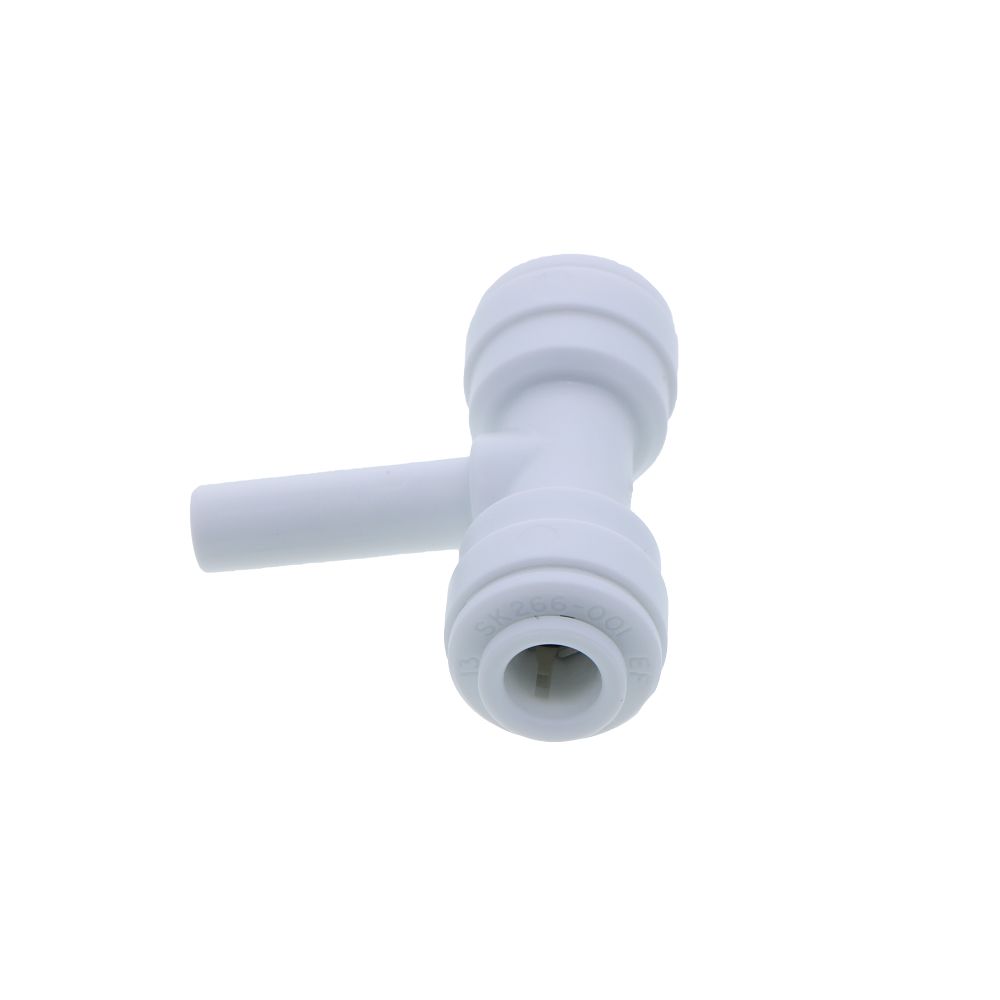

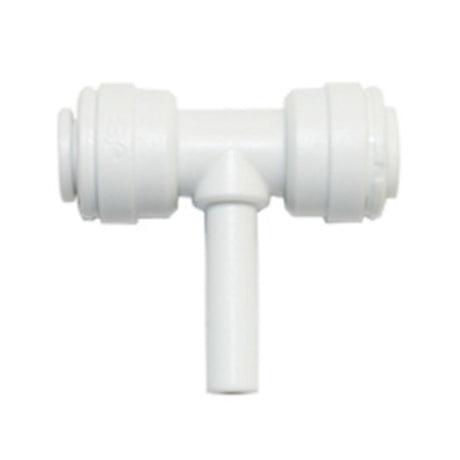

John Guest Branch Stem Tee - 1/4 x 1/4 x 1/4 OD Stem Branch

Part Number: CI580808W Alt. Part Number: MI4512F4SLF

1 5

John Guest

John Guest Branch Stem Tee - 1/4 x 1/4 x 1/4 OD Stem Branch

Part Number: CI580808W Alt. Part Number: MI4512F4SLF

MSRP: $3.68

$2.21

Quantity

Unit Price

Price

Savings

$2.21

—

$1.98

$19.84

10%

300

$1.92

$578.50

13%

Product variants

You May Also Need

Optional Accessory
Black 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.95
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 1/4 OD Tubing

Regular price From $0.15
Optional Accessory
Nylon Plastic Tube Support Insert 1/4 OD Tubing

Regular price From $0.08
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Branch Stem Tee makes connecting tubing quick and easy. Stem inserts in Push-fit fitting to create a tee. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.

Features:

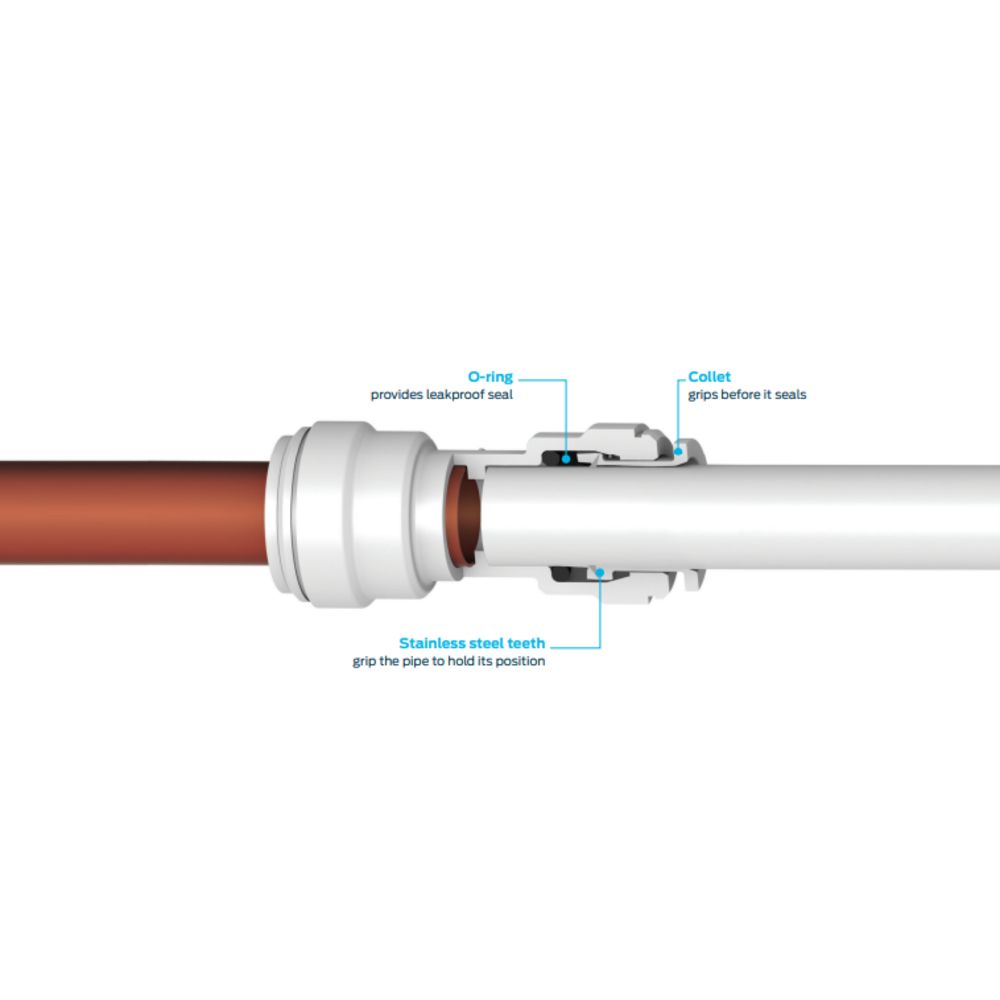

Push-fit Technology creates reliable, leak-free connections
Used to connect OD tubing sizes
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Acetal body with food grade EDPM O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 100 psi at 150° F

Note: Not suitable for compressed air and vacuum applications.

Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.

Compatible Tubing

Compatible tubing for John Guest fittings

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Seal / O-Ring Material	EPDM
Series	CI
Shape	Tee
Stem Size	1/4" OD
Color / Finish	White
Origin	UK
Sub-Type	Branch Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	1.531 in.
Shipping Width	0.598 in.
Shipping Height	1.323 in.
Product Weight & Dimensions
Product Height	1.323 in.
Product Length	1.531 in.
Product Width	0.598 in.
Product Weight (lbs)	0.0115

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Seal / O-Ring Material	EPDM
Series	CI
Shape	Tee
Stem Size	1/4" OD
Color / Finish	White
Origin	UK
Sub-Type	Branch Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	1

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Seal / O-Ring Material	EPDM
Series	CI
Shape	Tee
Stem Size	1/4" OD
Color / Finish	White
Origin	UK
Sub-Type	Branch Tee
Type	Tee
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	3.45

Downloads

John Guest Branch Stem Tee - 1/4 x 1/4 x 1/4 OD Stem Branch Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

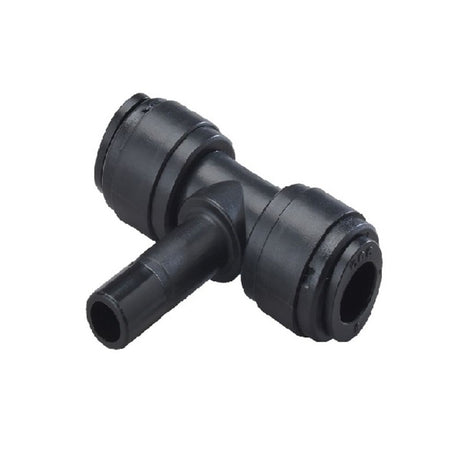

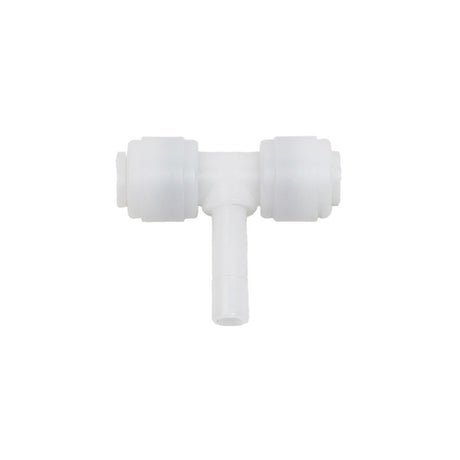

Facet	John Guest John Guest Branch Stem Tee - 1/4 x 1/4 x 1/4 OD Stem Branch Regular price From $2.21 Part #: CI580808W Save up to 13% with bulk pricing Current Product	neoFit NeoFit - Acetal Natural White Stem Branch Tee 1/4" tube x stem 1/4" Regular price From $1.76 Part #: ATBU444-W Save up to 7% with bulk pricing View details	neoFit NeoFit - Acetal Black Branch Stem Tee 1/4" tube x stem 1/4" Regular price From $1.76 Part #: ATBU444-E Save up to 7% with bulk pricing View details
Price
Price	Regular price From $2.21	Regular price From $1.76	Regular price From $1.76
Part #
Part #	CI580808W	ATBU444-W	ATBU444-E
Description
Description	The John Guest Branch Stem Tee makes connecting tubing quick and easy. Stem inserts in Push-fit fitting to create a tee. Manufactured in white acetal...	The branch stem tee makes connecting tubing quick and easy. The stem inserts in push-in fittings to create a tee. Manufactured in acetal, these stem...	Features: Black acetal copolymer construction Nitrile Buna-N (NBR) O-rings FDA approved materials NSF 51 Certified Suitable for water, beverages, vacuum, compressed air, and gases Fittings...
