John Guest

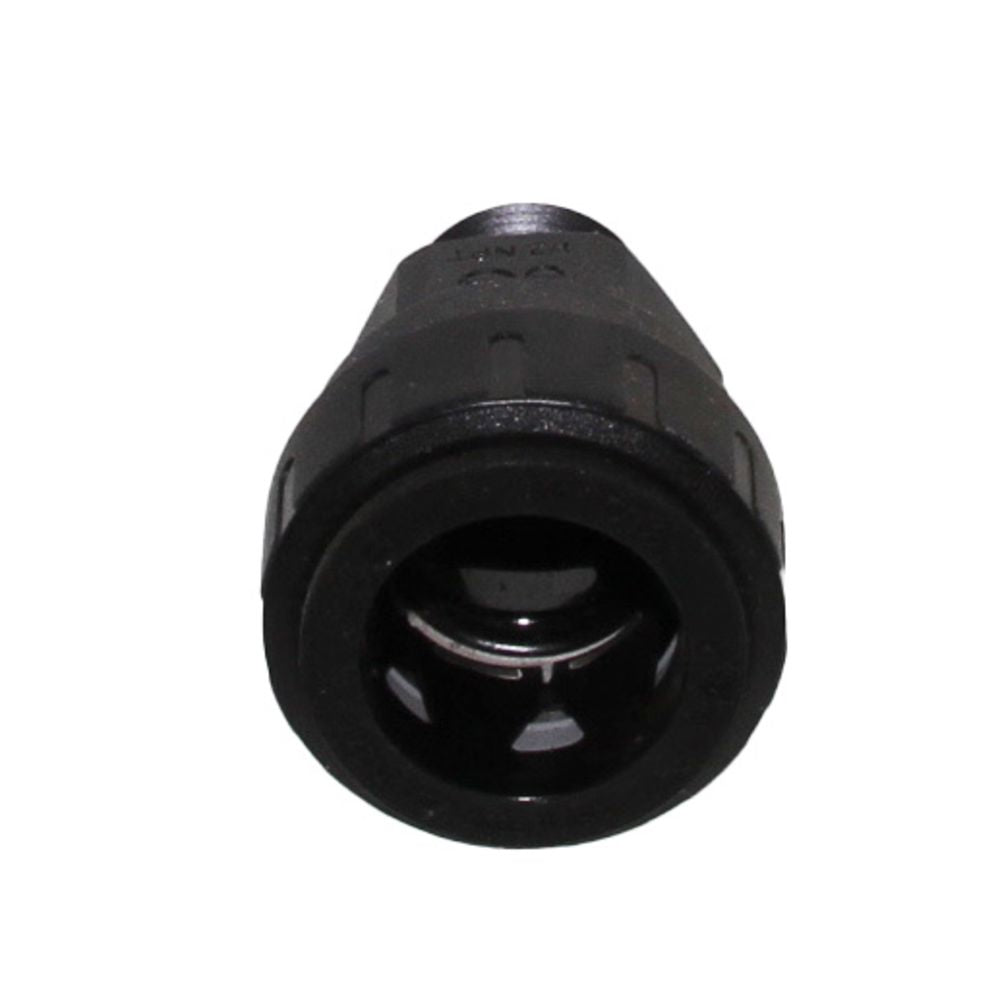

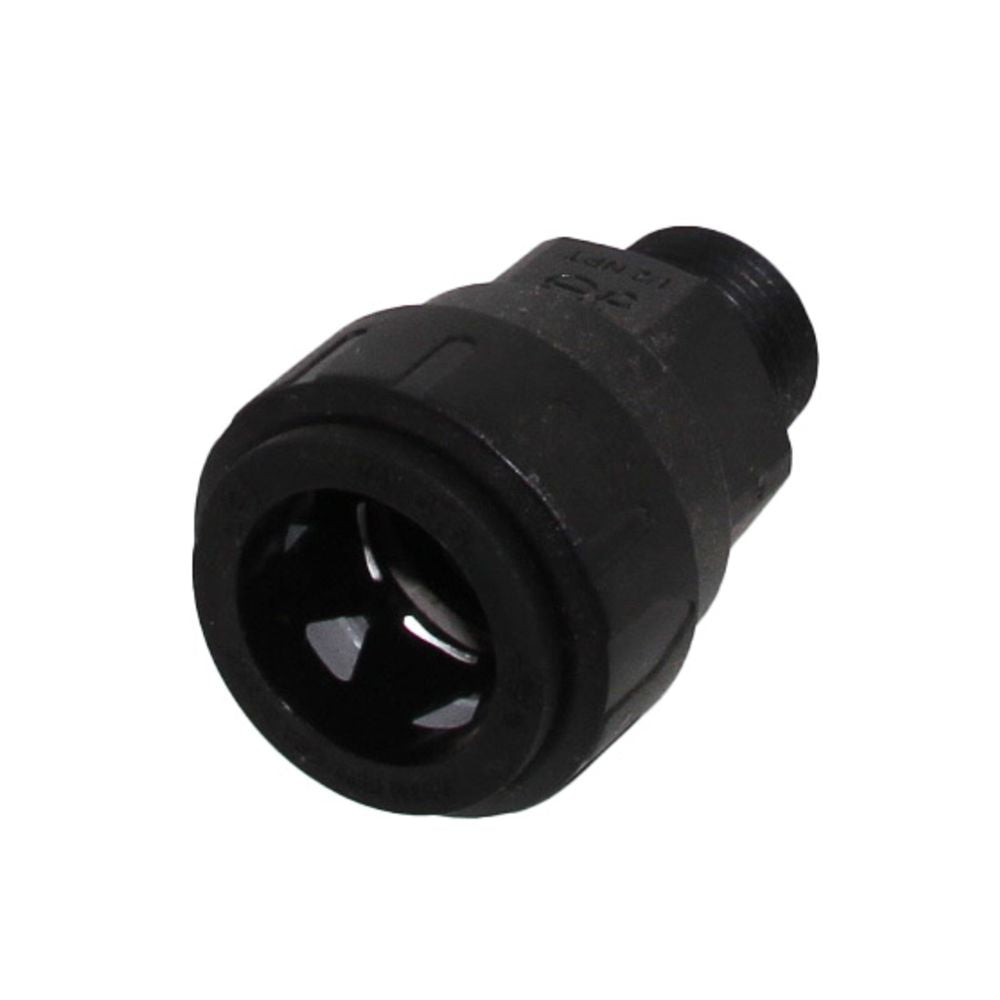

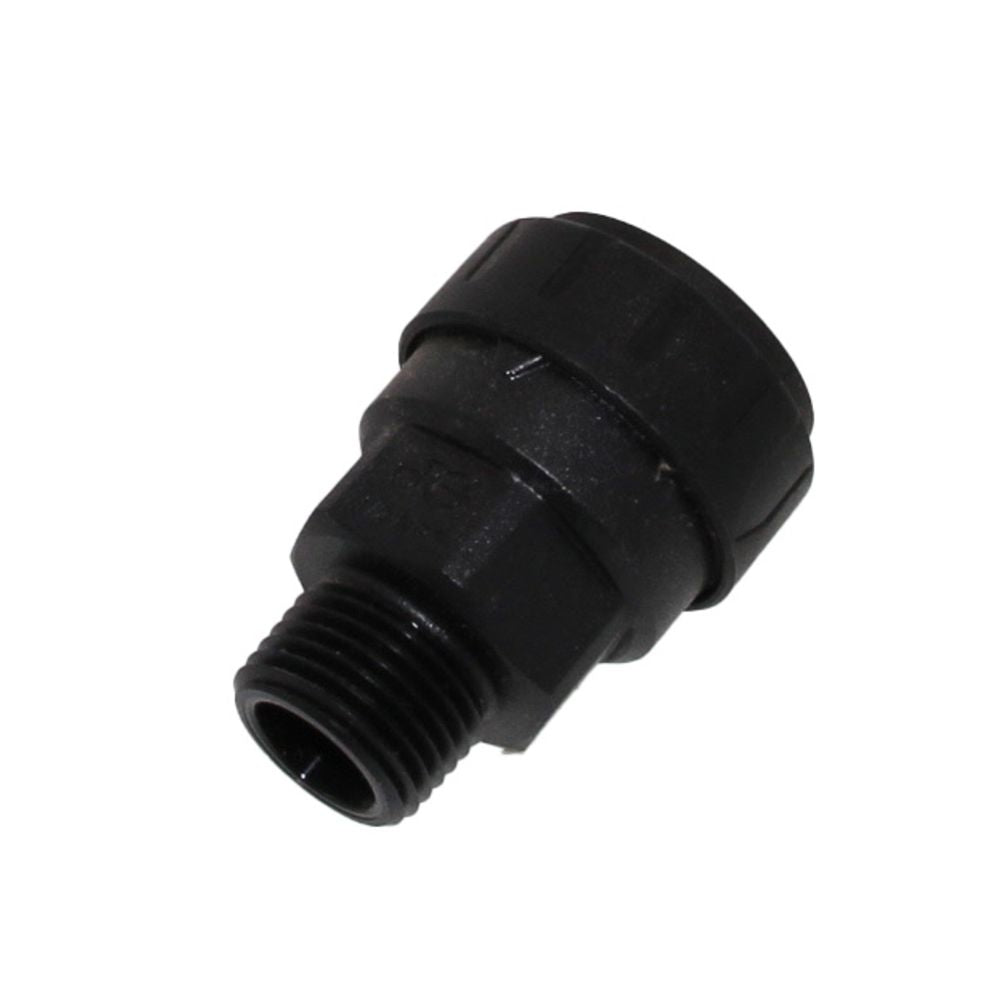

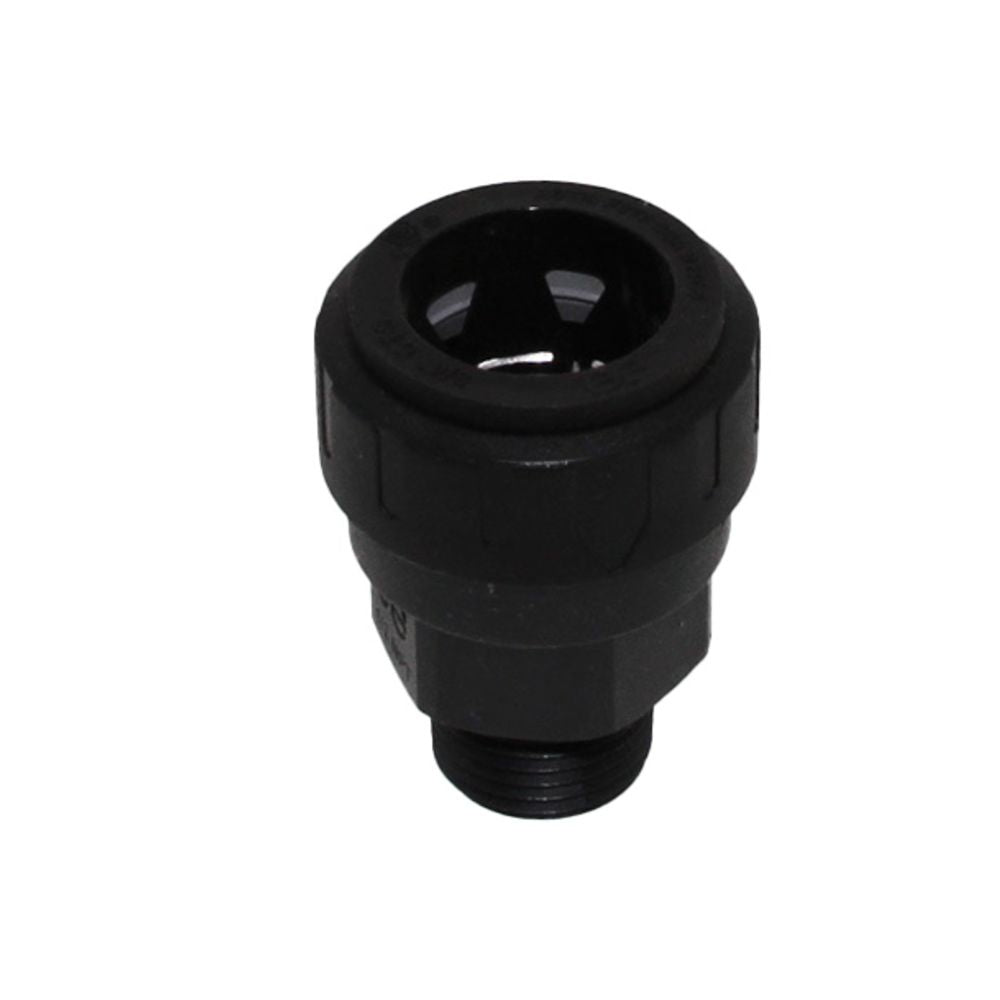

John Guest Black Male Connector - 1 CTS x 3/4 NPT

Part Number: PSEI013626E

In Stock

out of stock

In Stock

$7.99


JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
  • Suitable for hot & cold potable water and hydronic heating applications
John Guest ProLock Ascriptions

Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects
  •    in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61


Weight & Dimensions

Approx Weight

13.6 g

Details

Series

Plumbing & Marine

Push In Size

1"

Classification

Connector | Male Connection

Thread Connection

3/4" | NPT

Bag Quantity

2

Body Material

Polysulfone

Box Quantity

30

Color / Finish

Black

O Rings

EPDM

Operating Pressure Range

160 psi at 73°F, 100 psi at 180°F, 80 psi at 200°F

Origin

UK

Tubing Material

Copper, PEX

Warranty & Certifications

Certifications

NSF 61




JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
  • Suitable for hot & cold potable water and hydronic heating applications
John Guest ProLock Ascriptions

Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects
  •    in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61

Weight & Dimensions

Approx Weight

13.6 g

Details

Series

Plumbing & Marine

Push In Size

1"

Classification

Connector | Male Connection

Thread Connection

3/4" | NPT

Bag Quantity

2

Body Material

Polysulfone

Box Quantity

30

Color / Finish

Black

O Rings

EPDM

Operating Pressure Range

160 psi at 73°F, 100 psi at 180°F, 80 psi at 200°F

Origin

UK

Tubing Material

Copper, PEX

Warranty & Certifications

Certifications

NSF 61
