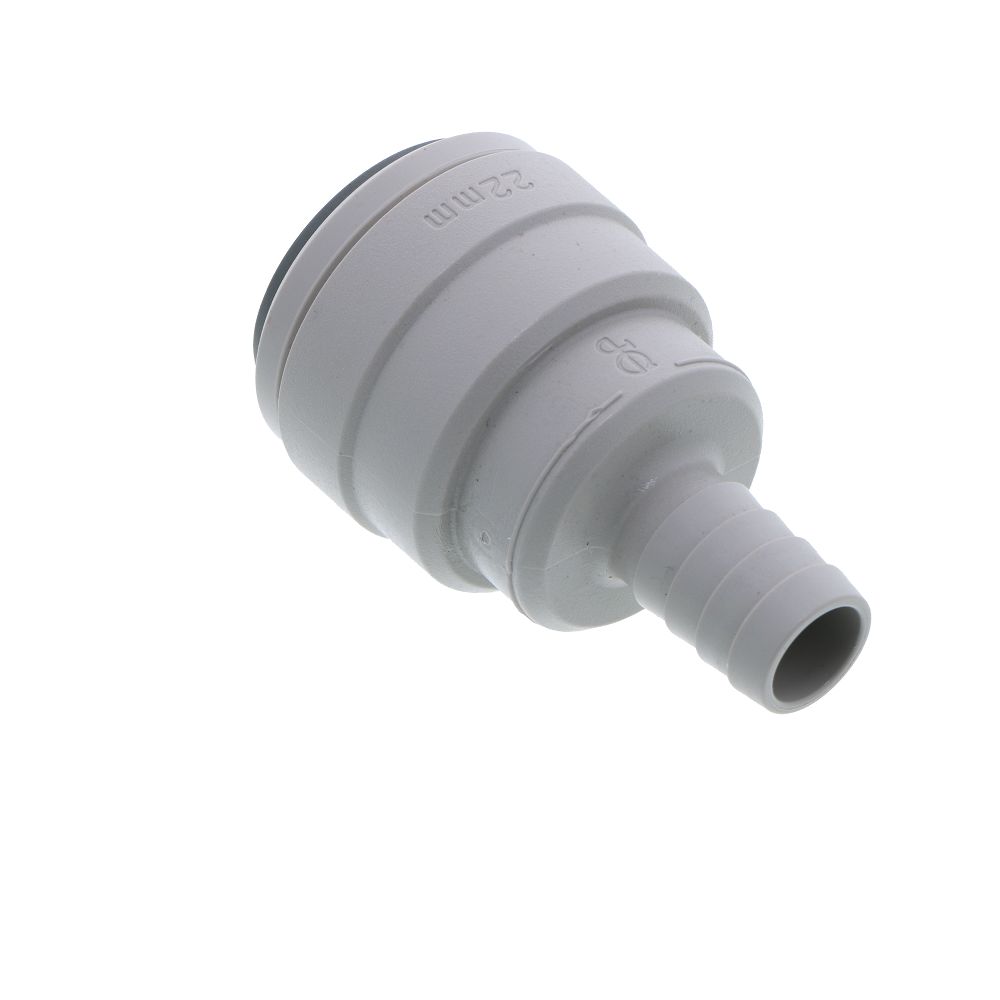

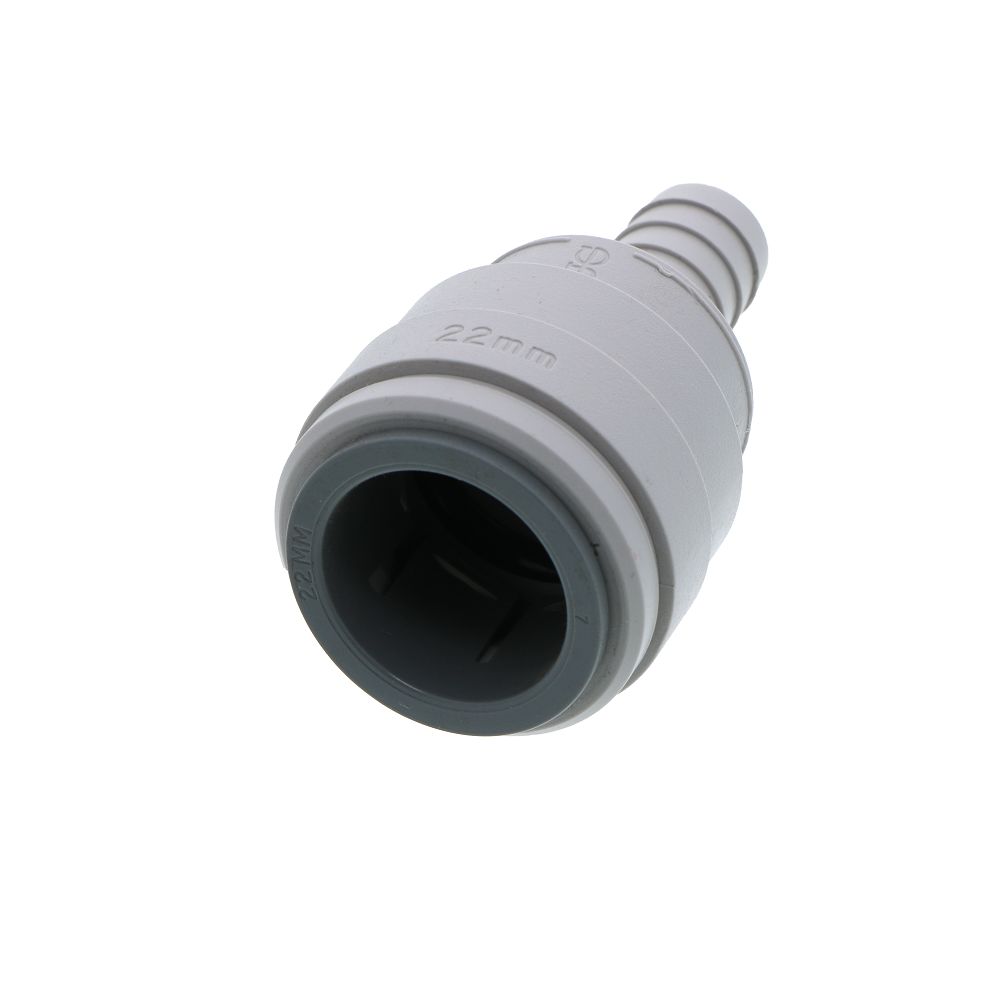

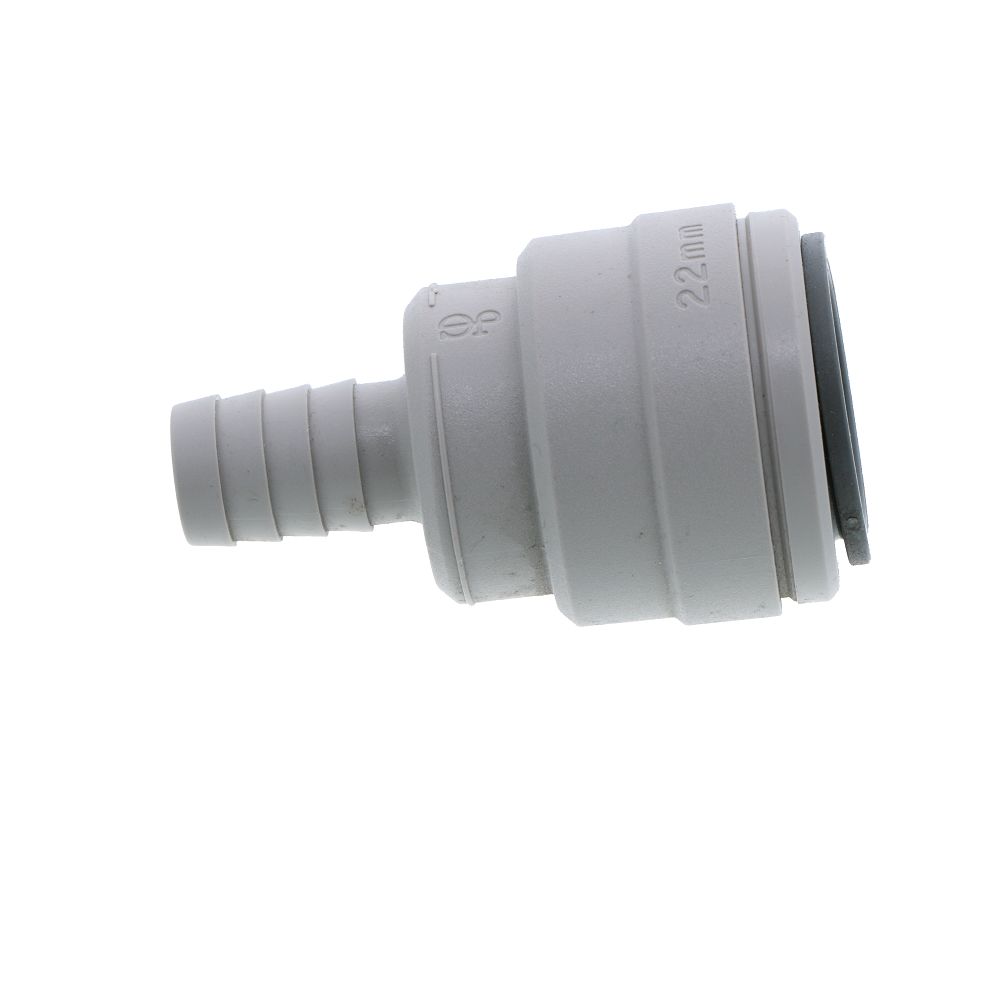

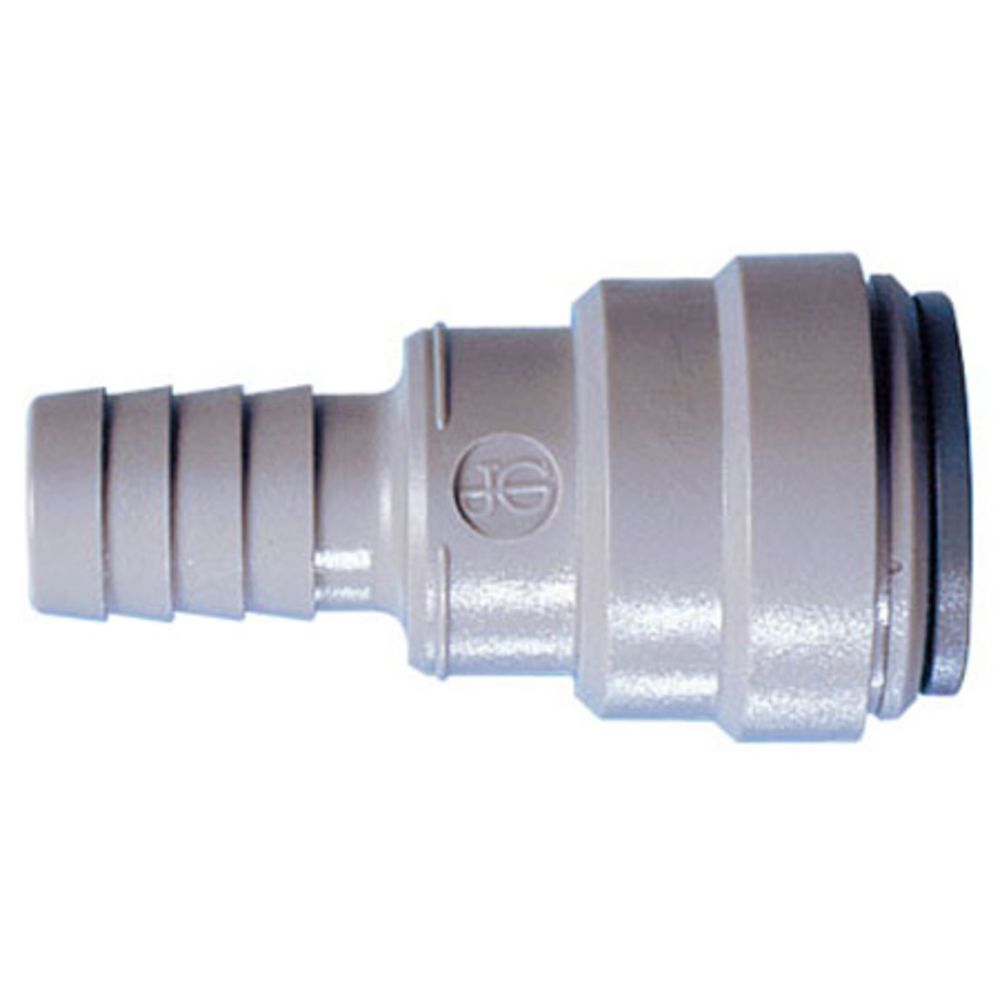

John Guest Barb Connector - 22mm x 1/2 ID Barb
Part Number: NC737
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The John Guest hose connector adaptor easily connects plastic or copper pipe. Simply push the push-fit fitting onto pipe. To disconnect, push the collet towards the body of the push-fit fitting and pull the pipe to release. The hose connector is up to 40% faster to install than traditional methods and is easier to use in confined spaces by removing the need for hot works and tools.
Features & Benefits:
- Instant push-fit connection
- Install and demount in seconds without tools
- Safe flame-free installation, with no hot works, glue or flux
- Grip & Seal collet with stainless steel teeth and main O-Ring seal
- Non-toxic, resists corrosion and no scale build-up
- Compatible with PEX and polybutylene plastic pipe (inserts required) and copper pipe
- Suitable for hot and cold water only (not suitable for central heating systems)
WARNING!
| Product Details | |
|---|---|
Application | Water |
Barb Size | 1/2" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 174 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Free Floating |
Push-In Size | 22mm OD |
Series | NC-ITM |
Shape | Straight |
Color / Finish | Gray |
Origin | UK |
Sub-Type | Tube to Barb Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 61, NSF 372 |
