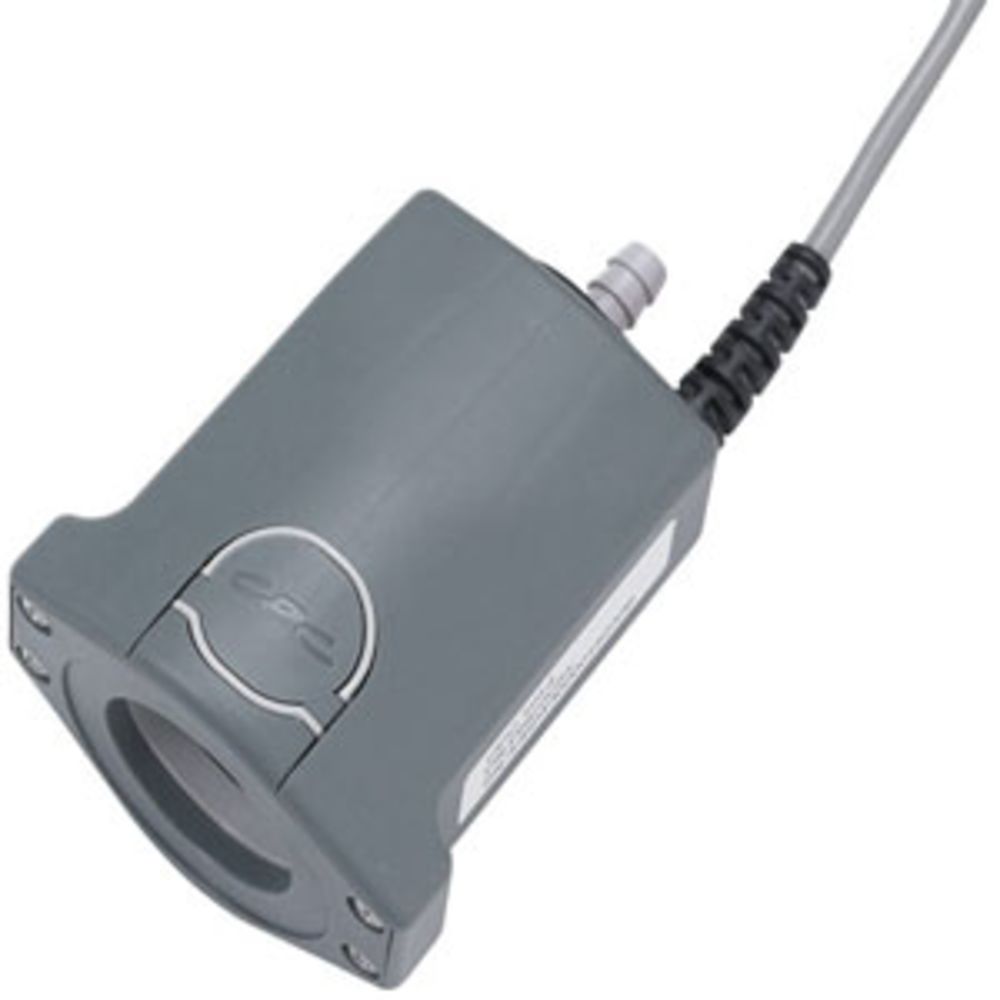

IUDCDR1700400 1/4 Hose Barb Valved In-Line Coupling Reader with RFID, RS-232

Home / Fittings / Quick-Disconnect Fittings / IUDCDR1700400 1/4 Hose Barb Valved In-Line Coupling Reader with RFID, RS-232

Colder Products

IUDCDR1700400 1/4 Hose Barb Valved In-Line Coupling Reader with RFID, RS-232

Part Number: IUDCDR1700400

The patented Universal Dispensing Coupler (UDC) provides a universal connection to a 38mm fitment neck. Make instant connections to bulk packaging systems including bag-in-box (BIB), flexible and rigid packaging styles. Automatic flush face valves minimize costly or dangerous spillage.

Features:

Material: Polypropylene
Material Finish: Molded Grey
Color: Gray
Valve Option: Valved
Mounting Option: Free Floating
Temperature Range: 32°F to 150°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Bag-in-Box
Barb Size	1/4" ID
Body Material	Polypropylene
Max Pressure (Psi)	15
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	FDA EPDM
Series	UDC
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Gray
Inner Diameter	1/4"
Type	Coupling Body

Material: Polypropylene
Material Finish: Molded Grey
Color: Gray
Valve Option: Valved
Mounting Option: Free Floating
Temperature Range: 32°F to 150°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
