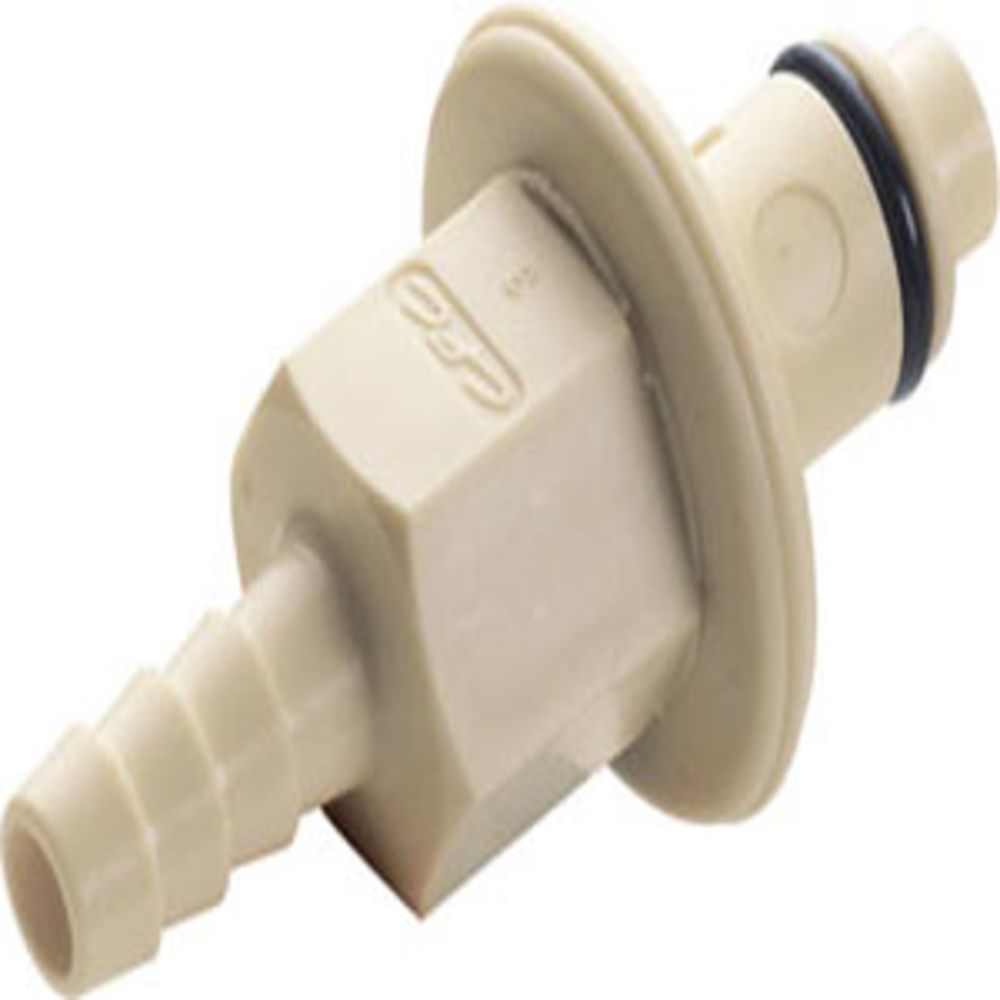

IPLCDT2200400 1/4 Hose Barb Valved In-Line Coupling Insert with RFID

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Features:

Material: Polypropylene
Material Finish: Natural
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Valve Option: Valved
Temperature Range: 32°F to 160°F
Valve Spring: 316 Stainless Steel
Seal Options: EPDM
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	150
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Seal Material	EPDM
Series	PLC12
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Almond
Inner Diameter	1/4"
Type	Coupling Insert
