Colder Products

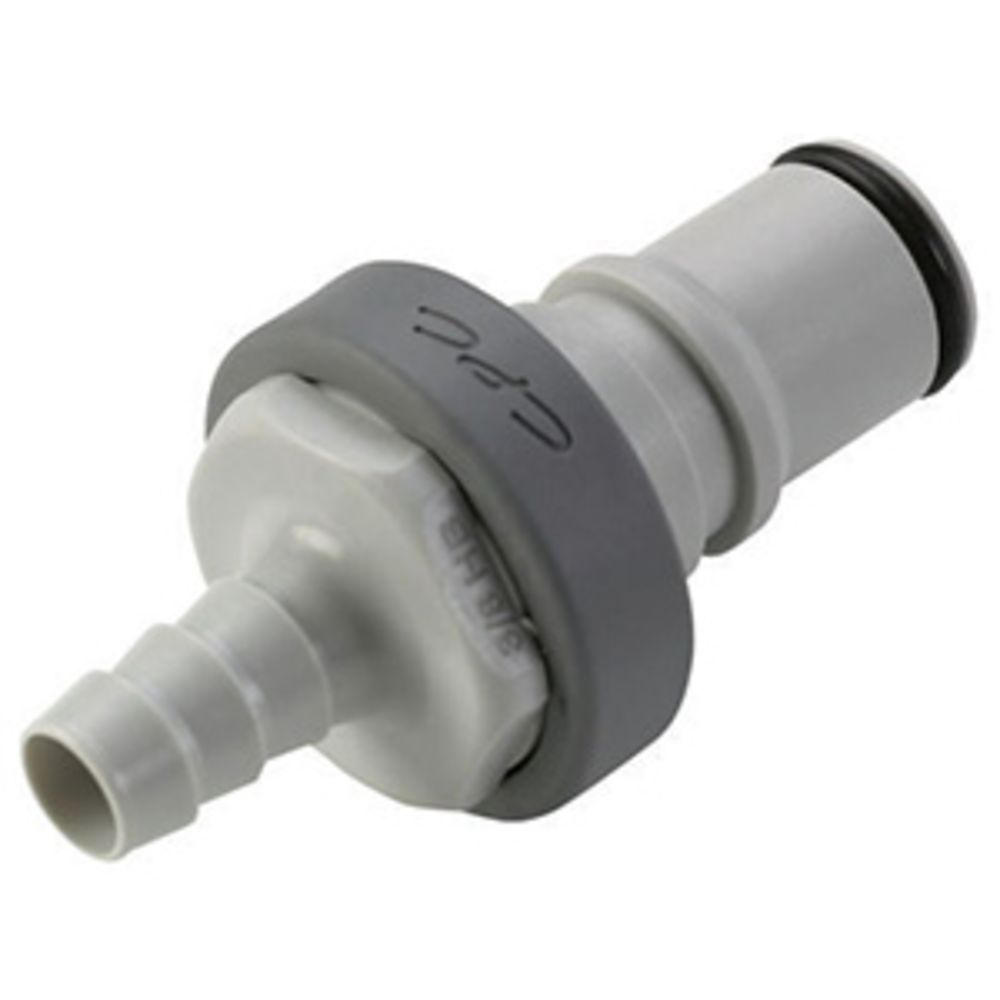

INS4DT2200600 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb

Part Number: INS4DT2200600

In Stock

out of stock

In Stock

$15.85


NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Material Finish: Natural
  • Color: Gray
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units


Details

Bag Quantity

25 Units

Body Material

Polypropylene

Color / Finish

Gray; Natural

Mounting Options

Free Floating

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32-160 Degrees Fahrenheit

Seal Material

EPDM

Size

3/8 ID Inches

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

External Springs And Pin

316 stainless steel

Thumb Latch

Glass-filled polypropylene, ABS


INS4DT2200600





NS4 Series couplings feature non-spill valves in a compact size, at a great price. Use the NS4 when even a few drops pose problems regarding safety, media cost or environmental regulations. These innovative couplings are lightweight, chemically resistant and easy to use. The nonspill design effectively eliminates spills, minimizes downtime and enhances operator safety.

Specifications:
  • Material: Polypropylene
  • Material Finish: Natural
  • Color: Gray
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Spillage: <0.10 cc per disconnect, 0.10 cc per connect
  • Available in Bags of 25 units

Details

Bag Quantity

25 Units

Body Material

Polypropylene

Color / Finish

Gray; Natural

Mounting Options

Free Floating

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32-160 Degrees Fahrenheit

Seal Material

EPDM

Size

3/8 ID Inches

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

External Springs And Pin

316 stainless steel

Thumb Latch

Glass-filled polypropylene, ABS
