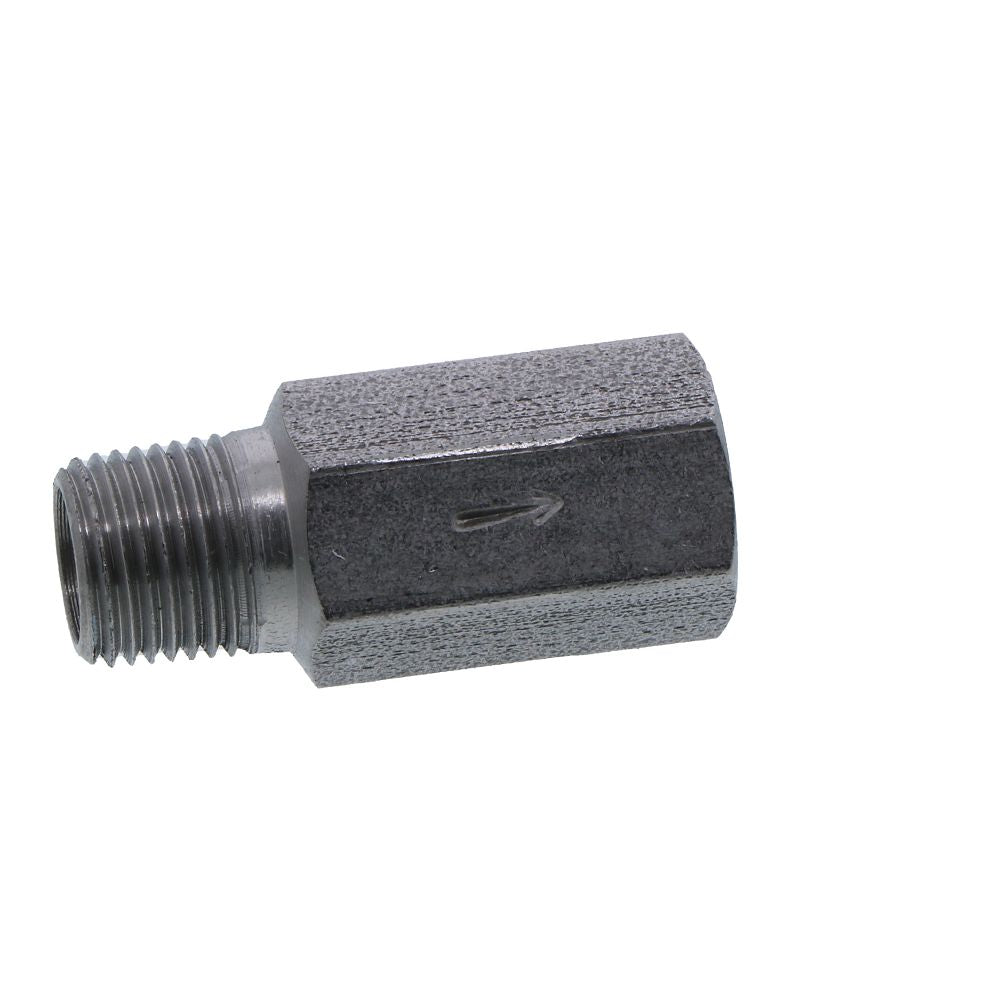

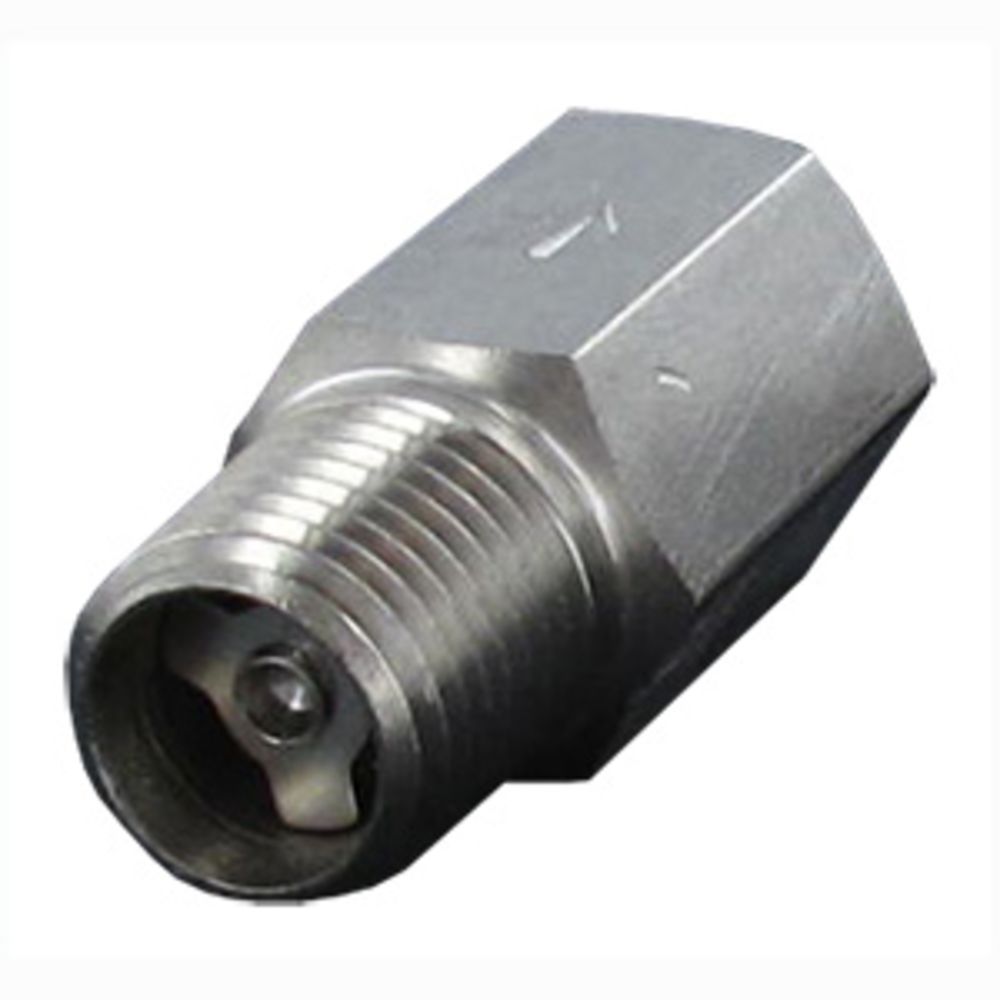

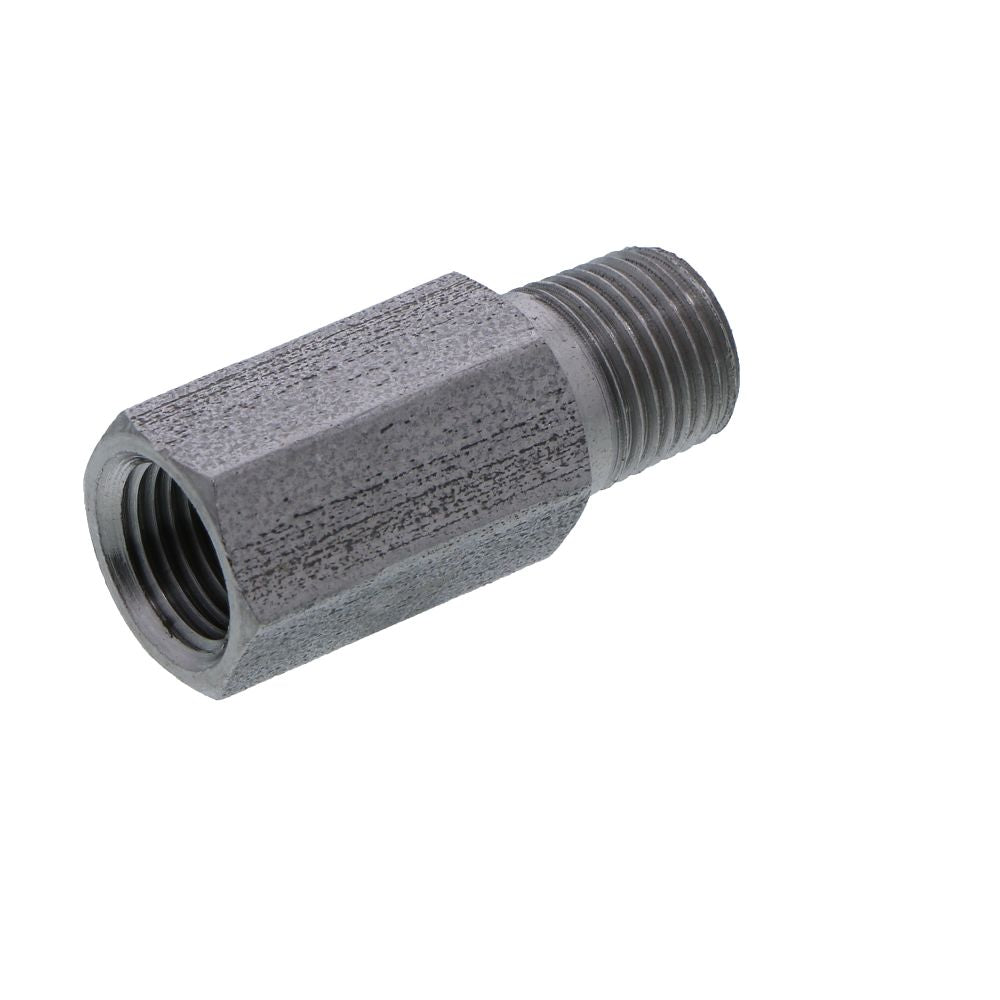

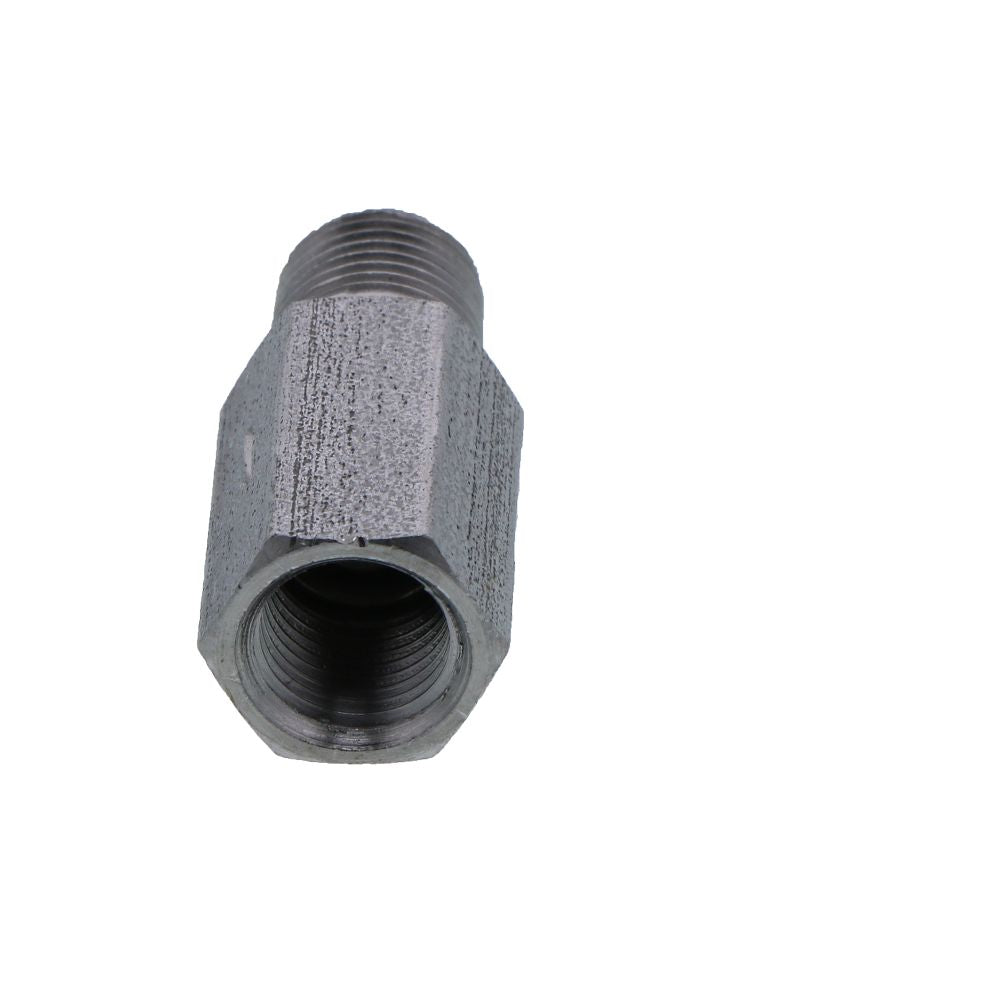

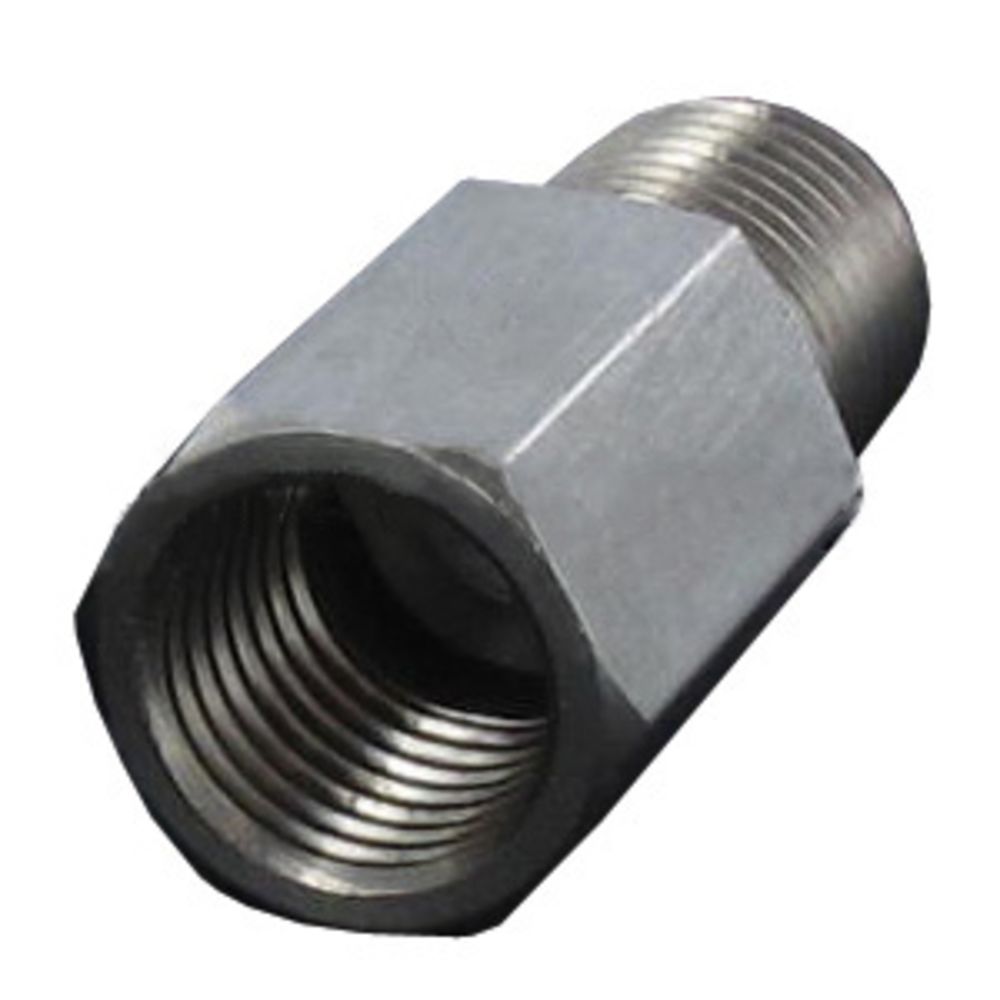

Inline Stainless Steel Check Valve - 1/8 mpt Inlet x 1/8 fpt Outlet

Part Number: CV18S-MF

Alt. Part Number: CV18S-MxF

In Stock

out of stock

In Stock

$9.40


Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:
  • Material:  Stainless Steel
  • Connection:  1/8" Male NPTF Inlet x 1/8" Female NPTF Outlet
  • Dimensions:1.04" x 1/2 Hex
  • Cracking Pressure:  1.5 psi +/- 1/2 psi
  • Flow Rates:  .35 gpm @ 5 psi, .64 gpm @ 10 psi, .73 gpm @ 15 psi, .84 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade


Weight & Dimensions

Dimensions

1.04" x 1/2 Hex

Details

Body Material

Stainless Steel

Flow Rate

.35 gpm @ 5 psi




Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:
  • Material:  Stainless Steel
  • Connection:  1/8" Male NPTF Inlet x 1/8" Female NPTF Outlet
  • Dimensions:1.04" x 1/2 Hex
  • Cracking Pressure:  1.5 psi +/- 1/2 psi
  • Flow Rates:  .35 gpm @ 5 psi, .64 gpm @ 10 psi, .73 gpm @ 15 psi, .84 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade

Weight & Dimensions

Dimensions

1.04" x 1/2 Hex

Details

Body Material

Stainless Steel

Flow Rate

.35 gpm @ 5 psi
