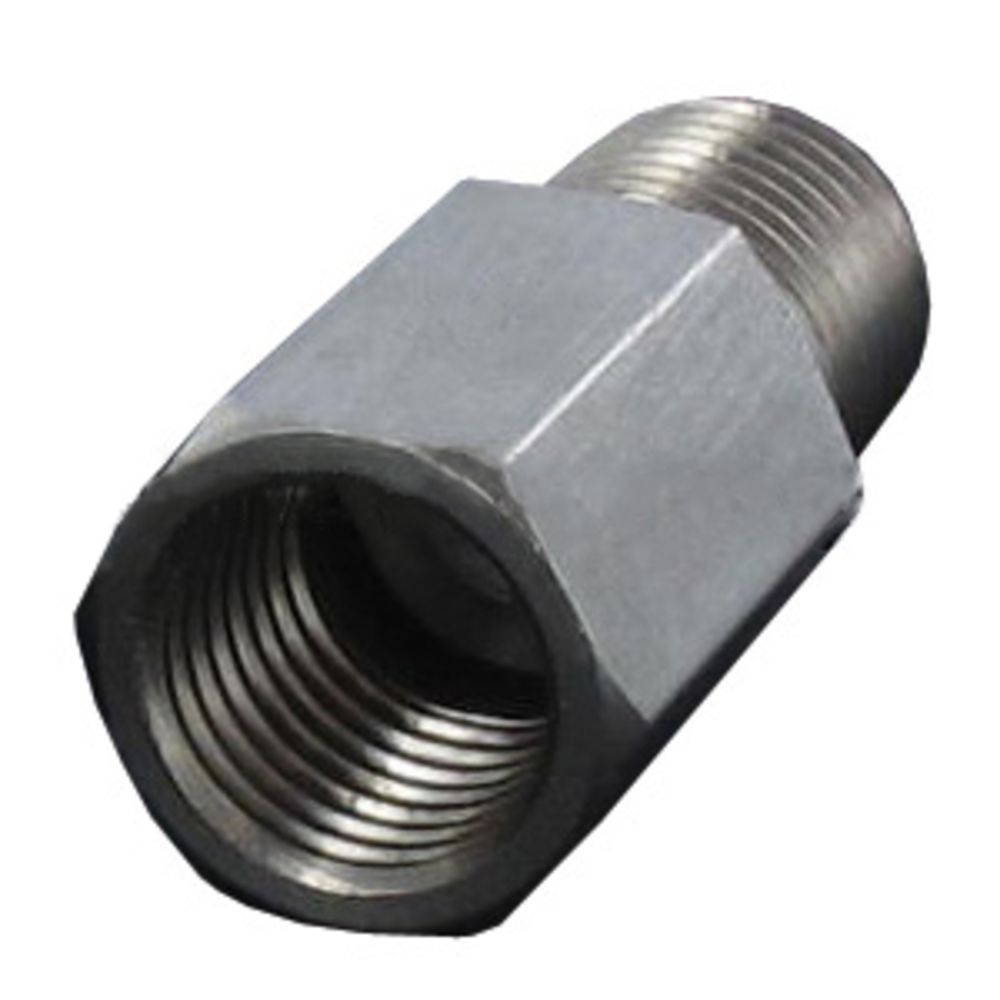

Inline Stainless Steel Check Valve - 1/4" MPT Inlet x 1/4" FPT Outlet

Part Number: CV14S-MF
Alt. Part Number: CV14SF, CV14S-FM, CV14S-MxF
Your price:

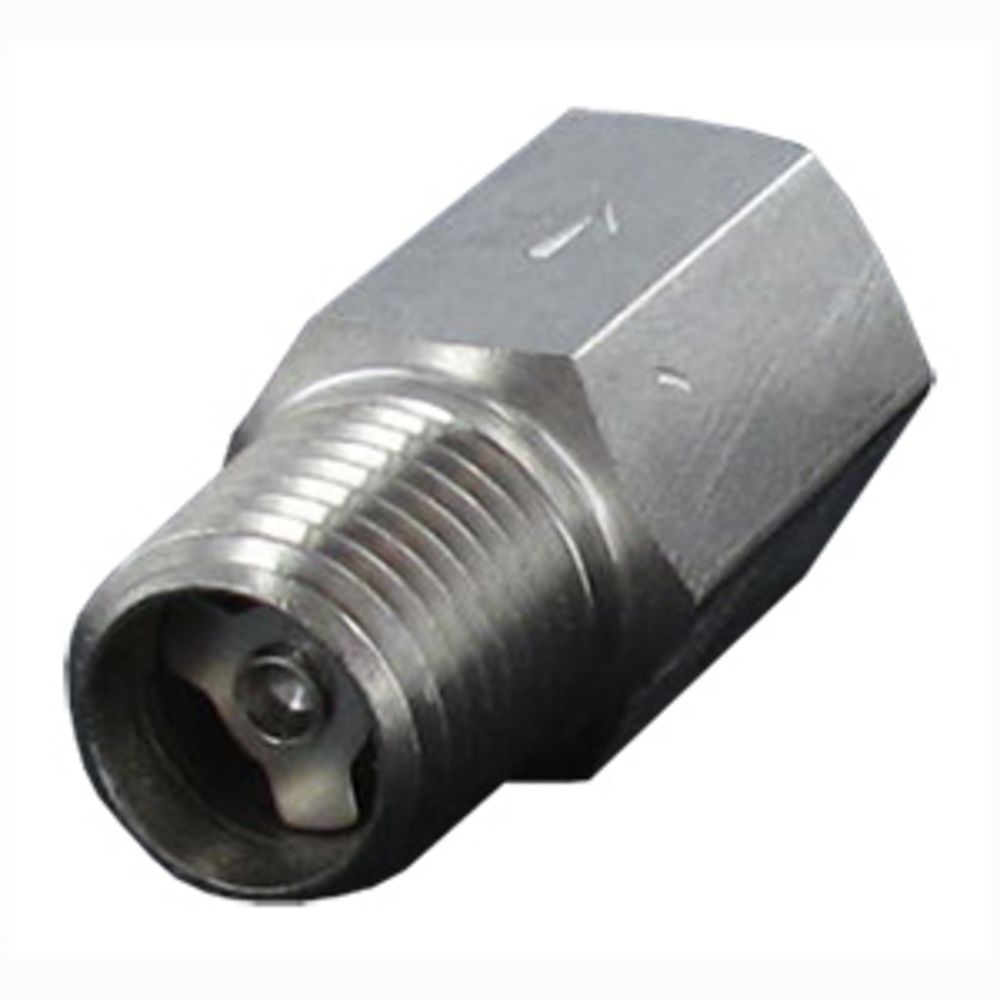

Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Specifications:

  • Material: Brass or Stainless Steel
  • Connections: 1/4" MPT Inlet x 1/4" FPT Outlet
  • Dimensions: 1.41" x 11/16" Hex
  • Cracking Pressure: 1.0 psi +/- 1/2 psi
  • Flow Rates: 1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade (Viton available by special order)
