SMC

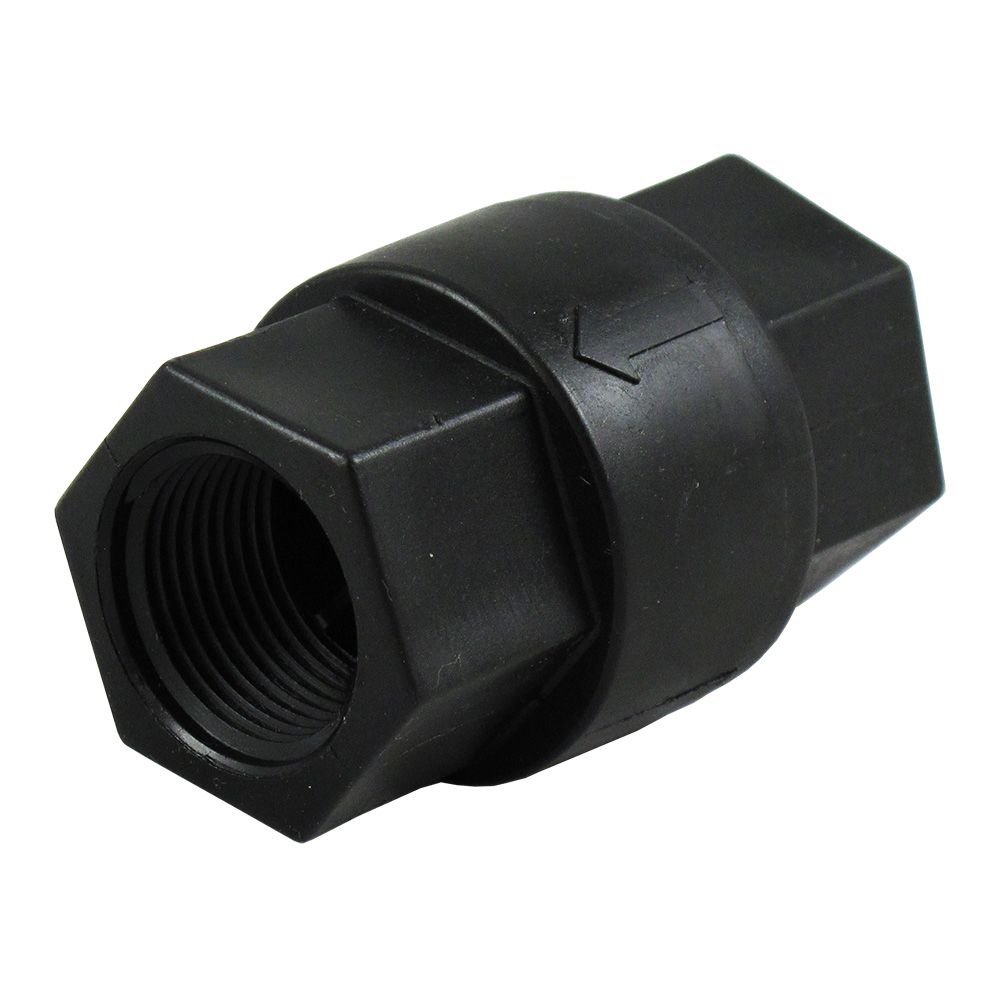

Inline Poppet Check Valve 687 Series PP 3/4" FPT - BUNA

Part Number: 6870090

Alt. Part Number: FP CHK 687-12F12F-B

In Stock

out of stock

In Stock

Closeout sale item with limited availability.

$5.68 Regular price $12.48 (54% Off)

The 687 Series Poppet Check Valve prevents reverse flow and cross contamination and incorporates a thin elastomer disc supported by a poppet that seals on the seat. Pressure in the flow direction moves the seal off the seat first before pressure builds enough to move the poppet away from the seat. The 687 Series Check Valve maximum operating pressure of 125 psi covers a wide range of air and fluid applications. The 687 Check is a compact design with a light cracking pressure, high flow rate, and a positive seal at very low back pressure or slight vacuum. For higher cracking pressure applications, an embedded o-ring poppet is substituted for the standard elastomer disc poppet.

Specifications:
  • Material Polypropylene Body & Poppet, Black.  Custom order: white
  • Seal Buna-N.   Custom order:  Ethylene Propylene or Fluoroelastomer (Viton®)
  • Inlet x Outlet 3/4 Female NPT X 3/4 Female NPT
  • Cracking Pressure 302 Stainless Spring @ 1/3 psi.   Custom order:  7 psi and Hastelloy Spring @ 1/3 or 3 psi.


Details

Body Material

Polypropylene

Operating Pressure Range

125 psi

Operating Temperature Range

140 Degrees Fahrenheit



The 687 Series Poppet Check Valve prevents reverse flow and cross contamination and incorporates a thin elastomer disc supported by a poppet that seals on the seat. Pressure in the flow direction moves the seal off the seat first before pressure builds enough to move the poppet away from the seat. The 687 Series Check Valve maximum operating pressure of 125 psi covers a wide range of air and fluid applications. The 687 Check is a compact design with a light cracking pressure, high flow rate, and a positive seal at very low back pressure or slight vacuum. For higher cracking pressure applications, an embedded o-ring poppet is substituted for the standard elastomer disc poppet.

Specifications:
  • Material Polypropylene Body & Poppet, Black.  Custom order: white
  • Seal Buna-N.   Custom order:  Ethylene Propylene or Fluoroelastomer (Viton®)
  • Inlet x Outlet 3/4 Female NPT X 3/4 Female NPT
  • Cracking Pressure 302 Stainless Spring @ 1/3 psi.   Custom order:  7 psi and Hastelloy Spring @ 1/3 or 3 psi.

NOTE: Closeout sale item with limited availability.

Details

Body Material

Polypropylene

Operating Pressure Range

125 psi

Operating Temperature Range

140 Degrees Fahrenheit
