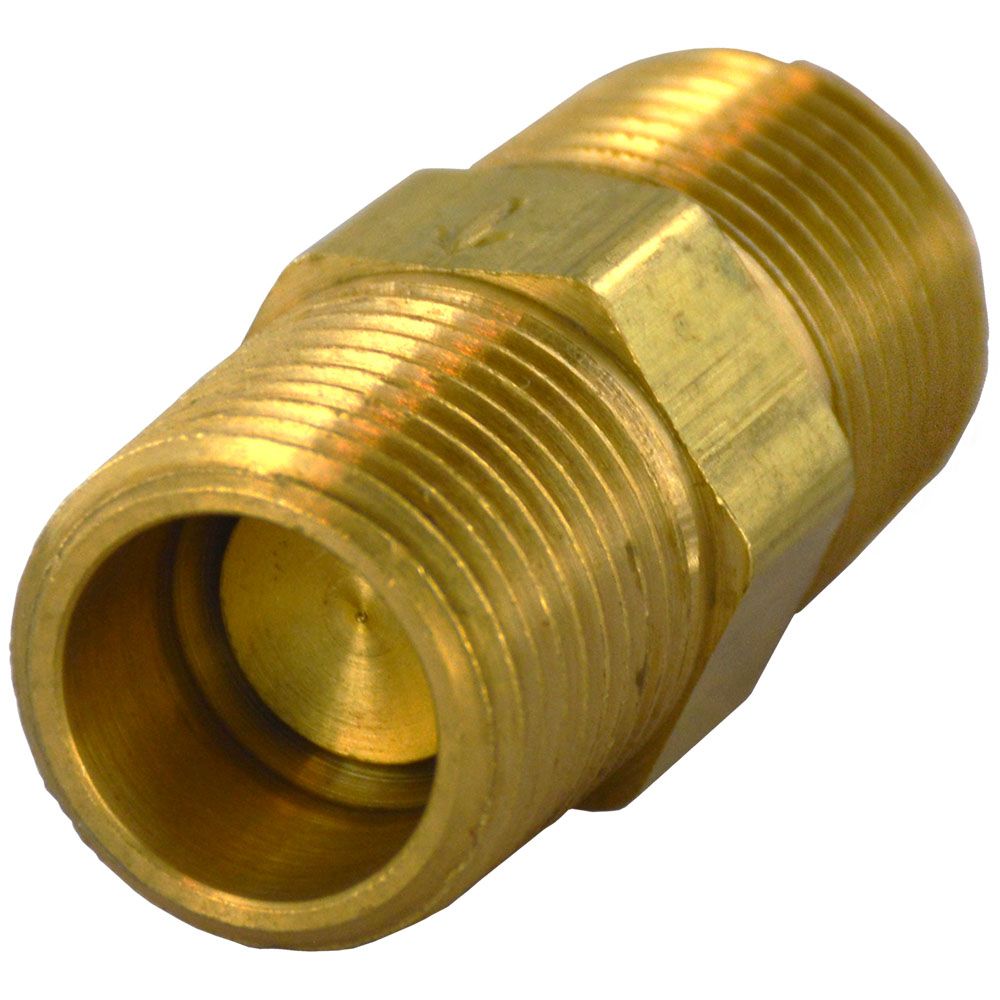

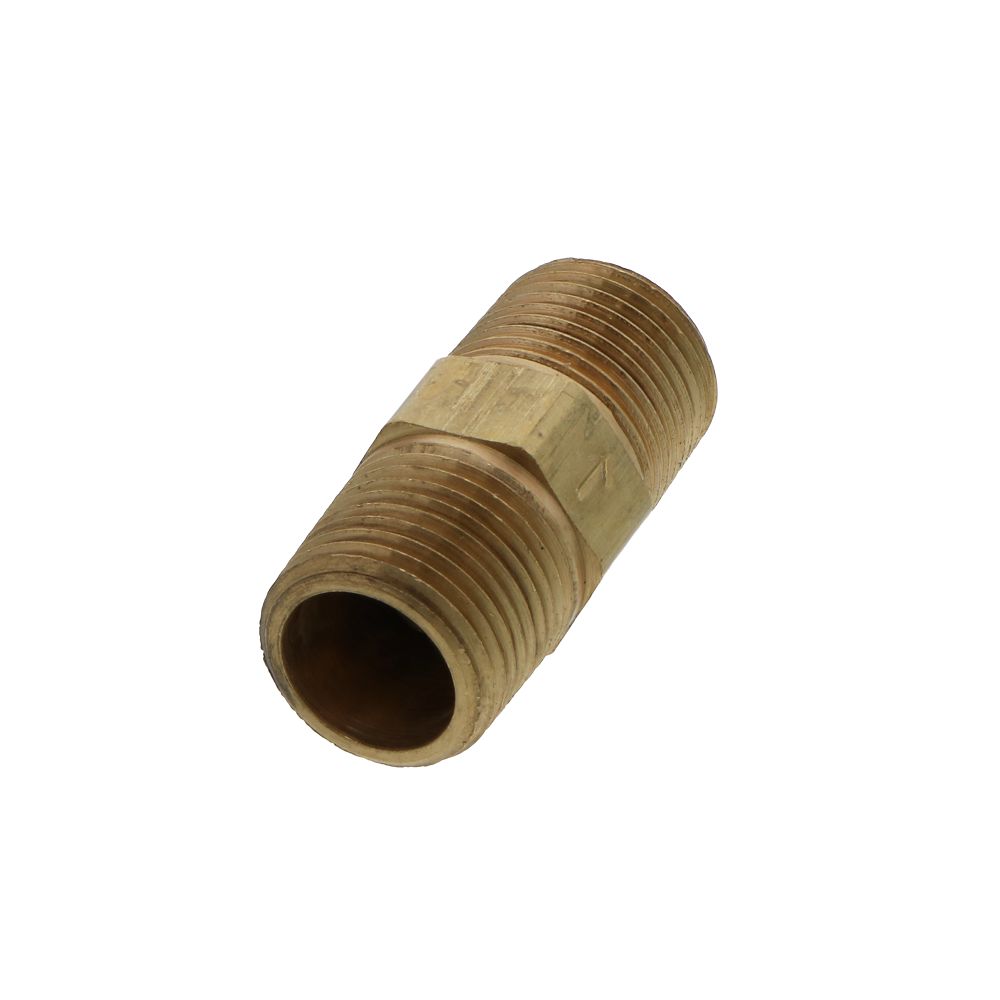

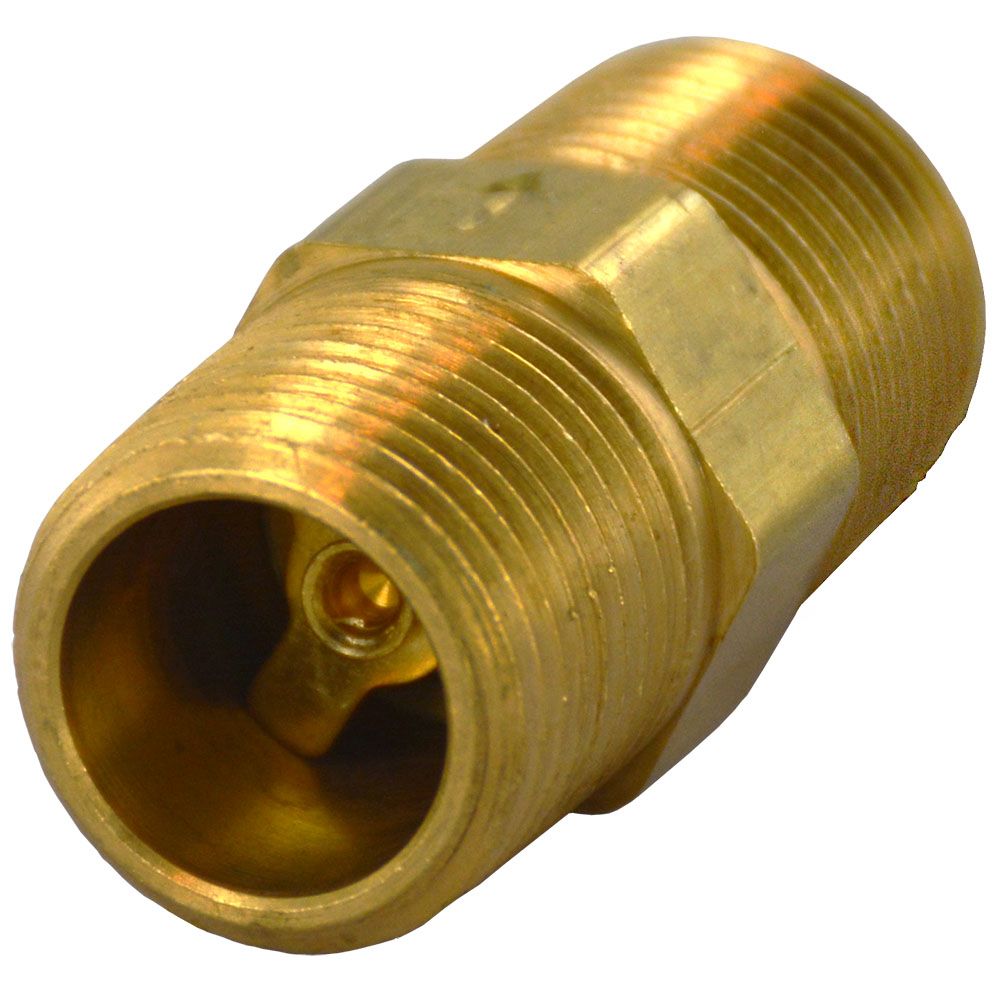

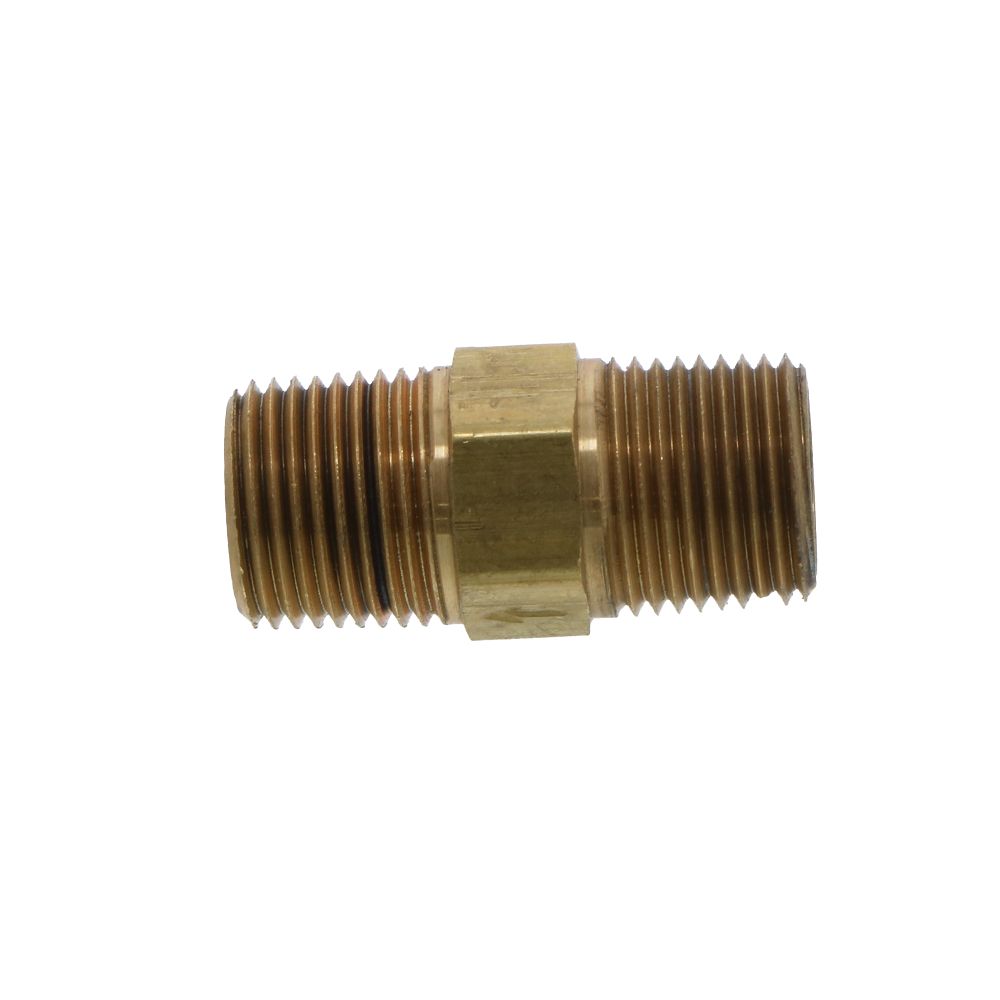

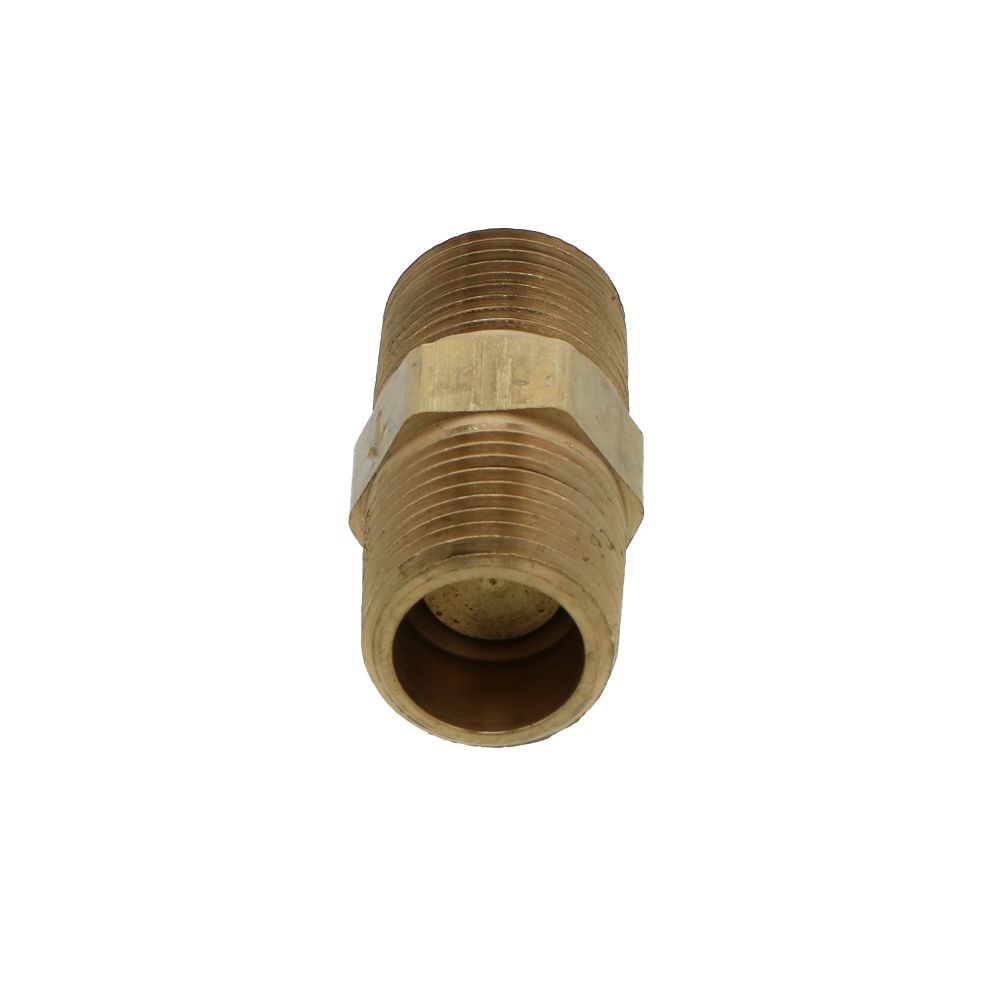

Inline Brass Check Valve - 3/8" MPT x 3/8" MPT

Part Number: CV38B-MM

Alt. Part Number: CV38B-MxM

In Stock

out of stock

In Stock

$7.18


Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Features:
  • Material: Brass
  • Dimensions: 1.5" x 9/16" Hex
  • Cracking Pressure: 1.5 psi +/- 0.5 psi
  • Connections: 3/8" MPT Inlet x 3/8" MPT Outlet
  • O-Rings: Buna-N FDA grade (Viton available by special order)
Flow Rates:
  • 1.28 gpm @ 5 psi
  • 1.92 gpm @ 10 psi
  • 2.36 gpm @ 15 psi
  • 2.8 gpm @ 20 psi


Weight & Dimensions

Dimensions

1.5" x 9/16" Hex

Details

Body Material

Brass

Origin

USA




Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.

Features:
  • Material: Brass
  • Dimensions: 1.5" x 9/16" Hex
  • Cracking Pressure: 1.5 psi +/- 0.5 psi
  • Connections: 3/8" MPT Inlet x 3/8" MPT Outlet
  • O-Rings: Buna-N FDA grade (Viton available by special order)
Flow Rates:
  • 1.28 gpm @ 5 psi
  • 1.92 gpm @ 10 psi
  • 2.36 gpm @ 15 psi
  • 2.8 gpm @ 20 psi

Weight & Dimensions

Dimensions

1.5" x 9/16" Hex

Details

Body Material

Brass

Origin

USA
