Fresh Water Systems

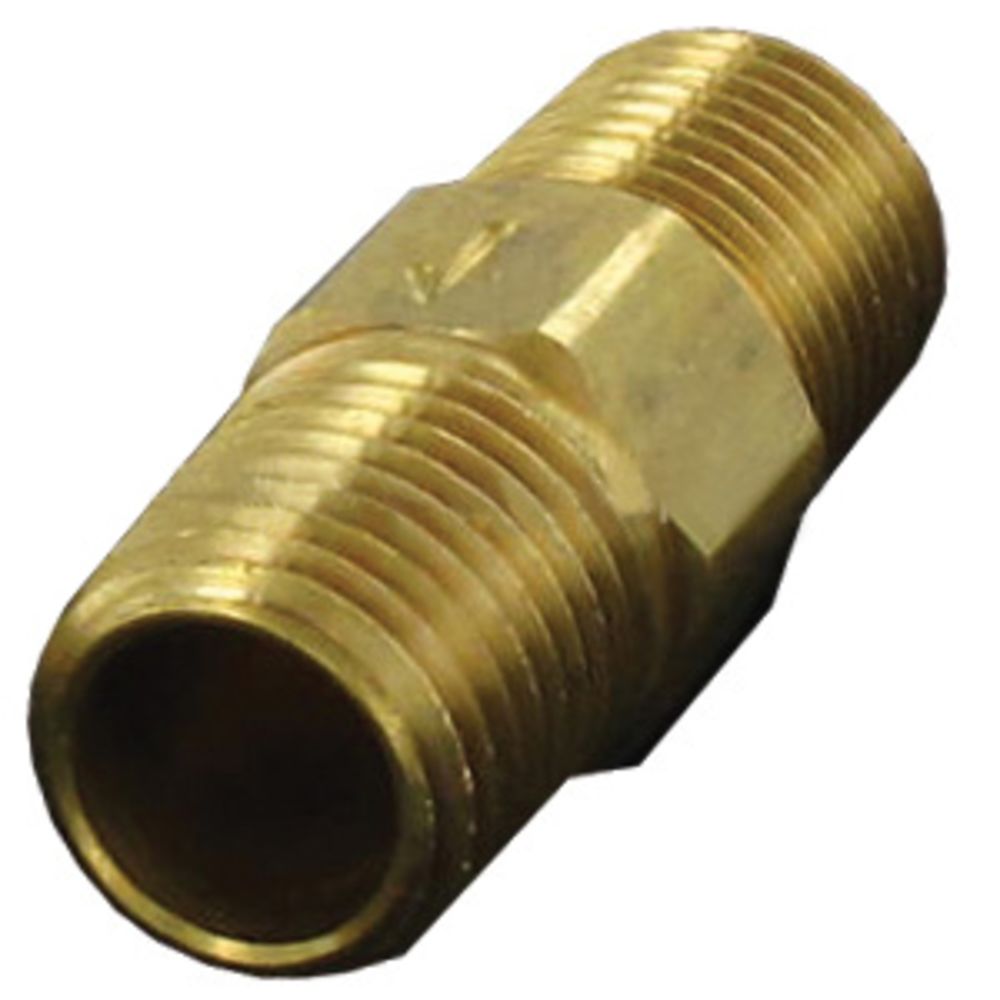

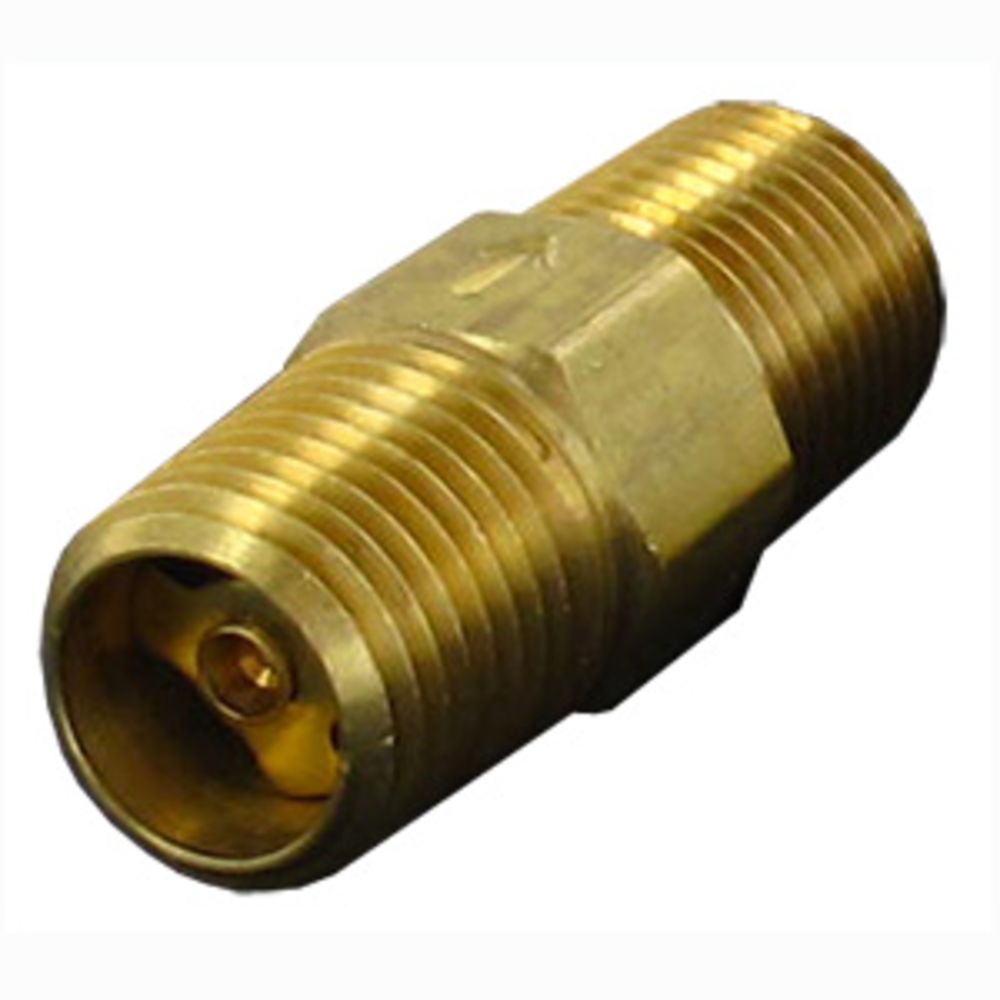

Inline Brass Check Valve - 1/4" MPT Inlet x 1/4" MPT Outlet

Part Number: CV14B-MM

Alt. Part Number: CV14B-MxM

In Stock

out of stock

In Stock

$6.79


Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.
Also Replaces MarkVII Brass Check valves FJ7050 and 4604M4M.

Specifications:
  • Material:  Brass
  • Connections: 1/4" MPT Inlet x 1/4" MPT Outlet
  • Dimensions: 1½" x 9/16" Hex
  • Cracking Pressure:  1.5 psi +/- 1/2 psi
  • Flow Rates:  1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade (Viton available by special order)


Weight & Dimensions

Dimensions

1½" x 9/16" Hex

Details

Body Material

Brass

Flow Rate

1.28 gpm @ 5 psi




Check valves are spring-activated, poppet style design to create a positive seal to prevent reverse flow and cross contamination.
Also Replaces MarkVII Brass Check valves FJ7050 and 4604M4M.

Specifications:
  • Material:  Brass
  • Connections: 1/4" MPT Inlet x 1/4" MPT Outlet
  • Dimensions: 1½" x 9/16" Hex
  • Cracking Pressure:  1.5 psi +/- 1/2 psi
  • Flow Rates:  1.28 gpm @ 5 psi, 1.92 gpm @ 10 psi, 2.36 gpm @ 15 psi, 2.8 gpm @ 20 psi
  • O-Rings: Buna-N FDA grade (Viton available by special order)

Weight & Dimensions

Dimensions

1½" x 9/16" Hex

Details

Body Material

Brass

Flow Rate

1.28 gpm @ 5 psi


Reviews
