G.A. Murdock

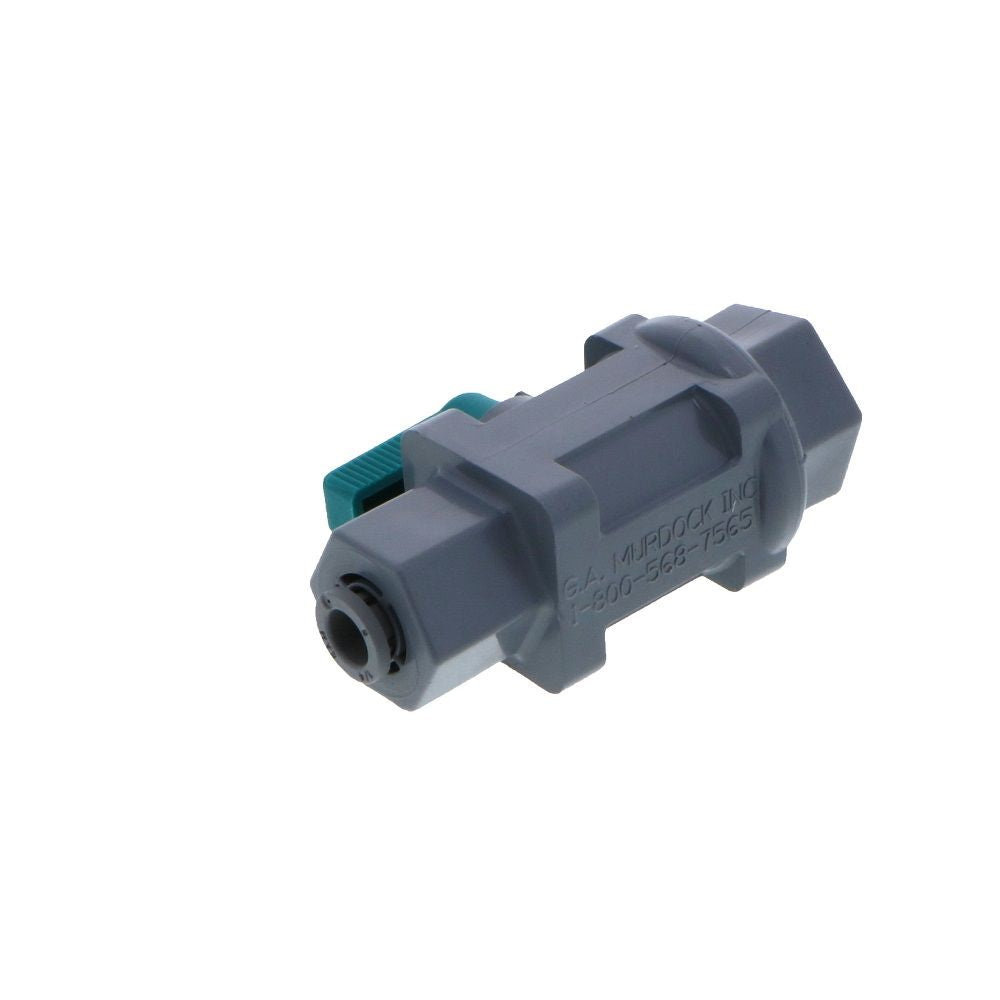

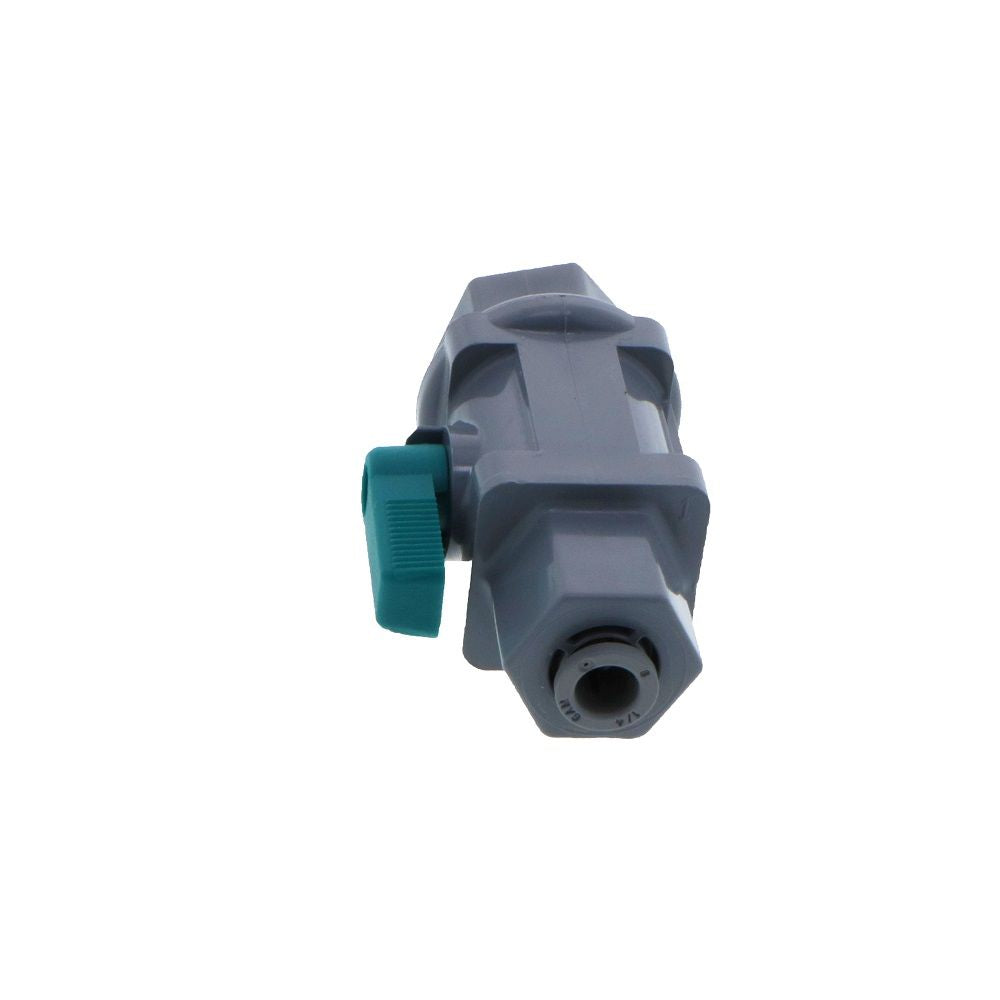

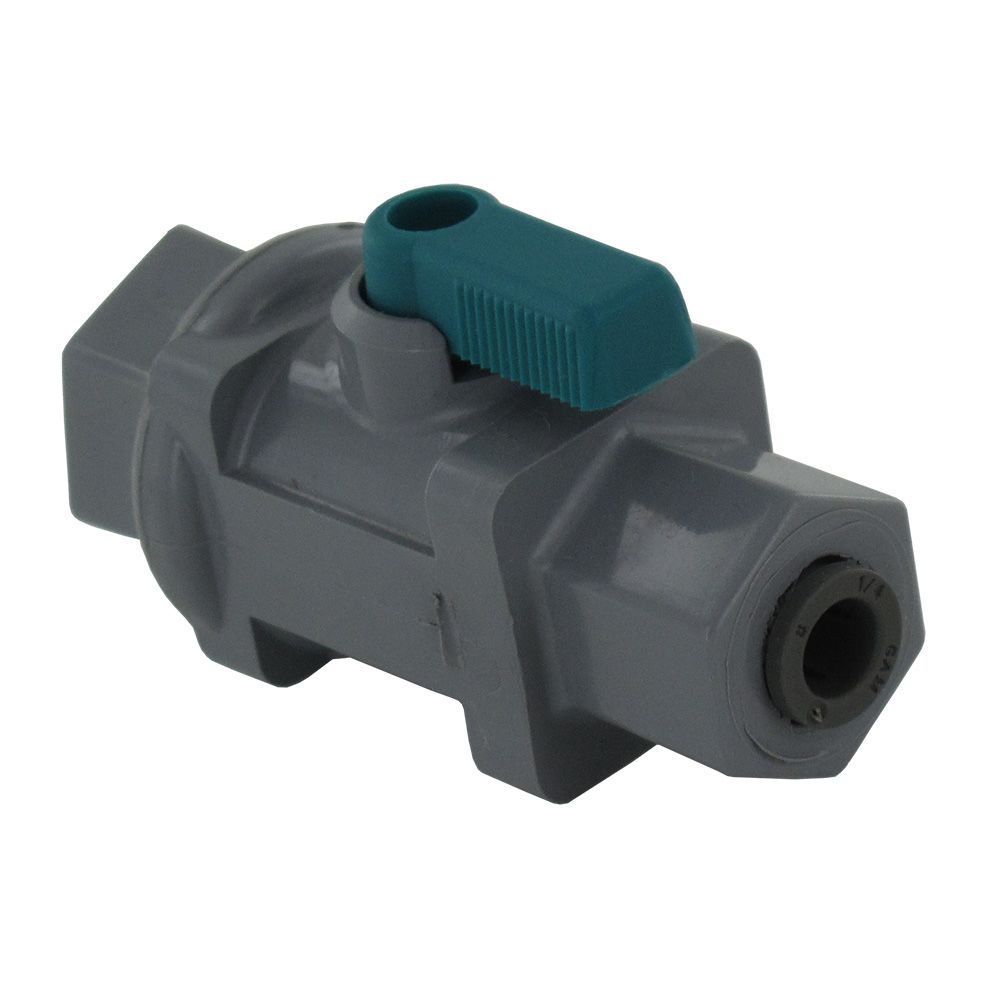

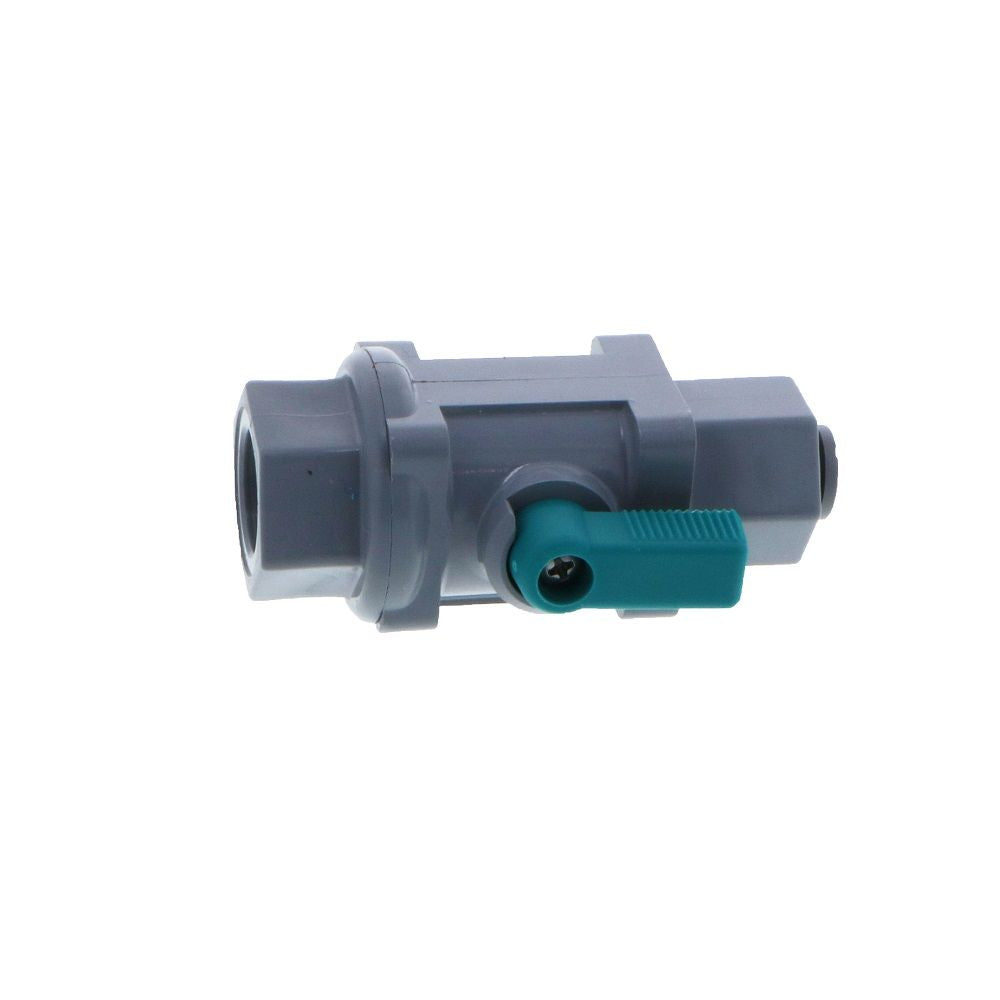

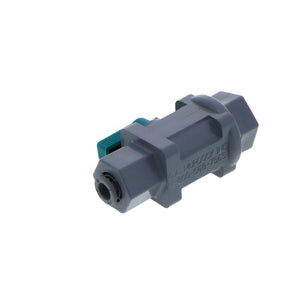

Inline Ball Valve PVC - 1/4 Tube x 1/4 Female NPTF

Part Number: G0420405

Alt. Part Number: 6381790, 638-4SMC4F-B

In Stock

out of stock

In Stock

$9.49

Features:
  • Exclusive 1/4 turn lever with a safety collar
  • Dual O-ring fitting
Specifications:
  • Material: Food Grade PVC body with an acetal copolymer handle
  • O-rings: EPDM
  • Operating Pressure: 150 psi max at 70°F
  • Temperature range: 33 to 140°F (1 to 60°C)
  • Connections: 1/4" OD push-in x 1/4" Female NPTF




Details

Application

Water

Body Material

PVC

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Push-In Size

1/4" OD

Seal Material

EPDM

Series

Axeon

Size

1/4"

Color / Finish

Gray

Connection Type

Female (FPT)



Features:
  • Exclusive 1/4 turn lever with a safety collar
  • Dual O-ring fitting
Specifications:
  • Material: Food Grade PVC body with an acetal copolymer handle
  • O-rings: EPDM
  • Operating Pressure: 150 psi max at 70°F
  • Temperature range: 33 to 140°F (1 to 60°C)
  • Connections: 1/4" OD push-in x 1/4" Female NPTF



Details

Application

Water

Body Material

PVC

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Push-In Size

1/4" OD

Seal Material

EPDM

Series

Axeon

Size

1/4"

Color / Finish

Gray

Connection Type

Female (FPT)
