G.A. Murdock

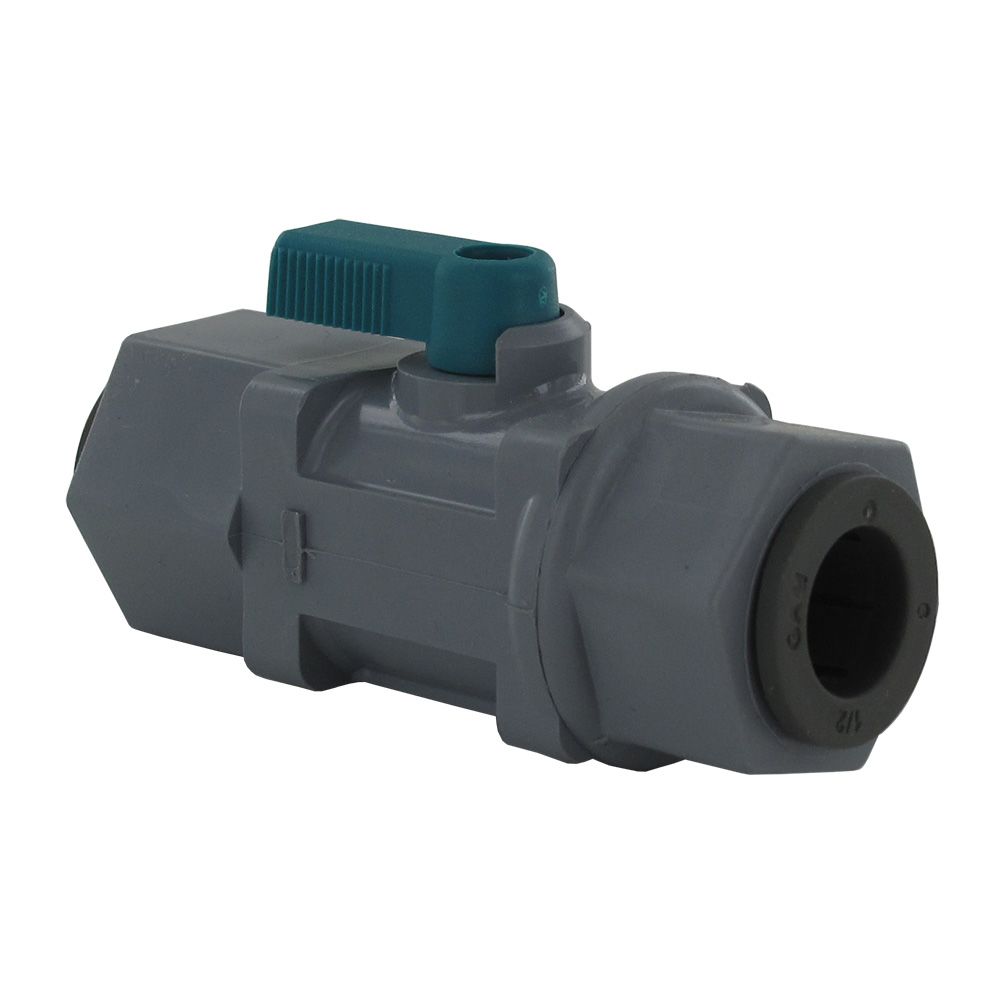

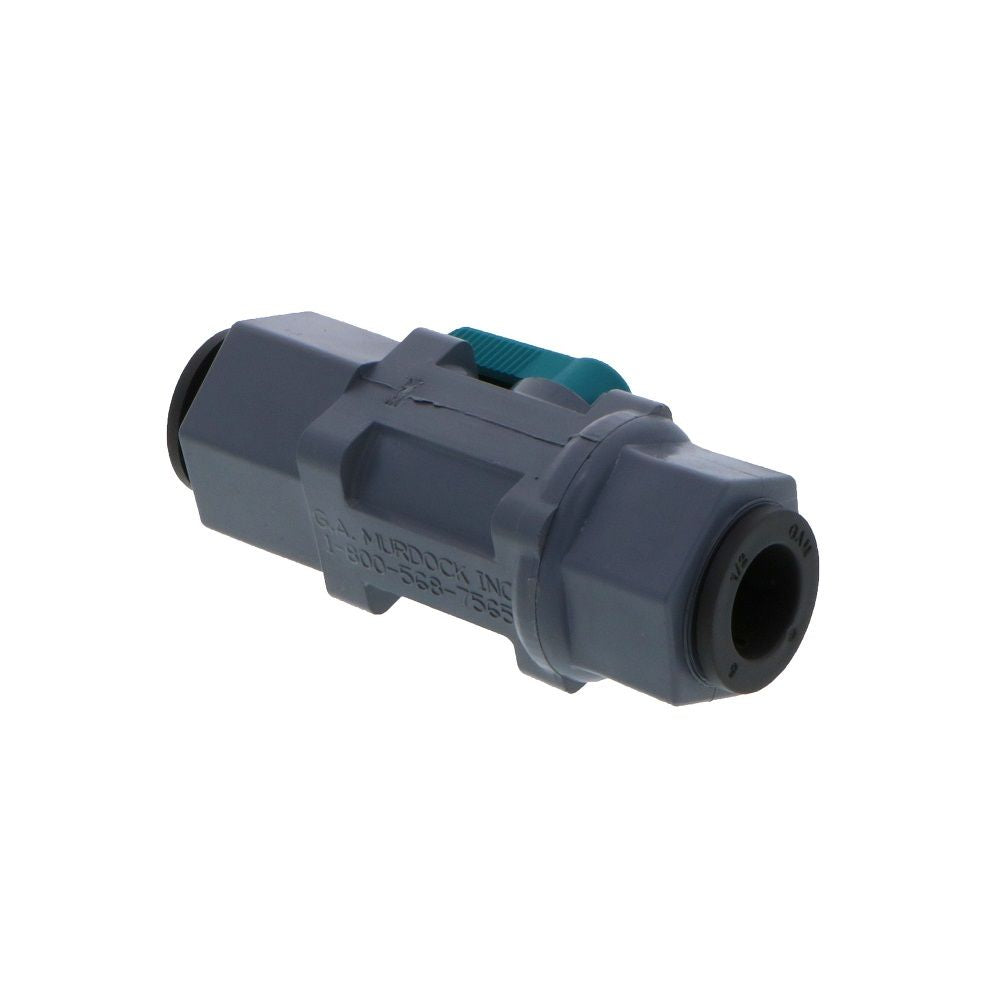

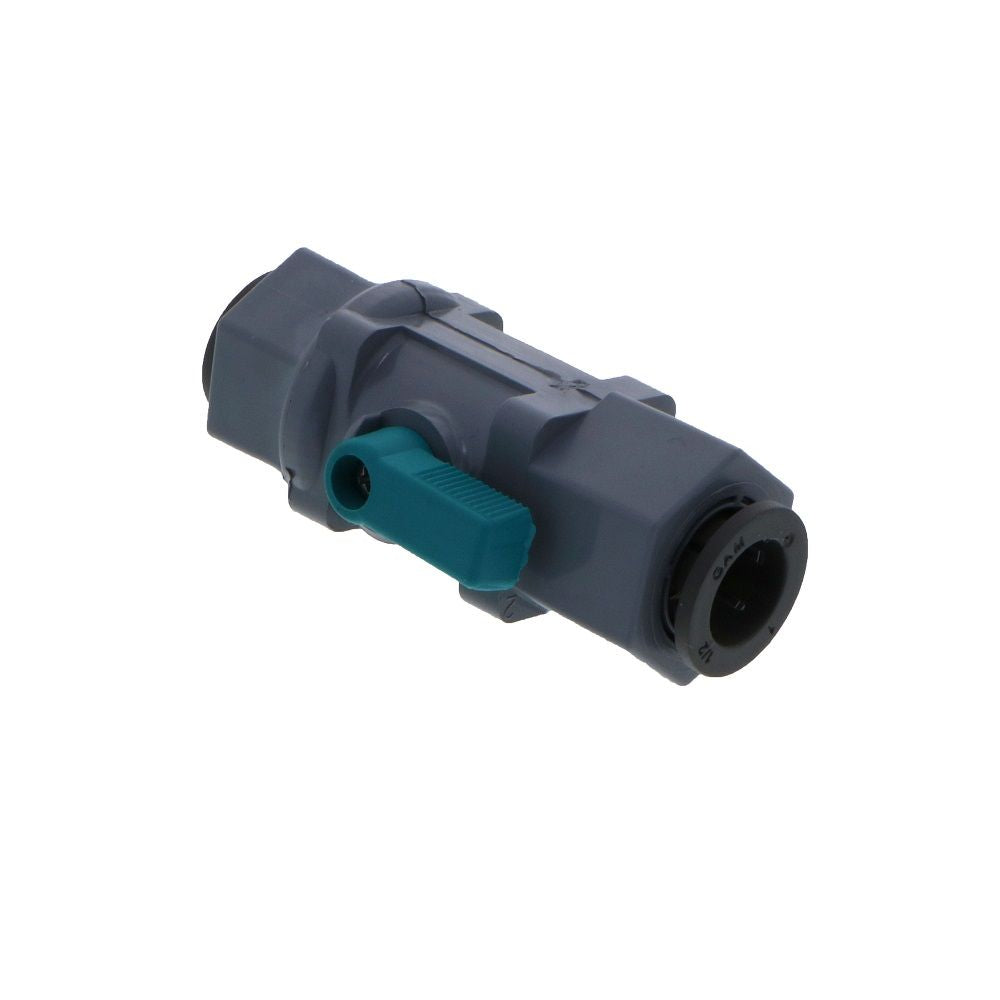

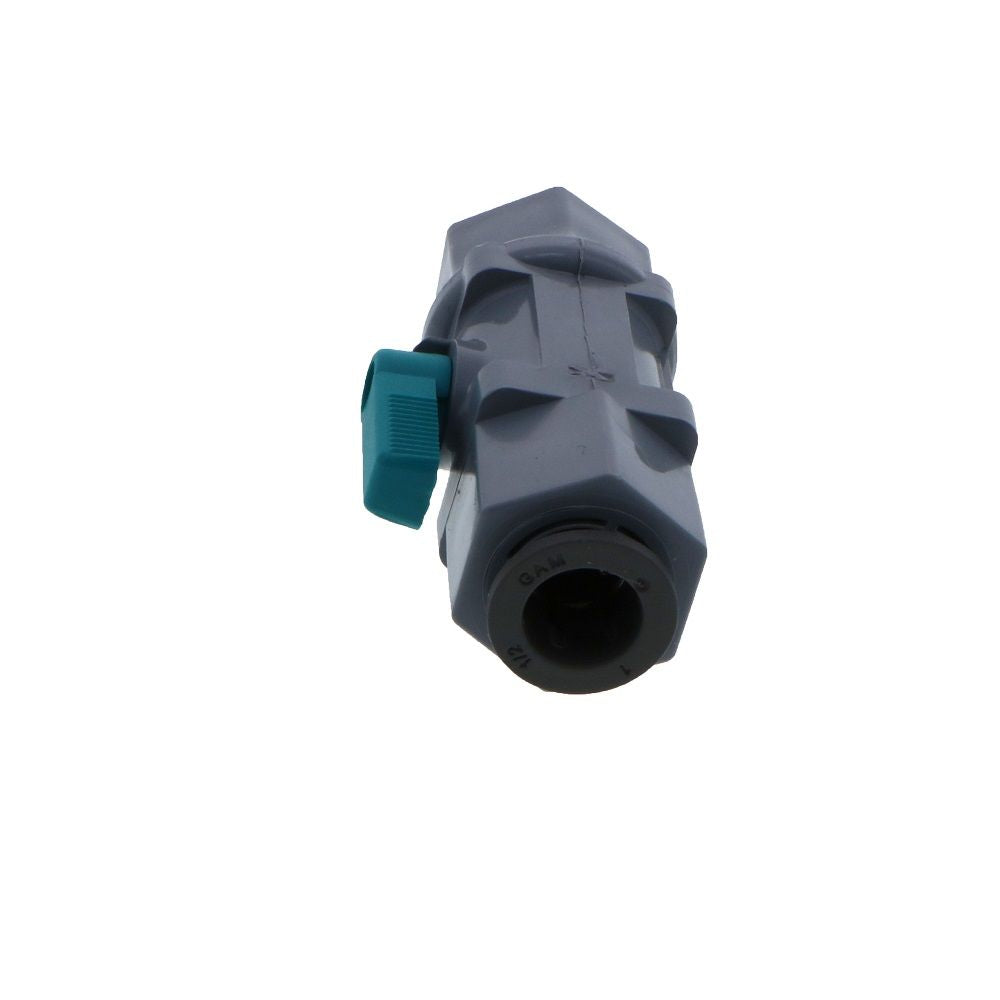

Inline Ball Valve PVC - 1/2 Tube x 1/2 Tube

Part Number: G0820825

Alt. Part Number: AHUC0707

In Stock

out of stock

In Stock

$10.36

Features:
  • Exclusive 1/4 turn lever with a safety collar
  • Dual O-ring fitting
Specifications:
  • Material: Food Grade PVC body with an acetal copolymer handle
  • O-rings: EPDM
  • Operating Pressure: 150 psi max at 70°F
  • Temperature range: 33 to 140°F (1 to 60°C)
  • Certification: NSF 51
  • Connections: 1/2" OD push-in x 1/2" OD push-in




Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

PVC

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Push-In Size

1/2" OD

Seal Material

EPDM

Color / Finish

Gray



Features:
  • Exclusive 1/4 turn lever with a safety collar
  • Dual O-ring fitting
Specifications:
  • Material: Food Grade PVC body with an acetal copolymer handle
  • O-rings: EPDM
  • Operating Pressure: 150 psi max at 70°F
  • Temperature range: 33 to 140°F (1 to 60°C)
  • Certification: NSF 51
  • Connections: 1/2" OD push-in x 1/2" OD push-in



Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

PVC

Max Pressure (Psi)

150

Max Temp (°F)

140

Min Pressure (Psi)

0

Min Temp (°F)

33

Push-In Size

1/2" OD

Seal Material

EPDM

Color / Finish

Gray
