Hytrex 40

Features:

Quick Installation-No Pre-rinsing!
100% Polypropylene Provides Chemical Compatibility and Easy Handling
Fast rinse-up in high purity applications
Patented melt blown microfiber technology
Longer life and fewer change-outs than existing string-wound or resin-bonded filters because Hytrex’s true-graded density filter matrix captures particles throughout the entire filter depth
Contains no wetting agents, solvents, antistatic agents or binders
Applications: High Purity Chemicals, Bottled Water, Pre-treatment for RO, Oil & Gas, Electronics
Meets the requirements of the FDA for food and beverage contact
The filter incinerates to trace ash for easy disposal

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Max Pressure (Psi)	35
Max Temp (°F)	160
Micron Rating (Nominal)	10 µm
Psid@Flow Rate	0.75 psid @ 5 GPM (Data based on 10" length filter)
Series	Hytrex
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Inner Diameter	1"
Media Type	Thermally Bonded Polypropylene
Micron Rating	10 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	40 in.
Shipping Width	4 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Height	2.5
Product Length	40
Product Width	2.5
Product Weight (lbs)	2

Product Details
Max Pressure (Psi)	35
Max Temp (°F)	160
Micron Rating (Nominal)	10 µm
Psid@Flow Rate	0.75 psid @ 5 GPM (Data based on 10" length filter)
Series	Hytrex
Cap Material	Polypropylene
Cartridge Style	Drop-in
Contaminants Reduced	Sediment/Dirt/Rust
Diameter	2-1/2"
End Cap Type	Double Open Ended (DOE) - No Cap
Filter Construction	Melt Blown
Filter Type	Sediment Depth
Inner Diameter	1"
Media Type	Thermally Bonded Polypropylene
Micron Rating	10 µm
Warranty & Certifications
Product Certification Standard	NSF/ANSI 42
Shipping Dimensions
Shipping Length	13 in.
Shipping Width	13 in.
Shipping Height	13 in.
Product Weight & Dimensions
Product Length	40"
Product Weight (lbs)	32.8

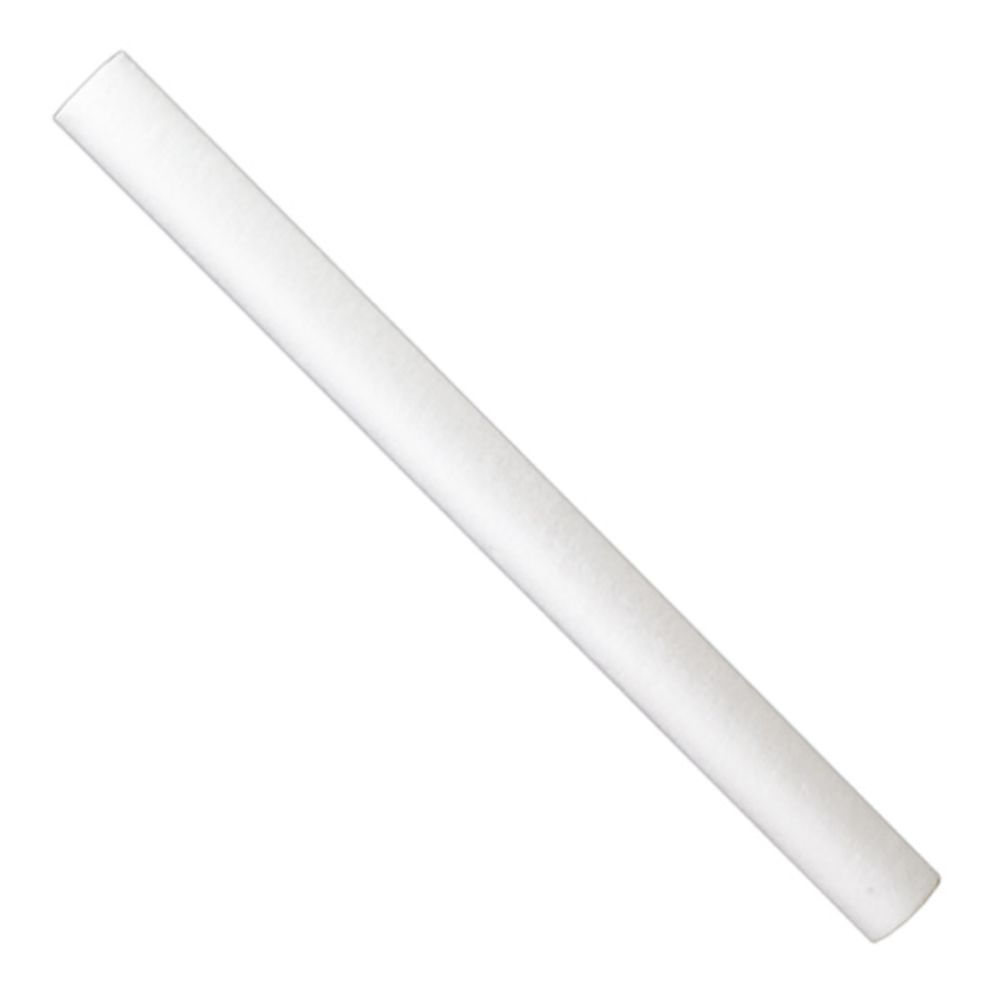

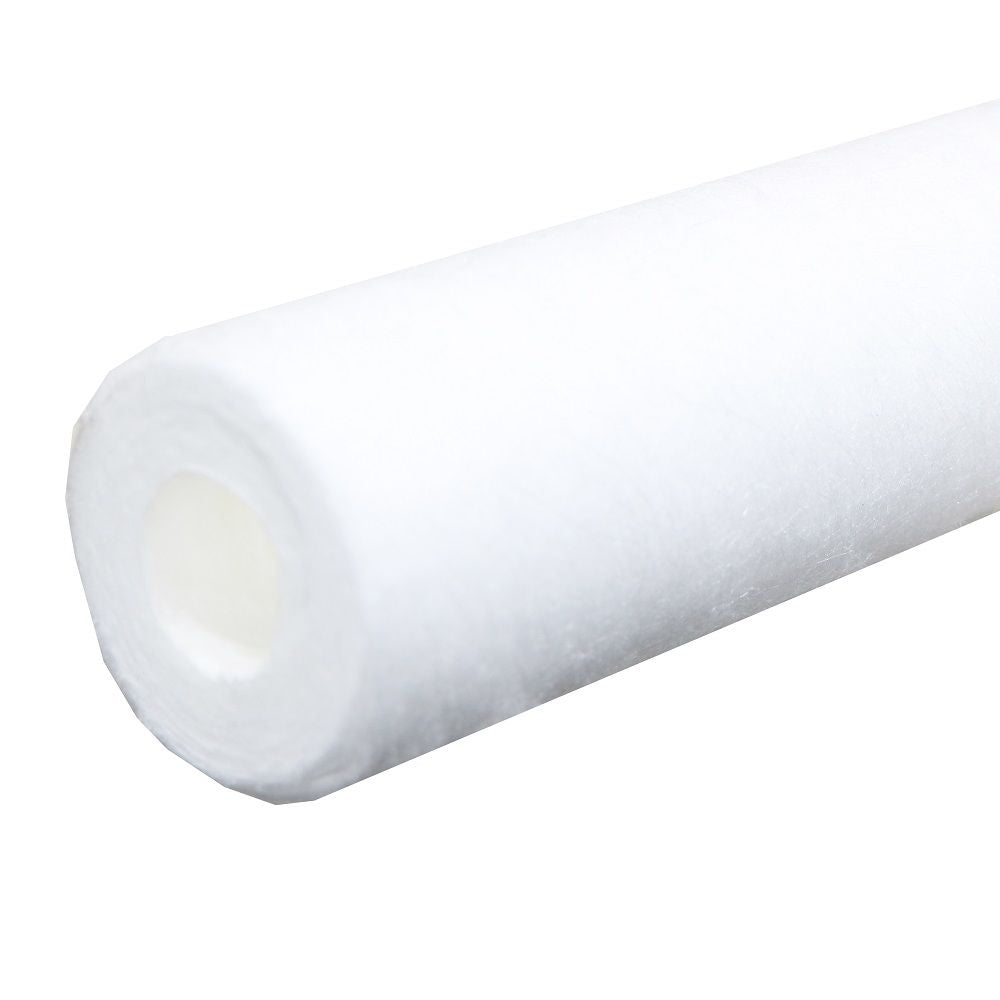

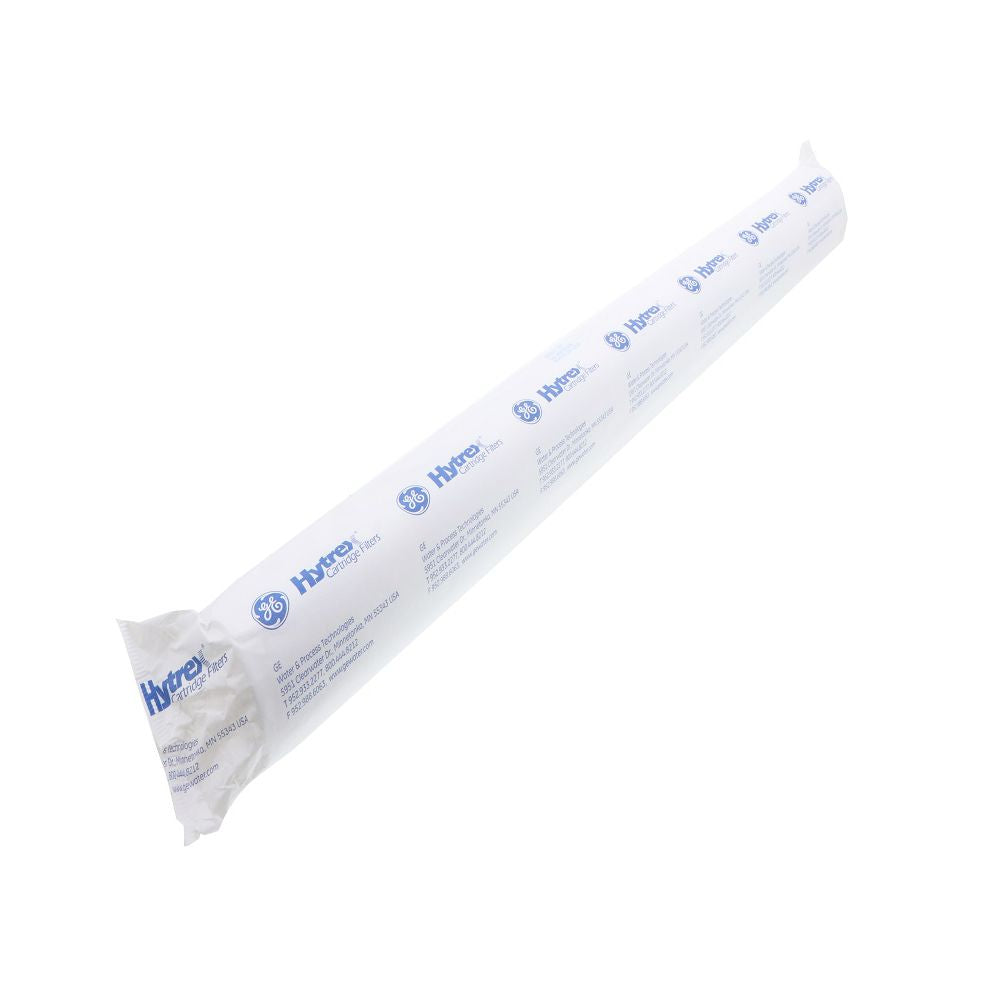

Hytrex 40" Filter - 10 Mic GX10-40
