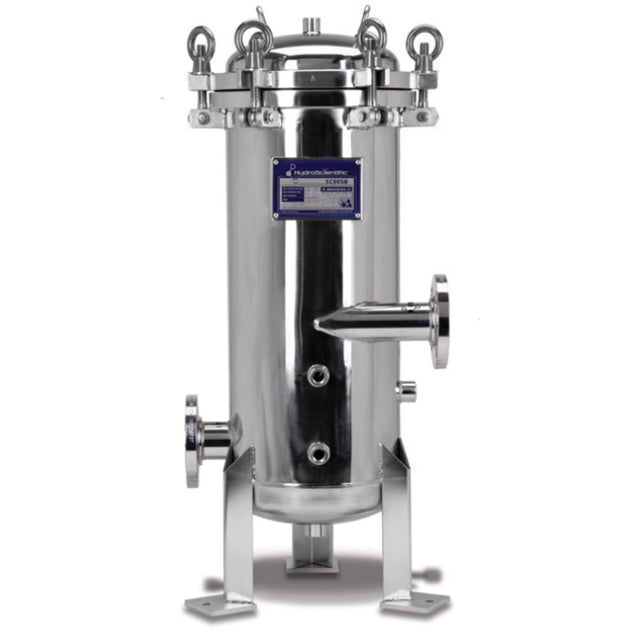

HydroScientific Sciclone™ SC90SB Swing Bolt 90 Single Jumbo Filter Housing

Part Number: SC90SB

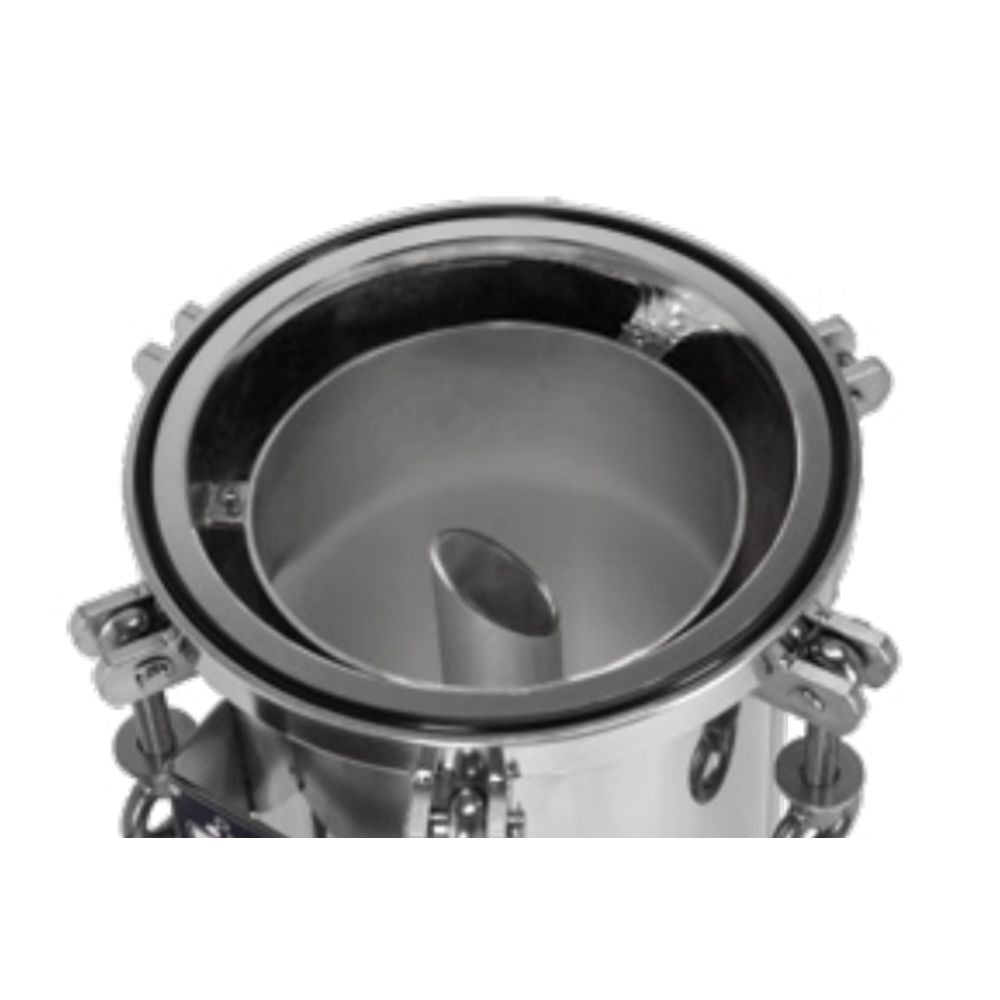

Product image 1

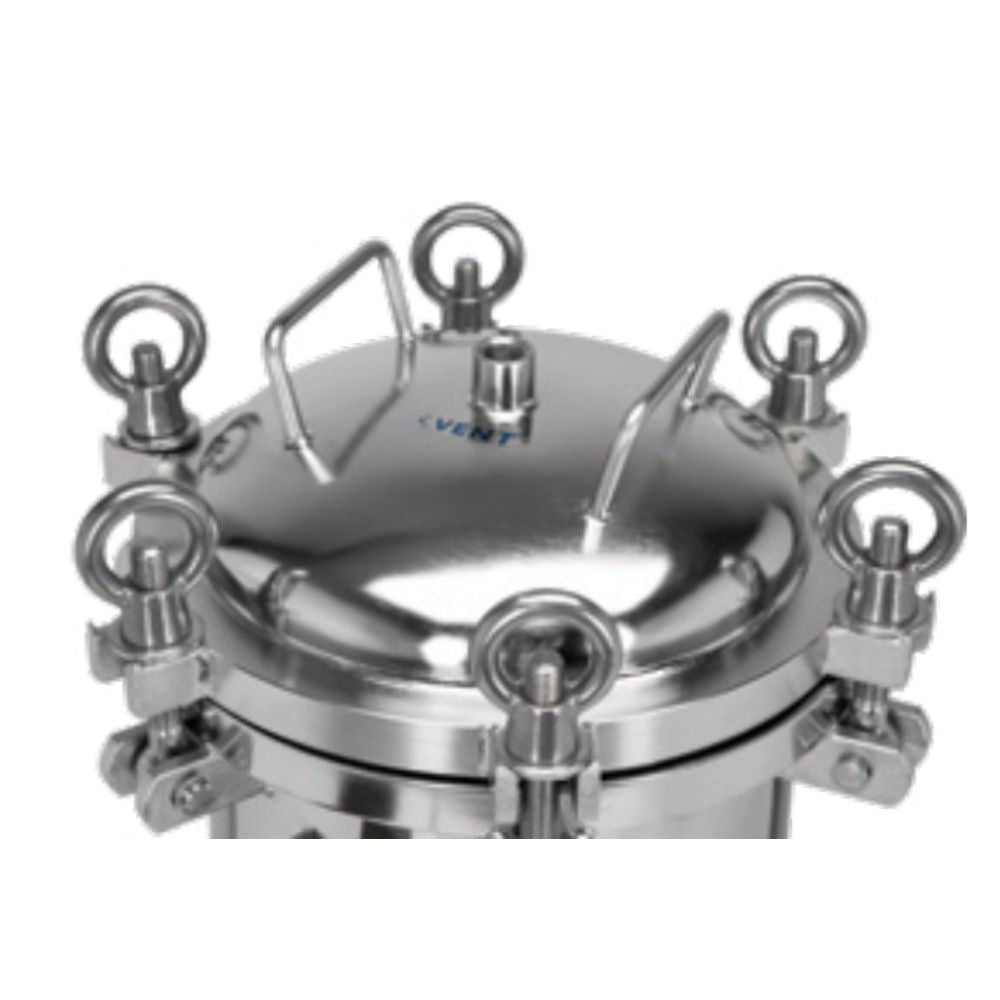

Product image 2

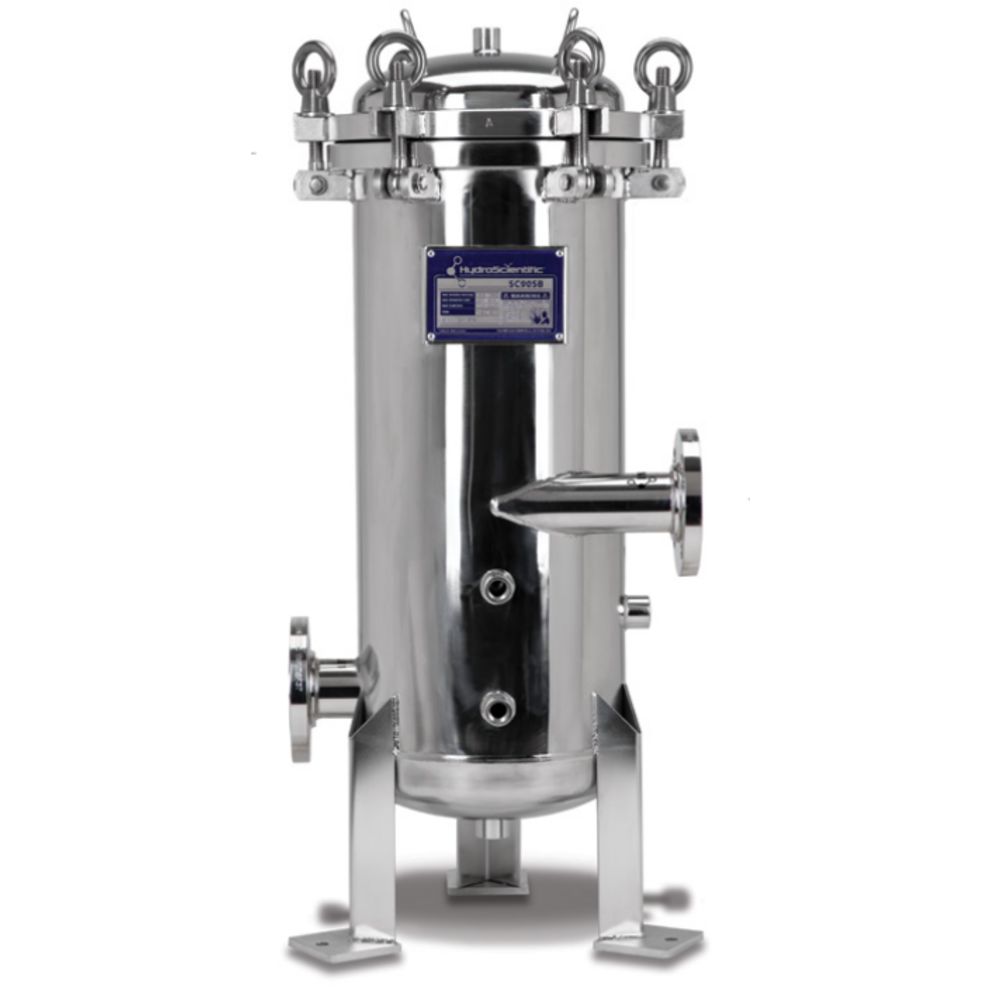

Product image 3
Your price:
This Hydronix Sciclone™ SC90SB Swing Bolt 90 Single Jumbo Filter Housing provides an exceptional performance housing design that helps separate dense solids prior to water passing through the filter cartridge. The Sciclonic™ design delivers extended filter life, low cost operation, reduced maintenance costs, and increased dirt holding capacity.

Features:
  • Sciclonic™ Water Flow Design
  • Swing bolt closure for quick and secure filter change
  • Heavy duty 304 Stainless Steel for durability
  • Radial Flow Entry
  • Accepts jumbo style cartridges
  • NSF/ANSI/CAN 61 & NSF/ANSI 372 certified

Applications:
  • Residential, Commercial, Industrial and Municipal
  • Cooling Tower Filtration
  • Whole House Filtration
  • Process Water
  • Well Water
  • Small Community Compliance
  • Industrial Waste Water Treatment

Materials of Construction:
  • Housing Shell: 304 Stainless Steel
  • Swing Bolt Lid Closure: Zinc Plated Steel
  • Vent and Drain Plugs: 304 Stainless Steel
  • Heavy Duty Mounting Legs: 304 Stainless Steel
  • O-Ring/Gasket: EPDM - FDA Grade (Viton, Silicone and EPR Options)

Operational Data:
  • Max Working Pressure: 150 psi at 300 Deg. F (10.3 bar at 149 Deg. C)
  • Max Operating Temperature: 300 Deg. F (149 Deg. C)
