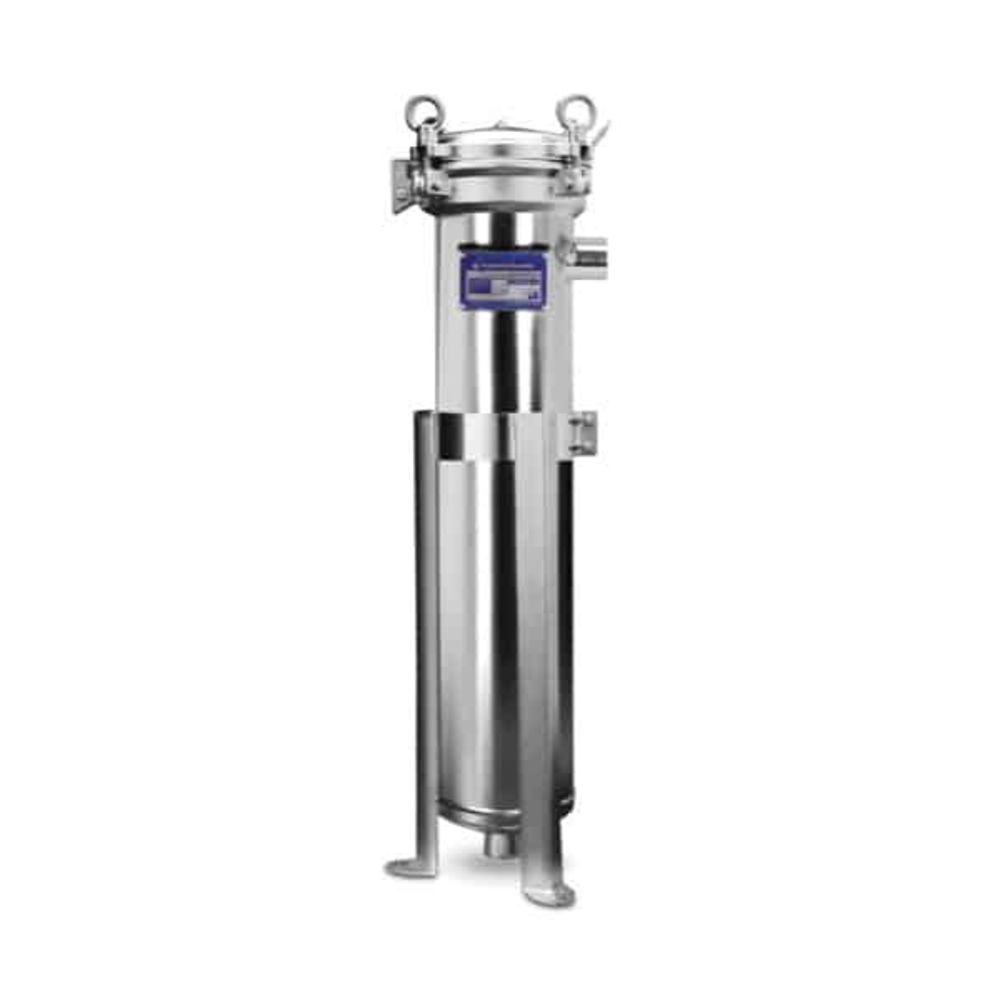

HydroScientific BF2-304-2NBC Band Clamp Single Bag Housing
Part Number: BF2-304-2NBC
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Band Clamp Closure
- Heavy duty 304 Stainless Steel for durability
- Electropolish standard on all models
- Single bag housing
- Positive O-ring Seal
- Accepts #2 (7" x 32") Filter Bags
- NSF/ANSI/CAN 61 & NSF/ANSI 372 certified
Applications:
- Liquid Process
- Food and Beverage
- Chemicals
- Oil/Gas Industry
- Coolants
- Inks/Coatings/Paints
- Wastewater
Materials of Construction:
- Housing Shell: 304 Stainless Steel
- Band Clamp Closure: 304 Stainless Steel
- Vent and Drain Plugs: 304 Stainless Steel
- Heavy Duty Mounting Legs: 304 Stainless Steel
- O-Ring/Gasket: EPDM - FDA Grade (Viton, Silicone and EPR Options)
Operational Data:
- Max Working Pressure: 150 psi at 250 Deg. F (10.3 bar at 121 Deg. C)
- Max Operating Temperature: 250 Deg. F (121 Deg. C)
Product Details | |
---|---|
Application | Food & Beverage Chemical Dispensing Car Wash Chemical Dispense Oil Gas Cooling Systems Waste Water |
Body Material | 304 Stainless Steel |
Closure Type | Band Clamp |
Housing Material | 304 Stainless Steel |
Inlet Connection | 2" FNPT |
Material Finish | Electropolished Standard |
Max Flow Rate | 200 GPM 757 LPM |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 250 |
O-Rings | EPDM |
Outlet Connection | 2" FNPT |
Switch Or Gauge Connection | 1/4" FNPT |
Vent Size | 1/4" FNPT |
Flow Rate | 200 GPM 757 LPM |
Warranty & Certifications | |
Product Certification Standard | NSF/ANSI/CAN 61, NSF/ANSI 372 |
Shipping Dimensions | |
Shipping Length | 44 in. |
Shipping Width | 18 in. |
Shipping Height | 18 in. |
Product Weight & Dimensions | |
Product Height | 18 |
Product Length | 44 |
Product Width | 18 |
Product Weight (lbs) | 50 |
Features:
- Band Clamp Closure
- Heavy duty 304 Stainless Steel for durability
- Electropolish standard on all models
- Single bag housing
- Positive O-ring Seal
- Accepts #2 (7" x 32") Filter Bags
- NSF/ANSI/CAN 61 & NSF/ANSI 372 certified
Applications:
- Liquid Process
- Food and Beverage
- Chemicals
- Oil/Gas Industry
- Coolants
- Inks/Coatings/Paints
- Wastewater
Materials of Construction:
- Housing Shell: 304 Stainless Steel
- Band Clamp Closure: 304 Stainless Steel
- Vent and Drain Plugs: 304 Stainless Steel
- Heavy Duty Mounting Legs: 304 Stainless Steel
- O-Ring/Gasket: EPDM - FDA Grade (Viton, Silicone and EPR Options)
Operational Data:
- Max Working Pressure: 150 psi at 250 Deg. F (10.3 bar at 121 Deg. C)
- Max Operating Temperature: 250 Deg. F (121 Deg. C)
Product Details | |
---|---|
Application | Food & Beverage Chemical Dispensing Car Wash Chemical Dispense Oil Gas Cooling Systems Waste Water |
Body Material | 304 Stainless Steel |
Closure Type | Band Clamp |
Housing Material | 304 Stainless Steel |
Inlet Connection | 2" FNPT |
Material Finish | Electropolished Standard |
Max Flow Rate | 200 GPM 757 LPM |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 250 |
O-Rings | EPDM |
Outlet Connection | 2" FNPT |
Switch Or Gauge Connection | 1/4" FNPT |
Vent Size | 1/4" FNPT |
Flow Rate | 200 GPM 757 LPM |
Warranty & Certifications | |
Product Certification Standard | NSF/ANSI/CAN 61, NSF/ANSI 372 |
Shipping Dimensions | |
Shipping Length | 44 in. |
Shipping Width | 18 in. |
Shipping Height | 18 in. |
Product Weight & Dimensions | |
Product Height | 18 |
Product Length | 44 |
Product Width | 18 |
Product Weight (lbs) | 50 |
