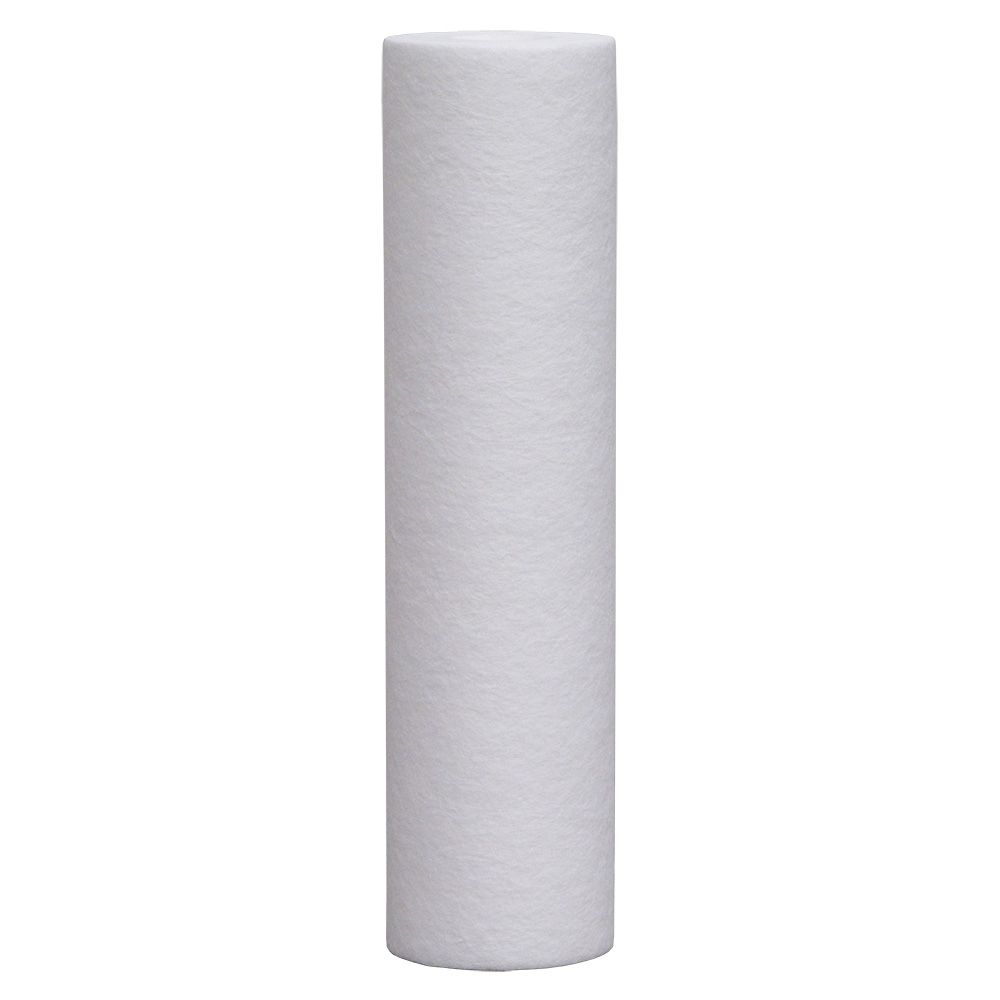

Hydronix SDC-25-1005 Sediment Water Filter
This item is discontinued. We recommend the Neo-Pure MB-25098-05 9-7/8" Polypropylene Sediment Depth Filter 5 Mic as a substitute.
The Hydronix SDC-25-1005 Sediment Water Filter is a 5 micron sediment filter that is made from 100% pure polypropylene. This graded density filter features multi-stage depth filtration that traps particles for superior dirt holding capacity and performance. The SDC-25-1005 filter reduces sand, rust, dirt, silt, and sediment in drinking water, by trapping various sized particles layer by layer. This 5 micron water filter is used as pre-filtration for reverse osmosis systems and post-filtration for GAC filters. It is ideal for a wide range of residential, industrial, commercial and food service applications.
Specifications:
- Micron Rating: 5µm
- Capacity: 8,000 gallons
- Fits standard 10" housings
- Dimensions: 2-1/2" x 9-7/8"
- Flow Rate: 5 GPM @ 0.2 psi drop
- Filter Media: Spun-bond polypropylene
- Maximum Pressure Drop: 69° F (20° C)
- Reduces: Sand, rust, dirt, silt, and scale particles
Compatible with:
| Hydronix | SDF-25-1005 |
| Liquatec | SDF-25-1005 |
| Pentek | 155014-43 |
| Watts | FPMB5-978 |
Weight & Dimensions
Approx Length (Inches) | 9-7/8" |
Weight (lbs) | 0.43 |
Details
Filter Application | Sediment/Dirt/Rust, Scale, Silt |
Initial Pressure Drop | 0.4 psi at 5 gpm PSI Differential |
Max Temp (°F) | 145 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Outer Diameter | 2-1/2" |
Change Frequency | As Needed, 8,000 Gallons |
Diameter | 2-1/2" |
Flow Rate | 5 GPM |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Origin | Taiwan |
The Hydronix SDC-25-1005 Sediment Water Filter is a 5 micron sediment filter that is made from 100% pure polypropylene. This graded density filter features multi-stage depth filtration that traps particles for superior dirt holding capacity and performance. The SDC-25-1005 filter reduces sand, rust, dirt, silt, and sediment in drinking water, by trapping various sized particles layer by layer. This 5 micron water filter is used as pre-filtration for reverse osmosis systems and post-filtration for GAC filters. It is ideal for a wide range of residential, industrial, commercial and food service applications.
Specifications:
- Micron Rating: 5µm
- Capacity: 8,000 gallons
- Fits standard 10" housings
- Dimensions: 2-1/2" x 9-7/8"
- Flow Rate: 5 GPM @ 0.2 psi drop
- Filter Media: Spun-bond polypropylene
- Maximum Pressure Drop: 69° F (20° C)
- Reduces: Sand, rust, dirt, silt, and scale particles
Compatible with:
| Hydronix | SDF-25-1005 |
| Liquatec | SDF-25-1005 |
| Pentek | 155014-43 |
| Watts | FPMB5-978 |
NOTE: This item is discontinued. We recommend the Neo-Pure MB-25098-05 9-7/8" Polypropylene Sediment Depth Filter 5 Mic as a substitute.
Weight & Dimensions
Approx Length (Inches) | 9-7/8" |
Weight (lbs) | 0.43 |
Details
Filter Application | Sediment/Dirt/Rust, Scale, Silt |
Initial Pressure Drop | 0.4 psi at 5 gpm PSI Differential |
Max Temp (°F) | 145 |
Micron Rating (Nominal) | 5 µm |
Min Temp (°F) | 40 |
Outer Diameter | 2-1/2" |
Change Frequency | As Needed, 8,000 Gallons |
Diameter | 2-1/2" |
Flow Rate | 5 GPM |
Media Type | Polypropylene |
Micron Rating | 5 µm |
Origin | Taiwan |
