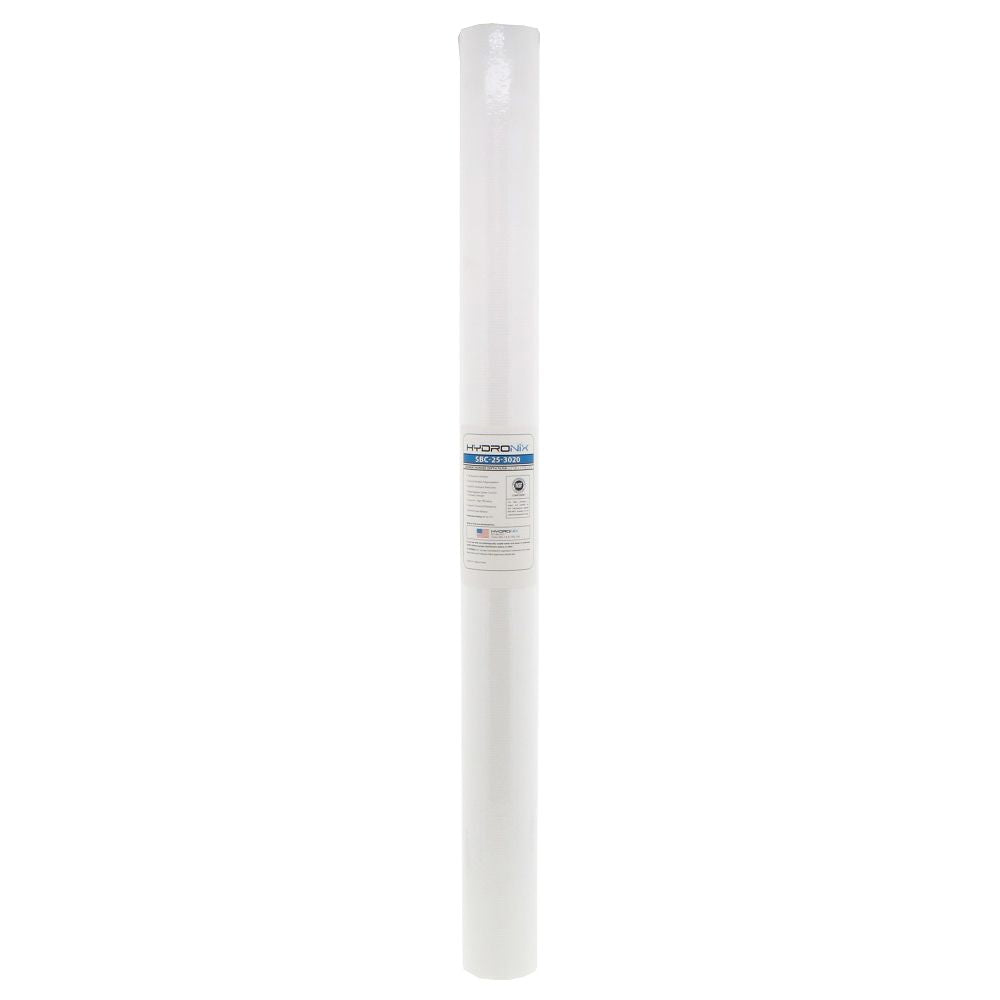

Hydronix SBC-25-3020 30" Thermally Bonded Sediment Depth Filter 20 mic

Part Number: SBC-25-3020

In Stock

out of stock

In Stock

$10.99

The Hydronix SBC-25-3020 Thermally Bonded Sediment Depth Filter is a specially designed thermally bonded polypropylene filter that provides superior filtration without imparting any color, taste or odor on the liquid being filtered. The SBC-25-3020 has fine grooves on the outside of the filter for increased surface area and will not release fibers, which makes them ideal for food and beverage applications.

Features:
  • Thermally Bonded Polypropylene

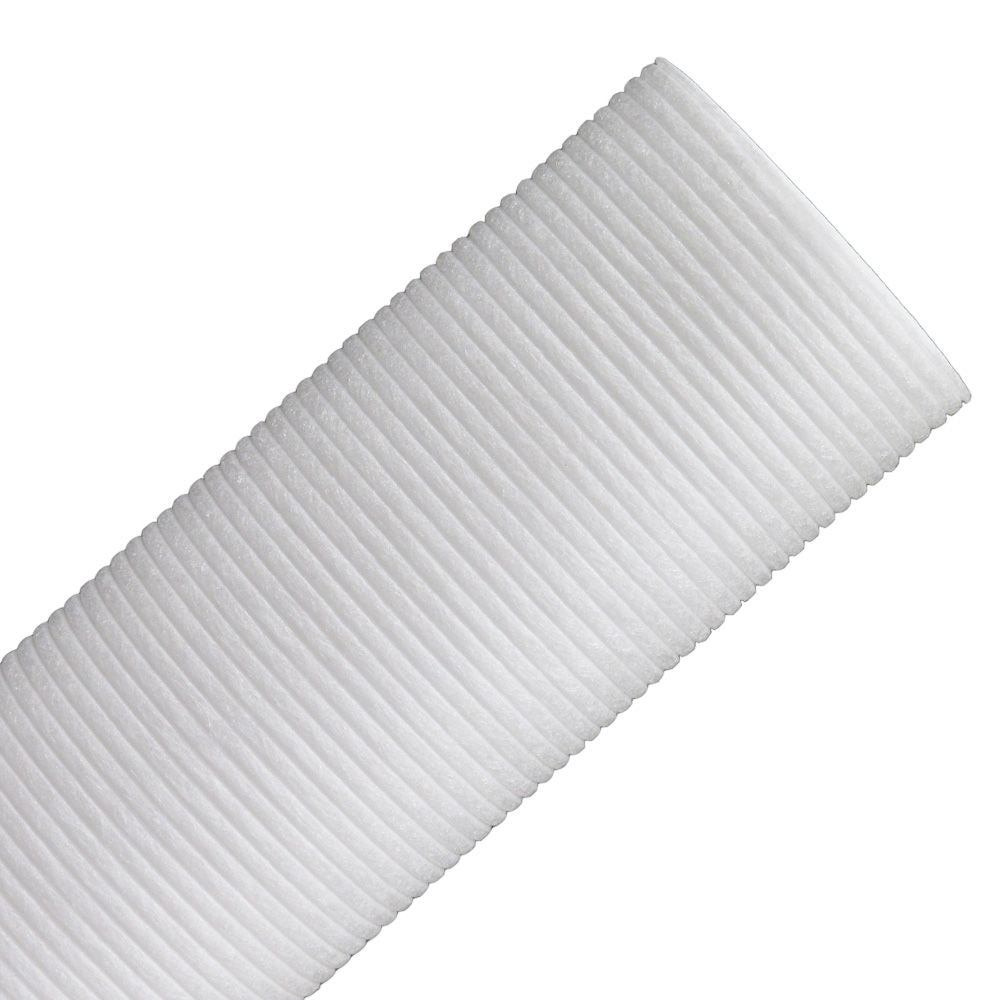

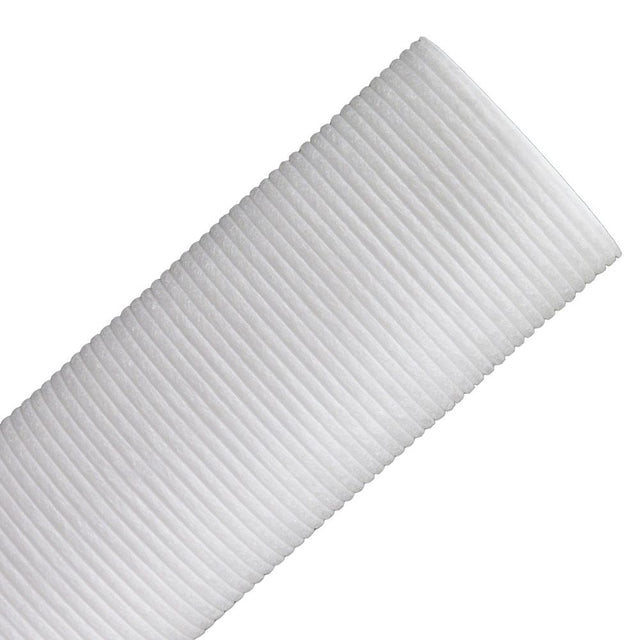

  • Fine grooves for increased surface area
  • Will not impart color, taste and odor
  • Superior chemical resistance
  • Resists bacterial attack
  • Produce consistent flow rates
  • Minimal fiber release
Hydronix SBC-25-3020 30" Thermally Bonded Depth Filter 20 mic Applications
  • Electric Components
  • Plating
  • Parts Washing
  • Pulp and Paper
  • Ink
  • Bottled Water
  • Soft Drinks
  • Juice
  • Oil and Gas
  • Reverse Osmosis Pre-Filtration
  • Rinse Water


Weight & Dimensions

Approx Length (Inches)

30" (76.2 cm)

Details

Capacity

6-12 Months

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

9 Gallons Per Minute

Initial Pressure Drop

2 psi @ 9 gpm PSI Differential

Media Type

Thermally Bonded Polypropylene

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

40-175 Degrees Fahrenheit

Outer Diameter

2.5"

Warranty & Certifications

Certifications

NSF 42


Hydronix




The Hydronix SBC-25-3020 Thermally Bonded Sediment Depth Filter is a specially designed thermally bonded polypropylene filter that provides superior filtration without imparting any color, taste or odor on the liquid being filtered. The SBC-25-3020 has fine grooves on the outside of the filter for increased surface area and will not release fibers, which makes them ideal for food and beverage applications.

Features:
  • Thermally Bonded Polypropylene
  • Fine grooves for increased surface area
  • Will not impart color, taste and odor
  • Superior chemical resistance
  • Resists bacterial attack
  • Produce consistent flow rates
  • Minimal fiber release
Hydronix SBC-25-3020 30" Thermally Bonded Depth Filter 20 mic Applications
  • Electric Components
  • Plating
  • Parts Washing
  • Pulp and Paper
  • Ink
  • Bottled Water
  • Soft Drinks
  • Juice
  • Oil and Gas
  • Reverse Osmosis Pre-Filtration
  • Rinse Water

Weight & Dimensions

Approx Length (Inches)

30" (76.2 cm)

Details

Capacity

6-12 Months

Cartridge Style

Drop-In

End Cap Type

DOE

Filter Application

Sediment/Dirt/Rust

Flow Rate

9 Gallons Per Minute

Initial Pressure Drop

2 psi @ 9 gpm PSI Differential

Media Type

Thermally Bonded Polypropylene

Micron Rating (Nominal)

20 Micron

Operating Temperature Range

40-175 Degrees Fahrenheit

Outer Diameter

2.5"

Warranty & Certifications

Certifications

NSF 42
