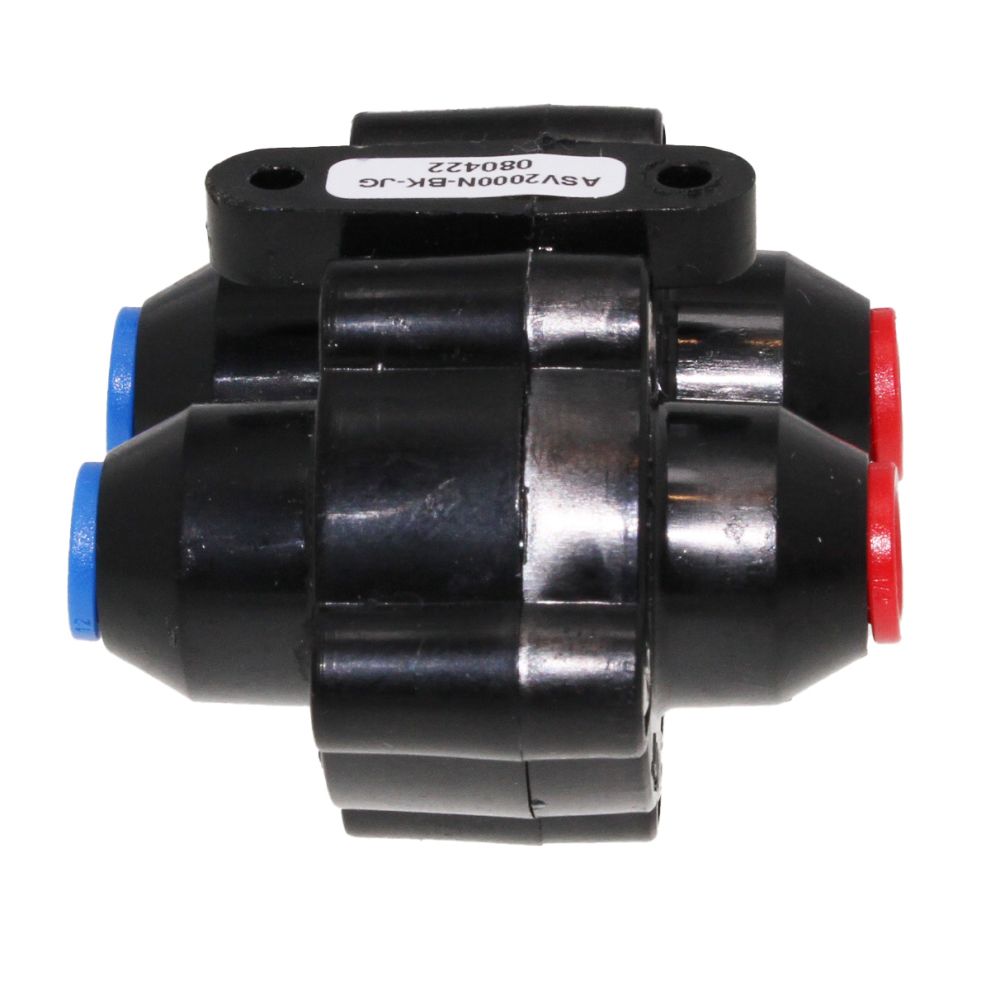

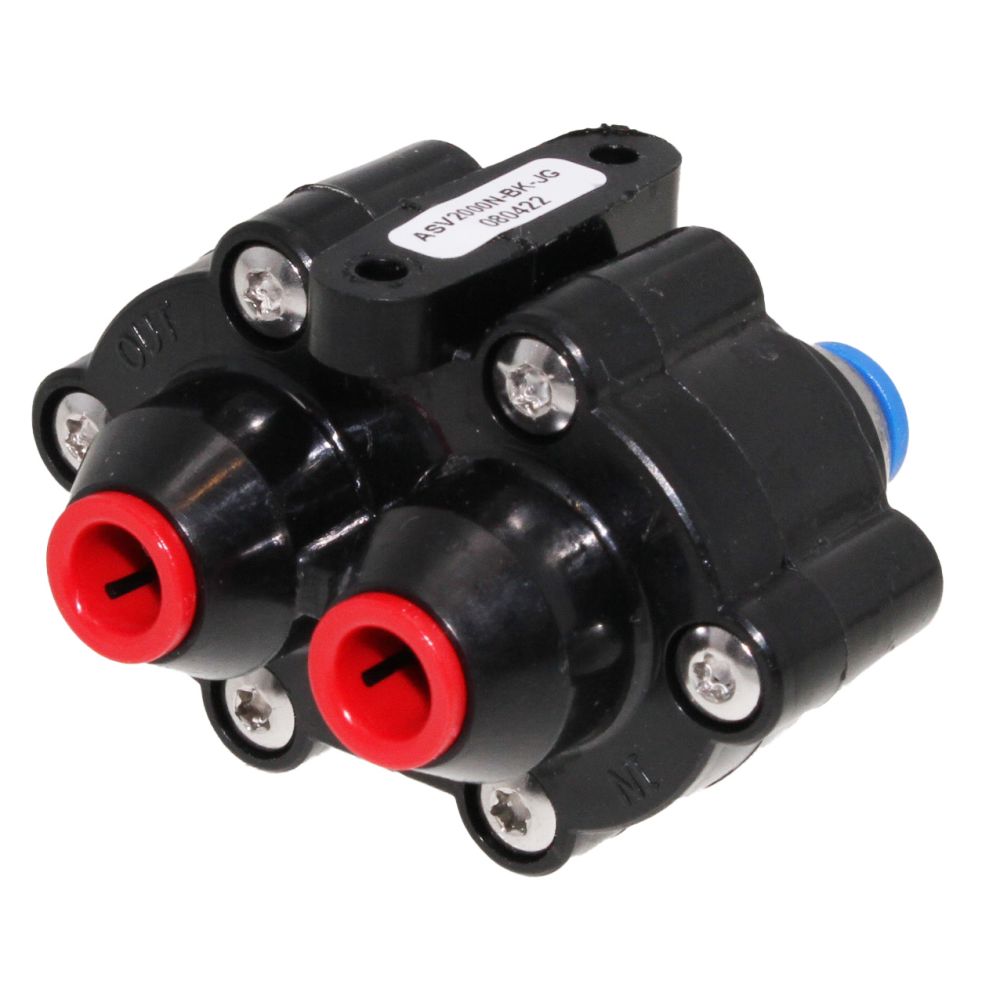

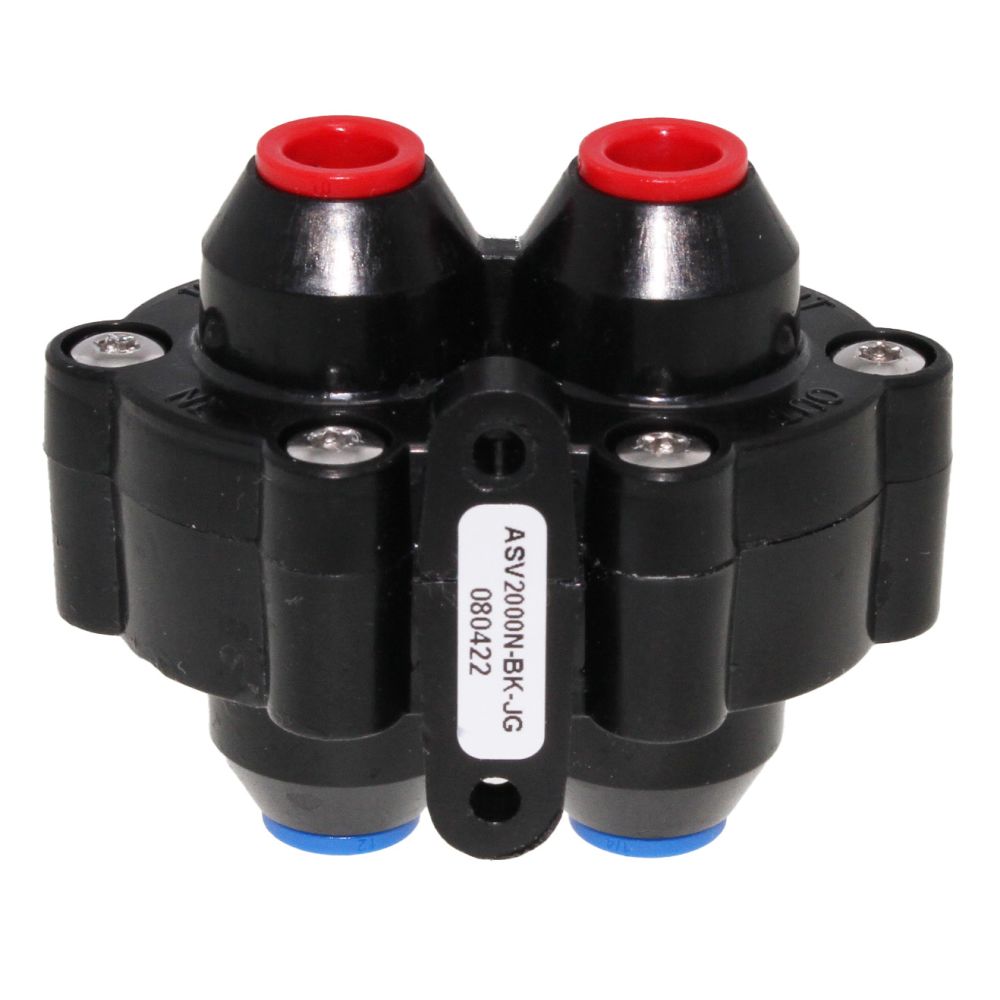

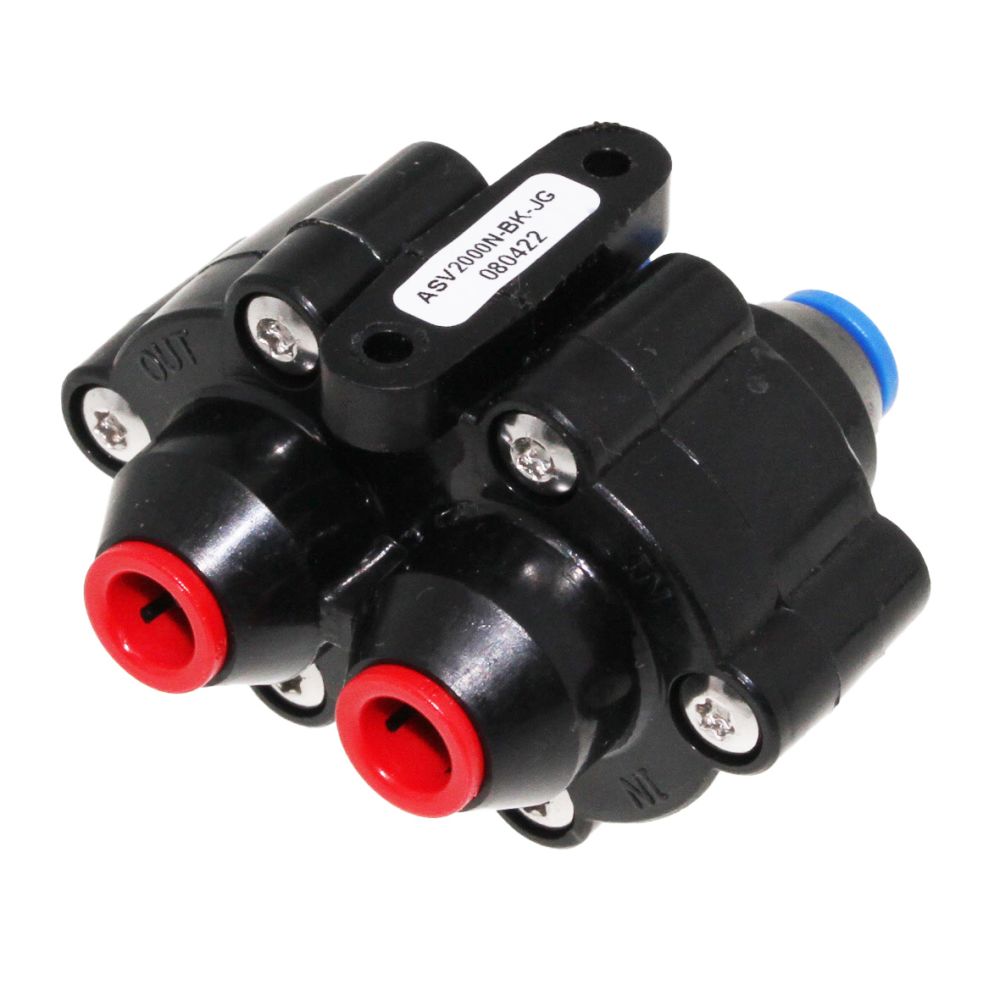

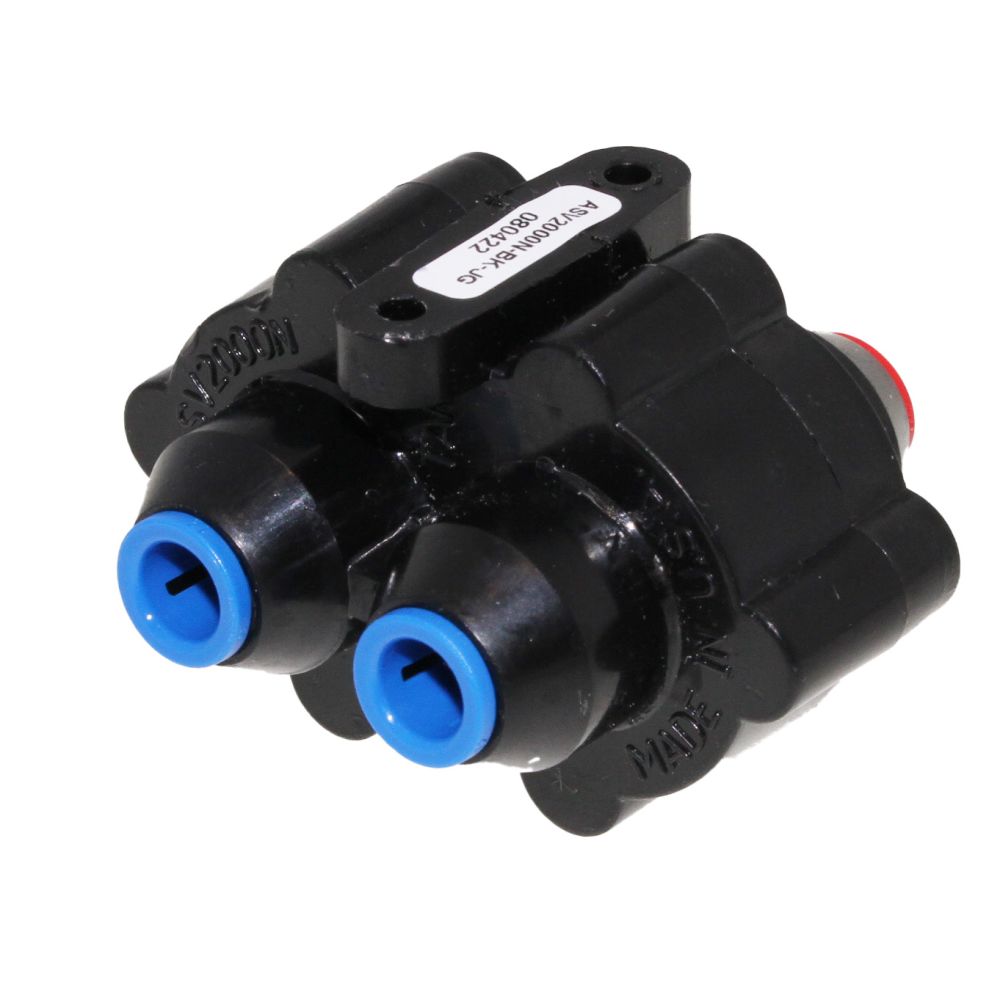

Hydronamic ASV-2000B Automatic Shut-off Valve 4 Way 1/4 QC
Part Number: ASV-2000B
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Mold design includes mounting bracket
- Easy and time-saving installation
- ASV-2000B
- Saves thousands of gallons of water
- 1/4" Quick Connects
Installation:
- Insert the tube from the PREFILTER Outlet into the "IN" fitting.
- Insert the opposite tube end that feeds the Membrane INLET into the "OUT" fitting.

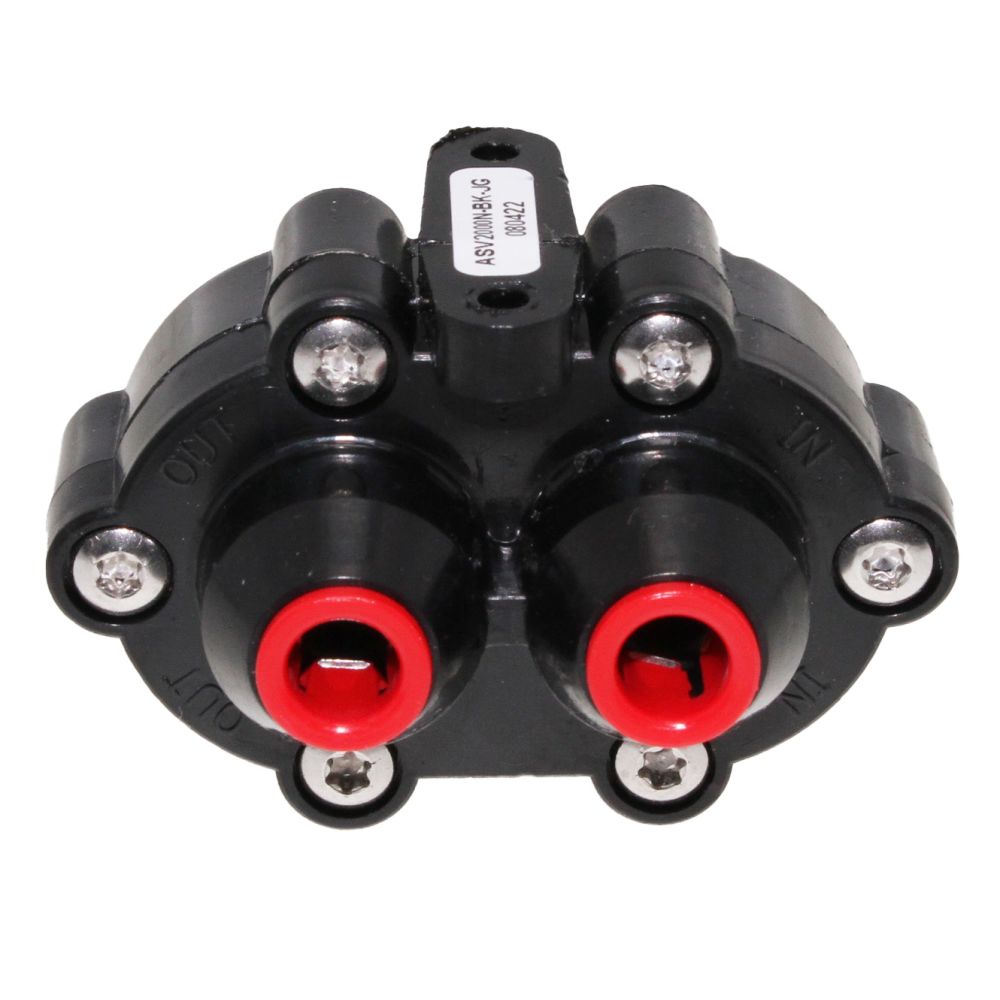

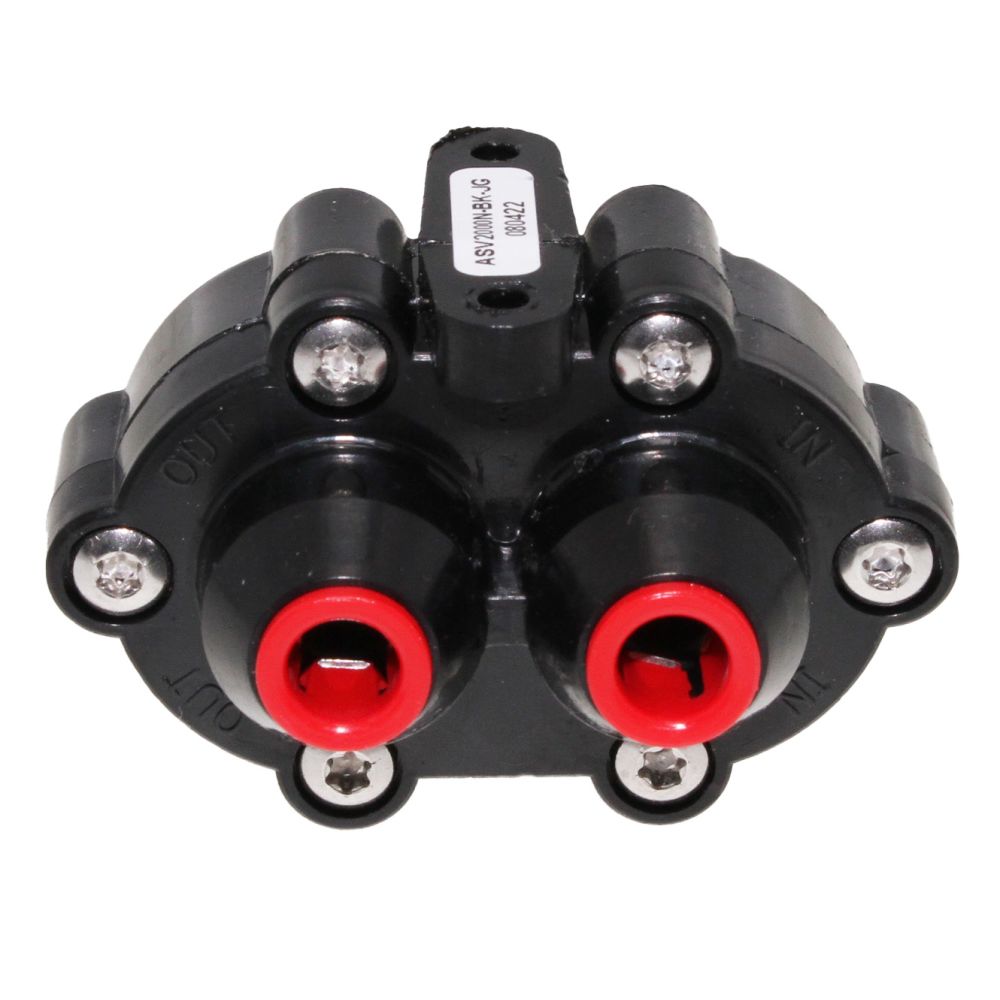

- NOTE: The "IN & OUT" markings are on the screw side of the valve - THIS IS THE HIGH PRESSURE FEED SIDE.
- Locate the Product Water outlet from the membrane housing (on the end w/ 2 ports: center is Product water, side port is Rinse/Drain).
- Insert the Product water tube from the membrane housing into either "Tank" fitting of the valve (ie Low Pressure side).
- Insert the opposite tube end that feeds the Tank into the other "Tank" fitting of the valve.
Shipping Dimensions | |
---|---|
Shipping Length | 6 in. |
Shipping Width | 6 in. |
Shipping Height | 1 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 0.25 |
