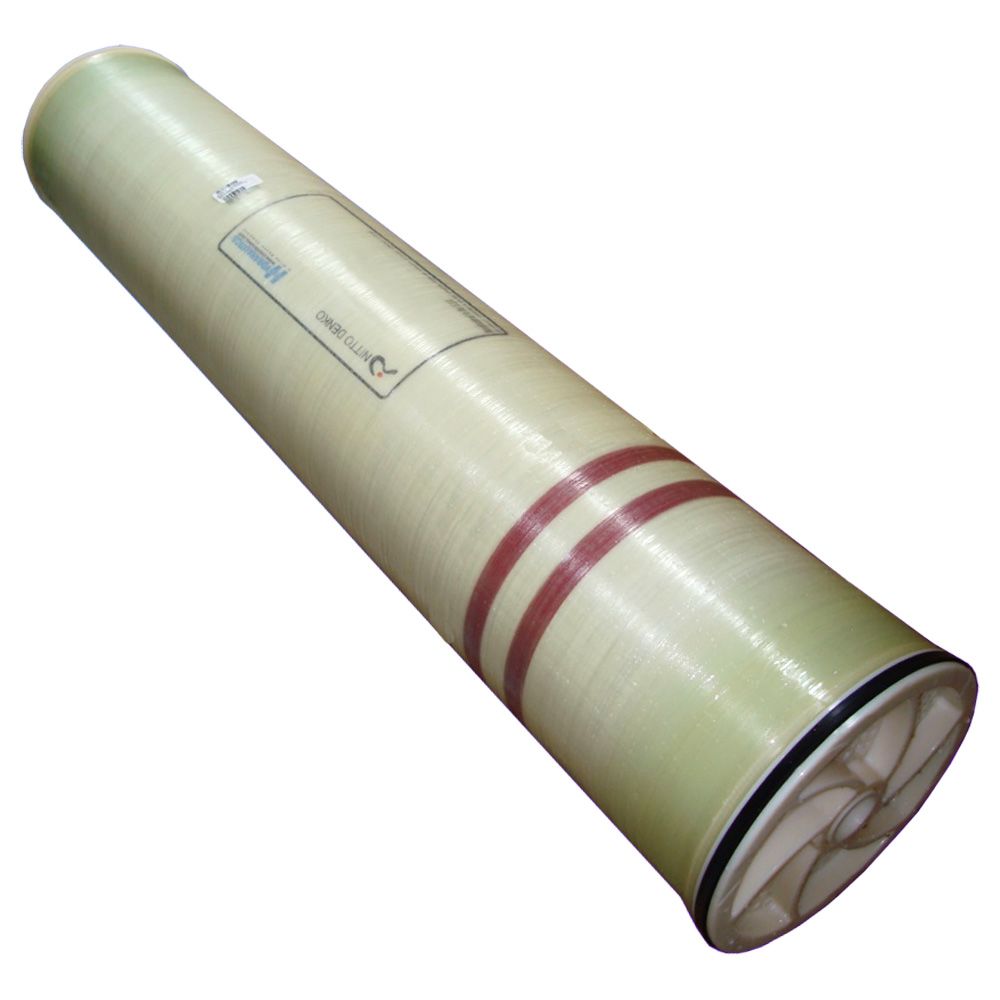

Hydranautics ESPA2-7 8 x 40 Brackish Water RO Membrane 9,000 GPD

Part Number: ESPA2-7

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Hydranautics ESPA2-7 8 x 40 Brackish Water 9,000 gpd RO Membrane is designed to operate with difficult feed water conditions and still produce a desirable combination of both high rejection and high flow. The ESPA2-7 provides a high level of performance while maintaining efficiency, resulting in lower energy consumption.

Specifications:
  • Permeate Flow Rate: 9,000 gallons per day
  • Membrane Type: Polyamide Composite
  • Concentrate Flow Ratio: 5:1
  • Salt Rejection: 99.5%
  • Maximum Pressure: 600 psi
  • Maximum Feed Flow: 75 gpm
  • Applied Pressure: 150 psi
  • Dimensions: 8" x 40"
  • Permeate Recovery: 15%
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water




Weight & Dimensions

Approx Length (Inches)

40"

Weight (lbs)

33

Details

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Direction

Outside - In

Inlet Pressure

150 PSI

Material Of Construction

Polyamide Thin-Film, TFC (Thin Film Composite)

Max Feed Silt Density Index

5.0 Silt Density Index

Max Feed Water Turbidity

1.0 Nephelometric Turbidity Units

Max Pressure Drop

10 PSI Differential

Max Pressure (Psi)

600

Max Temp (°F)

113

Membrane Type

Spiral Wound

Permeate Tube Diameter

1-1/8"

Ph Range

6.5-7.0

Diameter

8"

Flow Rate

9000 GPD


Hydranautics

Hydranautics




Hydranautics ESPA2-7 8 x 40 Brackish Water 9,000 gpd RO Membrane is designed to operate with difficult feed water conditions and still produce a desirable combination of both high rejection and high flow. The ESPA2-7 provides a high level of performance while maintaining efficiency, resulting in lower energy consumption.

Specifications:
  • Permeate Flow Rate: 9,000 gallons per day
  • Membrane Type: Polyamide Composite
  • Concentrate Flow Ratio: 5:1
  • Salt Rejection: 99.5%
  • Maximum Pressure: 600 psi
  • Maximum Feed Flow: 75 gpm
  • Applied Pressure: 150 psi
  • Dimensions: 8" x 40"
  • Permeate Recovery: 15%
  • Maximum Operating Temperature: 113° F
  • Applications: Tap Water, Brackish Water, Well Water, Surface Water



NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Length (Inches)

40"

Weight (lbs)

33

Details

Active Area

400 sq. ft.

Average Nacl Rejection

0.99

Chlorine Tolerance

<0.1 ppm

Direction

Outside - In

Inlet Pressure

150 PSI

Material Of Construction

Polyamide Thin-Film, TFC (Thin Film Composite)

Max Feed Silt Density Index

5.0 Silt Density Index

Max Feed Water Turbidity

1.0 Nephelometric Turbidity Units

Max Pressure Drop

10 PSI Differential

Max Pressure (Psi)

600

Max Temp (°F)

113

Membrane Type

Spiral Wound

Permeate Tube Diameter

1-1/8"

Ph Range

6.5-7.0

Diameter

8"

Flow Rate

9000 GPD
