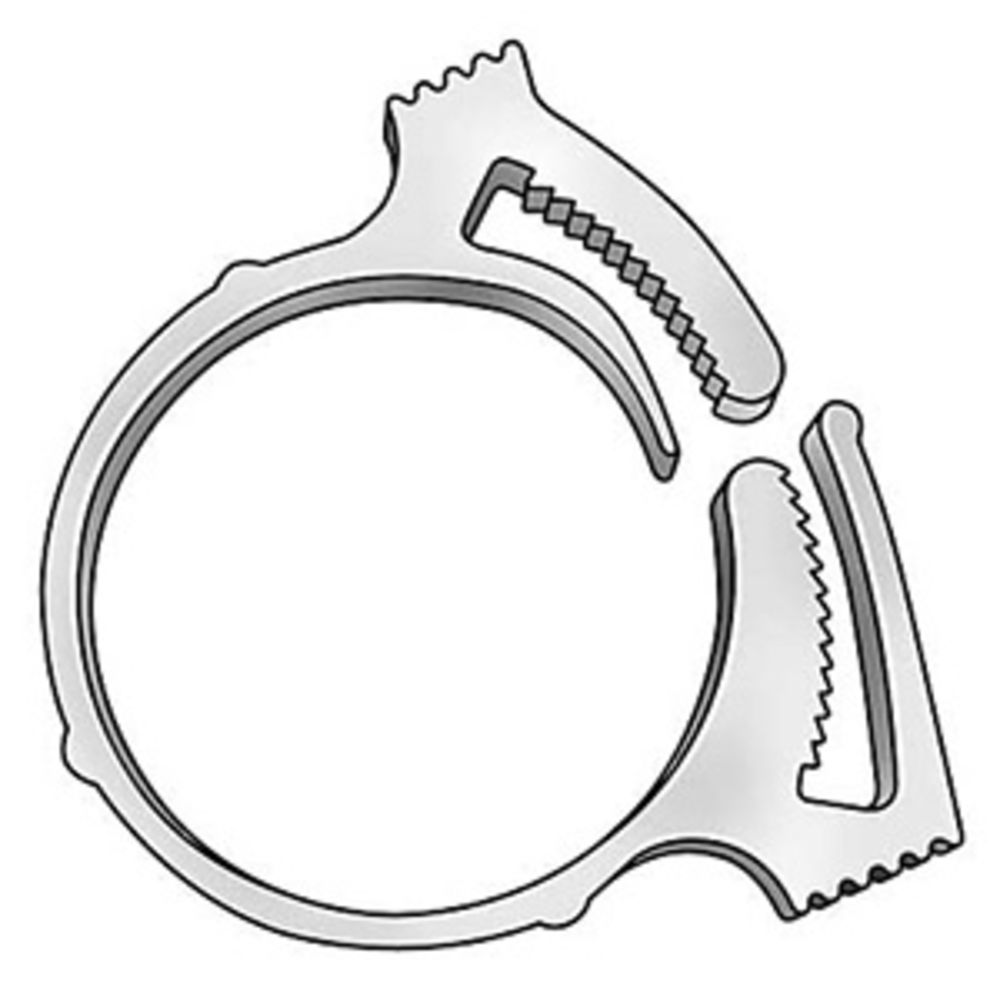

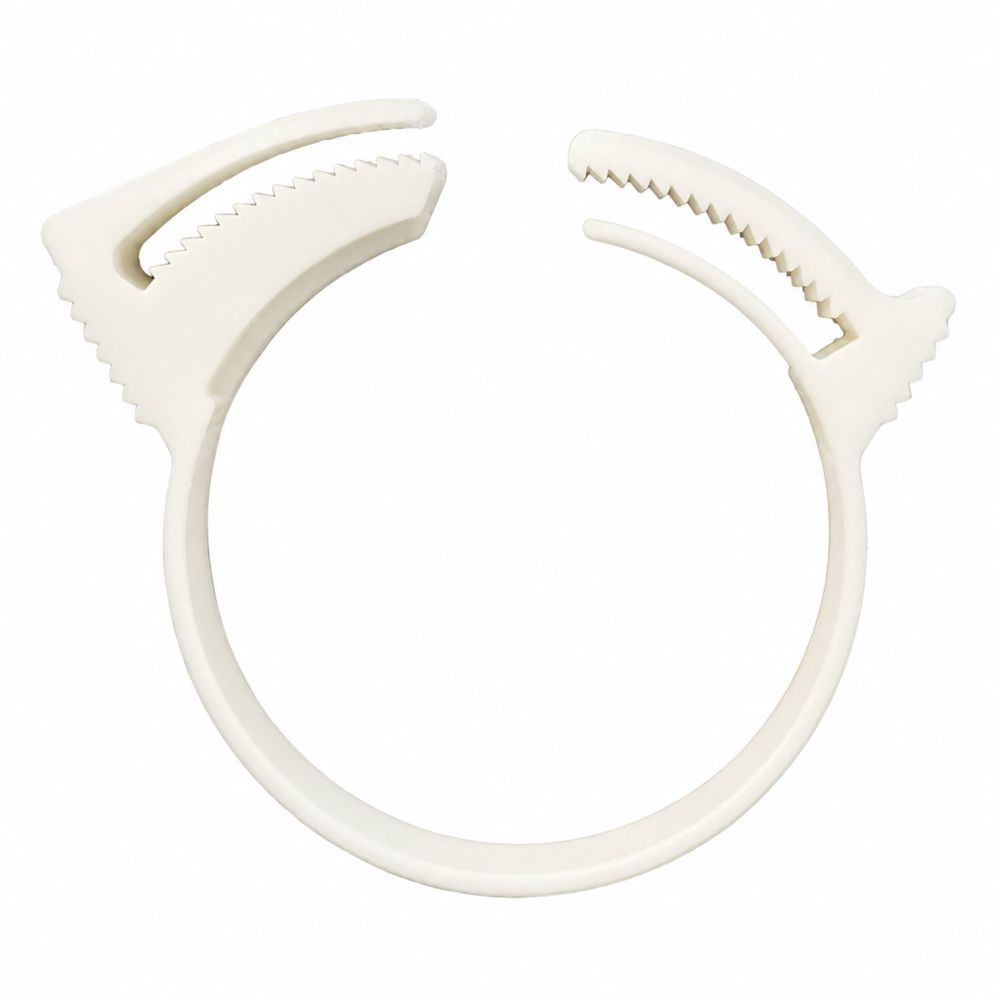

Premium Nylon Hose Clamps provide a superior seal on hose or tubing through their Patented, interlocking design by eliminating the leak path created by the overlapping ring design hose clamps. As interlocking grooves are ratcheted together , the sealing diameter of the fastener is aligned in parallel, creating a uniform clamping surface. Clamps may be removed by separating the clamping halves in a perpendicular direction at the seal.
Applications:
Applications:
- Appliance: Dishwashers, laundry, refrigerators, food preparation equipment
- Electrical/Electronic: Positioning and placement of components and wiring
- Boating: Plumbing and accessories
- Automotive: Underhood applications
 | |||

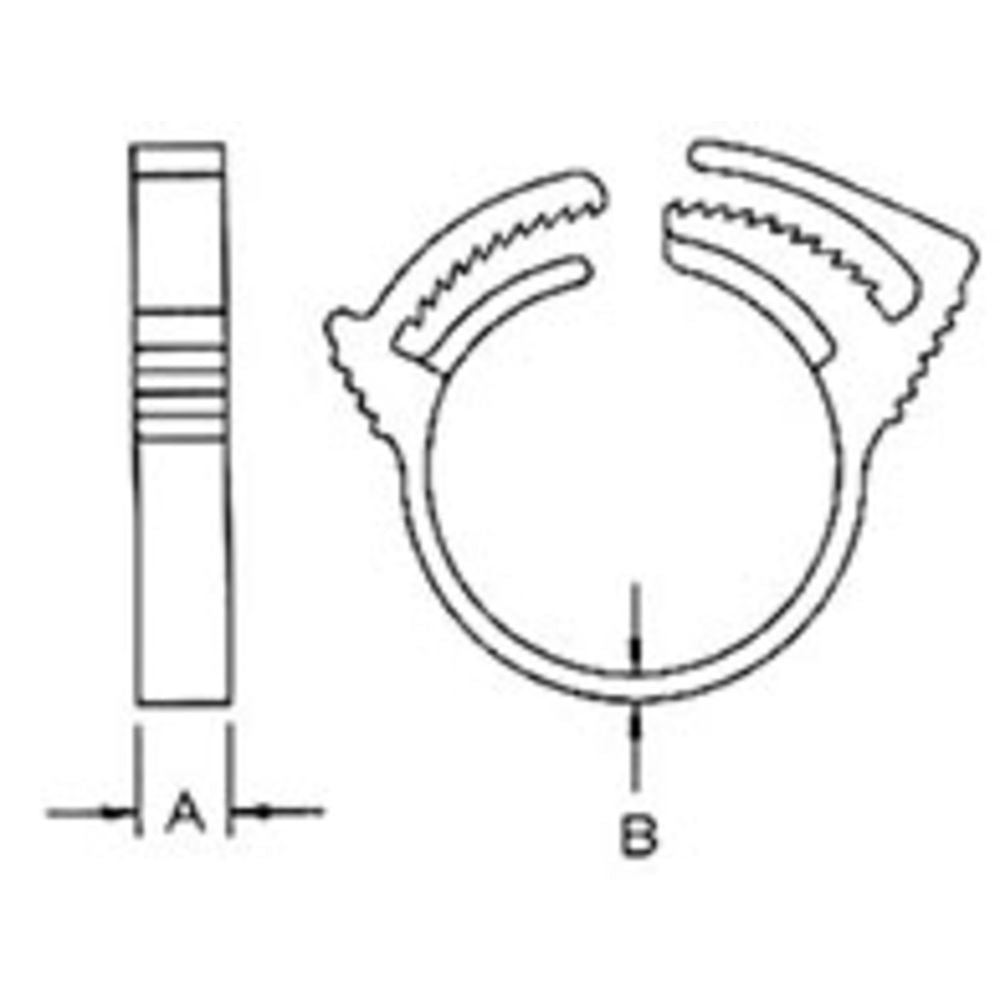

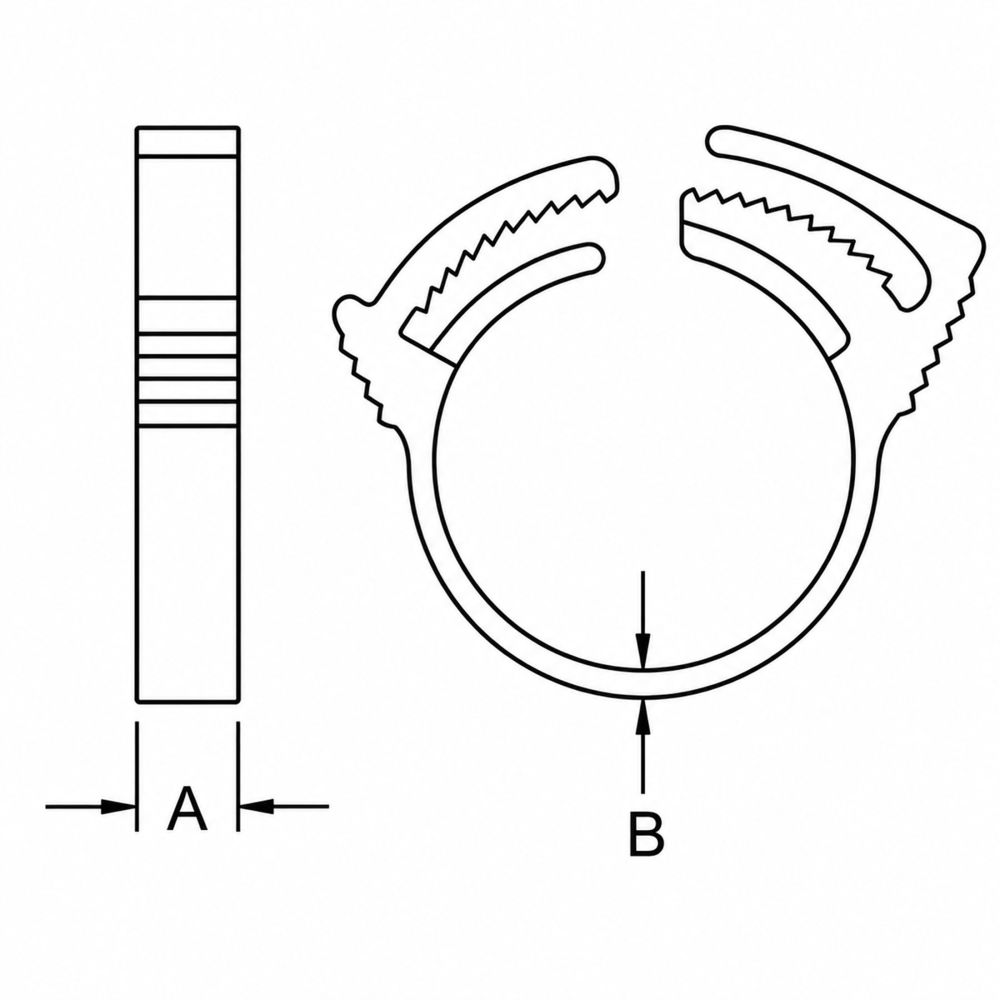

| Dimension (A): | Dimension (B): | Min: | Max: |
| 0.344" (±0.015) | 0.062" (±0.015) | 1.593" | 1.812" |
Weight & Dimensions
Height (inches) | 0.25 |
Length (inches) | 2.5 |
Weight (lbs) | 0.000625 |
Width (inches) | 2.63 |
Premium Nylon Hose Clamps provide a superior seal on hose or tubing through their Patented, interlocking design by eliminating the leak path created by the overlapping ring design hose clamps. As interlocking grooves are ratcheted together , the sealing diameter of the fastener is aligned in parallel, creating a uniform clamping surface. Clamps may be removed by separating the clamping halves in a perpendicular direction at the seal.
Applications:
- Appliance: Dishwashers, laundry, refrigerators, food preparation equipment
- Electrical/Electronic: Positioning and placement of components and wiring
- Boating: Plumbing and accessories
- Automotive: Underhood applications
| |||
| Dimension (A): | Dimension (B): | Min: | Max: |
| 0.344" (±0.015) | 0.062" (±0.015) | 1.593" | 1.812" |
Weight & Dimensions
Height (inches) | 0.25 |
Length (inches) | 2.5 |
Weight (lbs) | 0.000625 |
Width (inches) | 2.63 |
