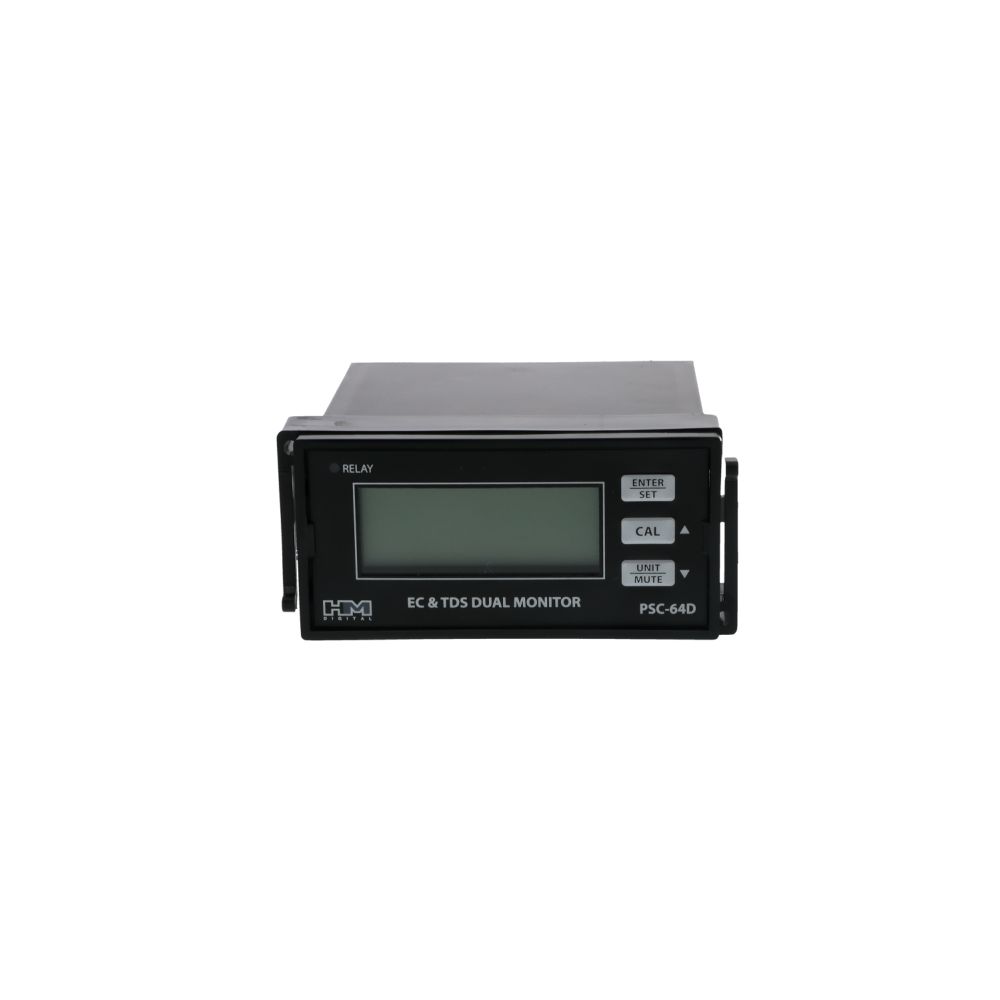

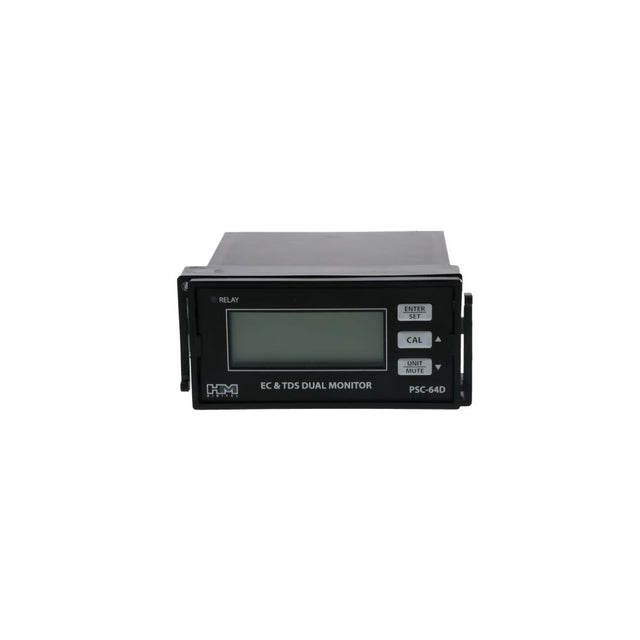

HM Digital PSC-64D Mini Dual Display EC/TDS Monitor with 4-20mA Output

Part Number: PSC-64D

In Stock

out of stock

In Stock

$135.99

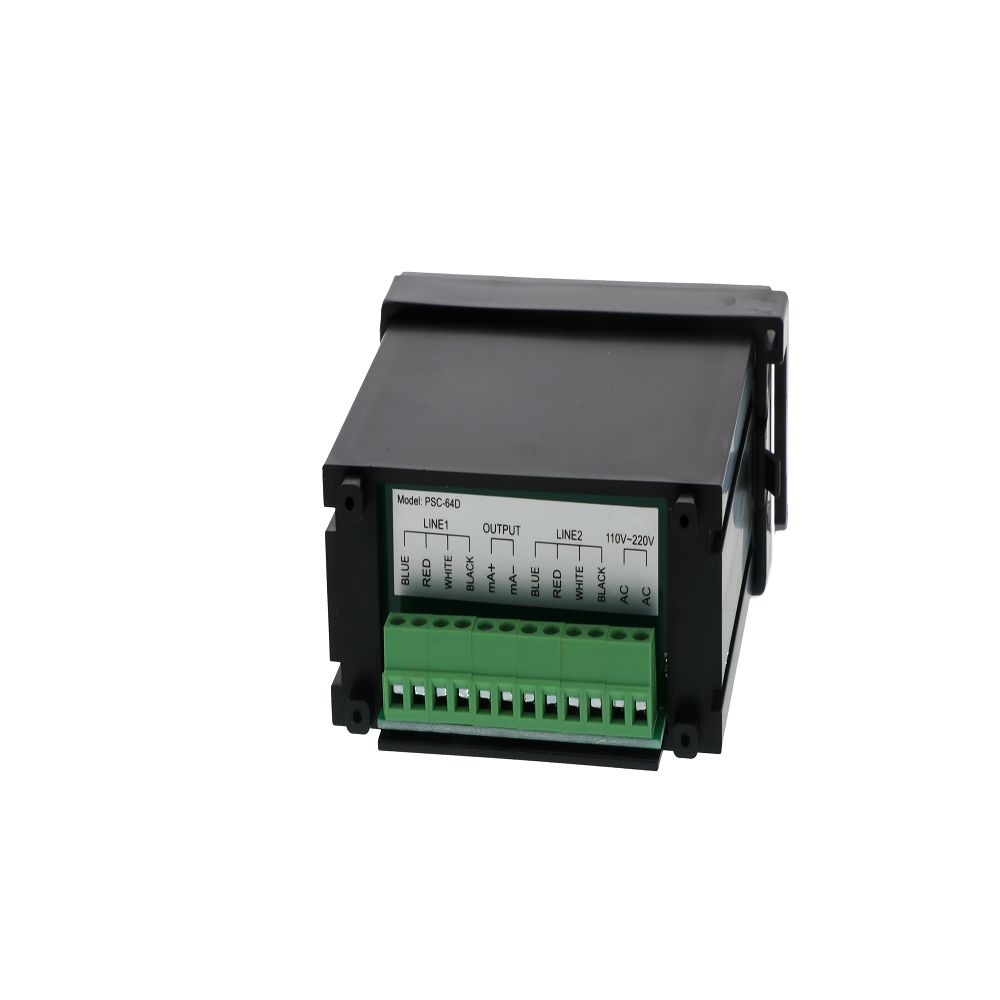

The HM Digital PSC-64D EC/TDS Monitor reads in an extended range to monitor TDS levels for high output commercial systems. If the TDS level rises above the user-set level, an alarm will sound and the unit will open or close a circuit via dry contacts to control a pump, solenoid valve or other external device.

Features:
  • "Mini" Monitor. The HM Digital PSC-64D features a mini display which continuously monitors 2 lines while sending out a 4-20mA output.
  • Extended Range for Monitoring EC/TDS. The HM Digital PSC-64D features an extended range to monitor both TDS and EC.
  • Power Cord Included. The HM Digital PSC-64D features a power cord and other necessary parts that are included at no extra charge.
Specifications:
  • Warranty: One year
  • Temp Range: 33 - 167° F
  • EC Measurement: 0-9999 µS / 0-20.00 mS
  • TDS Measurement: 0 - 9999 ppm/ 0 - 10.0 ppt
  • Settings: Controlled by on-screen up/down buttons




Weight & Dimensions

Approx Depth

9.6"

Height (inches)

3

Length (inches)

7

Weight (lbs)

1.5

Width (inches)

8

Details

Accuracy

4-20mA; ±0.2%

Alarm

Optional steady beep (set by user)

Features

2.3" LCD Display w/ backlight; Auto Temp Control (1 - 65°C)

Max Temp (°F)

167

Measurement Range

0-9999 µS / 0-20.00 mS; 0-9999 ppm /0-10 ppt

Min Temp (°F)

33

Power Source

AC 110V - 220V

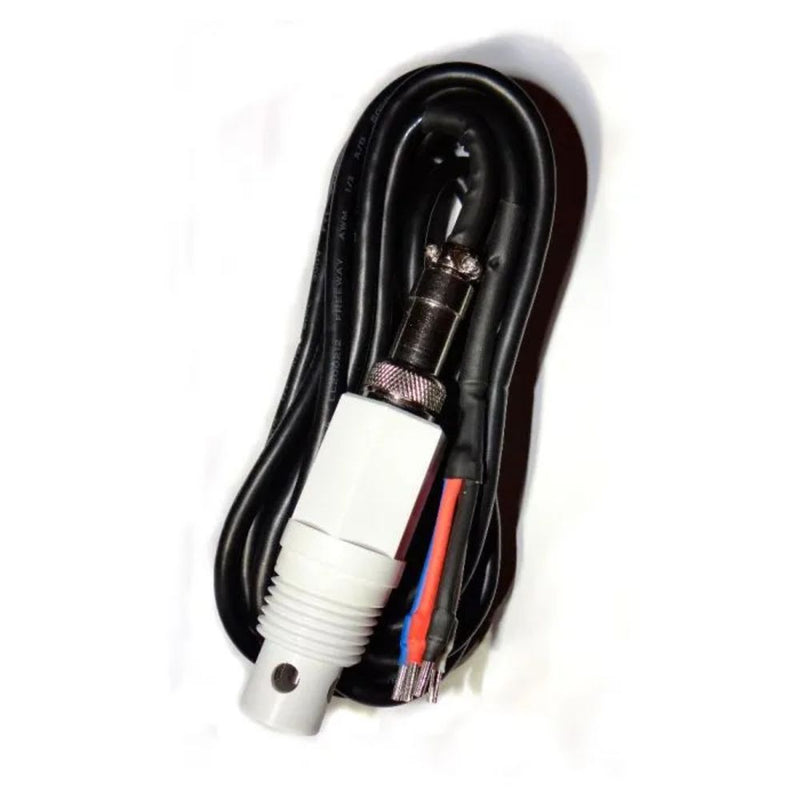

Probe

1/2" bushing (NPT), 3 meter shielded cable

Relay Voltage

110V

Resolution

See Spec Sheet ppm

Setting

Controlled by on-screen up&down buttons

Warranty & Certifications

Warranty

1 Year Manufacturer Warranty


HM
