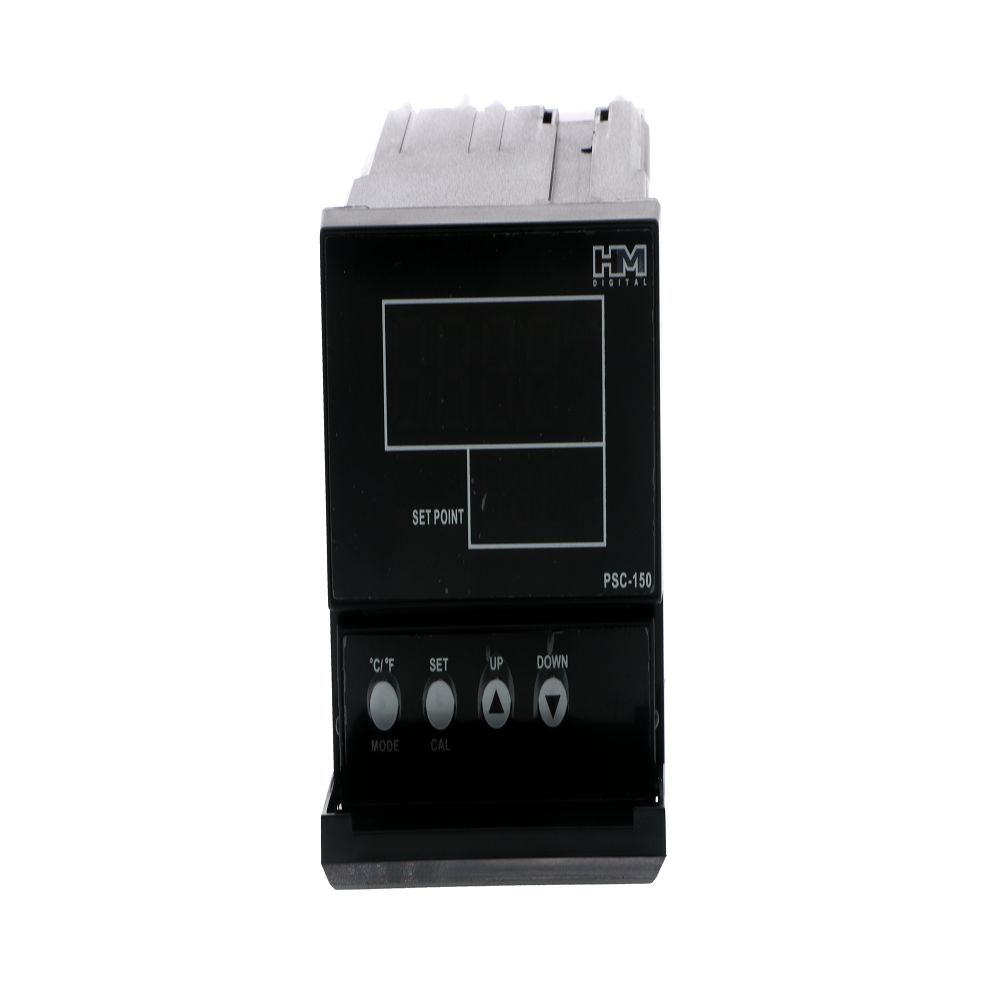

HM Digital PSC-150 Extended Range EC/TDS Controller

Part Number: PSC-150

Alt. Part Number: PC-100, PS-100

In Stock

out of stock

In Stock

$169.99


The HM Digital PSC-150 EC/TDS Controller reads in an extended range to monitor and control TDS levels for high output commercial systems. If the TDS level rises above the user-set level, an alarm will sound and the unit will open or close a circuit via dry contacts to control a pump, solenoid valve or other external device. External devices must have their own power supply.

Specifications:
  • Monitors and controls TDS level for high output commercial systems.
  • Large, bright L.E.D. display
  • An alarm will sound if the TDS level rises above the user-set level.
  • On-screen temperature display
  • Installs easily in minutes
  • Includes one sensor probe
  • One year warranty

NOTE: The PC-100 has been discontinued and has been replaced by the PSC-150.


Weight & Dimensions

Approx Height (Inches)

2.8 Inches

Approx Weight

1lb 8oz; 1lb .8oz

Approx Width (Inches)

2.8 Inches

Approx Depth

4 Inches

Details

Alarm

Optional steady beep (set by user)

Calibration

Adjustable (manual)

Conversion Factor

NaCl

Measurement Range

0-9999 µS; 0-5000 Parts per Million

Features

Auto Temp Control (1 - 65°C); Bright 5/8" L.E.D. display

Operating Temperature Range

1-75°C; 33-167°F

Accuracy

+/- 2 Percent

Power Source

AC 110V / AC 220V

Probe

1/2" bushing, 3 meter (9.8 ft) shielded cable

Relay Control

The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.

Relay Voltage

5V

Resolution

0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999) Parts per Million

Setting

Controlled by on-screen up/down buttons

Warranty & Certifications

Warranty

1 year


HM
