HM Digital

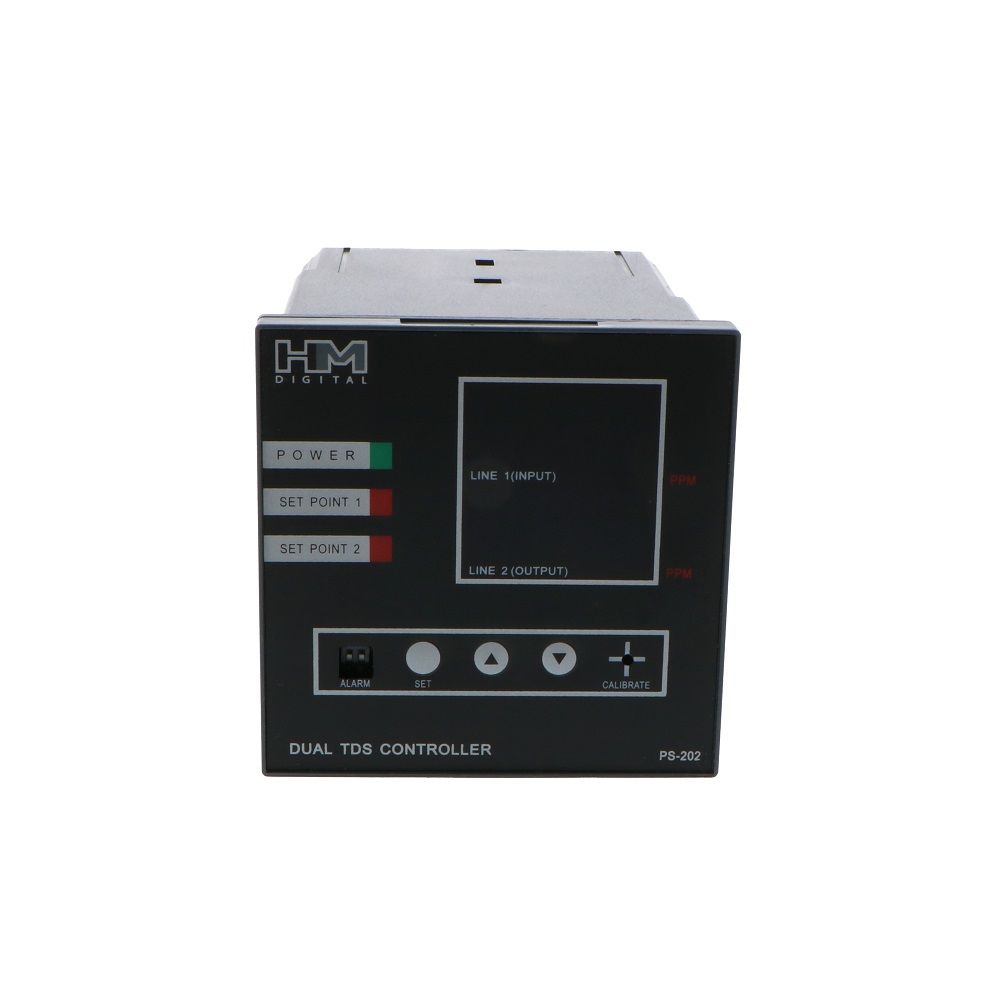

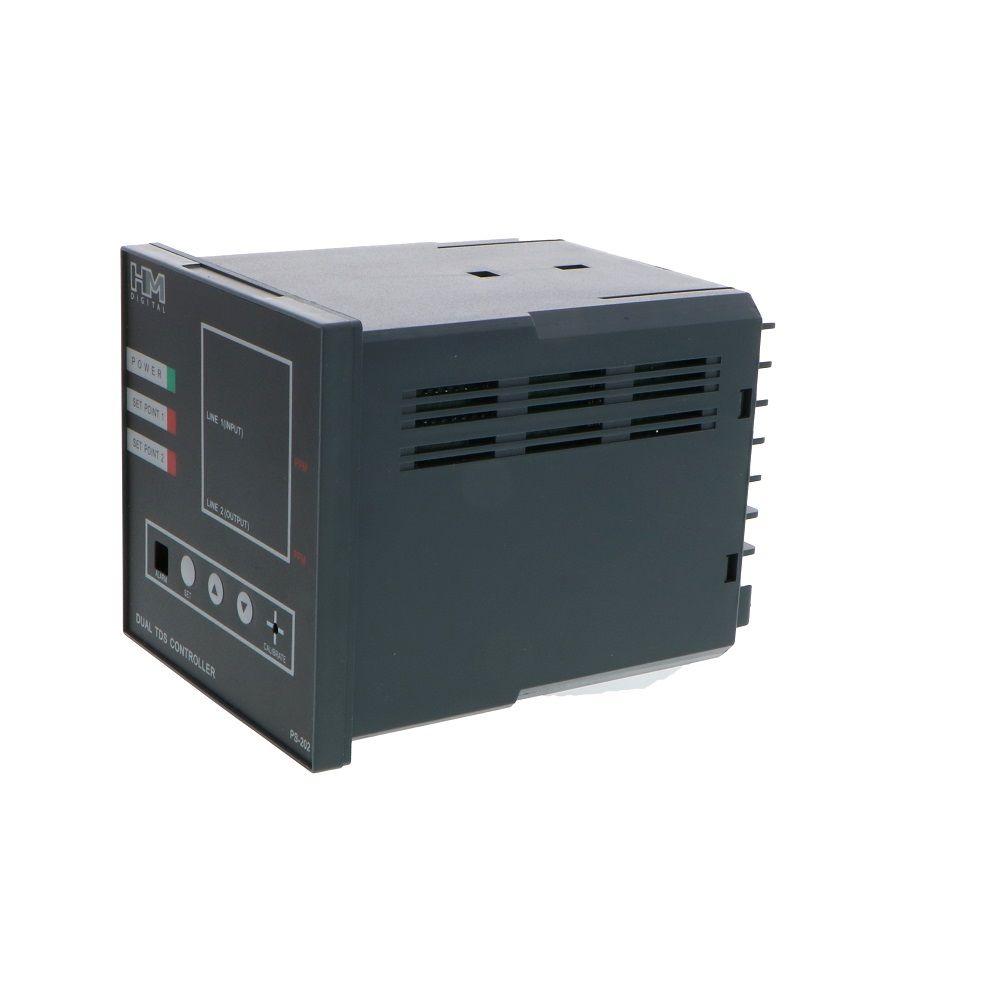

HM Digital PS-202 Dual Display TDS Controller

Part Number: PS-202

In Stock

out of stock

In Stock

$192.99


Install the Dual Display TDS Controller to constantly monitor TDS levels of water produced by a high-output system and immediately know if the TDS levels rise above an acceptable level. The Dual Display allows you to compare both measurements with just a quick glance and adjust the calibration to your needs.
Features:
  • Simultaneously monitors and controls the TDS levels of two water lines (e.g., the feed water and product water) for high output commercial systems
  • Large, bright L.E.D. display
  • An alarm will sound if the TDS level rises above the user-set level for both lines
  • Installs easily in minutes
  • Includes two sensor probes


Weight & Dimensions

Approx Height (Inches)

3.7 Inches

Approx Weight

2 lbs 1.1 oz; 1 lb 4.1 oz

Approx Width (Inches)

3.7 Inches

Approx Depth

4.9 Inches

Details

Alarm

Steady beep for both lines

Calibration

Adjustable

Conversion Factor

NaCl

Measurement Range

0-999 Parts per Million

Features

Auto Temp Control (1 - 65°C); Bright 5/8" L.E.D. dual displays

Accuracy

+/- 2 Percent

Power Source

AC 110V / AC 220V

Probe

1/2" bushing, 3 meter (9.8 ft) shielded cable

Relay Control

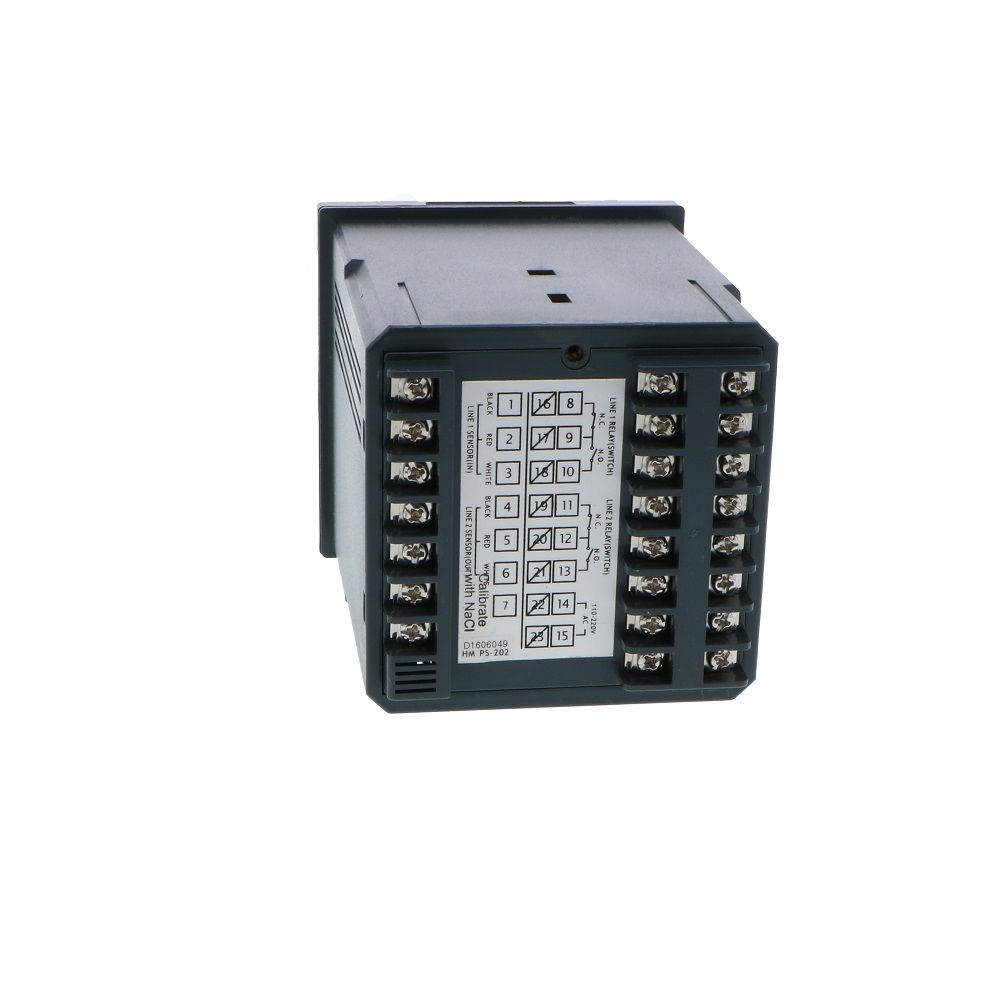

The unit will open or close a circuit via dry contacts when the ppm level of the output water or input water reaches or exceeds its control setting. The PS-202 can be used to control one or two pumps, solenoid valves or other device.

Relay Voltage

5V

Resolution

1 Parts per Million

Setting

Controlled by on-screen up/down buttons

Warranty & Certifications

Warranty

1 year


HM

HM





Install the Dual Display TDS Controller to constantly monitor TDS levels of water produced by a high-output system and immediately know if the TDS levels rise above an acceptable level. The Dual Display allows you to compare both measurements with just a quick glance and adjust the calibration to your needs.
Features:
  • Simultaneously monitors and controls the TDS levels of two water lines (e.g., the feed water and product water) for high output commercial systems
  • Large, bright L.E.D. display
  • An alarm will sound if the TDS level rises above the user-set level for both lines
  • Installs easily in minutes
  • Includes two sensor probes

Weight & Dimensions

Approx Height (Inches)

3.7 Inches

Approx Weight

2 lbs 1.1 oz; 1 lb 4.1 oz

Approx Width (Inches)

3.7 Inches

Approx Depth

4.9 Inches

Details

Alarm

Steady beep for both lines

Calibration

Adjustable

Conversion Factor

NaCl

Measurement Range

0-999 Parts per Million

Features

Auto Temp Control (1 - 65°C); Bright 5/8" L.E.D. dual displays

Accuracy

+/- 2 Percent

Power Source

AC 110V / AC 220V

Probe

1/2" bushing, 3 meter (9.8 ft) shielded cable

Relay Control

The unit will open or close a circuit via dry contacts when the ppm level of the output water or input water reaches or exceeds its control setting. The PS-202 can be used to control one or two pumps, solenoid valves or other device.

Relay Voltage

5V

Resolution

1 Parts per Million

Setting

Controlled by on-screen up/down buttons

Warranty & Certifications

Warranty

1 year
