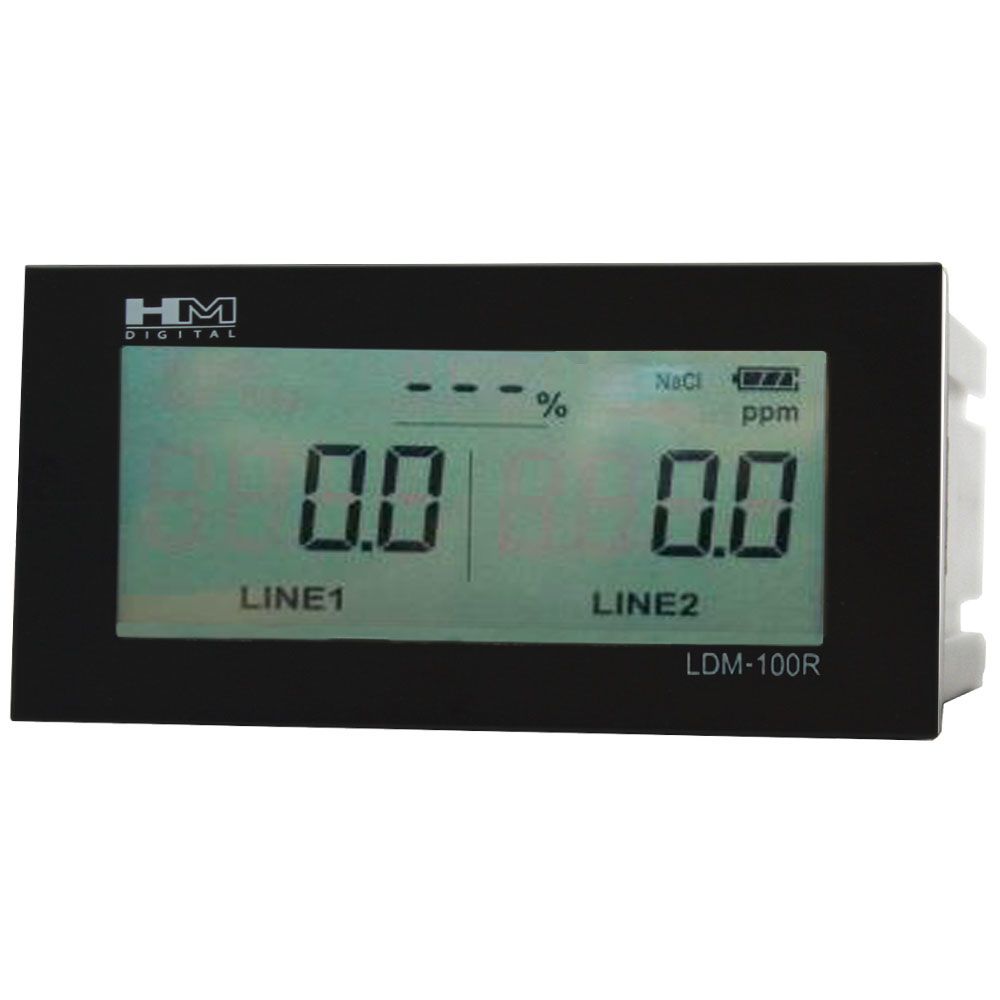

HM Digital LDM-100R Commercial Grade Dual Line EC/TDS Monitor

Part Number: LDM-100R

In Stock

out of stock

In Stock

$92.29


The HM Digital LDM-100R Commercial Grade Dual Line EC/TDS Monitor reads in an extended range to monitor and control electrical conductivity (EC) and total dissolved solids (TDS) levels for high output systems (110-220V).

Features:
  • Dual Line. The LDM-100R allows for simultaneous monitoring of two separate water lines.
  • Extended Range Measurements. The extended range ensures your water supply is pristine due to the monitor's ability to detect a wider range of EC and TDS.
  • Optional Alarm. An optional steady beep can be set to alarm when EC/TDS levels exceed user-set values.
  • "Mini" Monitor. The compact size of the LDM-100R makes installation simple and easy.
  • Extended Battery Life. The HM Digital LDM-100R features an extended battery life for continous monitoring.
  • Monitoring for Commercial RO Systems. The HM Digital LDM-100R commercial grade monitor gives the user the "In-put" water (Line 1) and "Out-put" water (Line 2) in addition to the % of rejection number of how much TDS is being rejected.
  Specifications:
  • Warranty: One year
  • Automatically calculates the % of rejection


Weight & Dimensions

Approx Height (Inches)

3.0 Inches

Approx Weight

7 Ounces; 2 lbs. 1.1 oz

Approx Width (Inches)

4.7 Inches

Approx Depth

1.0 Inches

Details

Alarm

Steady beep for both lines

Calibration

Digital to any point

Conversion Factor

NaCl (avg. 0.5)

Measurement Range

0 - 9999 µS / 0-20.00 mS µS, 0-9999 ppm / 0-10.0 ppt Parts per Million

Features

Bright 5/8” L.E.D. display

Accuracy

± 0.2 % Percent

Power Source

2 x 1.5V AA batteries

Probe

1/2” bushing (NPT), 3 meter (9.8 ft) shielded cable

Relay Voltage

5V

Setting

Controlled by on-screen up/down buttons

Warranty & Certifications

Warranty

1 Year Manufacturer Warranty


HM
