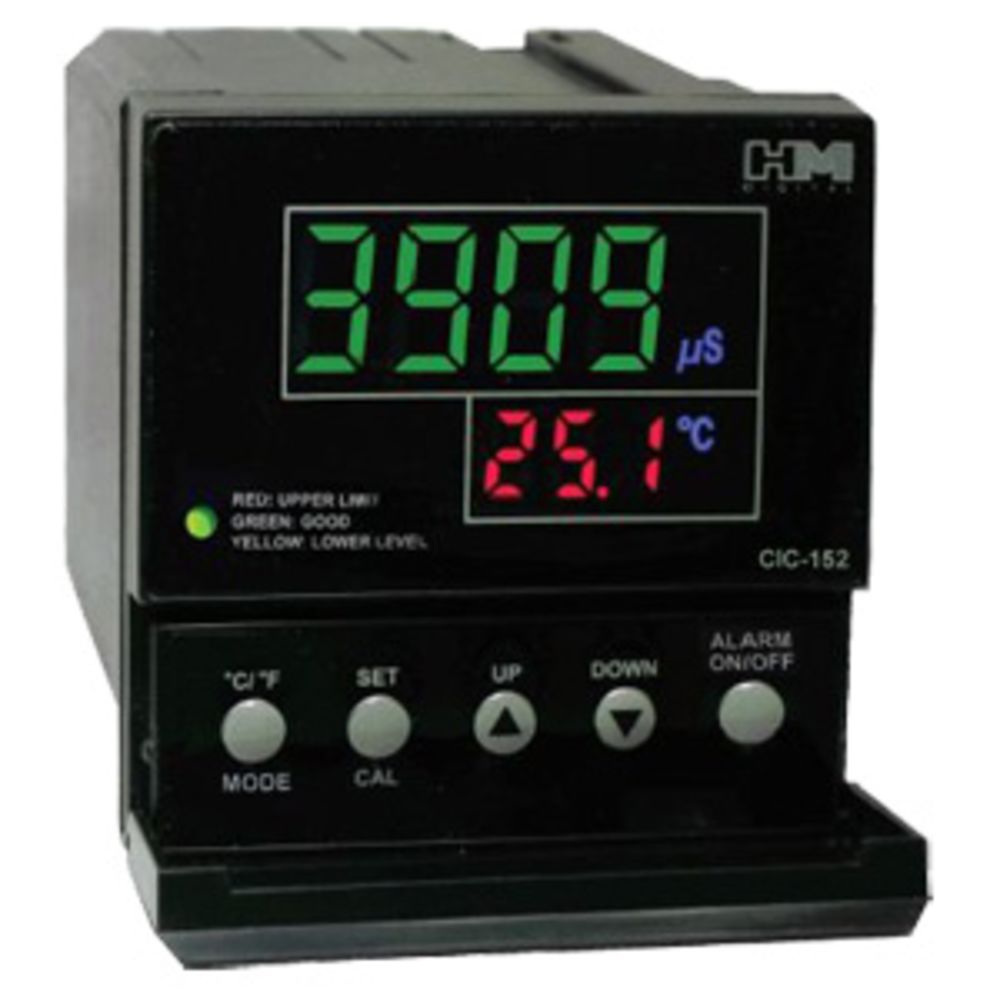

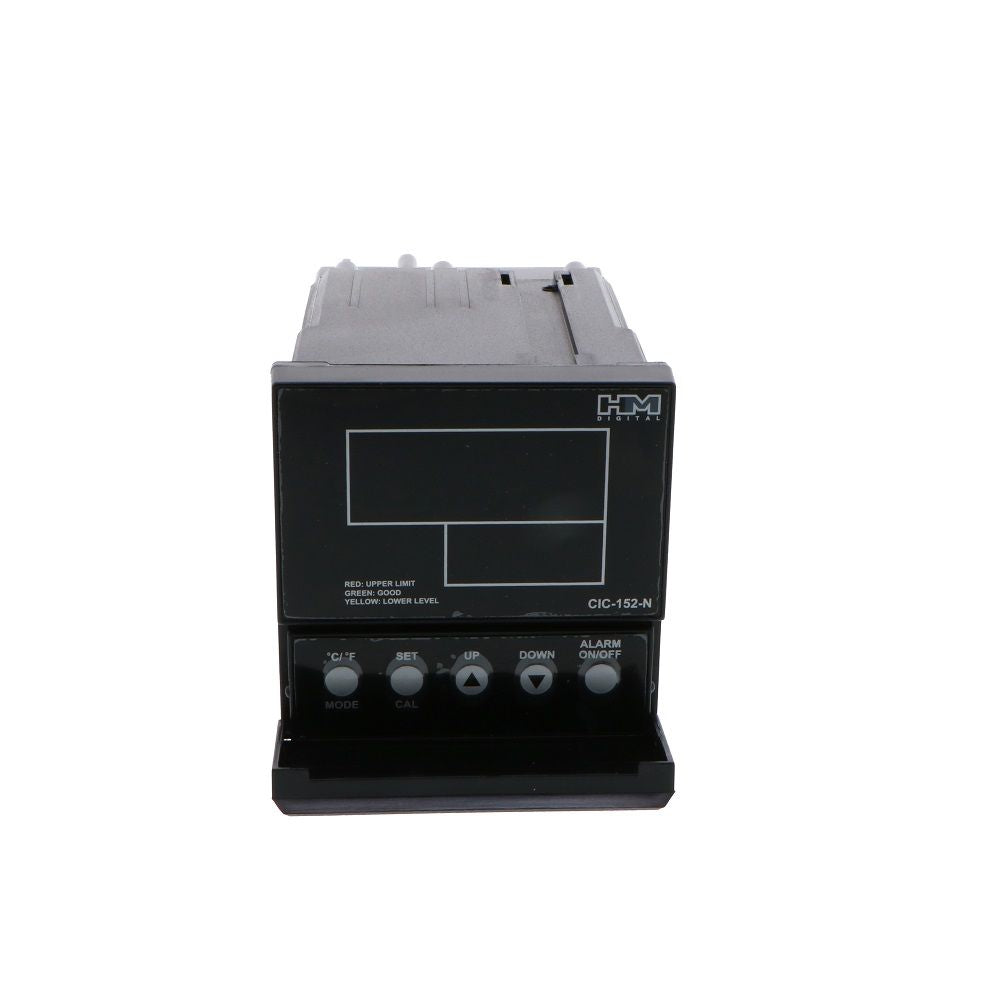

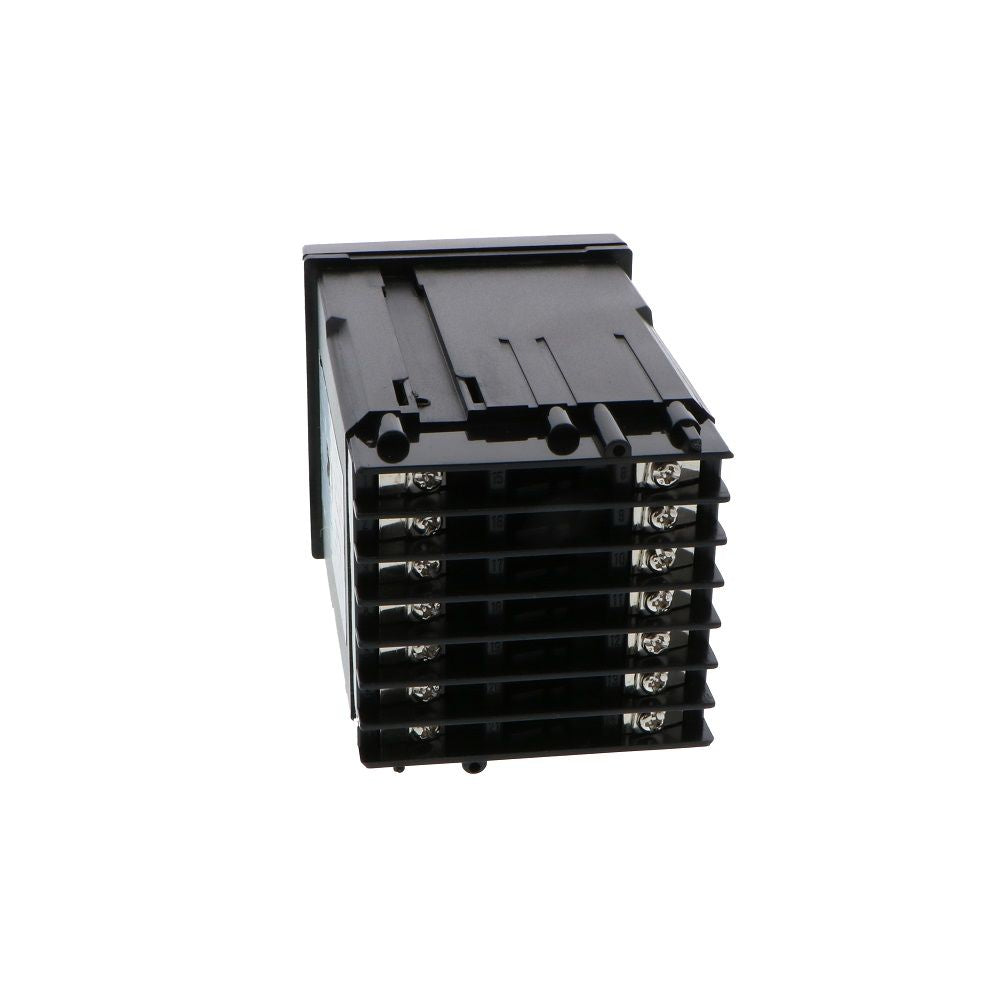

HM Digital CIC-152 Dual Control Dosing/Injection TDS/EC Controller

Part Number: HMCIC-152

Alt. Part Number: CIC-152

In Stock

out of stock

In Stock

$308.01


The HM Digital CIC-152 TDS/EC Controller monitors and controls dosing or injection systems with two adjustable set points to keep TDS level within a range. The CIC-152 allows you to set minimum and maximum control points that will activate relay controls to send an analog signal to an external device via switching dry contacts. The external devices must have their own power source.    Features:
  • Monitors and controls dosing or injection systems
  • Large, bright tri-colored LED display
  • Two adjustable set points keep TDS levels within a range
  • An alarm will sound if  the TDS reaches the minimum or maximum set point, and will start or stop a device (pump, valve, etc.) via  switching a dry contact position.
  • Once the TDS level returns to the acceptable range, the alarm will stop and the dry contacts will switch to the normal position.
  • Digital calibration.
  • On-screen temperature display.
  • Installs easily in minutes.
  • Includes one sensor probe.


Weight & Dimensions

Approx Height (Inches)

2.8 Inches

Approx Weight

1 lb 8 oz; 1 lb .8 oz

Approx Width (Inches)

2.5 Inches

Approx Depth

4.4 Inches

Details

Alarm

Two independent alarms (set by user)

Measurement Range

0-9999 µS; 0-5000 Parts per Million

Factory Calibration

1413 µS

Set Points

Adjustable by push button. Control Point 2: Maximum TDS Limit. Control Point 1: Lower TDS Level.

Features

Bright 5/8" L.E.D. display; Auto Temp Control (1-80° C)

Operating Temperature Range

1-80°C; 33-176°F

Accuracy

+/- 2 Percent

Power Source

AC 110V / AC 220V

Probe

1/2" bushing, 3 meter (9.8 ft) shielded cable

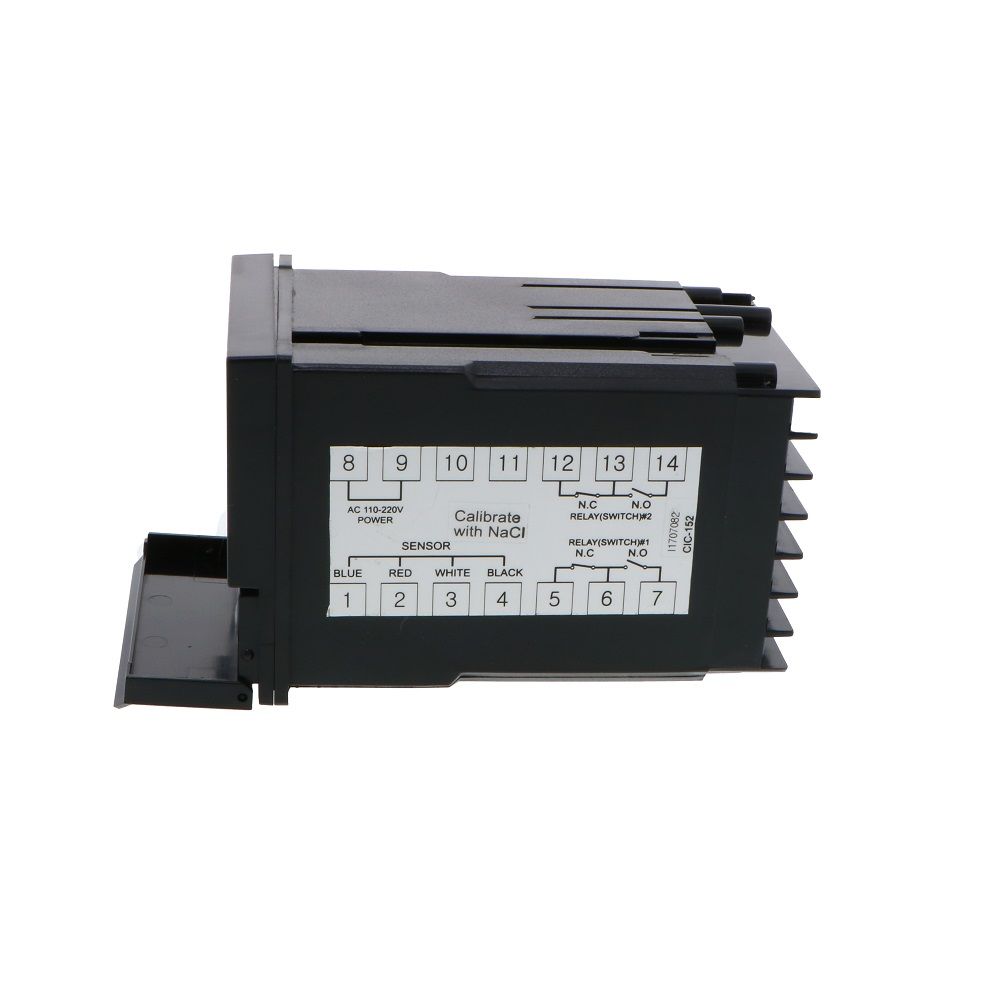

Relay Control

The unit will transmit an analog signal via open or closed contacts to a device when the TDS/EC level reaches the maximum limit or the minimum limit . The contacts are switched back to the normal position once the TDS returns to the acceptable range

Relay Voltage

5V (attached devices must have their own power supply)

Resolution

0.1 ppm (0-999); 1 ppm (1000-9999) Parts per Million

Warranty & Certifications

Warranty

1 year
