Colder Products

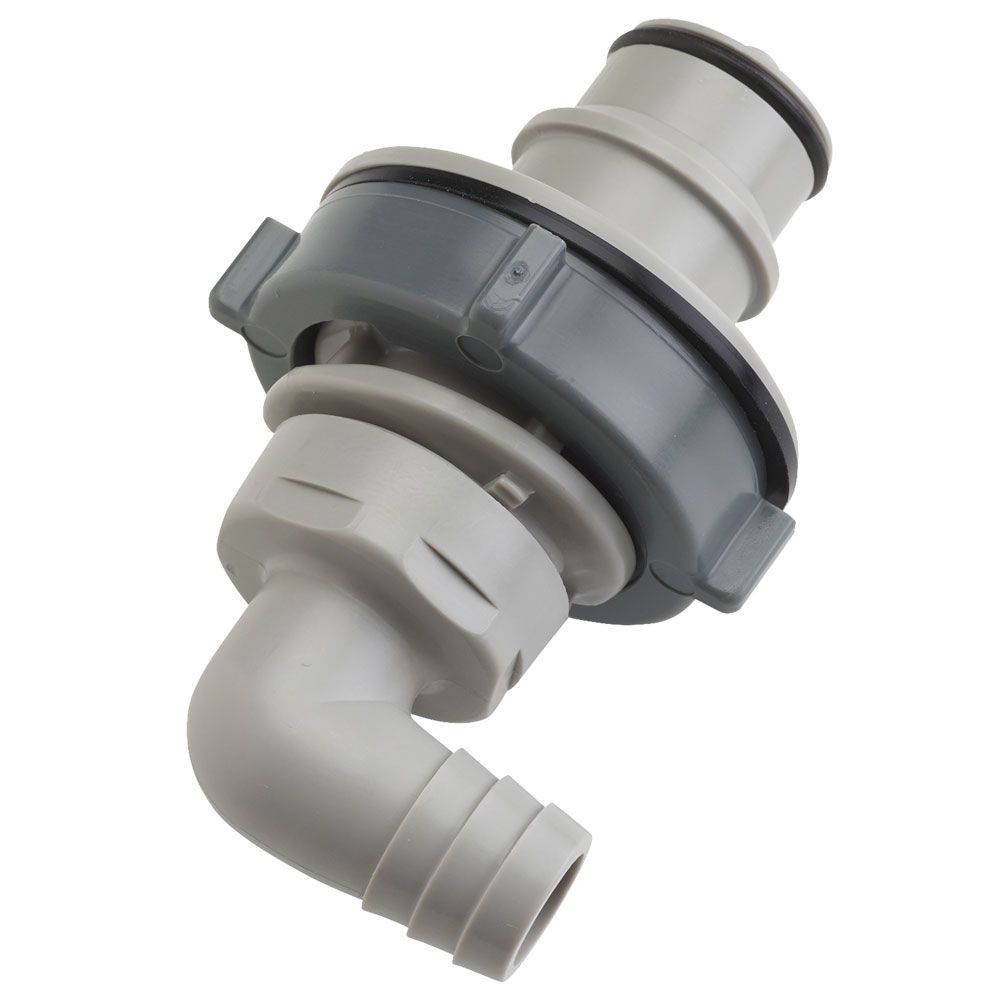

HFCD43812 Valved Elbow Panel Mount Hose Barb Coupling Insert 1/2 ID Barb

Part Number: HFCD43812

In Stock

out of stock

In Stock

$14.53

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications.

Specifications:
  • Material: Polypropylene
  • Material Finish: Grey
  • Valve Option: Valved
  • Mounting Option: Panel Mount
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Temperature Range: 32°F to 160°F


Details

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray

Mounting Options

Panel Mount

Operating Pressure Range

Vacuum to 60 psi, 4.2 bar PSI

Operating Temperature Range

32°F to 160°F (0°C to 71°C)

Seal Material

EPDM

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved


HFCD43812




Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications.

Specifications:
  • Material: Polypropylene
  • Material Finish: Grey
  • Valve Option: Valved
  • Mounting Option: Panel Mount
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Temperature Range: 32°F to 160°F

Details

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray

Mounting Options

Panel Mount

Operating Pressure Range

Vacuum to 60 psi, 4.2 bar PSI

Operating Temperature Range

32°F to 160°F (0°C to 71°C)

Seal Material

EPDM

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved
