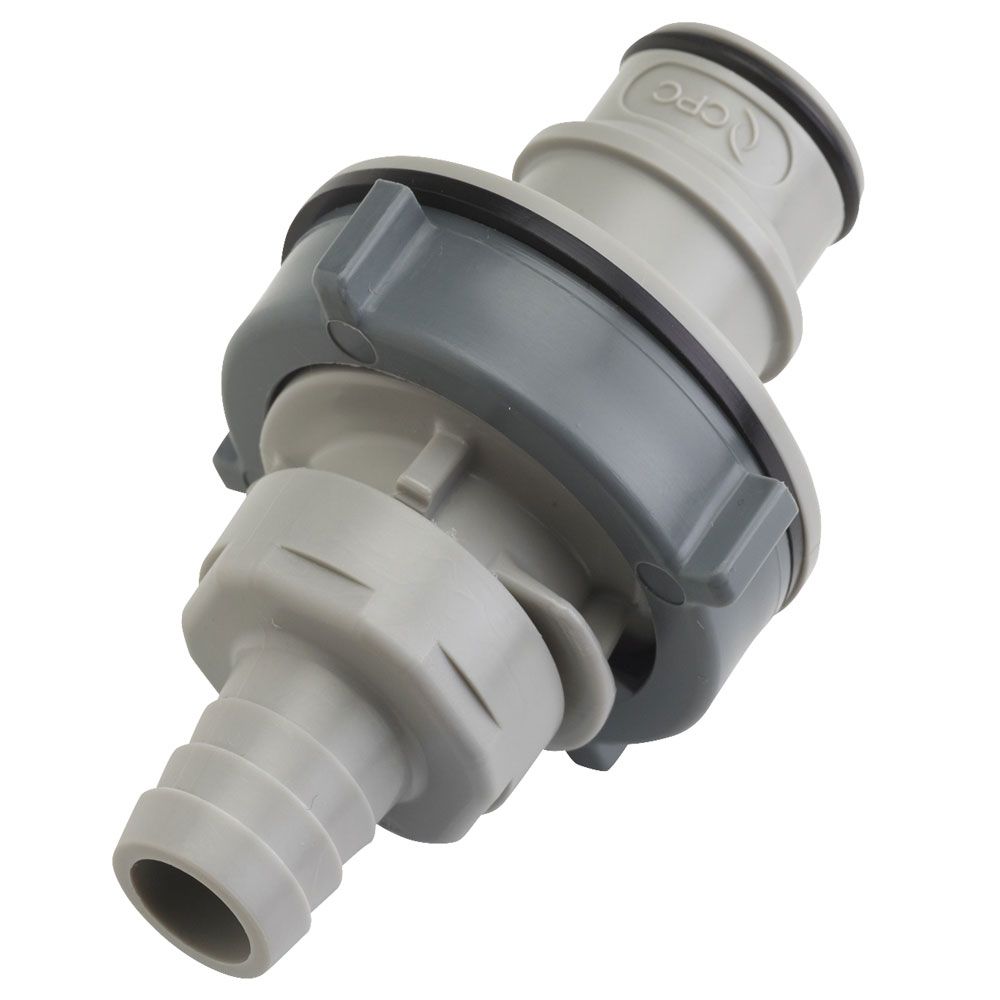

HFCD42812 Valved Panel Mount Hose Barb Coupling Insert 1/2 ID Barb

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications.

Specifications:

Material: Polypropylene
Material Finish: Grey
Valve Option: Valved
Mounting Option: Panel Mount
Pressure Range: Vacuum to 60 psi, 4.2 bar
Temperature Range: 32°F to 160°F

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/2" ID
Body Material	Polypropylene
Max Pressure (Psi)	60
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Panel Mount
Nsf Version	No
Seal Material	EPDM
Series	HFC12
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Gray
Type	Coupling Insert
