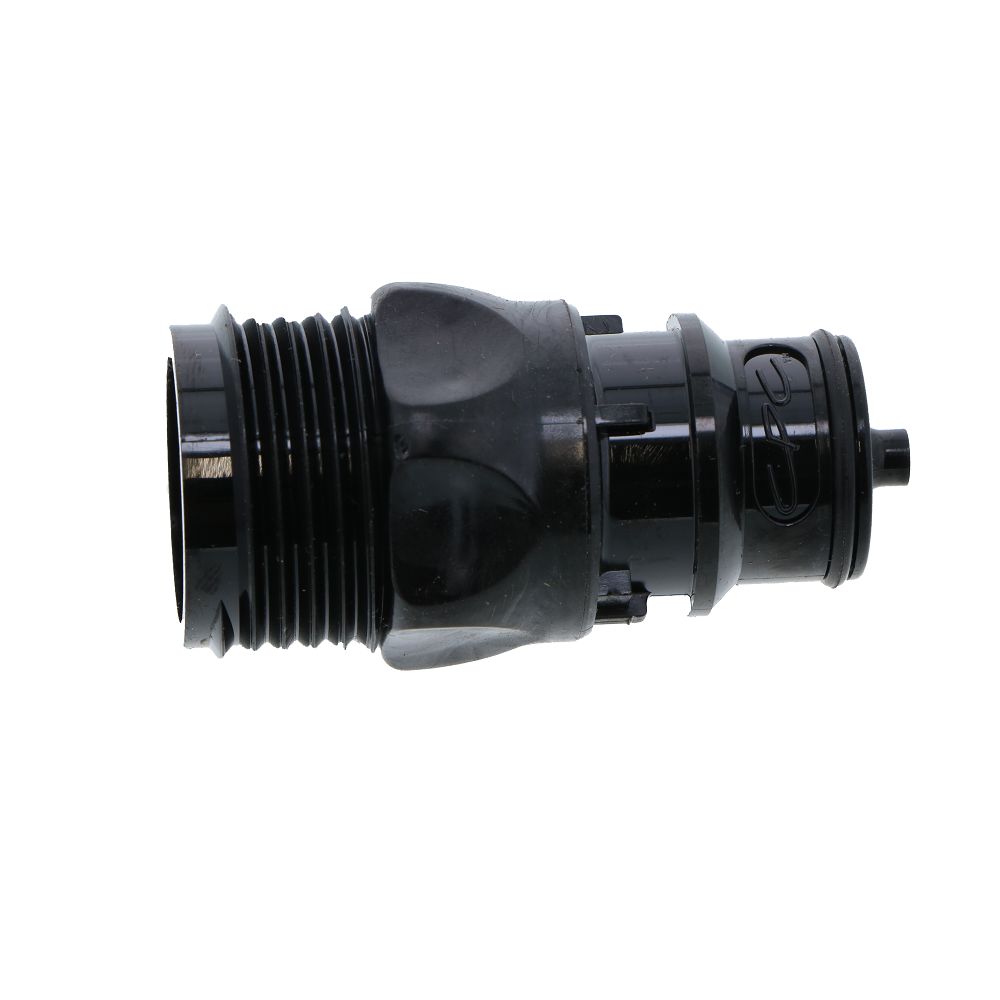

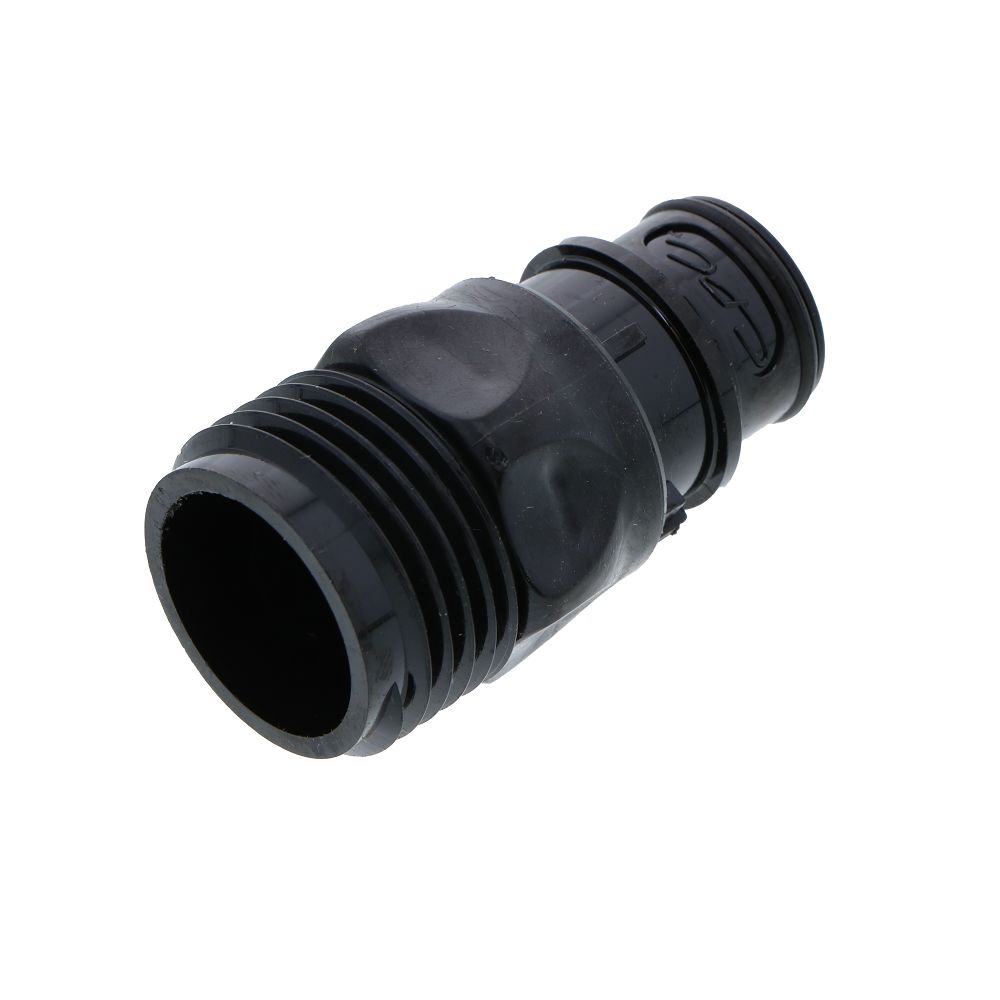

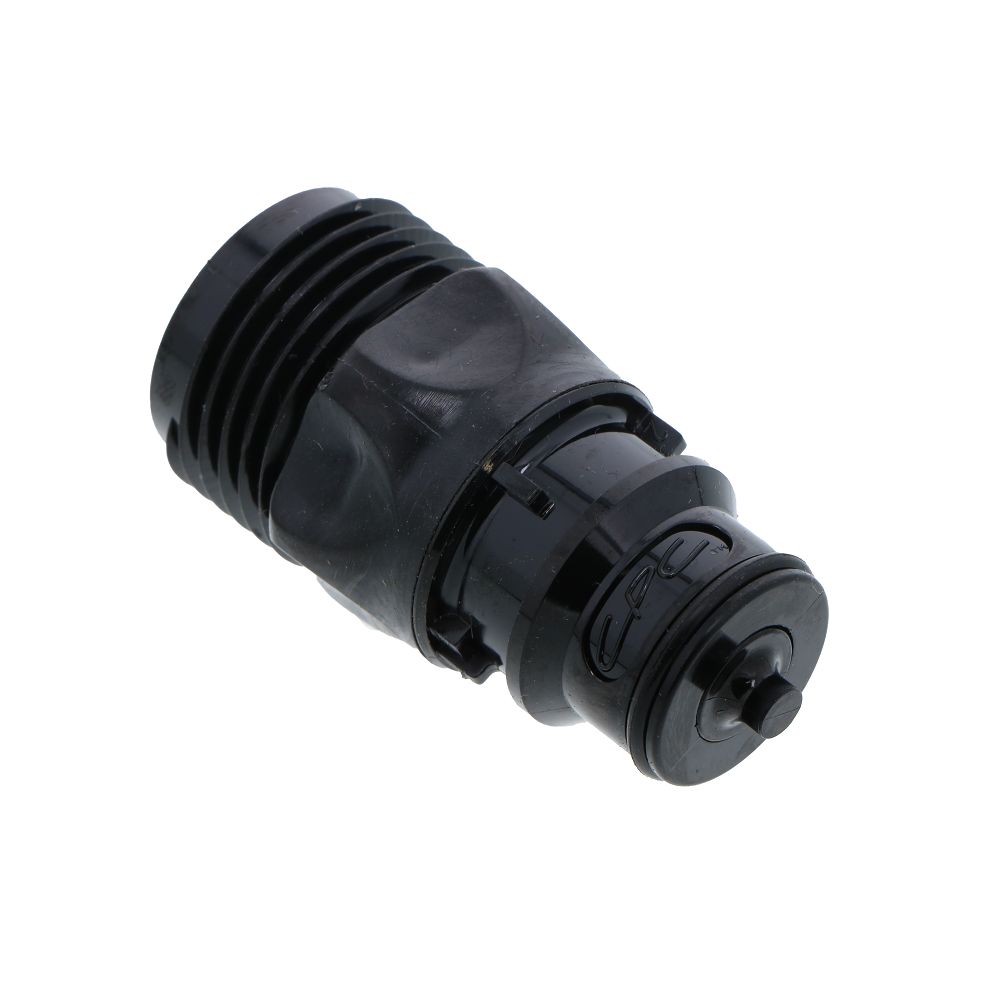

HFCD241257GHT Valved Male Thread Coupling Insert 3/4 MGHT

The HFC57 Series couplings are resistant to UV light allowing them to be continuously exposed to harmful UV rays without affecting performance.

Specifications:

Material: UV-resistant Polysulfone
Color: Black
Pressure Range: Vacuum to 125 psi, 8.6 bar
Mounting Option: Male Garden Hose Thread
Valve Option: Valved
Temperature Range: -40ºF to 280ºF
Seal Options: EPDM
Available in Bags of 10 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	UV-Resistant Polysulfone
Inlet Connection	3/4" GHT
Max Pressure (Psi)	125
Max Temp (°F)	280
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/4" GHT
Seal Material	EPDM
Series	HFC57
Shape	Straight
Size	3/4"
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Black Gray
Connection Type	GHT
Type	Coupling Insert
