Colder Products

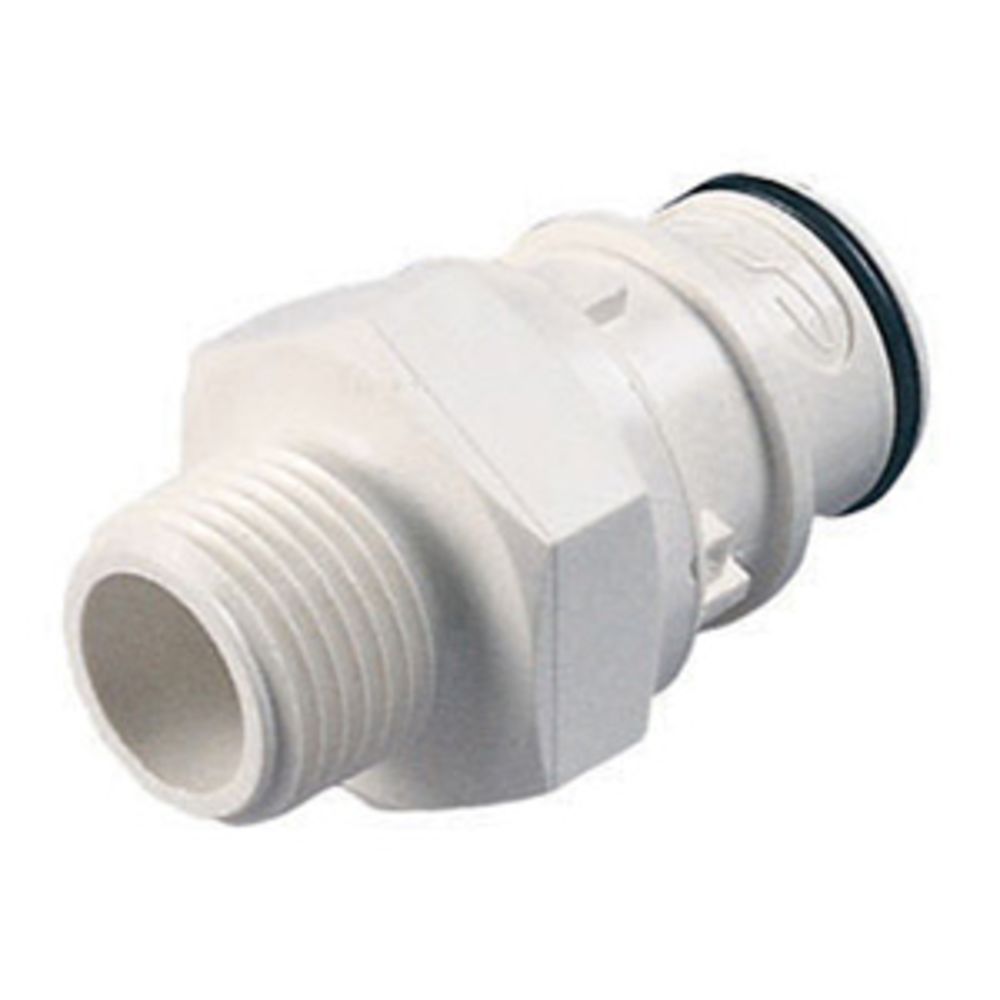

HFCD241235BSPT Valved Male Thread Coupling Insert 3/4 BSPT

Part Number: HFCD241235BSPT

In Stock

out of stock

In Stock

$14.11

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polypropylene
  • Material Finish: Molded White
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Male BSPT Thread
  • Valve Option: Thread
  • Valve Spring: 316 Stainless Steel
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 88200) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

Polysulfone

Inlet/Outlet Connection

3/4" BSP

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

EPDM

Series

HFC35

Size

3/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White

Connection Type

BSP

Type

Coupling Insert


HFCD241235BSPT




The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polypropylene
  • Material Finish: Molded White
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Male BSPT Thread
  • Valve Option: Thread
  • Valve Spring: 316 Stainless Steel
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 88200) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.1

Details

Application

Water

Body Material

Polysulfone

Inlet/Outlet Connection

3/4" BSP

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

EPDM

Series

HFC35

Size

3/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White

Connection Type

BSP

Type

Coupling Insert
