Colder Products

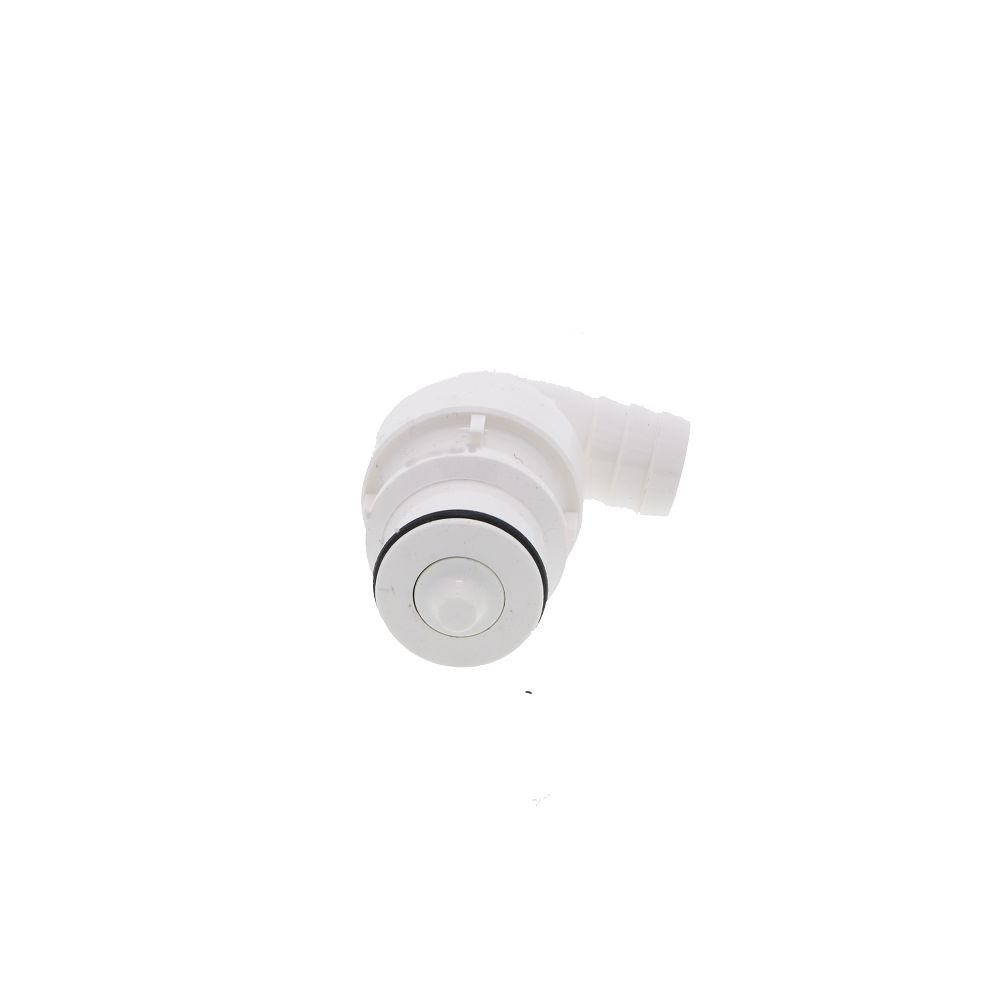

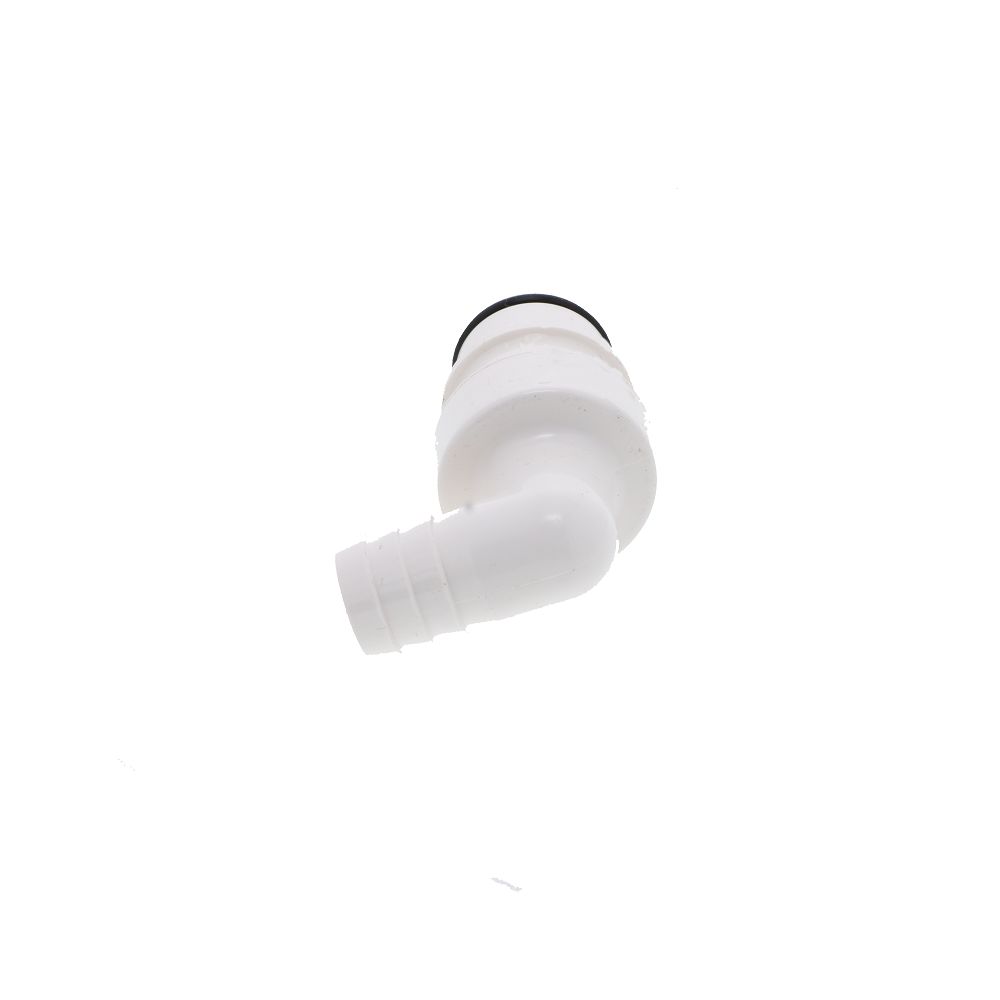

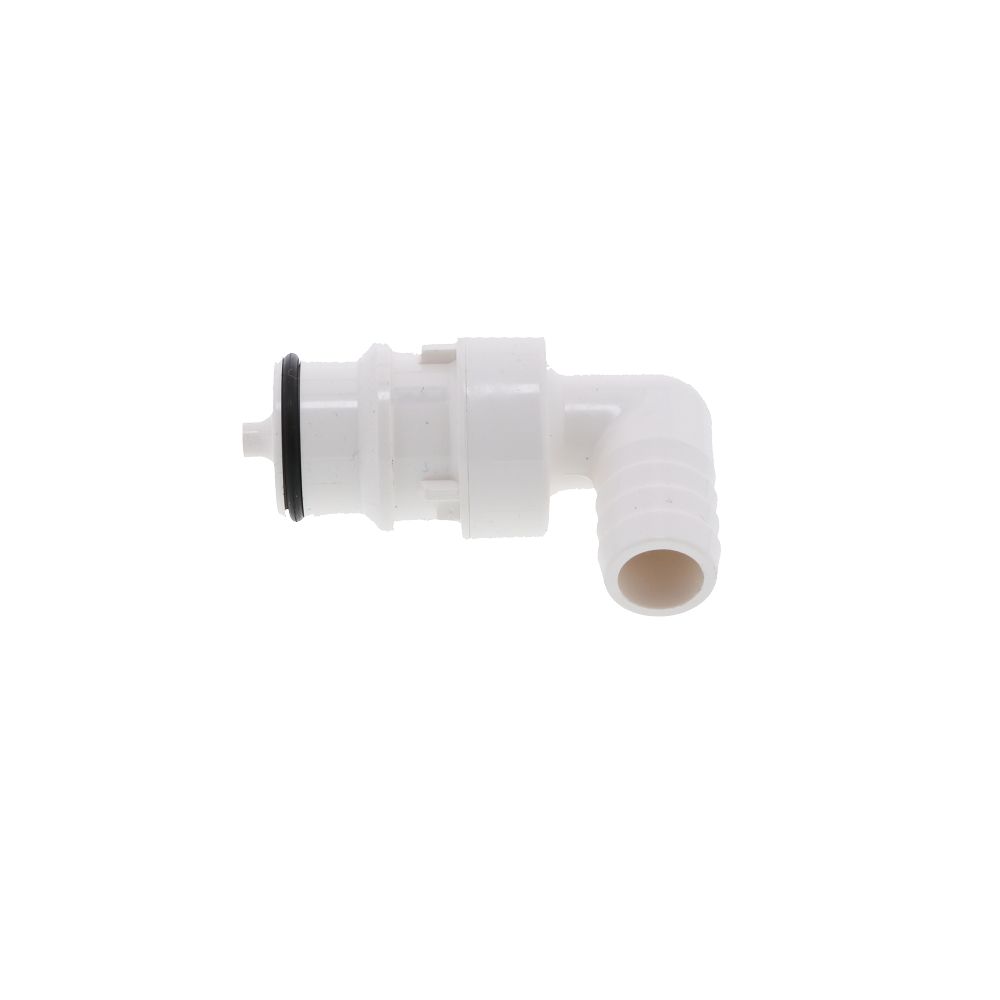

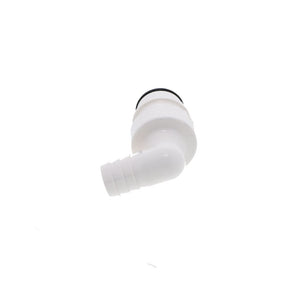

HFCD23835 Valved Elbow Hose Barb Coupling Insert 1/2 ID Barb

Part Number: HFCD23835

In Stock

out of stock

In Stock

$13.56

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 81300) Available Upon Request




Weight & Dimensions

Height (inches)

1.13

Length (inches)

2

Weight (lbs)

0.003125

Width (inches)

0.75

Details

Application

Water

Barb Size

1/2" ID

Body Material

Polysulfone

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

EPDM

Series

HFC35

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White, Gray

Type

Coupling Insert


HFCD23835




The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 81300) Available Upon Request



Weight & Dimensions

Height (inches)

1.13

Length (inches)

2

Weight (lbs)

0.003125

Width (inches)

0.75

Details

Application

Water

Barb Size

1/2" ID

Body Material

Polysulfone

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

EPDM

Series

HFC35

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White, Gray

Type

Coupling Insert

Documentation
HFCD23835
