Colder Products

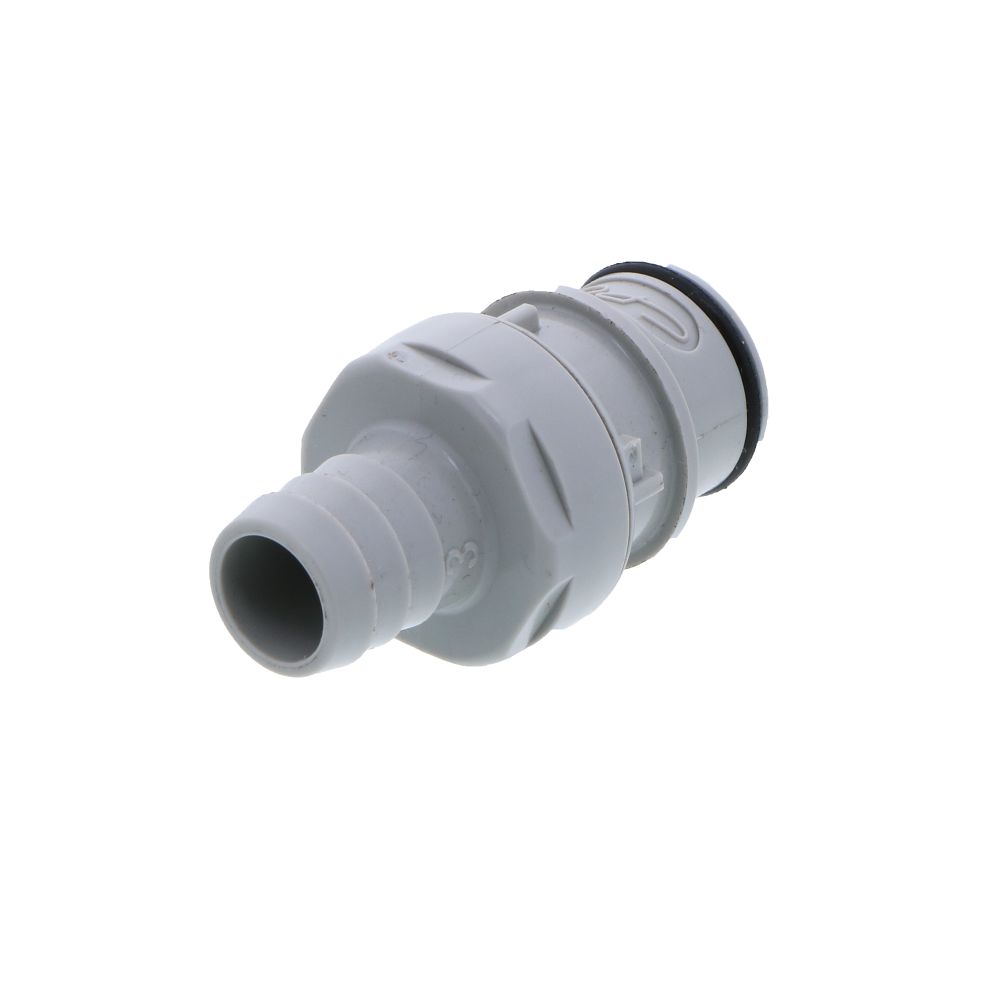

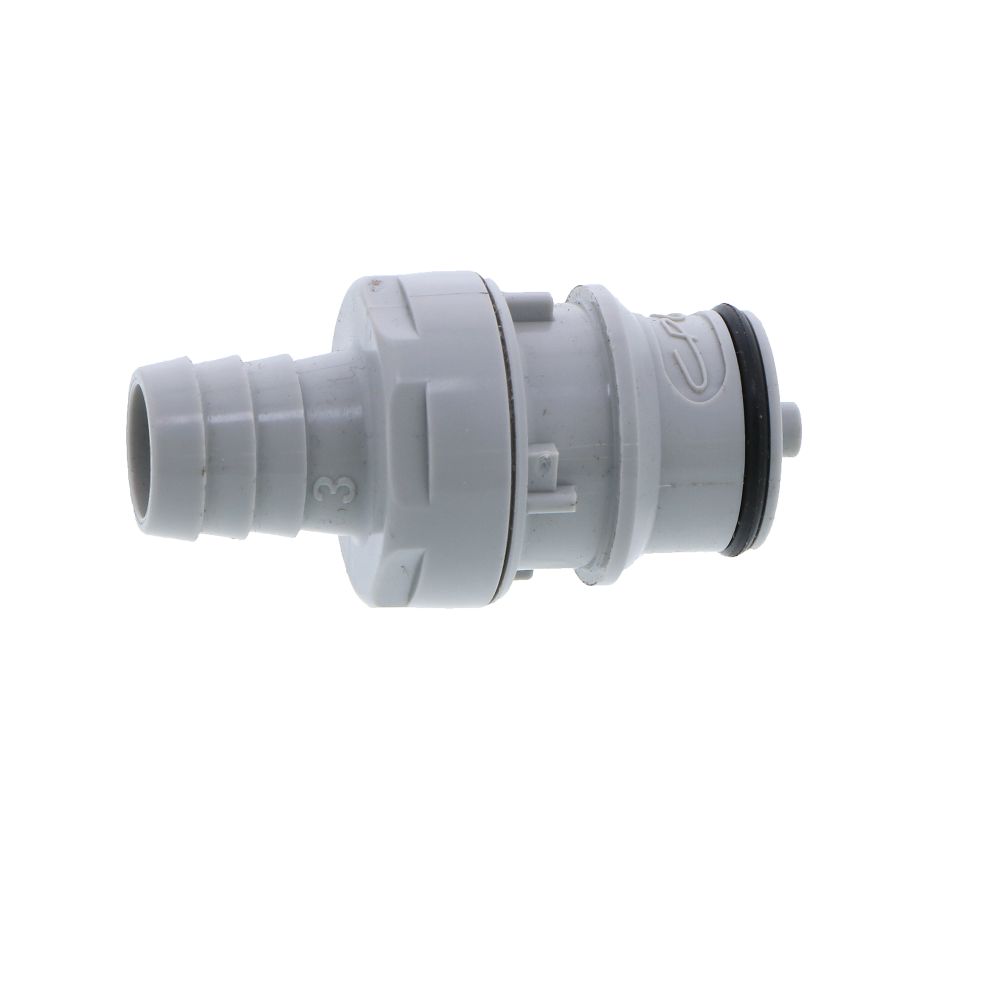

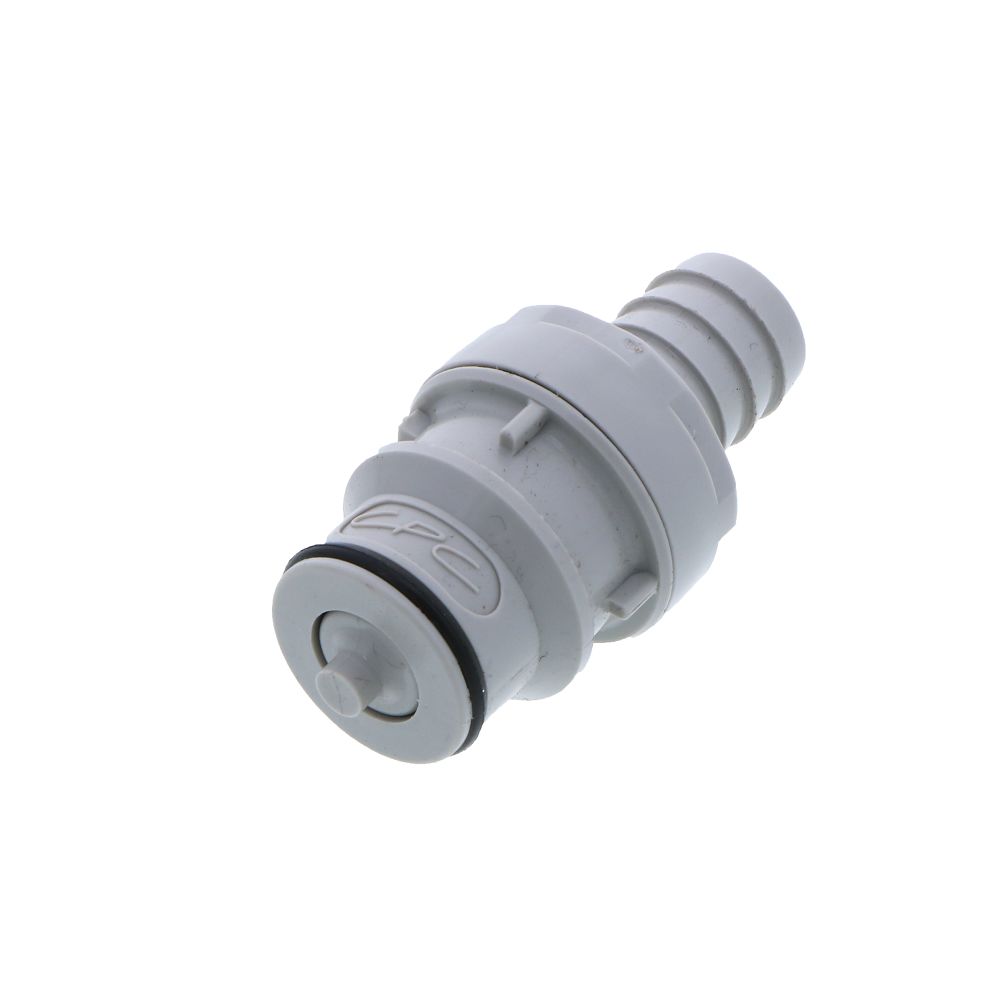

HFCD22812 Valved In-line Hose Barb Coupling Insert 1/2 ID Barb

Part Number: HFCD22812

In Stock

out of stock

In Stock

$11.21

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units

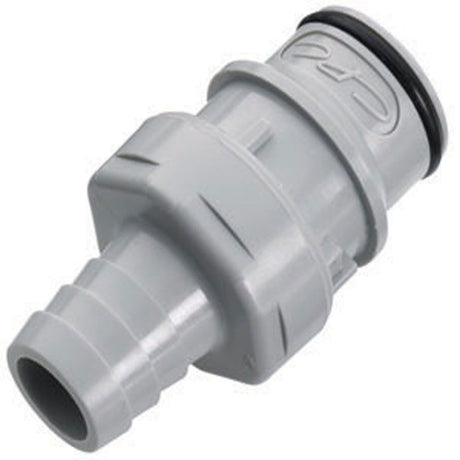

  • NSF Listed Version (part # 81000) Available Upon Request




Weight & Dimensions

Height (inches)

2

Length (inches)

2

Weight (lbs)

0.125

Width (inches)

1

Details

Application

Water

Barb Size

1/2" ID

Body Material

Polypropylene

Max Pressure (Psi)

60

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Seal Material

EPDM

Series

HFC12

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Gray

Type

Coupling Insert


HFCD22812




The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 81000) Available Upon Request



Weight & Dimensions

Height (inches)

2

Length (inches)

2

Weight (lbs)

0.125

Width (inches)

1

Details

Application

Water

Barb Size

1/2" ID

Body Material

Polypropylene

Max Pressure (Psi)

60

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Seal Material

EPDM

Series

HFC12

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

Gray

Type

Coupling Insert
