Colder Products

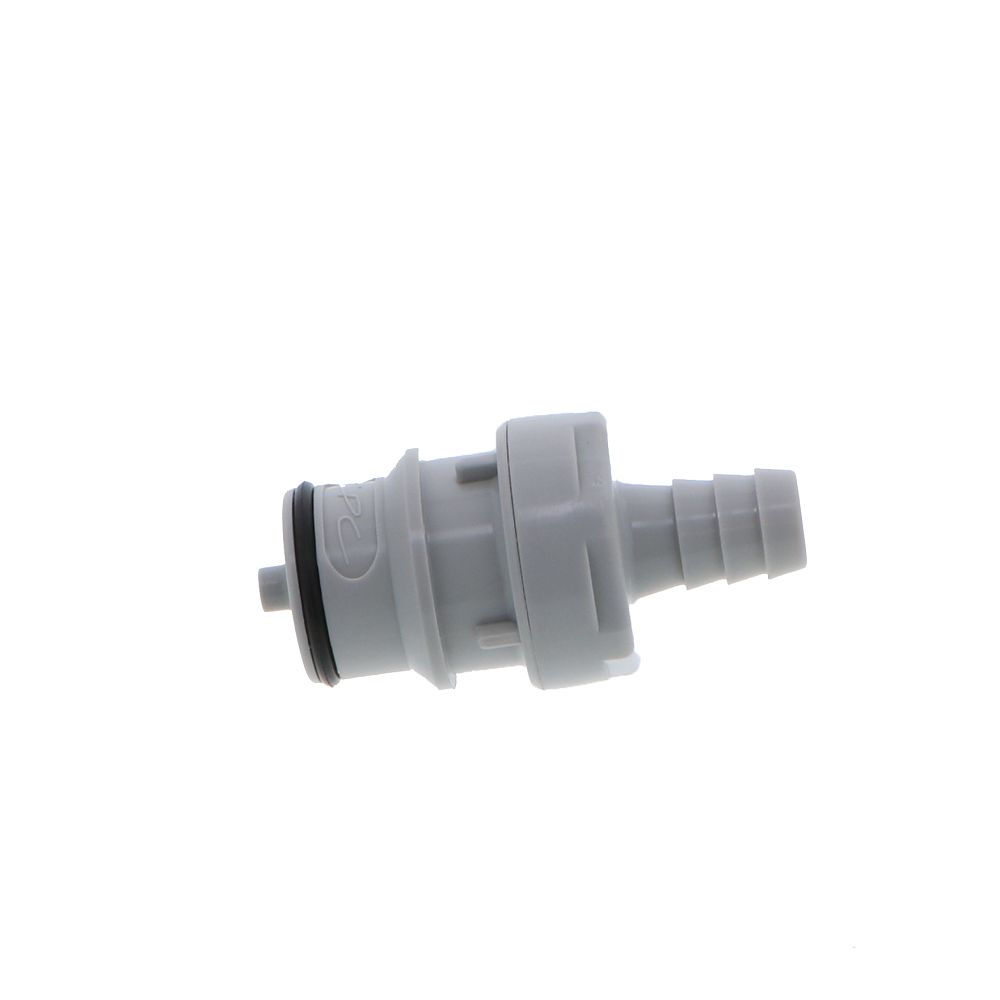

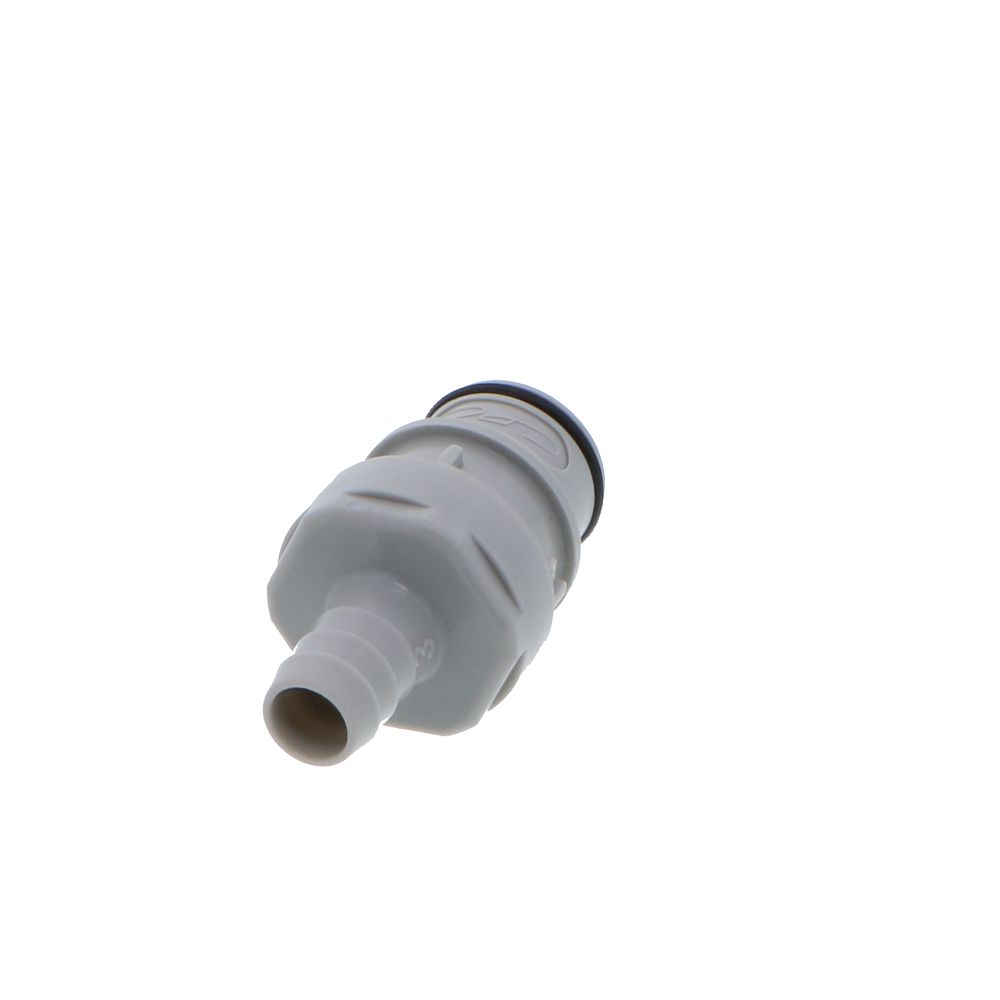

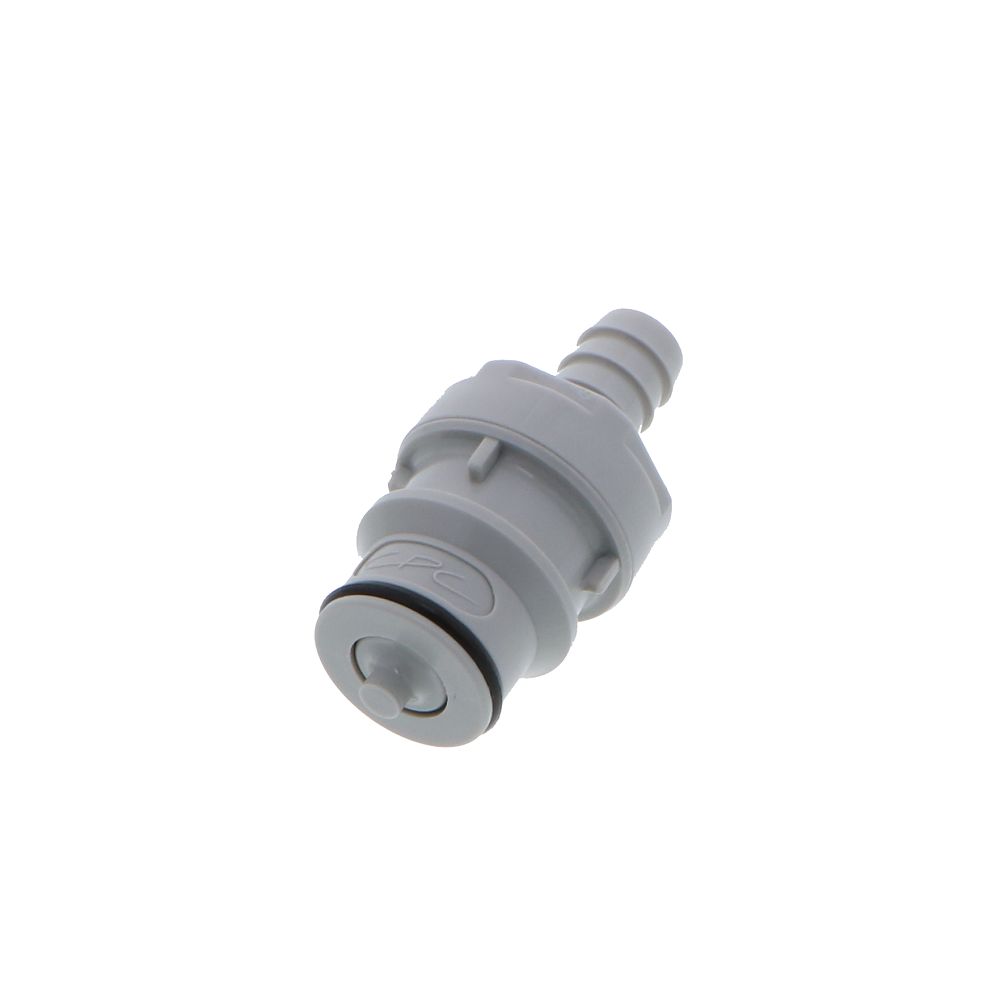

HFCD22612 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb

Part Number: HFCD22612

In Stock

out of stock

In Stock

$8.28


The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 62700) Available Upon Request


Details

Series

HFC12

Barb Size

3/8"

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray, Molded Grey

O Rings

EPDM

Operating Pressure Range

Vacuum to 60 psi, 4.2 bar

Operating Temperature Range

32ºF to 160ºF

Origin

USA

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Polypropylene


HFCD22612





The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 62700) Available Upon Request

Details

Series

HFC12

Barb Size

3/8"

Bag Quantity

10

Body Material

Polypropylene

Color / Finish

Gray, Molded Grey

O Rings

EPDM

Operating Pressure Range

Vacuum to 60 psi, 4.2 bar

Operating Temperature Range

32ºF to 160ºF

Origin

USA

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

316 Stainless Steel

Thumb Latch

Polypropylene
