Colder Products

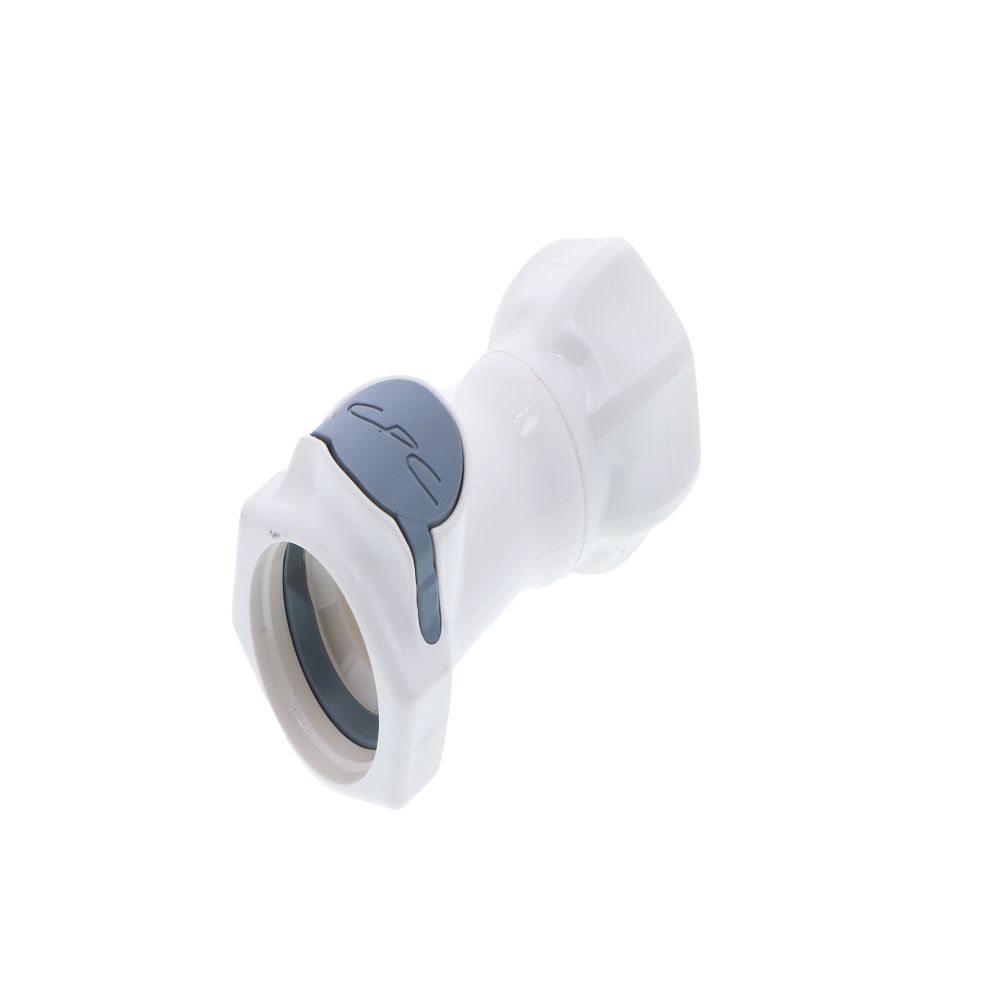

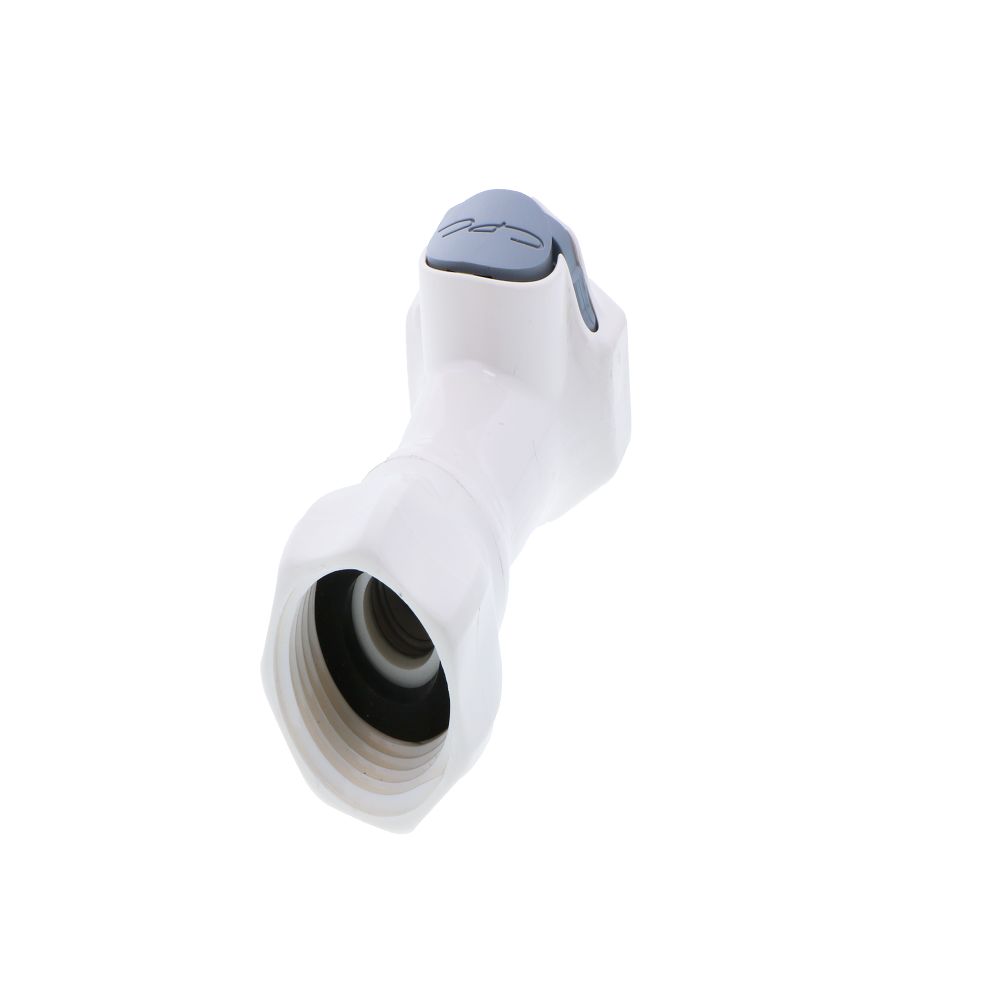

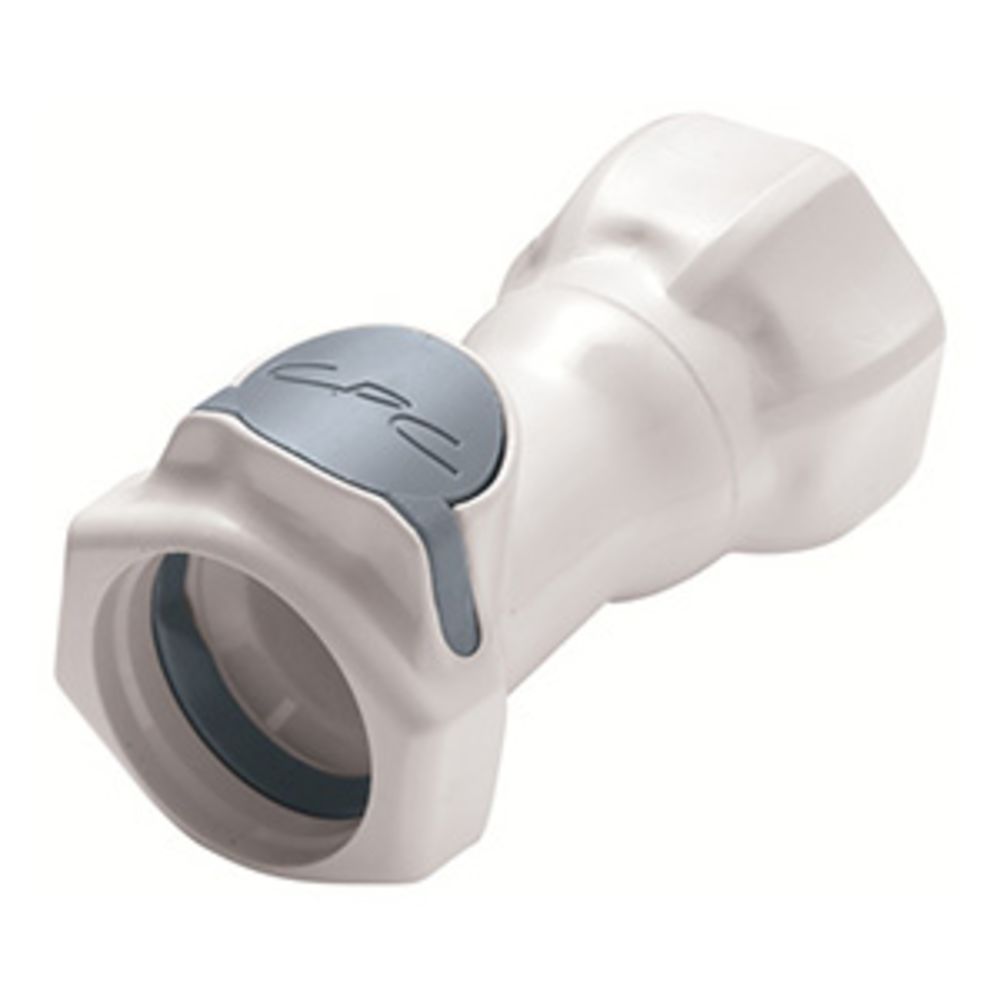

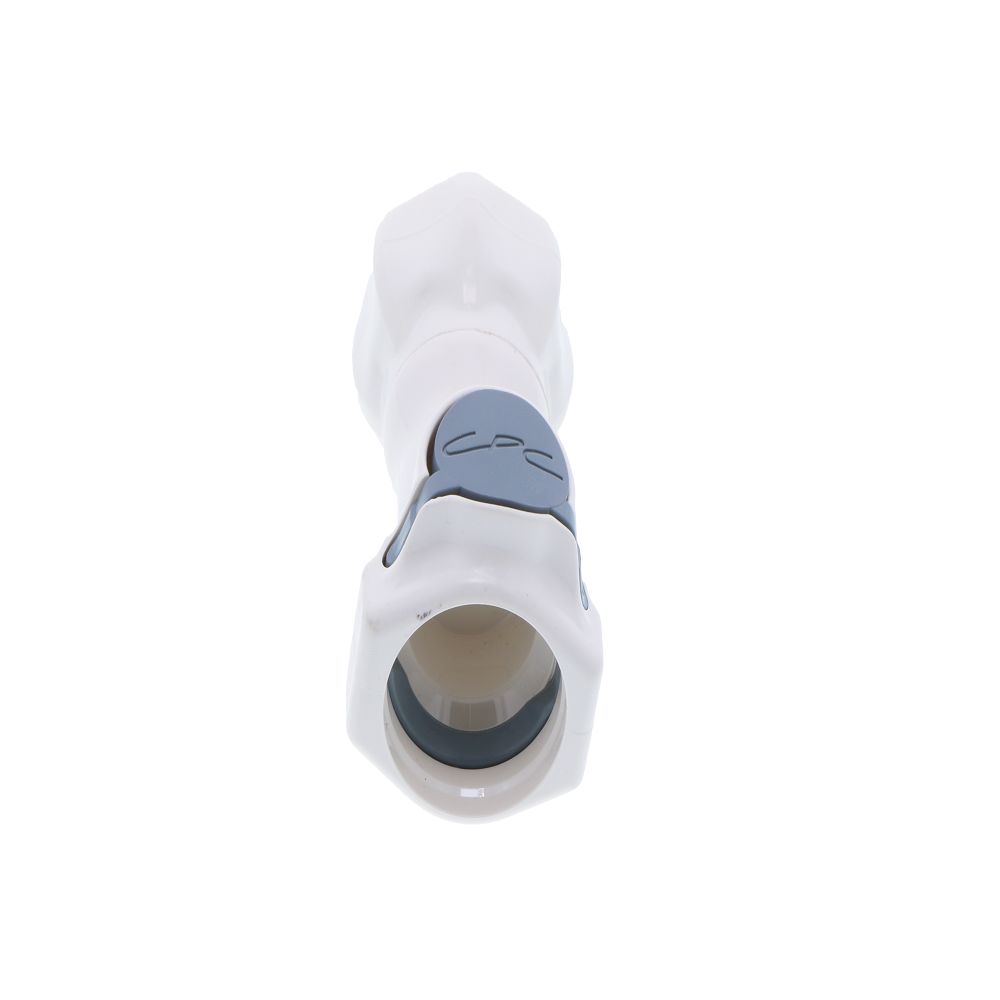

HFCD191235GHT Valved Female Thread Coupling Body 3/4 FGHT

Part Number: HFCD191235GHT

In Stock

out of stock

In Stock

$17.43

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Female Garden Hose Thread
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • NSF Listed Version (Part # 86200) Available Upon Request
  • Available in Bags of 10 units




Weight & Dimensions

Height (inches)

1.375

Length (inches)

2.75

Weight (lbs)

0.066

Width (inches)

1.375

Details

Application

Water

Body Material

Polysulfone

External Springs And Pin

316 Stainless Steel

Inlet/Outlet Connection

3/4" GHT

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

EPDM

Series

HFC35

Size

3/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White, Black

Connection Type

GHT

Origin

USA

Type

Coupling Body


HFCD191235GHT




The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: Female Garden Hose Thread
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • NSF Listed Version (Part # 86200) Available Upon Request
  • Available in Bags of 10 units



Weight & Dimensions

Height (inches)

1.375

Length (inches)

2.75

Weight (lbs)

0.066

Width (inches)

1.375

Details

Application

Water

Body Material

Polysulfone

External Springs And Pin

316 Stainless Steel

Inlet/Outlet Connection

3/4" GHT

Max Pressure (Psi)

125

Max Temp (°F)

280

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

EPDM

Series

HFC35

Size

3/4"

Spring

316 Stainless Steel

Valve Type

Valved

Color / Finish

White, Black

Connection Type

GHT

Origin

USA

Type

Coupling Body
