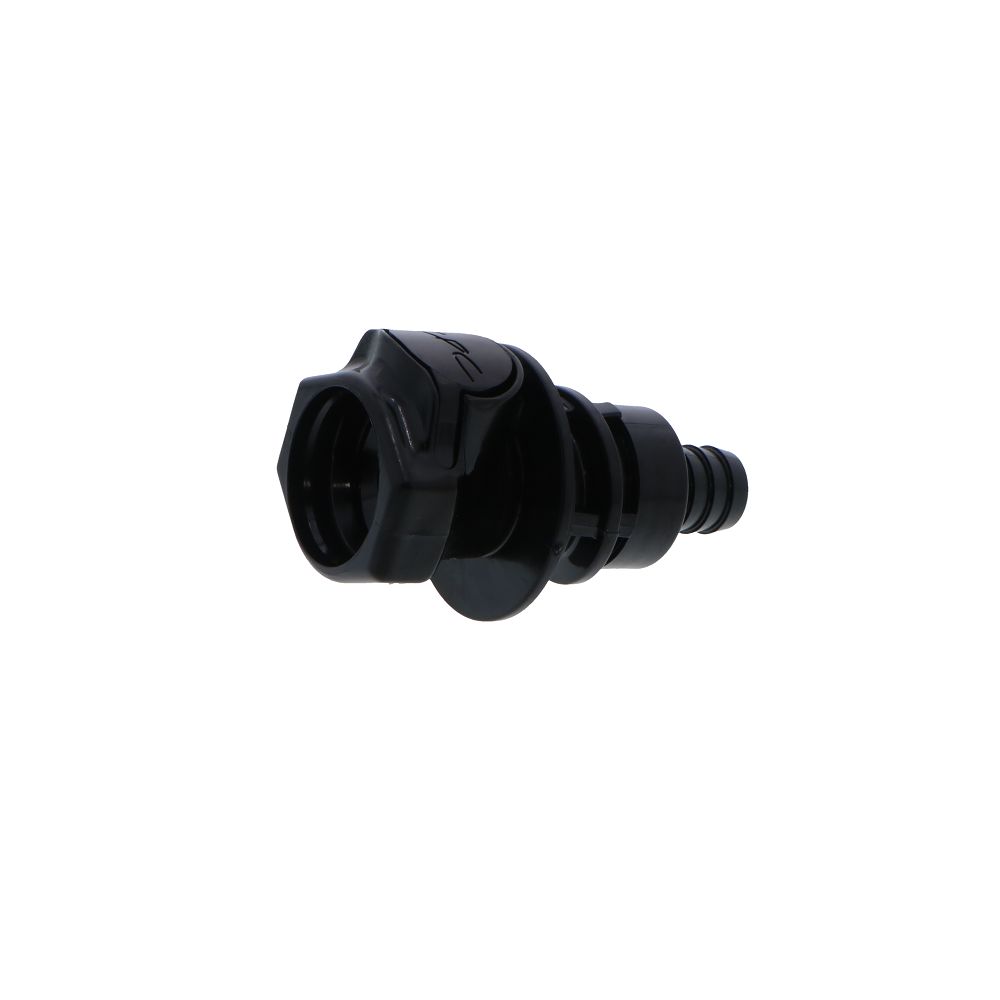

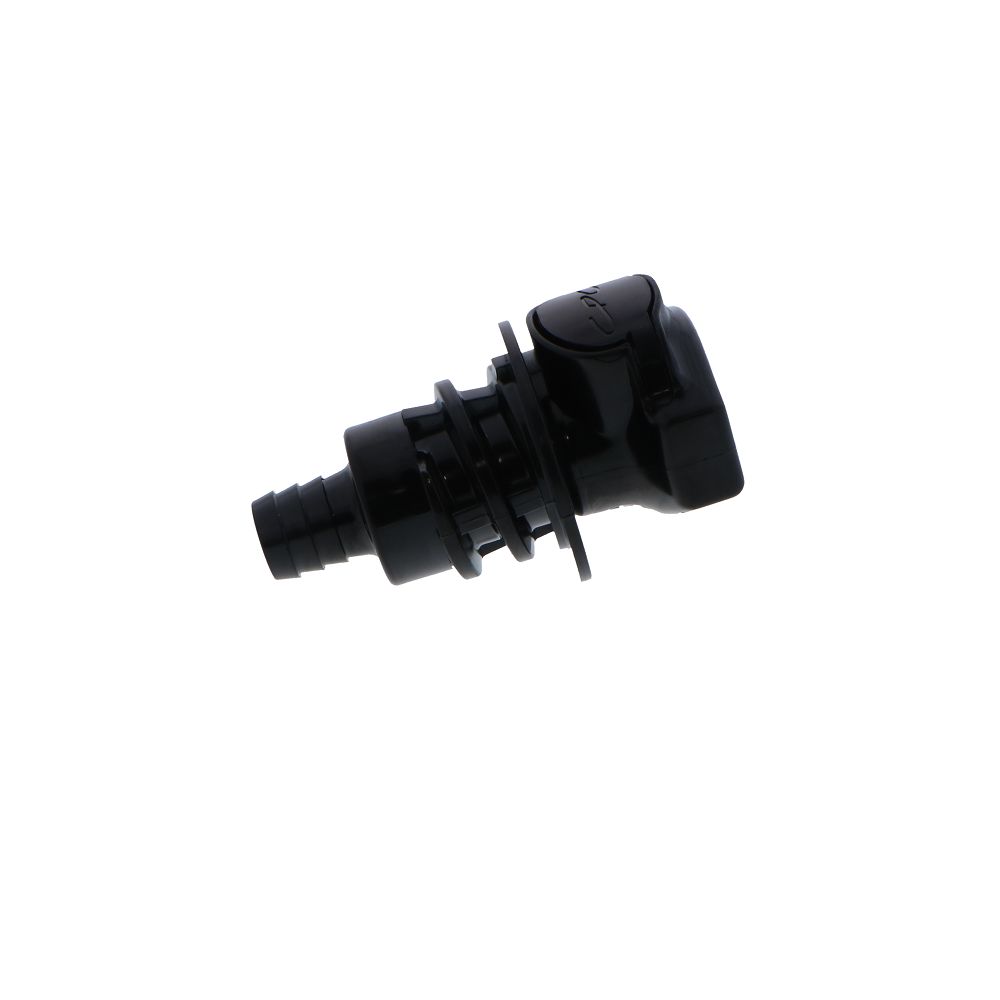

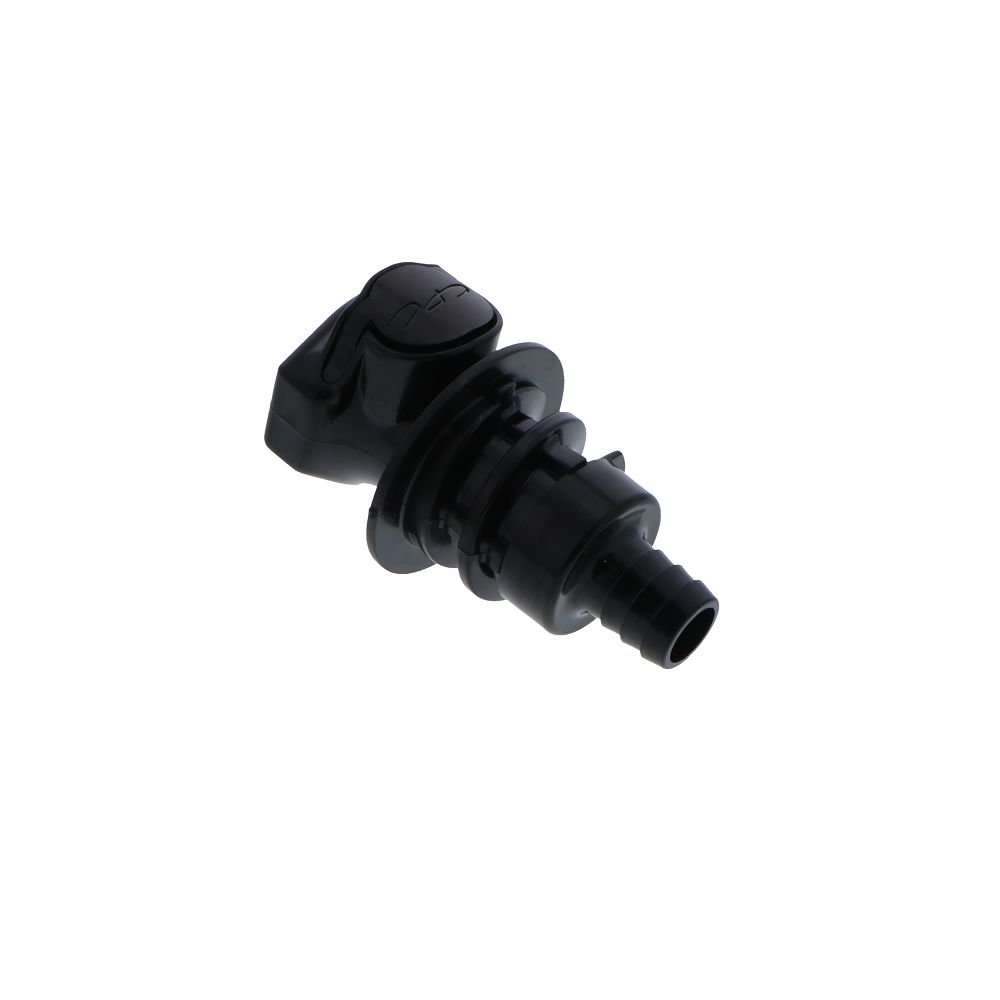

HFCD16857 Valved Panel Mount Hose Barb Coupling Body 1/2 ID Barb
Part Number: HFCD16857
Alt. Part Number: 60PSV-SE3-08BLK
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Polysulfone
- Color: White
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Mounting Option: Panel Mount
- Valve Option: Valved
- Temperature Range: -40ºF to 280ºF
- Seal Options: EPDM
- Available in Bags of 10 units
- NSF Listed Version (part # 80300) Available Upon Request
WARNING!
| Product Details | |
|---|---|
Application | Water |
Barb Size | 1/2" ID |
Body Material | UV-Resistant Polysulfone |
External Springs And Pin | 316 Stainless Steel |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 280 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Seal Material | EPDM |
Series | HFC57 |
Shape | Straight |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Black Gray |
Type | Coupling Body |
| Product Details | |
|---|---|
Application | Water |
Barb Size | 1/2" ID |
Body Material | UV-Resistant Polysulfone |
External Springs And Pin | 316 Stainless Steel |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 280 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Seal Material | EPDM |
Series | HFC57 |
Shape | Straight |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Black Gray |
Type | Coupling Body |
| Product Details | |
|---|---|
Application | Water |
Barb Size | 1/2" ID |
Body Material | UV-Resistant Polysulfone |
External Springs And Pin | 316 Stainless Steel |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 280 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Seal Material | EPDM |
Series | HFC57 |
Shape | Straight |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Black Gray |
Type | Coupling Body |
Specifications:
- Material: Polysulfone
- Color: White
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Mounting Option: Panel Mount
- Valve Option: Valved
- Temperature Range: -40ºF to 280ºF
- Seal Options: EPDM
- Available in Bags of 10 units
- NSF Listed Version (part # 80300) Available Upon Request
WARNING!
| Product Details | |
|---|---|
Application | Water |
Barb Size | 1/2" ID |
Body Material | UV-Resistant Polysulfone |
External Springs And Pin | 316 Stainless Steel |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 280 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Seal Material | EPDM |
Series | HFC57 |
Shape | Straight |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Black Gray |
Type | Coupling Body |
| Product Details | |
|---|---|
Application | Water |
Barb Size | 1/2" ID |
Body Material | UV-Resistant Polysulfone |
External Springs And Pin | 316 Stainless Steel |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 280 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Seal Material | EPDM |
Series | HFC57 |
Shape | Straight |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Black Gray |
Type | Coupling Body |
| Product Details | |
|---|---|
Application | Water |
Barb Size | 1/2" ID |
Body Material | UV-Resistant Polysulfone |
External Springs And Pin | 316 Stainless Steel |
Max Pressure (Psi) | 125 |
Max Temp (°F) | 280 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Seal Material | EPDM |
Series | HFC57 |
Shape | Straight |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Color / Finish | Black Gray |
Type | Coupling Body |
