Colder Products

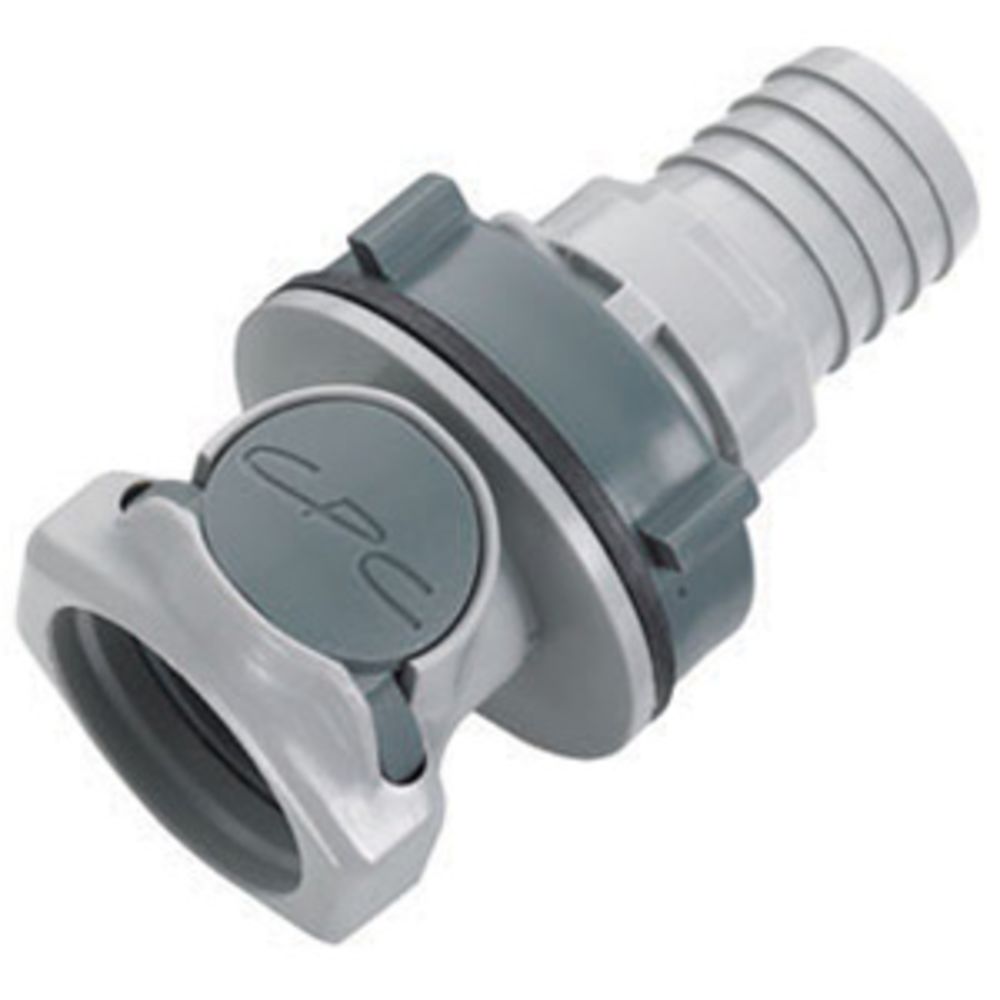

HFCD161212 Valved Panel Mount Hose Barb Coupling Body 3/4 ID Barb

Part Number: HFCD161212

In Stock

out of stock

In Stock

$16.44

The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Panel Mount
  • vValve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 62000) Available Upon Request




Weight & Dimensions

Height (inches)

1.5

Length (inches)

2.75

Weight (lbs)

0.000625

Width (inches)

1.5

Details

Application

Water

Barb Size

3/4" ID

Body Material

Polypropylene

Color / Finish

Gray

Max Pressure (Psi)

60

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Panel Mount

Origin

USA

Seal Material

EPDM

Series

HFC12

Thumb Latch

Polypropylene

Valve Type

Valved


HFCD161212




The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:
  • Material: Polypropylene
  • Color: Gray
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Mounting Option: Panel Mount
  • vValve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units
  • NSF Listed Version (part # 62000) Available Upon Request



Weight & Dimensions

Height (inches)

1.5

Length (inches)

2.75

Weight (lbs)

0.000625

Width (inches)

1.5

Details

Application

Water

Barb Size

3/4" ID

Body Material

Polypropylene

Color / Finish

Gray

Max Pressure (Psi)

60

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Panel Mount

Origin

USA

Seal Material

EPDM

Series

HFC12

Thumb Latch

Polypropylene

Valve Type

Valved
