Colder Products

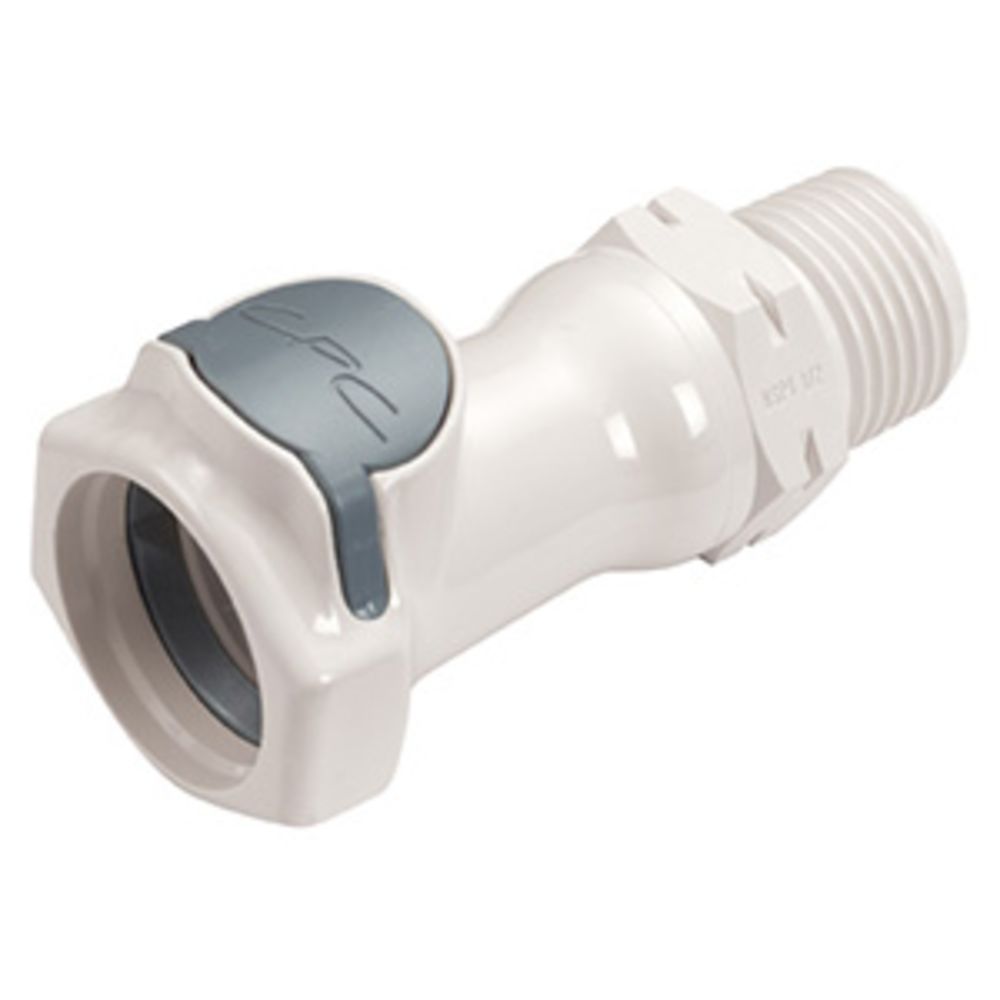

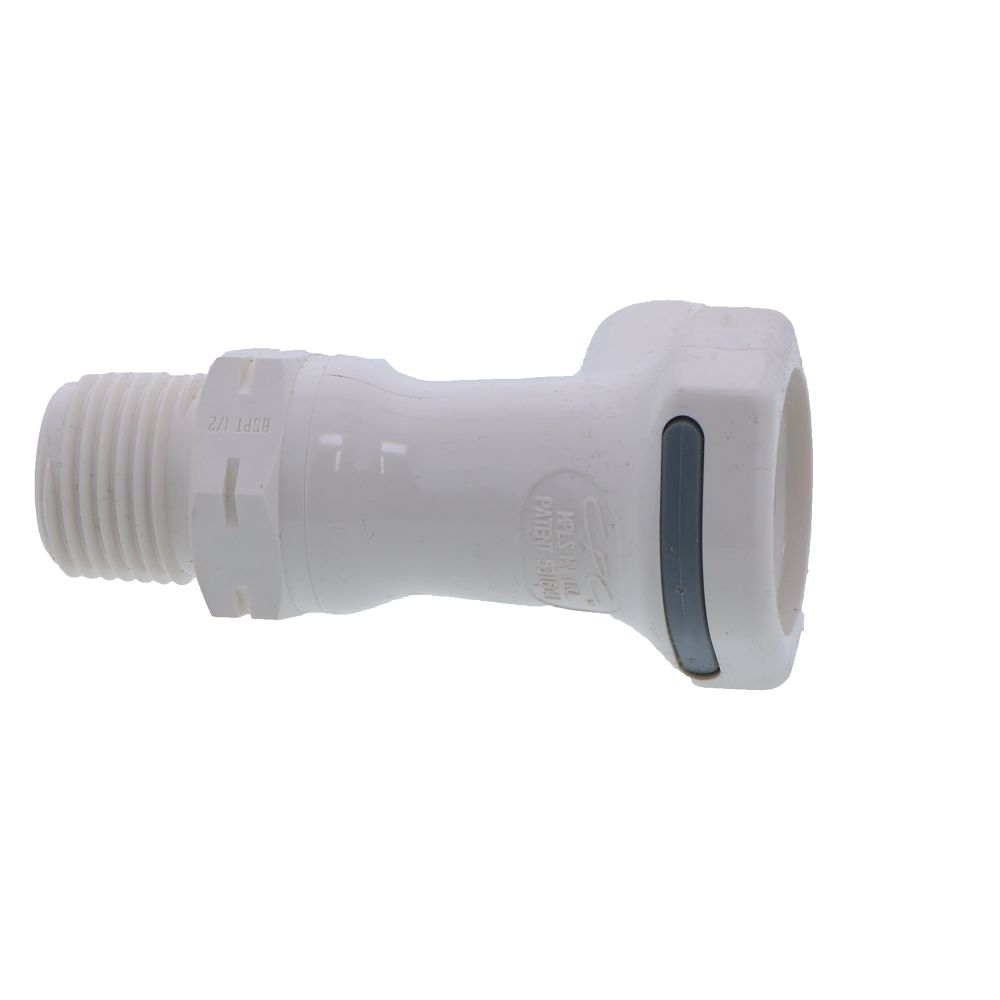

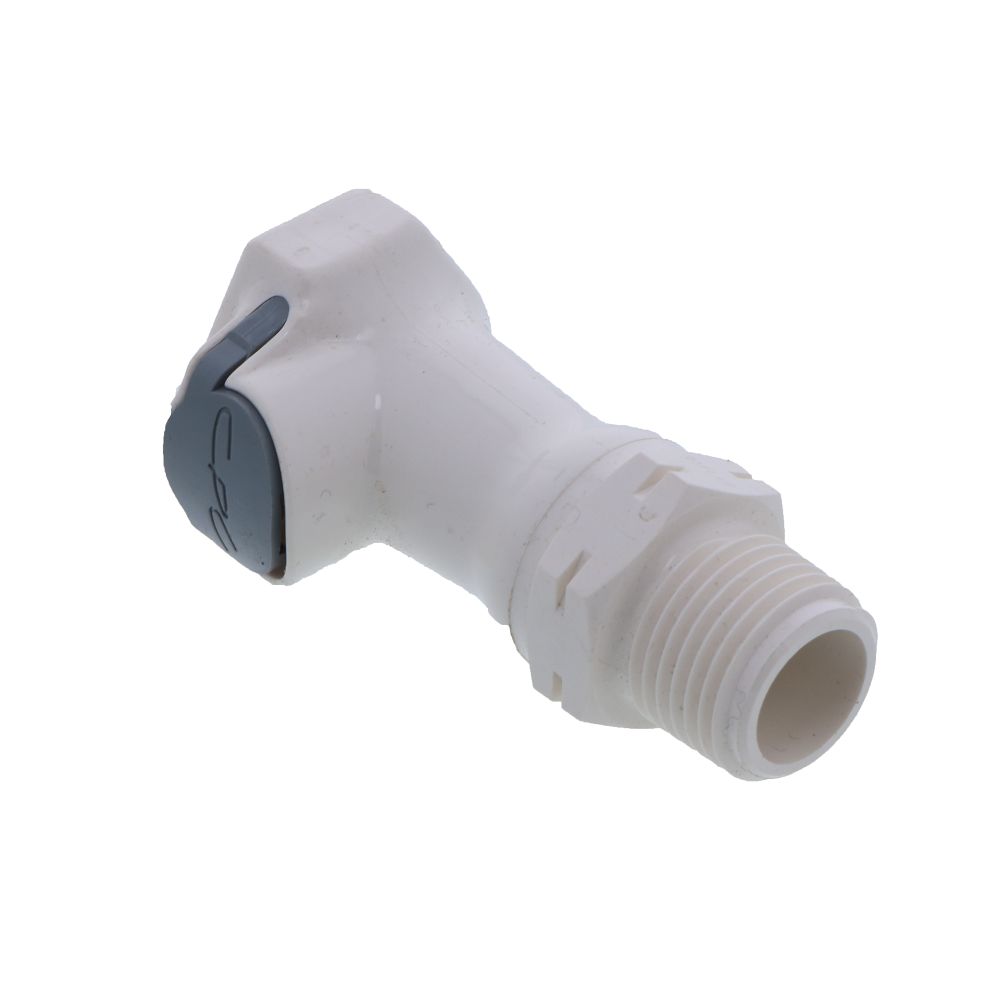

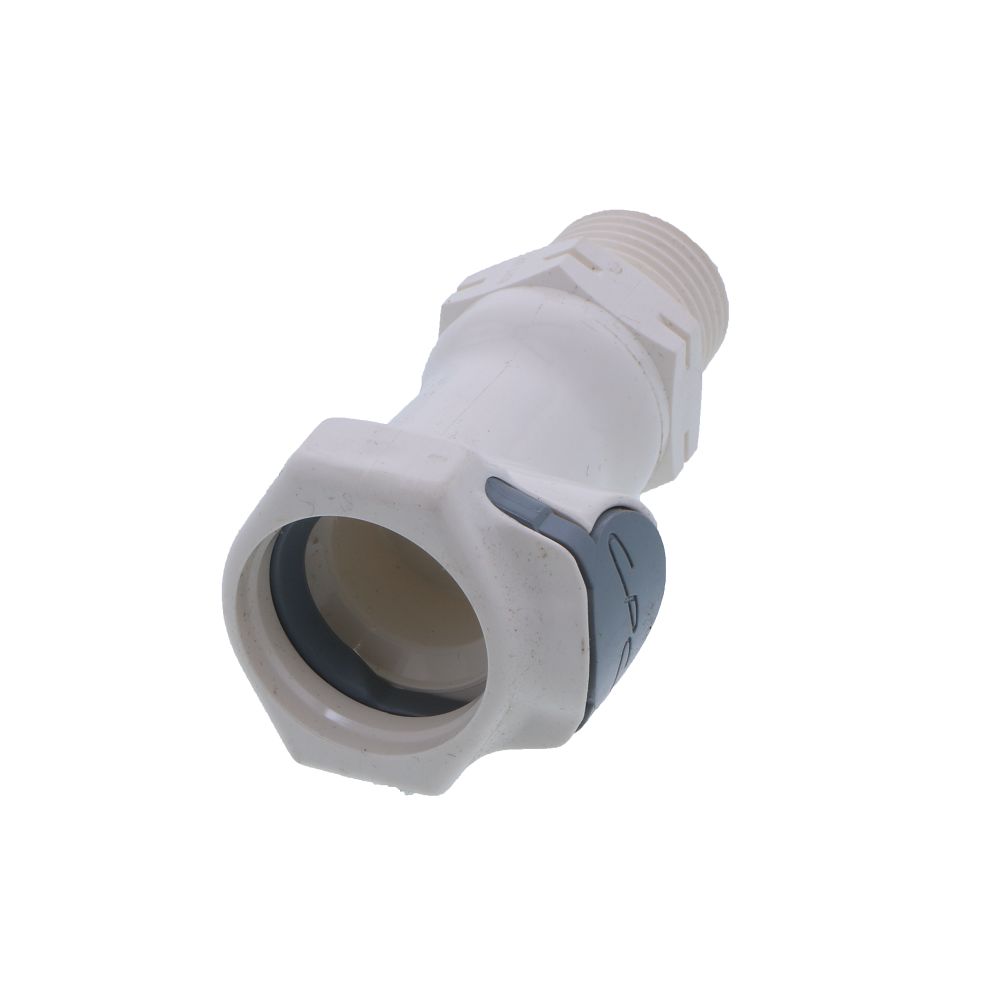

HFCD10835BSPT Valved Male Thread Coupling Body 1/2 BSPT

Part Number: HFCD10835BSPT

In Stock

out of stock

In Stock

$15.88

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: BSPT threads
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units




Weight & Dimensions

Length (inches)

2.63

Height (inches)

1.25

Width (inches)

1.25

Weight (lbs)

0.003125

Details

Series

HFC35

Max Temp (°F)

280

Max Pressure (Psi)

125

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Polysulfone

Color / Finish

White

Mounting Options

Thread

Seal Material

EPDM

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/2" BSP


HFCD10835BSPT




The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.

Specifications:
  • Material: Polysulfone
  • Color: White
  • Pressure Range: Vacuum to 125 psi, 8.6 bar
  • Mounting Option: BSPT threads
  • Valve Option: Valved
  • Valve Spring: 316 Stainless Steel
  • Temperature Range: -40ºF to 280ºF
  • Seal Options: EPDM
  • Available in Bags of 10 units



Weight & Dimensions

Length (inches)

2.63

Height (inches)

1.25

Width (inches)

1.25

Weight (lbs)

0.003125

Details

Series

HFC35

Max Temp (°F)

280

Max Pressure (Psi)

125

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

10

Body Material

Polysulfone

Color / Finish

White

Mounting Options

Thread

Seal Material

EPDM

Size

1/2"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/2" BSP

Documentation
HFCD10835BSPT
