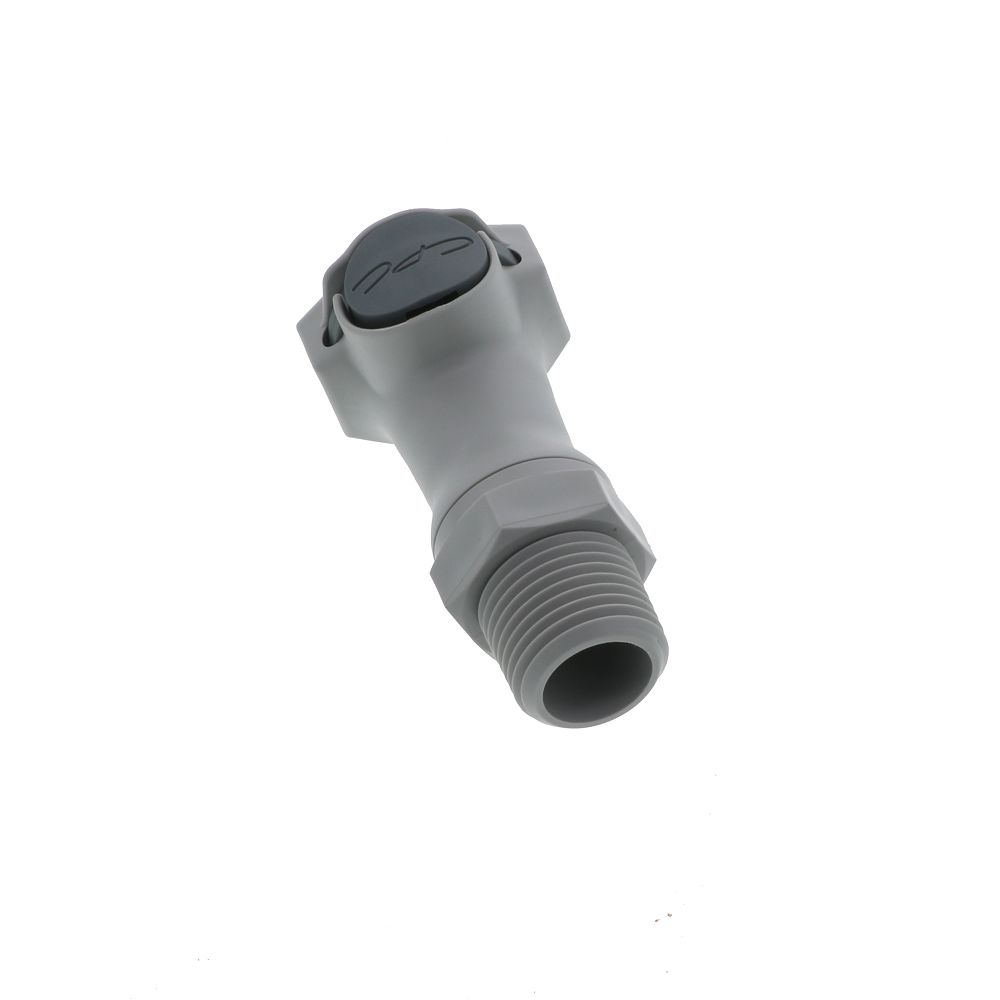

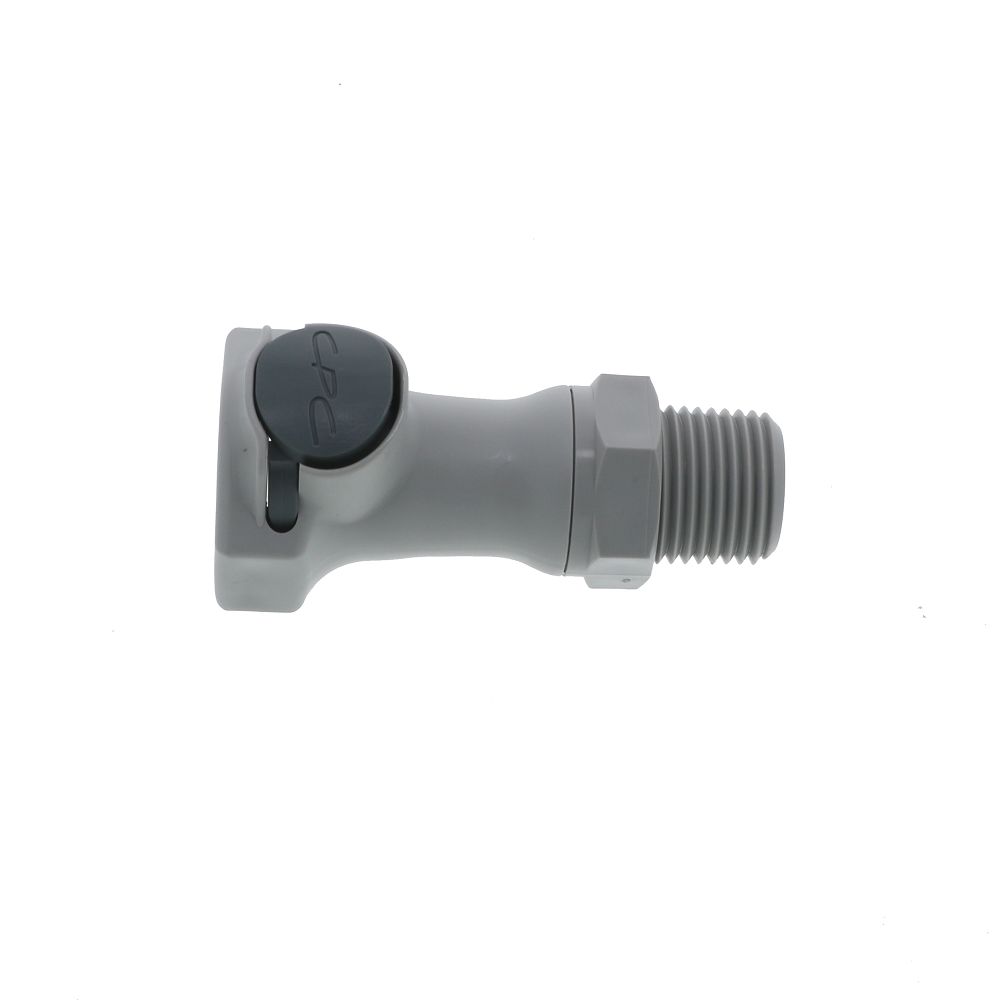

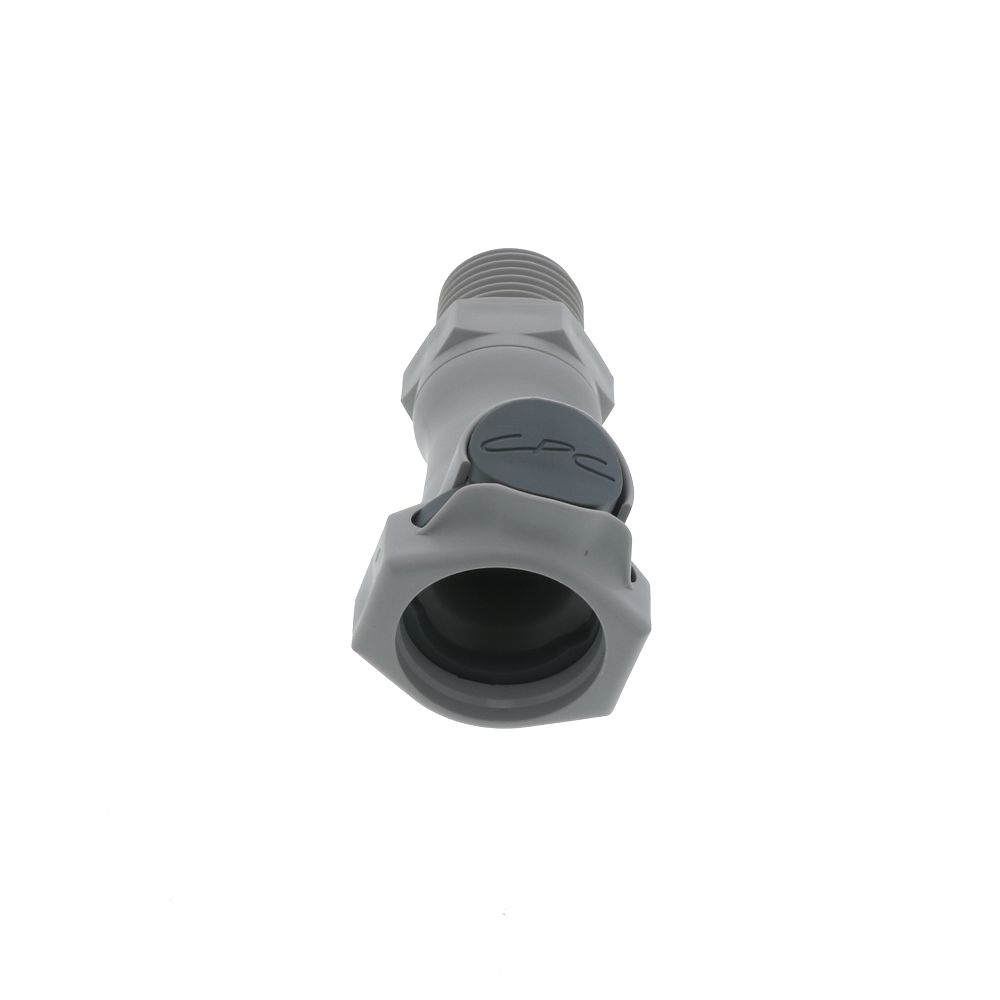

HFCD10812 Valved Male Thread Coupling Body 1/2 NPT

5.0

(3 reviews)

Part Number: HFCD10812 Alt. Part Number: 60PPV-SE1-08

1 3

Colder Products

HFCD10812 Valved Male Thread Coupling Body 1/2 NPT

5.0

(3 reviews)

Part Number: HFCD10812 Alt. Part Number: 60PPV-SE1-08

MSRP: $15.46

$15.46

Quantity

Unit Price

Price

Savings

$15.46

—

$15.07

$150.74

100

$14.68

$1,468.70

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The HFC12 Series has flow comparable to many 1/2" flow couplings in a 3/8" body size. They are compact and lightweight, making them an excellent replacement for bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. HFC couplings are ergonomically designed with a large, shrouded thumb latch pad resulting in a coupling that is easy to grip and simple to operate. The efficient valve design leads to high flow and low spillage.

Specifications:

Material: Polypropylene
Color: Gray
Pressure Range: Vacuum to 60 psi, 4.2 bar
Mounting Option: NPT threads
Valve Option: Valved
Temperature Range: 32ºF to 160ºF
Seal Options: EPDM
Available in Bags of 10 units
NSF Listed Version (part # 62800) Available Upon Request

Specifications

Product Details
Inlet Connection	1/2" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/2" MPT
Seal / O-Ring Material	EPDM
Series	HFC12
Shape	Straight
Size	1/2"
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	3 in.
Shipping Width	1.5 in.
Shipping Height	1.5 in.
Product Weight & Dimensions
Product Height	1.5 in.
Product Length	3 in.
Product Width	1.5 in.
Product Weight (lbs)	0.0625

Product Details
Inlet Connection	1/2" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/2" MPT
Seal / O-Ring Material	EPDM
Series	HFC12
Shape	Straight
Size	1/2"
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	0.85

Product Details
Inlet Connection	1/2" MPT
Max Pressure (Psi)	60
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/2" MPT
Seal / O-Ring Material	EPDM
Series	HFC12
Shape	Straight
Size	1/2"
Valve Type	Valved
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	5

Downloads

HFCD10812 Valved Male Thread Coupling Body 1/2 NPT Manual

Reviews (3)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

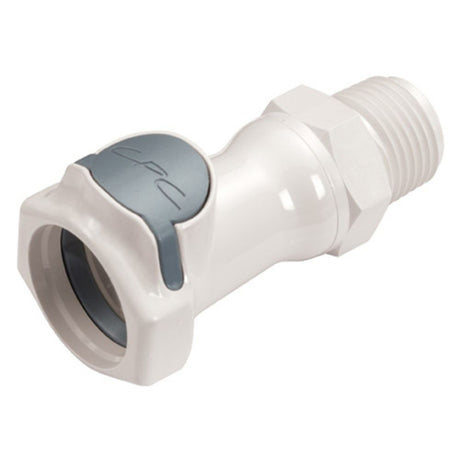

Facet	Colder Products HFCD10812 Valved Male Thread Coupling Body 1/2 NPT 5.0 Regular price From $15.46 Part #: HFCD10812 Save up to 5% with bulk pricing Current Product	Colder Products 62800 NSF Valved Coupling Body 1/2 NPT Regular price From $15.54 Part #: 62800 Save up to 5% with bulk pricing View details	Sold Out Colder Products HFCD10835 Valved Male Thread Coupling Body 1/2 NPT Regular price From $20.47 Sold out Part #: HFCD10835 Save up to 5% with bulk pricing View details
