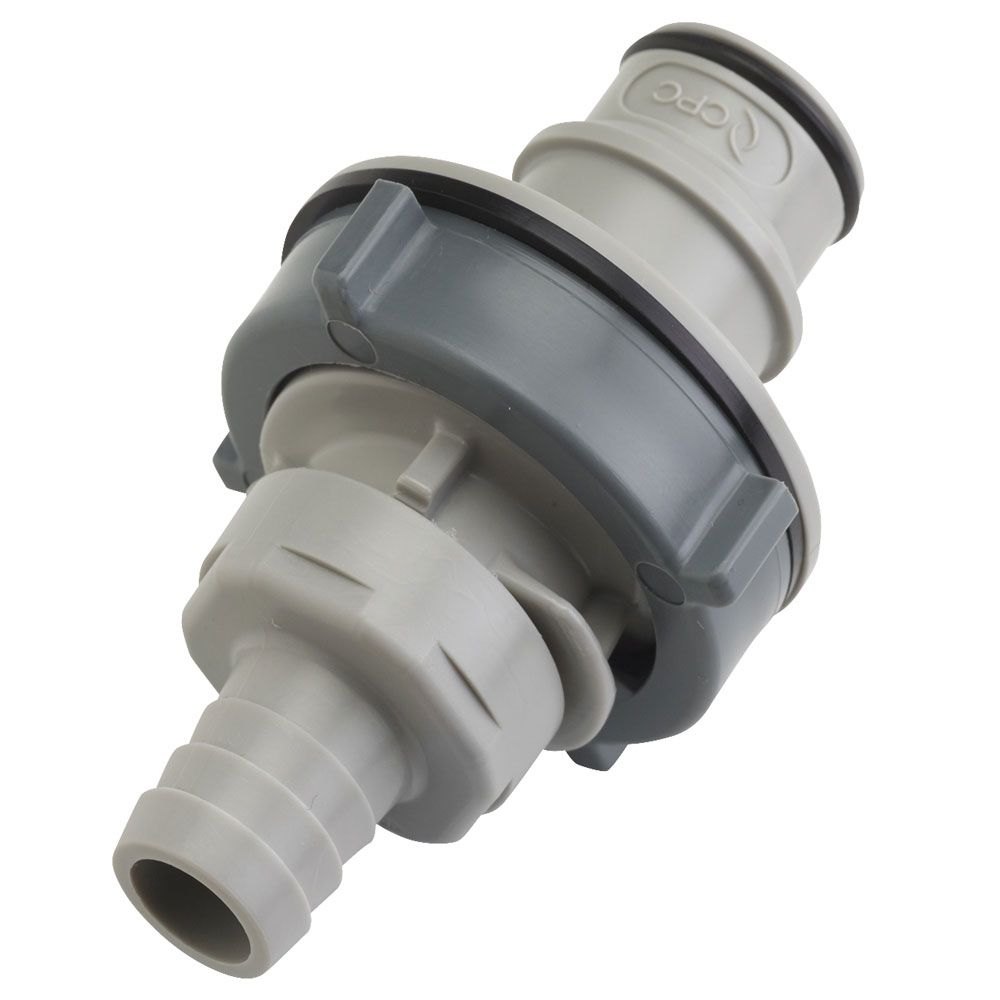

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. HFC12 couplings are also available in NSF-listed versions.
Specifications:
Specifications:
- Material: Polypropylene
- Material Finish: Grey
- Valve Option: Non-Valved
- Mounting Option: Panel Mount
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Temperature Range: 32°F to 160°F
Details
Application | Water |
Barb Size | 1/2" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 60 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Panel Mount |
Seal Material | EPDM |
Series | HFC12 |
Valve Type | Non-Valved |
Color / Finish | Gray |
Type | Coupling Insert |
Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. HFC12 couplings are also available in NSF-listed versions.
Specifications:
- Material: Polypropylene
- Material Finish: Grey
- Valve Option: Non-Valved
- Mounting Option: Panel Mount
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Temperature Range: 32°F to 160°F
Details
Application | Water |
Barb Size | 1/2" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 60 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Panel Mount |
Seal Material | EPDM |
Series | HFC12 |
Valve Type | Non-Valved |
Color / Finish | Gray |
Type | Coupling Insert |
