Colder Products

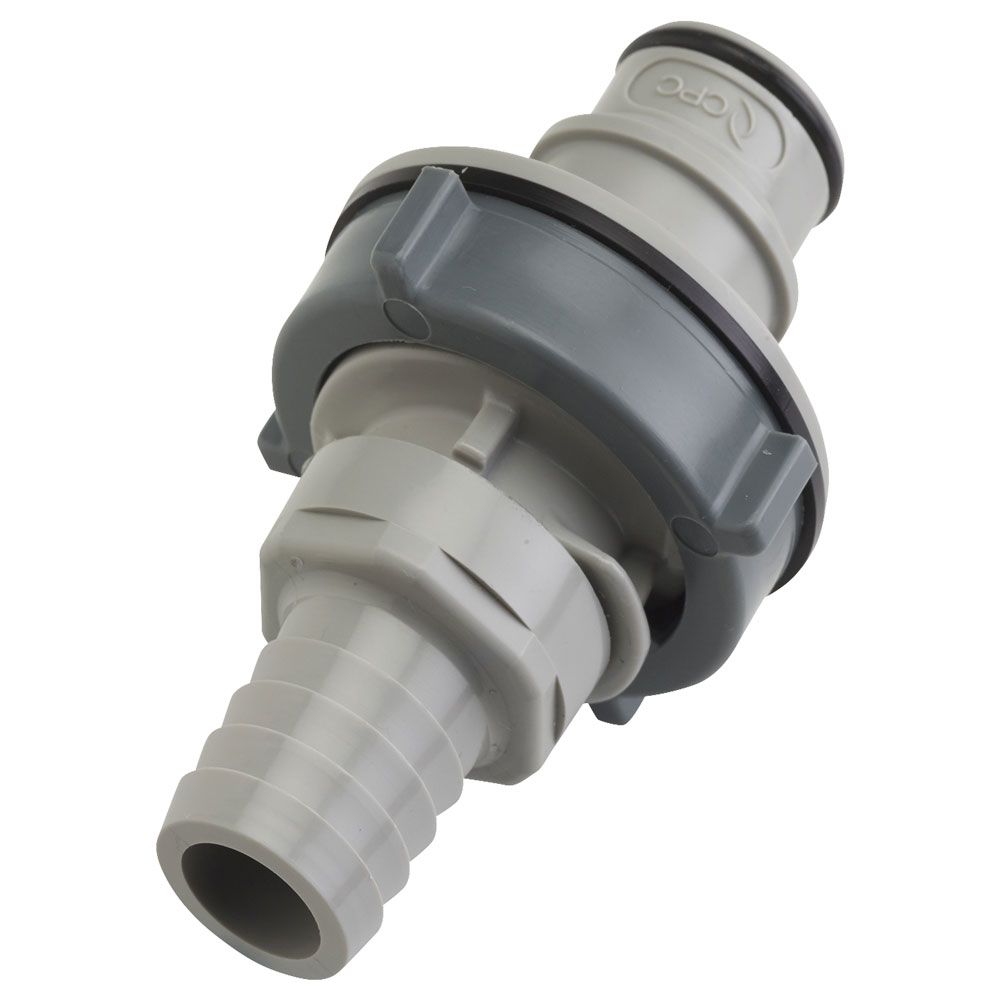

HFC421012 Non-Valved Panel Mount Hose Barb Coupling Insert 5/8 ID Barb

Part Number: HFC421012

In Stock

out of stock

In Stock

$12.58

Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. HFC12 couplings are also available in NSF-listed versions.

Specifications:
  • Material: Polypropylene
  • Material Finish: Grey
  • Valve Option: Non-Valved
  • Mounting Option: Panel Mount
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Temperature Range: 32°F to 160°F


Details

Application

Water

Bag Quantity

10

Barb Size

5/8" ID

Body Material

Polypropylene

Color / Finish

Grey

Max Operating Pressure

60

Max Operating Temperature

160

Mounting Options

Panel Mount

Seal Material

EPDM

Series

HFC12

Valve Type

Non-Valved


HFC421012




Patented HFC12 Series couplings have flow comparable to many 1/2" flow couplings in a 3/8" body size. Compact and lightweight, HFC couplings replace bulky and heavy metal ball-and-sleeve couplings in a wide range of applications. An ergonomic design and a large, shrouded thumb latch pad produce a coupling that is easy to grip and simple to operate. An efficient valve design leads to high flow and low spillage. HFC12 couplings are also available in NSF-listed versions.

Specifications:
  • Material: Polypropylene
  • Material Finish: Grey
  • Valve Option: Non-Valved
  • Mounting Option: Panel Mount
  • Pressure Range: Vacuum to 60 psi, 4.2 bar
  • Temperature Range: 32°F to 160°F

Details

Application

Water

Bag Quantity

10

Barb Size

5/8" ID

Body Material

Polypropylene

Color / Finish

Grey

Max Operating Pressure

60

Max Operating Temperature

160

Mounting Options

Panel Mount

Seal Material

EPDM

Series

HFC12

Valve Type

Non-Valved

Documentation
HFC421012
