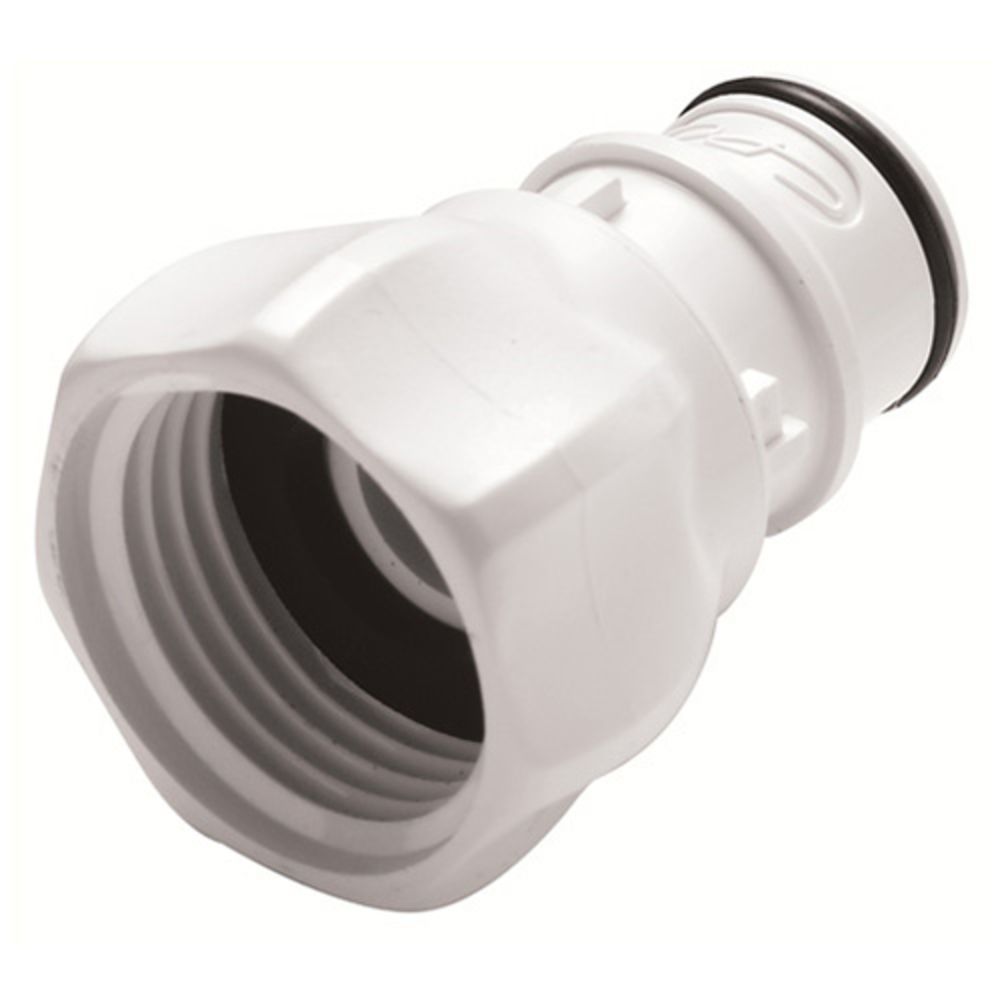

The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.
Specifications:
- Material: Polysulfone
- Color: White
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Mounting Option: Female Garden Hose Thread
- Valve Option: Non-Valved
- Temperature Range: -40ºF to 280ºF
- Seal Options: EPDM
- Available in Bags of 10 units
- NSF Listed Version (part # 82600) Available Upon Request
Details
Bag Quantity | 10 units |
Body Material | Polysulfone |
Color / Finish | White; Molded White |
Mounting Options | Thread |
O Rings | EPDM |
Operating Pressure Range | Vacuum to 125 psi, 8.6 bar |
Operating Temperature Range | -40°F to 280°F (-40°C to 138°C) |
Seal Material | EPDM |
Spring | 316 Stainless Steel |
Type | Coupler |
Valve Type | Non-Valved |
External Springs And Pin | 316 Stainless Steel |
The HFC35 Series couplings are able to withstand demanding applications and feature physical strength, chemical resistance and autoclavability.
Specifications:
- Material: Polysulfone
- Color: White
- Pressure Range: Vacuum to 125 psi, 8.6 bar
- Mounting Option: Female Garden Hose Thread
- Valve Option: Non-Valved
- Temperature Range: -40ºF to 280ºF
- Seal Options: EPDM
- Available in Bags of 10 units
- NSF Listed Version (part # 82600) Available Upon Request
Details
Bag Quantity | 10 units |
Body Material | Polysulfone |
Color / Finish | White; Molded White |
Mounting Options | Thread |
O Rings | EPDM |
Operating Pressure Range | Vacuum to 125 psi, 8.6 bar |
Operating Temperature Range | -40°F to 280°F (-40°C to 138°C) |
Seal Material | EPDM |
Spring | 316 Stainless Steel |
Type | Coupler |
Valve Type | Non-Valved |
External Springs And Pin | 316 Stainless Steel |
